Double-Wing Flap Barrier Turnstile for High-Traffic Areas

Double-Wing Flap Barrier Turnstile for High-Traffic Areas

1. Model Type: ZOJE-Y308
2. Support OEM,ODM customization
3. Pass Speed: 35 persons/Minute
4. Built with self-designed mechanical structure for stable and long-term performance.
5. Integrates with IC/ID readers, QR scanners, fingerprint readers, and facial recognition systems.
6. Highly compatible with building management and biometric systems.
7. Suitable for offices, government buildings, airports, schools, and transport hubs.
8. Warranty: 2 years
  • Face to Face Discussion
  • Quality Assurance
  • 24/7 Customer Service

Product Introduction

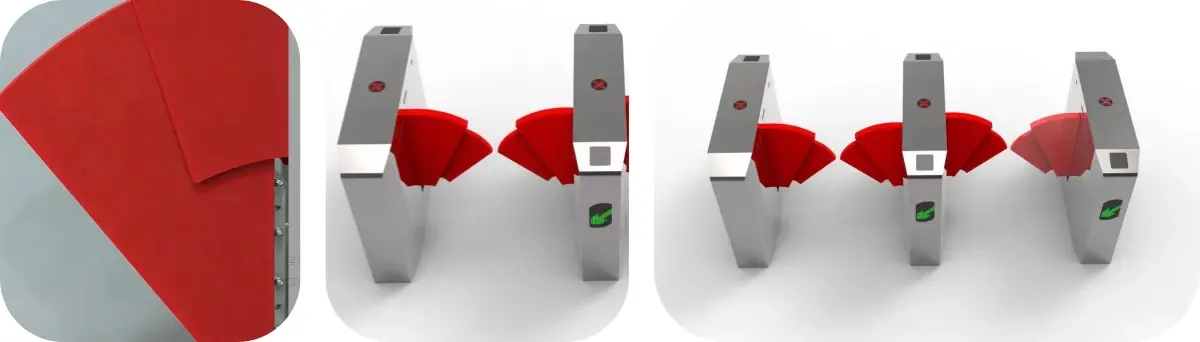

Double-Wing Flap Barrier Turnstile for High-Traffic Areas — ZOJE-Y308

Airports have a hard job: they must move crowds fast without loosening access control. Metro stations and corporate headquarters face the same test. The ZOJE-Y308 Double-Wing Flap Barrier Turnstile for High-Traffic Areas is built for this work. Its mechanical structure is self-designed. That structure moves up to 35 persons per minute. Dual flaps retract. You can get them in acrylic or PU wing materials. Lane width can be set from 600 mm to 900 mm. The unit holds ISO 9001:2015 certification. A 2-year warranty comes with it.

What Is a Double-Wing Flap Barrier Turnstile?

Two flap panels sit on opposite sides of the cabinet. They retract and work in sync. Together they control access to a pedestrian lane. A tripod turnstile makes people touch it. This design does not. So the mechanism wears less. The user experience faces less strain when peak hour runs nonstop.

Wider ADA-compliant lanes can gain from the double-wing layout. It suits multi-lane setups too. There, one cabinet in the middle can serve both directions. Peak-hour bottlenecks ease. Brushless motor technology brings mechanical wear down.

An infrared sensor matrix is what the system uses. It stops unauthorized entry, and false alarms do not go off in dense crowds.

​​​​​​​

Key Features of the ZOJE-Y308

High-Speed, High-Volume Performance

The ZOJE-Y308 handles up to 35 people a minute. It opens in roughly 0.2 seconds. A brushless DC (BLDC) motor or a servo motor comes with a planetary gearbox. They work together to reach an MCBF (Mean Cycles Between Failure) above 5 million cycles. Sites that run every day without a break are a good match.

Self-Designed Mechanical Structure

ZOJE engineers built the internal chassis. It stays stable over the long run. The cabinet is SUS304 stainless steel. Material thickness runs from 1.5 mm to 2.0 mm. Crowd pressure, corrosion, and physical impact will not bend it out of shape.

Advanced Safety Mechanisms

Inside the unit are 6 to 12 pairs of high-density infrared sensors. They catch break-in attempts, tailgating, and entry made the wrong way. The anti-pinch system is set to pull the flaps back or stop them at once when resistance passes 15 kgf.

Power Failure Fail-Safe

If power fails, or a fire alarm goes off, the wings fold back into the cabinet by themselves. That leaves a clear way out. This meets global fire safety regulations.

Wide System Integration

The ZOJE-Y308 works with IC/ID card readers. QR code scanners can connect to it. So can fingerprint readers. Facial recognition systems are also an option. On the protocol side, it handles TCP/IP and RS485. Dry contact is supported too. With these links, the Double-Wing Flap Barrier Turnstile for High-Traffic Areas unit can tie into AFC systems. Building management platforms can be linked as well. Biometric databases can be tied in too.

Technical Specifications

Parameter Specification
Model ZOJE-Y308
Dimensions (L×W×H) 1005×300×1000mm (Customizable)
Material 304/316 Stainless Steel
Channel Width 550mm-900mm
Door Material Acrylic/Tempered Glass
Drive Type Brush Motor/Brushless/Servo Motor
Direction Single/Bidirectional
Power Supply AC110-230V, 50/60Hz
Operation Voltage DC24V, 3A
Pass Speed 35 Persons/Minute
Working Temperature -70℃ to +15℃
Relative Humidity <95% (No Condensation)
Waterproof Rating IP67
Communication RS485/TCP-IP
Emergency Function Automatic Open (Fail-Safe)
Warranty 2 Years

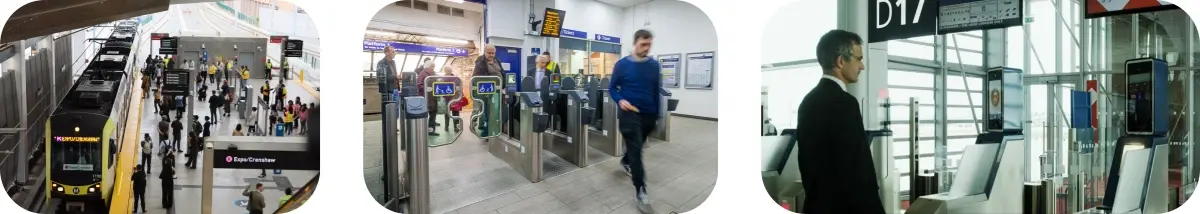

Application Scenarios

Mass Transit: Metro & BRT Stations

Metro stations use the ZOJE-Y308. It links directly to AFC (Automated Fare Collection) systems. At rush hour, the double-wing mechanism opens and closes without a pause. Heat buildup stays low on long runs. That comes from the brushless motor design.

Grade-A Office Towers and Corporate Headquarters

Premium lobbies get a "normally open" mode. The turnstile stays that way during approved access periods, and it closes only when an unauthorized entry is detected. Facial recognition and visitor management systems tie in with it. The entrance stays easy to use, and still under control.

Airports & Immigration E-Gates

Passenger luggage fits through lanes as wide as 900 mm. Logic in the IR sensor spots anyone trying to piggyback through. Pair the unit with biometric scanners and identity checks run on their own.

Other Suitable Environments

Steady foot traffic makes a site a good fit for the ZOJE-Y308. That covers government buildings, schools, transport hubs, and large commercial complexes.

Quality Control Process for Double-Wing Flap Barrier Turnstile for High-Traffic Areas

Before it ships, every ZOJE-Y308 unit goes through a quality check with several stages:

  • Aging/Endurance Test: The unit runs open and close cycles for 24 to 72 hours straight. This checks how stable the motor stays under heat and whether the gearbox holds up.
  • Anti-Pinch Calibration: Force gauges are used to check one thing. Do the flaps pull back or halt the moment they meet resistance? They must.
  • Tailgating Detection Test: Test subjects walk through close together, one behind the other. The IR logic has to spot the unauthorized follower. At the same time, it cannot slow down authorized people who pass through quickly.
  • Static Load & Impact Test: The housing and the flap wings take crowd-level pressure. Testers then look for any deformation.
  • Power Failure Check: Cut the power and the wings should fold back on their own. This check confirms the unit meets fire-safety rules.

certification

Customization & OEM/ODM Services

Full hardware and software customization on this Double-Wing Flap Barrier Turnstile for High-Traffic Areas comes from ZOJE. Wing size and cabinet finish can both change. Reader integration is one more option. Software logic can be adjusted, and so can lane width settings.

Standard products ship within 5–7 days. Customized orders typically require 10–15 days. Both sea freight and air freight are available under DDU and DDP terms.

Working on a customization project? Send a note to the team at info@zoje-tech.com. Tell them what your site needs and which setup you want.

Double-Wing Flap Barrier Turnstile for High-Traffic Areas

FAQ

Q: What keeps a turnstile working in high-traffic environments?

A: Busy lanes need a servo motor or brushless motor built for heavy duty. Add a planetary gear reducer to it. With that pairing, the unit runs cycle after cycle and does not overheat. Throughput on the ZOJE-Y308 hits 35 persons per minute. Its MCBF is over 5 million cycles.

Q: How does the system spot tailgating and shut it down?

A: The ZOJE-Y308 uses a dense IR sensor matrix of 6 to 12 pairs. When the system identifies a gap violation — a second person entering within the same authorized cycle — it triggers an alarm and closes the flaps.

Q: Can the lane width be changed so wheelchairs can pass through?

A: Yes. The double-wing design lets lane widths reach 900 mm. Wheelchairs fit through that gap. So does delivery equipment. Public buildings also stay within ADA compliance requirements with this setup.

Q: What occurs if power is lost or a fire breaks out?

A: Power fails, or a fire alarm goes off, and the wings pull back into the cabinet by themselves. A clear path out stays open. Fire safety rules around the world call for exactly that.

Q: How much routine care does this turnstile need?

A: Clean the IR sensors on a set schedule. Skip it and dust will get in the way. The gears inside need grease every 3–6 months. How often depends on the traffic the unit handles. Now and then, check the tension on the drive belt or the spring. That keeps the flaps in sync.

Q: Can ZOJE take on OEM and ODM projects?

A: Yes. ZOJE does OEM and ODM work. That covers software customization, hardware changes, and branding updates. Send your project requirements to info@zoje-tech.com and we can start.

Contact Us

Have a project to discuss? Email us at info@zoje-tech.com for a technical consultation on a Double-Wing Flap Barrier Turnstile for High-Traffic Areas or a custom quote on the ZOJE-Y308.
