LPR Camera for Parking Management

LPR Camera for Parking Management

1.Recognition type:Front-end
2.Recognition rate:99%
3.Model:ZOJE-LPR201
4.Support offline use:Front-end recognition, unaffected by network delay/offline
5.Support hardware/software customized,support various types of secondary development
6.Support outdoor use
7.24/7 service
8.Support OEM and ODM
  • Face to Face Discussion
  • Quality Assurance
  • 24/7 Customer Service

Product Introduction

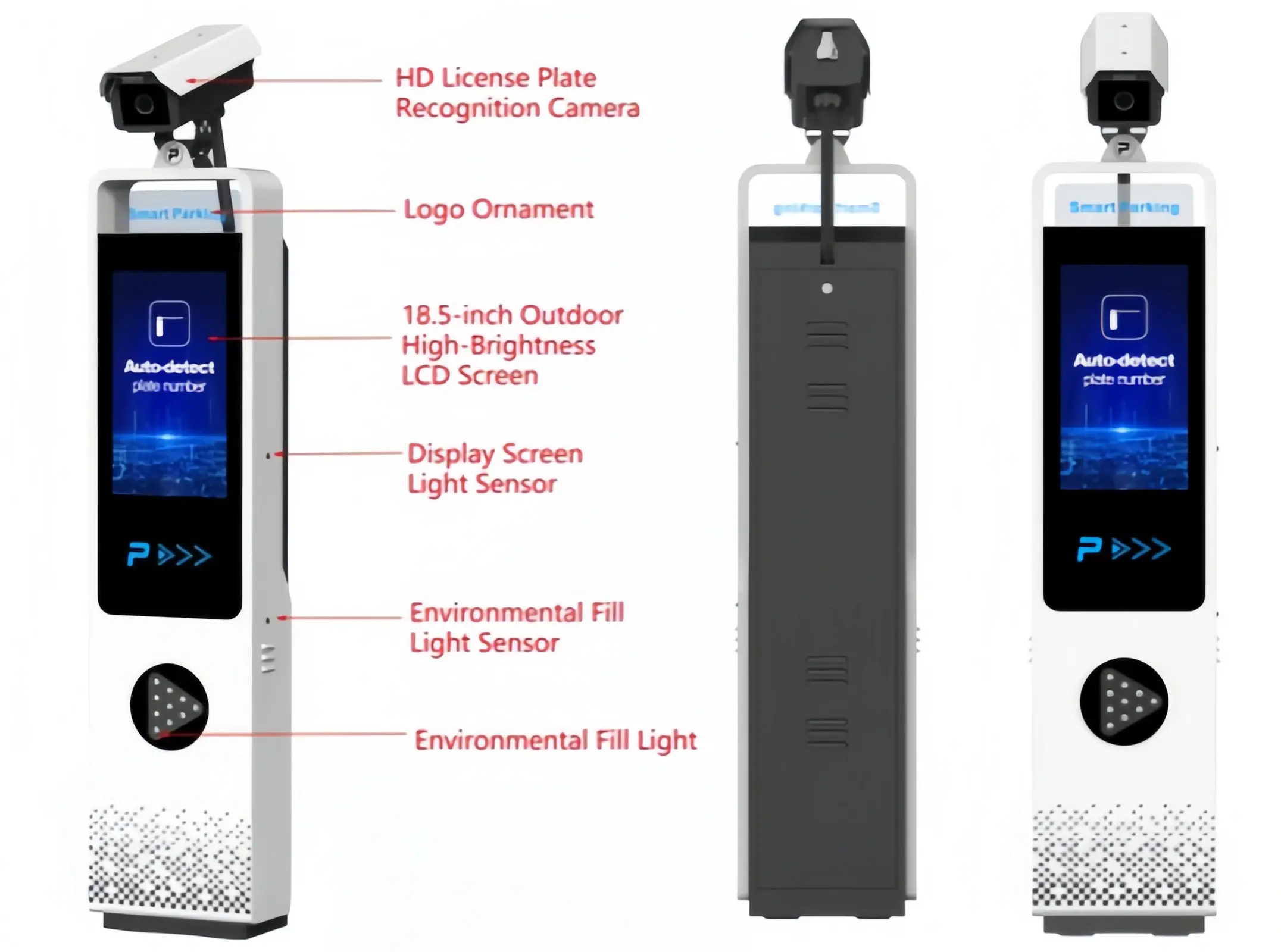

LPR Camera for Parking Management – ZOJE-LPR201 Edge Recognition System

LPR Camera for Parking Management rollouts run into the same problems in the field. Motion blur shows up at lane entries. At night, headlights cause glare. Plates that are dirty or partly covered fail to read. The ZOJE-LPR201 takes on all three. Edge OCR processing runs on the front end. A Global Shutter sensor grabs the frame. Deep learning inference happens right on the device. A single site needs no server at all. Commercial parking facilities, airports, and mixed-use developments all deploy it. It stays outdoors 24/7. Customization for OEM and ODM is available as well.

​​​​​​​

How This Camera Differs from Standard CCTV

Ordinary surveillance cameras are not built to capture plates. A Rolling Shutter sensor adds blur to any vehicle that drives in or out at speed. Direct headlight glare at night throws off the automatic exposure. Fixed IR output also overexposes plates close by and leaves the far ones too dark.

The ZOJE-LPR201 runs on a Global Shutter sensor. It reads the whole frame at once, so moving vehicles come out sharp with no motion blur. High-contrast light at entry and exit lanes gets handled by Wide Dynamic Range (WDR > 120dB) plus High Light Compensation (HLC) working together. Output from the Smart IR illuminator changes with vehicle distance. That keeps OCR accuracy steady up close and at the far end of the recommended 3–6 meter capture zone.

Plates get dirty. Characters fade or break off. The embedded deep learning algorithm still works with these. It uses fuzzy matching logic and compares what it sees against known patterns. Instead of throwing out a partial read, it returns a string with a confidence score attached.

Technical Specifications

Parameter Category Specification Details
Basic System Operating Voltage AC110-240V±10%
  Operating Temperature -20℃ to +60℃
  Rated Power ≤60W
  Communication TCP/IP, RS485
  Protection Class IP64
  Dimensions 1400×333×200mm
Camera Core CPU Dual-core 900MHz + CNN acceleration
  Image Sensor 1/2.8" starlight CMOS
  Max Resolution 1920×1080
  Recognition Rate ≥99%
  Network Interface 10/100Mbps RJ45
  Storage TF card slot (up to 512G)
Display Screen Size 18.5-inch outdoor LCD
  Resolution 1366×768
  Brightness High-brightness for outdoor use
Fill Light LED Count 9 pieces
  Maximum Power 10W
  Illumination Distance >50LUX at 5 meters

Core Features for Parking Operations

Front-End Edge Recognition

All OCR processing runs on the camera itself. Only the plate text string and a small JPEG image are transmitted to the barrier gate or parking management system. This removes the dependency on a local server and reduces infrastructure requirements for single-site deployments.

Wiegand and Relay Output

Camera hookup to barrier gates happens in two ways: Wiegand interface or relay output. A whitelisted plate shows up, and the gate opens on its own. No one has to press anything. For third-party billing and access control platforms, there is also a RESTful API and HTTP POST output.

Deep Learning Fuzzy Matching

Say a plate has missing characters, mud, or physical wear. The system matches it to the closest string it can find in the database. Each read comes back with a confidence score. In high-traffic sites, plates are not always clean. This approach cuts down false rejections there.

IP67 Housing and IK10 Vandal Resistance

The housing is die-cast aluminum. Its IP67 rating covers dust and water ingress, and IK10 covers impact resistance. Continuous operation has been validated over a wide temperature range. That makes the camera, LPR Camera for Parking Management, a fit for exposed outdoor lanes and underground facilities.

Application Scenarios

Commercial Towers for Offices and Mixed-Use Developments

Visitors get ticketless entry. Registered tenants come in on automatic whitelist access. Plate capture also holds up in underground garages. Credit goes to the Global Shutter sensor and Smart IR, which handle tight lane angles (up to 45° plate skew) and low ambient lighting.

Retail and Shopping Mall Parking

Busy sites need plate reads to come back fast, one after another. Waiting on processing is not an option when traffic peaks. Duplicate reads get filtered out by the tailgating detection logic. Grouped frame sequences are split apart, so each vehicle stands on its own. Loyalty programs can be linked in, and so can tiered access lists.

Airports and Transport Hubs

Lanes at airports sit outdoors. Rain, fog, and thermal stress all work against them. The camera keeps running inside its IP67 housing, and the validated thermal cycling range covers harsh conditions. High-security zones sometimes need the plate and the driver face captured at the same moment. Dual-lens configurations exist for exactly that.

Usage Scenarios

Quality Control for LPR Camera for Parking Management

Each ZOJE-LPR201 unit is put through structured testing before it ships:

  • Capture and Recognition Rate Test: Checks how many plates get captured and how well the OCR reads them. Both are measured against set thresholds.
  • Salt Mist Testing (IEC 60068-2-11): Shows the unit can resist corrosion. That matters on the coast and anywhere the air stays damp.
  • Thermal Cycling Test: The unit runs in a chamber through the whole operating temperature range. This checks how the parts inside hold up.
  • HLC Lighting Evaluation: We test the high beam head-on. This shows whether the headlights compensate in a simulated nighttime entry.
  • IP67 Ingress Validation: Water and dust tightness get checked here. That stops condensation on the lens and moisture from getting inside.

ZOJE Intelligent Technology Co., Ltd. has built intelligent imaging products since 2012. Design and manufacturing both happen in-house. The company also holds ISO 9001:2015 certification for its quality management system.

OEM and ODM Customization

Hardware and software can both be customized to fit what a project needs. ZOJE handles that work. Options cover the lens setup, the housing color, the firmware language, and the API output format. You can also pick the integration protocol.

System integrators and distributors who want to sell branded parking solutions can work with us under OEM or ODM terms. Standard units go out in 5–7 business days. Customized units usually take 10–15 business days, and the exact LPR Camera for Parking Management scope of the job sets the final figure.

LPR Camera for Parking Management

Frequently Asked Questions

Q: Can this camera work without an internet connection?

A: Yes. Every bit of OCR work happens right on the device. The ZOJE-LPR201 works fully offline. Slow networks or outages do not affect it at all.

Q: What happens when cars go through the lane at speed?

A: A Global Shutter sensor plus video trigger mode picks up plates at up to 40 km/h with no motion blur. Duplicate reads from tailgating get filtered out too, thanks to frame grouping logic.

Q: What is the correct mounting position for accurate reads?

A: Fit the camera so the vertical angle stays below 30° and the horizontal variance also stays below 30°. Keep the capture distance at 3–6 meters. That range keeps plate pixel density at the 120–150 pixel minimum width requirement.

Q: Does the system need its own PC server on site?

A: No. The device works at the edge. It sends only text data and JPEG images to the barrier or management system. For single-site deployments, no dedicated local server is needed.

Q: What ways can it link up with barrier gates and payment systems?

A: Wiegand output is there. So is relay control. You also get a RESTful API and HTTP POST data pushing. On a whitelist match the gate opens right away. Timestamps then go out to third-party billing platforms.

Q: What kind of warranty and after-sales support comes with it?

A: Every unit ships with a 2-year warranty. Remote guidance on installation comes from ZOJE. Technical support runs for the full product lifecycle too.

Contact Us

Need LPR Camera for Parking Management specifications or a price? Have a customization request to talk through? Email our team at info@zoje-tech.com.
