Smart Ticketless ANPR parking system
2.Recognition rate:99%
3.Recognition Regions:Around world
4.Support offline use:Front-end recognition, unaffected by network delay/offline
5.Support hardware/software customized,support various types of secondary development
6.Model:ZOJE-LPR210
7.Free SDK; support multiple linking solutions such as the dynamic link library (DLL) and com components,support a variety of development languages like C, C++, C#, VB, Delphi, Java, etc.
8.Support OEM and ODM
- Face to Face Discussion
- Quality Assurance
- 24/7 Customer Service
Product Introduction

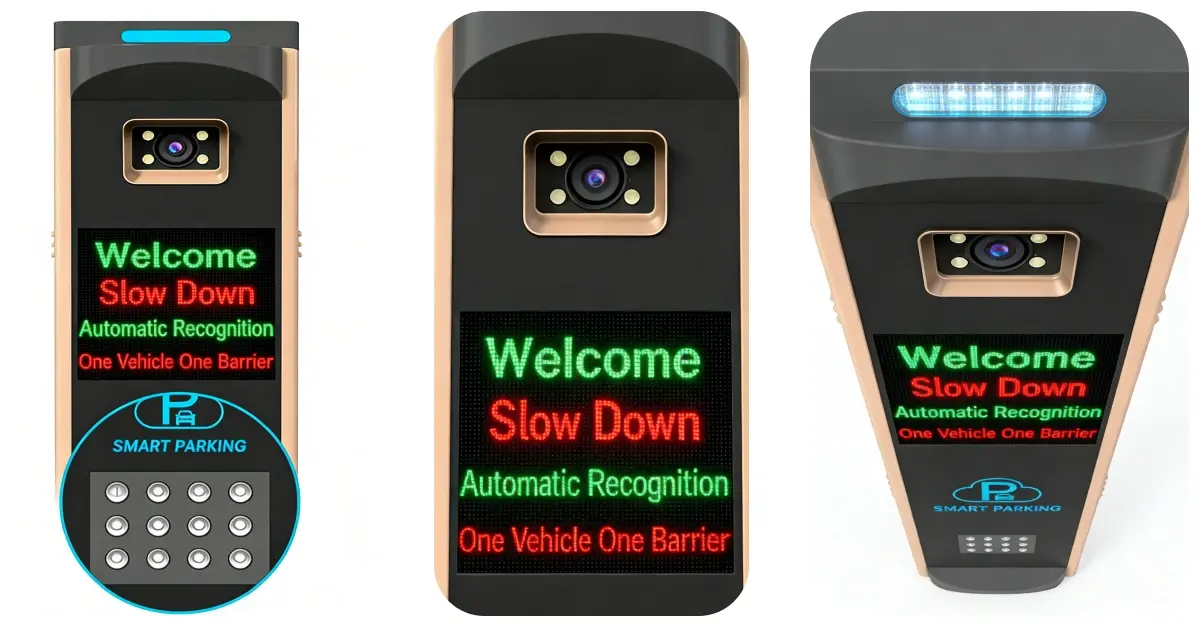

Smart Ticketless ANPR Parking System – Automated Vehicle Access Solution for High-Traffic Facilities
The ZOJE-LPR210 Smart Ticketless ANPR parking system replaces paper tickets with automatic license plate recognition as the sole vehicle credential. Developed by Hong Kong ZOJE Intelligent Technology Co., Ltd. — established in 2012 and ISO 9001:2015 certified — it processes plate reads at the device edge in under 200ms, supports offline operation with local data buffering, and covers plates from regions worldwide. Hardware and software customization, OEM, and ODM options are available. Standard units ship in 5–7 days; customized orders are typically ready in 10–15 days.
How a Ticketless ANPR System Differs from a Traditional Barrier Lane
Traditional ticket-dispensing lanes create a stop-and-wait interaction at every entry and exit. Drivers must halt, roll down the window, collect or return a ticket, and wait for validation — a sequence that limits lane throughput during peak hours.
A license plate recognition parking system uses the plate itself as the credential. No ticket is issued, no keycard is needed, and no physical contact is required. The gate trigger fires while the vehicle is still approaching, reducing dwell time per vehicle. Eliminating thermal paper consumables also lowers ongoing operating costs, and the photographic entry and exit audit trail removes "lost ticket" disputes and deters ticket-swapping fraud.
Key Technical Specifications
| Component | Specification |
|---|---|
| Model | ZOJE-LPR210 |
| Recognition Rate | 99% |
| Recognition Type | Front-end |
| Image Output | 5MP JPEG |
| Focal Length | 6mm fixed aperture |
| LED Screen Size | 256mm×256mm |
| LED Resolution | 64×32 dot matrix |
| Protection Rating | IP42 |
| Operating Temperature | -10℃~60℃ |
| Operating Humidity | 5% to 85% |
| Power Consumption | 100W MAX |
| Device Dimensions | 336mm×180mm×1400mm |
| Weight | ≈16kg |
| Storage Support | Micro SD (TF) card, max 32GB |
| Wide Dynamic Range | ≥100dB |
Core System Features
Front-End Edge Recognition
Recognition work happens on the device itself. Nothing gets sent off to a remote server. The gate trigger fires in under 200ms, so the barrier lifts as the vehicle pulls up. If the network drops, data sits in local storage and syncs on its own once the connection comes back.
AI-Based Plate Reading
The neural network OCR engine is built to read plates covered in mud. Bent plates and non-standard reflective ones are handled too, using fuzzy logic processing. Accuracy stays above 98% in low light and in bad weather. Pulsed IR light at 850nm lets the camera work in total darkness. Drivers never see glare from it.
Make and Model Recognition (MMR)
In addition to reading the plate number, the system identifies vehicle color and brand as a secondary verification layer. This cross-reference is designed to reduce false positive reads.
Anti-Tailgating and Anti-Passback
Video analytics or physical ground loop emulation monitors vehicle separation at the entry point. When two vehicles enter in close succession, the camera captures distinct frames for each, enforcing anti-passback rules that block the second vehicle from exiting under the first vehicle's session.
SDK and Smart Ticketless ANPR parking system for Multi-Language Integration
The included SDK supports DLL and COM component integration. Developers can work in C, C++, C#, VB, Delphi, or Java, enabling secondary development and third-party platform integration without proprietary middleware.
Application Scenarios
Shopping Malls and Retail Facilities
Shoppers can register their plates in the loyalty app, and parking is then validated automatically. Bright daylight outside, deep shadow underground: the camera's dynamic range handling covers that jump. Read accuracy holds up through the lighting change.
Corporate Campuses and Office Buildings
Whitelist-based access allows registered staff vehicles to enter on recognition while directing visitor vehicles to designated paid zones. The system is designed to read plates at acute approach angles — relevant in multi-level structures where lane geometry limits straight-on capture.
Airports and Transport Hubs
A varifocal long-range lens setup reads plates from further back along fast approach ramps. That gives the gate time to open before a driver has to slow down. Real-time database queries are supported as well. They can be set up to check each plate against approved access lists.

Quality Assurance and Testing for Smart Ticketless ANPR parking system
Every ZOJE-LPR210 unit goes through a structured testing process before shipping:
- Confidence Score Verification: Before the barrier lifts, the AI engine has to hit a set confidence threshold. False positives are targeted at less than 0.1%.
- Thermal Cycling: Every unit runs through the whole operating range, from -25°C to +70°C. The test confirms the neural processing unit keeps working without throttling or lag when temperature puts stress on it.
- Degraded Plate Testing: Mud-covered plates get tested. So do bent ones, and plates that fall outside the standard spec. We run the algorithm against all of them. That is how we confirm the accuracy figure still holds in real conditions.
- Network Resilience Audit: In edge mode, data is stored on the device when the network goes down. Once the link comes back, the sync completes with nothing lost. Our audit checks both steps.
- EMC/EMI Shielding: Internal electronics are shielded against electromagnetic interference typical of parking structure environments.
The system supports AES-256 encryption for data at rest and in transit, along with configurable automated data retention policies and image masking for faces and surroundings, to assist operators in meeting applicable data protection requirements.
Customization and OEM / ODM Cooperation
ZOJE supports hardware and software customization based on project requirements. OEM and ODM cooperation is available for parking systems and pedestrian turnstile products. Modification scope can include housing design, firmware configuration, and integration with proprietary parking management platforms. The engineering team works to customer-supplied specifications.
Standard products ship in 5–7 days. Customized projects for the Smart Ticketless ANPR parking system are typically ready in 10–15 days. Sea freight and air freight are both available. DDU and DDP trade terms can be arranged.

Frequently Asked Questions
Q: What if a vehicle has no plate, or the plate can't be read?
A: When the ANPR confidence score drops under the threshold, the system sends a visual alert so a person can check it remotely. A driver can also scan the QR code at the entry terminal. That links the entry event to a timestamp by hand.
Q: Can the ZOJE-LPR210 connect to an existing barrier gate?
A: Yes. The unit outputs via standard Wiegand 26/34 and Relay I/O ports, which are compatible with most barrier gate brands. This allows the ANPR system to be added to an existing lane without replacing the gate hardware.
Q: Privacy compliance: how is recognition data handled?
A: AES-256 encryption is built in. Retention policies can be set up to run on their own, and stored captures can be masked so faces and nearby details are blurred out. These features exist to help you meet GDPR and other data protection rules. Confirming that you actually comply with the laws that apply to you is still down to the operator.
Q: How much upkeep does the system need over time?
A: The optical lens benefits from periodic cleaning. Remote firmware updates are released to expand the OCR algorithm library for new plate formats as they are introduced. There are no mechanical components in the recognition unit requiring scheduled servicing.
Q: How does anti-tailgating work in practice?
A: Video analytics monitors the gap between consecutive vehicles at the entry point. If two vehicles enter in close succession, the system captures separate image frames for each and applies anti-passback logic to ensure the second vehicle cannot exit under the first vehicle's recognized session.
Q: Which development languages does the SDK support?
A: The included SDK supports C, C++, C#, VB, Delphi, and Java, with DLL and COM component linking options for integration into existing platforms or parking management software.
