Barrier Gate For Parking Lot
1.The running speed can be adjusted from 1.5s to 8s
2.Aluminum boom, steel housing , stable at -35℃~70℃, tough & durable!
3.Open the barrier gate by motor wheel when power off ,automatically reset after power on
4.Customized crank arm three- link movement structure, the operation is stable
5.Well-integrated with car parking system equipment,with wire control(must be switch signal)
6.Triple anti-crushing + tamper alarm – keeps vehicles/equipment safe.
7.LPR/ETC/Bluetooth – cloud-connected, unattended operation easy.
8. 2-year warranty, 24/7 online support, 30min remote assistance, lifelong maintenance.
- Face to Face Discussion
- Quality Assurance
- 24/7 Customer Service

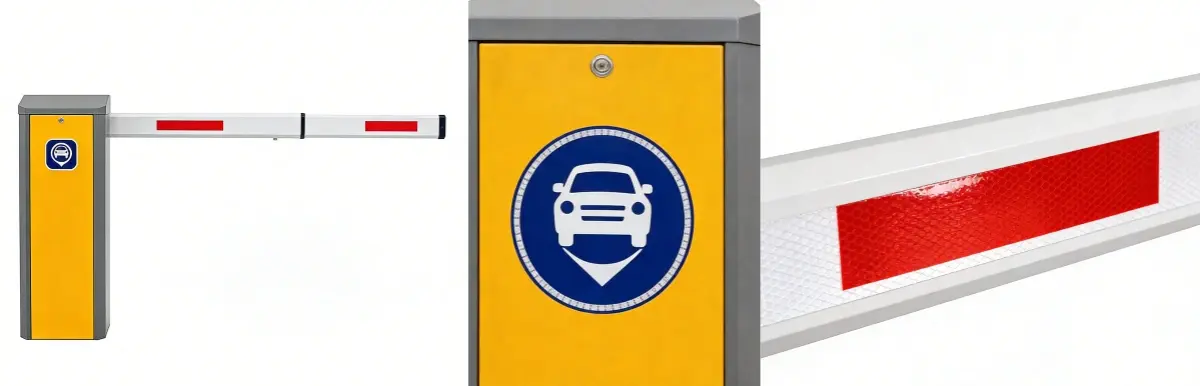

Product Introduction
Barrier Gate For Parking Lot – Automated Parking Access Control System for Smart Facilities
Hong Kong ZOJE Intelligent Technology Co., Ltd designs and builds the Barrier Gate For Parking Lot, and the company has been at it since 2012. Production follows ISO 9001:2015. ZOJE holds a number of technical and design patents too. Each unit ships with an aluminum boom arm and a steel housing. From -35°C up to +70°C, the gate keeps working. Opening and closing speed can be set anywhere from 1.5s to 8s. Every one comes with a 2-year warranty.
What Does This Product Actually Do?
Inside a Parking Management System (PMS), the barrier gate handles the physical side of access control. Three parts do that work. A high-torque motor drives it, a control board (PCB) runs it, and a counterbalanced boom arm does the lifting. Between them, they stop vehicles or let them pass.
Hook-up is direct, and License Plate Recognition cameras work with it. RFID long-range readers connect the same way. ETC systems, Bluetooth modules and ticket dispensers all plug in too. So unattended operation becomes practical. Cloud-connected operation works as well.
One device addresses four common operational problems:
- Unauthorized access: only validated vehicles pass through
- Revenue leakage: vehicles cannot exit without payment verification
- Tailgating: fast-closing logic limits passage to one vehicle per authentication
- Manual staffing cost: automated throughput during peak hours reduces labor dependency
Key Features and Technical Highlights
Speed You Can Adjust, and a Mechanical Build That Stays Stable
Open and close speed is adjustable from 1.5s to 8s. The setting depends on how much traffic the lane carries. Each run stays smooth and steady thanks to the crank arm three-link movement design. No shaking. The gearbox takes no strain.
Durable Materials for Outdoor Use
The boom arm is made of aluminum, so it stays light and resists corrosion. Steel forms the housing, which keeps the frame rigid. Together, the two hold the unit steady from -35°C to +70°C. Cold northern winters and hot southern weather both fall inside that range.
Power Failure Protection
No power? Turn the motor wheel by hand. The barrier opens. When power returns, the gate resets by itself. Advanced models use DC backup batteries. With no mains power, they run up to 500 cycles in a row.
Triple Anti-Crush Safety System
Three layers of anti-crush protection sit inside the barrier, and a tamper alarm comes with them. Loop detectors in the ground read a vehicle by its metal mass. Infrared photocells or 79GHz millimeter-wave radar pick up anything in the way. The arm then holds at once or reverses on its own.
Smart Barrier Gate For Parking Lot Integration Ready
The system integrates with LPR cameras, ETC, and Bluetooth access modules via wire control using a switch signal, connecting directly to existing parking equipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard Model | ZOJE-PB200 |
| Cabinet Material | Cold Rolled Steel |
| Working Temperature | -30°C ~ +70°C |
| Open/Close Speed | 1.5Sec - 8Sec |
| Rated Power | 200W |
| Driving Method | DC Brushless Motor |
| Rated Voltage | DC24V |
| Remote Control Distance | ≤100m (open, sunny weather) |
| Max Boom Length | Single/Bidirectional |
| Power Supply | AC110-220V, 50/60Hz |
| Protection Grade | IP54 |
| LED Indicator | Yes |
| Bi-direction Main Shaft | LEFT or RIGHT |
Application Scenarios
Commercial Buildings and Office Parks
Busy sites often need fast cycles. The range is 1.5s to 3s. That pace needs LPR or UHF RFID integration. Most lanes take a straight boom arm of 3m to 4m. Anti-smash radar and loop detectors keep vehicles safe through quick open-close cycles.
Underground Residential Parking
A basement garage with low clearance leaves no room for a straight arm. Choose a folding (articulated) boom arm at 90 degrees or 180 degrees. The height limit then goes away. Its folding shape is designed to clear ceiling pipes. It also stops the mechanism from jamming.
Industrial Logistics and Toll Stations
Wide lanes up to 6 meters and heavy-vehicle environments call for high-torque motors, fence arms or telescopic arms, and enhanced anti-corrosion coating — typically powder coat thickness above 80 microns to resist road salt, exhaust, and rain exposure.

Quality Control Process for Barrier Gate For Parking Lot
No unit leaves the factory until it has cleared several inspection steps:
- PCB Burn-In Test: power runs through the board for 72 hours at 60°C. Any part that fails shows up before assembly.
- Spring Fatigue Test: compression springs have to stay elastic beyond 3 million cycles.
- Motor Load Test: a full-load run lasts 24 hours without a break. Temperature must stay inside the Class F or H insulation limits, and this step confirms it
- Salt Spray Test: powder coating goes through 48–100 hours of testing. Rust and corrosion resistance get verified this way
- Safety Logic Test: Auto-reverse force measured with gauges to confirm impact stays below 2.5kg on obstruction detection

OEM, ODM, and Customization Options
Parking system integrators, property developers, and distributors can get Barrier Gate For Parking Lot hardware and software customization from ZOJE. Need enclosure branding, a longer boom, or different control board logic? The engineering team builds to the specs you send.
- Standard product lead time: 5–7 days
- Customized product lead time: 10–15 days
- Shipping options: Sea freight and air freight
- Trade terms: DDU and DDP

FAQ
Q: What happens to the barrier gate when the power goes out?
A: With no power, turn the motor wheel and the gate opens by hand. Power returns and the gate resets on its own. A few advanced models ship with a DC battery backup too. That backup keeps the gate running for up to 500 cycles without mains power.
Q: Why does the boom arm shake while it runs?
A: Shaking usually means the spring tension is out of balance, or a linkage connection has worked loose. On BLDC models, the deceleration parameters in the control unit may need tuning too.
Q: Is it possible to shorten the boom arm so it fits a narrower lane?
A: Yes. Aluminum alloy arms can be cut to length. After shortening, the spring tension must be re-adjusted — a lighter, shorter arm requires a looser spring to avoid overloading the gearbox on the down-stroke.
Q: What keeps the barrier from hitting pedestrians?
A: Ground loop detectors pick up big metal objects, cars for example. For protecting people on foot, use infrared photocells or 79GHz millimeter-wave radar. Any obstruction gets caught by these, and the gate either stays open or goes back.
Q: What kind of upkeep does the barrier gate need?
A: Heavy traffic means servicing the unit every quarter. Check the spring balance and tighten the chassis bolts. Grease the internal gears if they are not oil-bath sealed. Clean the optical sensors too. Once a year, look over the reflective tape on the boom arm.
Q: What integration options does this barrier gate support?
A: The gate integrates with LPR cameras, ETC systems, RFID long-range readers, Bluetooth access modules, and ticket dispensers via wire control (switch signal required).
Contact Us
For project requirements or a custom quote, reach our technical team at info@zoje-tech.com. We look forward to supporting your next Barrier Gate For Parking Lot parking access project.
