High-Wing Speed Gate Turnstile for Fast Access
2. Support OEM,ODM customization
3. Pass Speed: 35-40person/Minute
4. Supports one-way or bi-directional access control.
5. Compatible with RFID, QR code, fingerprint, face recognition, and other systems.
6. Can be integrated with building management systems and existing control systems.
7. Warranty: 2 yeras
8. Ideal for banks, office buildings, and intelligent access control projects.
- Face to Face Discussion
- Quality Assurance
- 24/7 Customer Service
Product Introduction

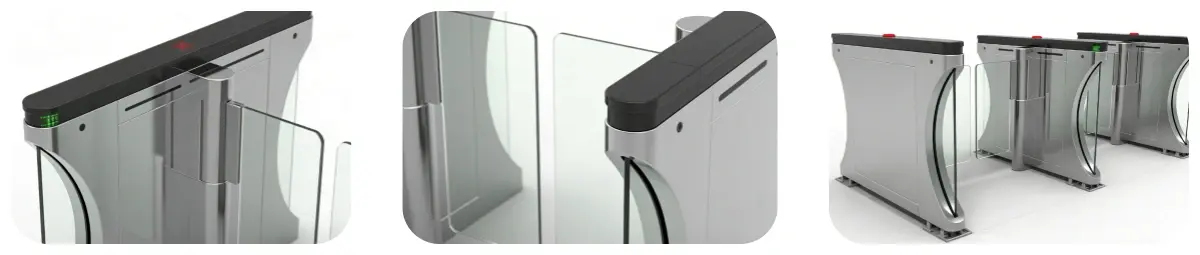

High-Wing Speed Gate Turnstile for Fast Access — ZOJE-BST200
During a busy hour, a large lobby can push hundreds of badge-ins through. A gate that only reaches your waist has no chance of keeping up. The High-Wing Speed Gate Turnstile for Fast Access (Model: ZOJE-BST200) was made for that load. Its tempered glass wings stand 1.8 m tall, so climbing over them or jumping them does not work. A BLDC servo drive swings those wings open in 0.3–0.6 seconds. Certified throughput comes in at 35–40 persons per minute. Hong Kong ZOJE Intelligent Technology Co., Ltd. builds it under ISO 9001:2015. Corporate offices and government facilities are the places it was made for. High-traffic public venues too.
Why Tall Wings Change the Entry Control Equation
A standard speed gate that sits at waist height still has a gap above the barrier. Someone who wants in can step over the top and carry on. The ZOJE-BST200 shuts that gap. Its glass wings reach from 1.2 m up to 1.8 m. Climbing over at that height is out of the question. The glass stays see-through too, so sight lines across the lobby remain open.
SUS304 or SUS316 stainless steel is what the cabinets are made from. Wall thickness stays at 1.5 mm or more. That level of corrosion resistance works in air-conditioned lobbies and covered entrances that are partly outdoors. Site conditions decide which grade fits. Where salt air or chemical cleaning agents turn up, SUS316 is the recommended grade.
The design rests on three things. Height is the first. Next comes material. How fast people get through is the third. Those three meet the same conflict facility managers face all the time. Security pulls one way. Flow pulls the other.

Core Technical Specifications
| Specification | Details |
|---|---|
| Model | ZOJE-BST200 |
| Dimensions (L×W×H) | 1400×120/260×1000mm (Customizable) |
| Material | 304/316 Stainless Steel |
| Channel Width | 600mm/900mm (Customizable) |
| Door Material | Acrylic/Tempered Glass |
| Drive Type | Brushless Motor/Servo Motor |
| Unlock Time | 0.2S |
| Direction | Single/Bidirectional |
| Power Supply | AC110-230V, 50/60Hz |
| Operation Voltage | DC24V, 3A |
| Safety Features | Fail Safe, Anti-Clamping |
| Working Environment | Indoor & Outdoor |
| Working Temperature | -15℃ to +70℃ |
| Relative Humidity | <95% (No Condensation) |
| Pass Speed | 35-40 Persons/Minute |
| Input Interface | Dry Contact/Relay Signal |
| Communication | RS485/TCP/IP |
| LED Indicator | Yes |
| Emergency Open | Automatic |
| Access Control | Compatible with All Systems |
Key Features
BLDC Servo Motor with Planetary Gearbox
The motor is brushless DC and works with a planetary gearbox. That setup puts the wings in exact positions and keeps noise down. Rated life for the drive is at least 5 million cycles (MCBF). The spec range can go as far as 10 million cycles, depending on configuration. Wings open in 0.3–0.6 seconds. Even at the busiest entry times, throughput stays strong.
High-Density Infrared Sensor Matrix
24 to 48 IR beam pairs run across the lane. With that many beams, the control logic can spot an authorized user. It can also spot a second person trying to slip through right behind. If tailgating is detected, an alarm goes off. The wings then close in a controlled way. Anti-tailgating detection is rated above 99% accuracy.
Triple Anti-Pinch Safety
During closing, force from the wing never goes past 60 N. That figure keeps the gate inside EN 16005 and EN 12650 safety standards. Three systems on the High-Wing Speed Gate Turnstile for Fast Access watch for trouble, and they all run at once. Infrared obstruction sensors handle one of them. Another tracks motor current. Reverse-motion logic makes up the third. If resistance appears while the wing closes, the wing stops and returns right away.
900 mm Wide Lane Option
Wheelchair users get a wide lane built for them. So does staff pushing equipment through. Clear passage comes to 900 mm. Its telescoping wings run in sync. The same control board and access credentials used in the 600 mm lanes work here. Nothing extra has to be installed.
Intended Installation Environments
Corporate Offices and Financial Centers
Morning entry traffic piles up. Lobby control points are the first to feel it. ZOJE-BST200 is accepted directly by elevator dispatch systems. Visitor management platforms and facial recognition terminals link over Wiegand, RS485, or TCP/IP, hooked up the same way. Measured at the gate itself, the rate is 35–40 persons per minute. What a real lobby handles depends on queues upstream and on how fast credentials get checked.
Government Facilities and Secure Data Centers
Some sites follow a security policy or a compliance rule. That rule states how tall a physical barrier has to be. Wings are sold in a 1.2 m–1.8 m range. A facility can then pick a gate height that fits its own threat model. Multi-factor credential setups work as well (e.g., RFID plus biometric). Event logs can leave the system too, sent to third-party access control management software over standard protocols.
Membership Venues and Controlled-Access Recreation Facilities
Low-profile tripod turnstiles are a common target for casual bypass attempts. The taller wing profile raises the physical effort required, which is a documented deterrent in access control practice. The glass construction keeps the entrance area visually open while the wing height performs its deterrent function.
Integration and Configuration of High-Wing Speed Gate Turnstile for Fast Access
The ZOJE-BST200 control board takes input from RFID readers, QR code scanners, fingerprint modules, and face recognition terminals. Dry contact and Wiegand inputs are on the board, plus RS485 and TCP/IP. Most access control terminals you can buy today need no custom middleware.
We can supply OEM and ODM configurations. Wing height, cabinet finish, lane width and software protocol changes all fall inside that scope. Standard product configurations go out in 5–7 business days. For custom configurations, plan on 10–15 business days. Freight can move by sea or by air. DDU and DDP trade terms are possible too, depending on destination and order volume.
Pre-Shipment Quality Checks
Every unit goes through the High-Wing Speed Gate Turnstile for Fast Access and the checks below before anything ships out:
- Drive Fatigue Test: The motor and gearbox assembly goes through 5 million open/close cycles. The run never stops.
- Anti-Tailgating Logic Verification: One tester follows close behind the other and tries to slip in. Every pass confirms the detection and response sequence.
- Wing Closing Force Measurement: A force gauge is used to check the closing force. The reading stays under 60 N.
- Static Load Test: The wing tops take a sideways push of 80–100 kg. This test shows if the glass and cabinet frame can stand the pressure from the side.

Frequently Asked Questions
Q: What sets this gate apart from a full-height turnstile?
A: Rotating arms fill the whole passage height on a full-height turnstile. Throughput drops because of that. The entrance looks heavy as well. On the ZOJE-BST200, wings reach 1.8 m. One open cycle takes 0.3–0.6 seconds. Busy lobbies that want fast access and a tall barrier will find this unit a good fit. Each product type has its own security profile. What suits your site comes down to the risk assessment.
Q: What happens when power drops or a fire alarm sounds?
A: In fail-open mode the wings fold back into the cabinet by themselves. Nothing stands in the way, so the passage stays clear. Meeting fire evacuation rules gets easier with this behavior. When you plan the installation, check the exact fail-safe setup against your local fire safety regulations.
Q: Is it possible to hook face recognition systems from other vendors up to this gate?
A: Yes. Dry contact, Wiegand, RS485, and TCP/IP inputs are all taken by the control board. Face recognition terminals sold on the market today will usually work with it. Fingerprint scanners work too. So do QR code readers and ticketing systems. Any one of those interfaces is enough. No custom development is needed.
Q: If something gets caught in the wing, what does the anti-pinch system do?
A: Three systems act at once: infrared detection, motor current sensing, and reverse-motion logic. If resistance shows up while the wing is closing, the wing stops. Then it pulls back. That happens anywhere along the closing arc. The final contact point is not the only place it watches.
Q: Can wheelchair users get an option that meets the rules?
A: Yes. You can put standard 600 mm lanes next to a pair of 900 mm wide lanes. The two wider lanes have telescoping wings that move together. One control infrastructure serves them both. They also share the same access credential system.
Q: What does the 2-year warranty cover?
A: For 2 years, manufacturing defects on hardware parts are covered. The clock starts on the shipment date. ZOJE offers installation guidance and technical support. Ask for the parts replacement and on-site service terms in writing when you place the order. That confirms them.
Contact Us
Send project requirements to info@zoje-tech.com. Our technical team will review your site conditions and provide a specific High-Wing Speed Gate Turnstile for Fast Access product recommendation.
