Slim Speed Gate Turnstile for Modern Entrances

Slim Speed Gate Turnstile for Modern Entrances

1. Model Type: ZOJE-BST100
2. Spport OEM, ODM customization
3. Pass Speed: 35-40 persons/Minute
4. Ultra-slim modern design suitable for high-end buildings.
5. Supports one-way or bi-directional access management.
6. Integrates with all mainstream access control systems.
7. Swing doors available with optional LED illumination.
8. Warranty: 2 years
  • Face to Face Discussion
  • Quality Assurance
  • 24/7 Customer Service

Product Introduction

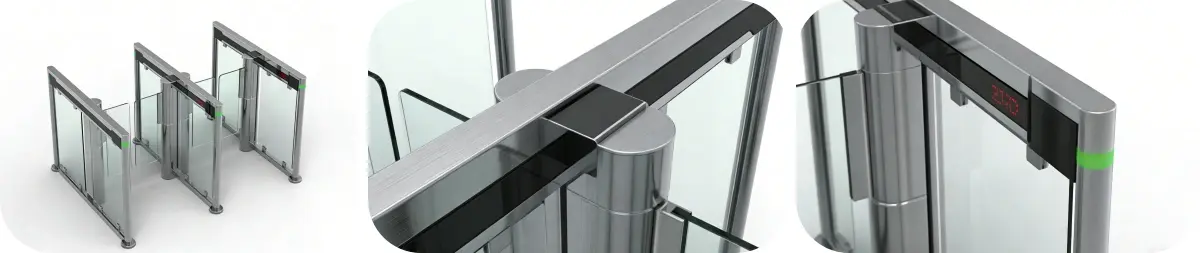

Slim Speed Gate Turnstile for Modern Entrances — ZOJE-BST100

The Slim Speed Gate Turnstile for Modern Entrances (Model: ZOJE-BST100) is a physical access control unit for upscale buildings. Cabinet width runs from 100 mm to 180 mm. It lets 35–40 persons through every minute and still keeps the lobby looking open. Swing or retractable glass barriers do the work here, driven by BLDC or Servo motors. Access can run one way or both ways, and the unit hooks into mainstream access control systems. LED-illuminated swing doors are an option.

Key Features

Chassis parts on the BST100 are made of SUS304 or SUS316 stainless steel. A hairline or satin finish goes on top. Both hold off corrosion, and both keep marks away in busy lobbies.

BLDC or Servo motors run together with planetary gearboxes in the drive system. Noise while operating stays below 50 dB. Mean Cycles Between Failure (MCBF) reaches 5–10 million cycles.

Anti-pinch protection reacts in under 0.2 seconds, verified through physical obstruction testing of the barrier path.

Technical Specifications

Parameter Specification
Model ZOJE-BST100
Dimensions (L×W×H) 1400×65/172.5×1000mm
Material 304/316 Stainless Steel
Channel Width 600mm/900mm/Customized
Door Material Acrylic/Tempered Glass
Drive Type Brushless/Servo Motor
Unlock Time 0.2 seconds
Direction Single/Bidirectional
Power Supply AC110-230V, 50/60Hz
Operating Voltage DC24V, 3A
Safety Features Fail-safe, Anti-clamping
Environment Indoor & Outdoor
Operating Temperature -15℃ to +70℃
Humidity Range <95%, No Condensation
Throughput 35-40 persons/minute
Input Interface Dry Contact/Relay Signal
Communication RS485/TCP/IP
LED Indicators Yes
Emergency Function Automatic Open
Access Control Universal Integration

Typical Deployment Environments

Corporate and Office Buildings

Elevator dispatch systems and HR databases link up to the BST100 directly. That is how access gets controlled floor by floor. Expect 35–40 persons per minute. Morning peaks run dense at that rate and lanes still do not back up.

Fitness Centers and Member-Only Venues

The slim 100–180 mm cabinet fits narrow reception layouts. Biometric readers — fingerprint or facial recognition — can be integrated to validate memberships in real time, with anti-passback logic preventing shared credential use.

Government and Data Center Slim Speed Gate Turnstile for Modern Entrances Facilities

Where security matters more, the unit runs in Normally Closed mode. Someone tries to piggyback in without clearance and a local alarm sounds. The triggers are multi-factor authentication integration and IR-based tailgating detection.

Quality Control Process

Every ZOJE-BST100 undergoes a structured inspection before shipment:

  • Aging and Endurance Testing: Continuous operation for 24–72 hours to confirm motor thermal stability and gearbox durability.
  • Safety Sensor Calibration: Anti-pinch response verified at under 0.2 seconds using physical obstruction tests.
  • Static Load and Impact Testing: Barrier locking mechanisms are tested against forced-entry attempts at defined Newton-force thresholds.
  • Integration Integrity Testing: Signal latency between card read and barrier response is measured and verified.
  • Finish and Assembly Inspection: Grain on the stainless steel has to be uniform. Cabinet joint gaps must stay even. Internal electronics get their IP rating checked.

CE and FCC approvals apply to these products. They also meet ISO 9001:2015.

certification

Customization and OEM/ODM for the Slim Speed Gate Turnstile for Modern Entrances

ZOJE supports hardware and software customization. Lane width can be adjusted to 900–1000 mm for ADA wheelchair access using the same slim cabinet design. Optional LED illumination on swing doors is available. OEM and ODM cooperation is supported for branded deployments and regional distributors.

Standard products ship within 5–7 days. Customized configurations typically require 10–15 days from order confirmation.

Fail-Safe and Emergency Operation

What happens during a fire alarm or a power failure? The BST100 goes into Fail-Safe mode. Barriers then unlock or pull back all the way to the full-open position. People can get out without obstruction. This meets the fire safety rules that apply.

Warranty and After-Sales Support

A 2-year warranty comes with every unit. We also give installation guidance to help with project implementation. Long-term maintenance is available too. For busy sites, quarterly inspections are recommended. Each visit covers dust removal, transmission lubrication, and motor torque recalibration.

ZOJE started up in 2012. The company works to ISO 9001:2015 quality management standards, and it holds several technical and design patents across its Slim Speed Gate Turnstile for Modern Entrances product range.

Slim Speed Gate Turnstile for Modern Entrances

Frequently Asked Questions

Q: What happens to the turnstile when the power fails or a fire alarm goes off?

A: Fail-Safe mode comes as standard on the BST100. If power is lost, or a fire alarm signal comes in, the barriers pull back to the open position so people can get out safely.

Q: Can the system detect tailgating?

A: Yes. Those 6–24 IR sensor pairs read how people move through the gate. That way the system can tell allowed users apart from someone following them in. Once tailgating shows up, the alarm goes off right away.

Q: Can the BST100 be used outdoors?

A: Off-the-shelf units are built for indoor use at IP44. For semi-outdoor spots, the unit needs changes. You add IP54/IP65 ratings, heating/cooling modules, and waterproof sealing.

Q: What upkeep does a busy site call for?

A: Plan on four checks a year. Each visit should include clearing dust out of the internal parts. The transmission mechanism gets fresh lubrication, and the same call covers recalibrating motor torque and sensor alignment.

Q: Could the lane be made wider so a wheelchair can get through?

A: Yes. For passages 900–1000 mm wide, you can set up telescopic or swing barriers in the same slim cabinet. That meets ADA-compliant access needs. The look of the lane array as a whole stays the same.

Q: What interfaces does the BST100 support?

A: Dry contact, RS485, and TCP/IP are all supported by the BST100. That lets it connect to biometric readers and facial recognition terminals. Elevator dispatch systems and building management platforms hook up the same way.
