Outdoor Parking Guidance Node Controller
2.Cross-device compatible . Links central & wired controllers
3.Parking status upload.Syncs to centralized controller instantly
4.Zone parking data summary.Collects all space status in area
5.Parking info relay . Sends data to outdoor wired controller
6.Wireless deployment. No complex wiring, labor cost saving
7.Stable RF signal .Anti-interference
8.24/7 tech support and service
- Face to Face Discussion
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Outdoor Parking Guidance Node Controller for Smart Outdoor Lots — Wireless, Weather-Proof & Real-Time
Open-air intelligent transportation systems depend on the ZOJE-K03N Outdoor Parking Guidance Node Controller. It was built for industrial work. Field sensors sit on one side. A central parking management server sits on the other. This edge computing device sits between them and serves as middleware for both. Geomagnetic detectors connect to it. Ultrasonic sensors and video cameras do too. Wireless RF deployment is an option too. That cuts wiring work and lowers labor costs. Parking status goes to a centralized controller in real time. The unit also gathers space data for a whole zone, then sends it to outdoor wired controllers. Interference is blocked, so the RF signal stays stable.
What Is This Product?
Open lots need hardware that gathers data and passes it along. This product does that job. A sensor layer sits on one side. On the other is a management server. Between them is the unit. Occupancy data is polled there in real time. Next comes synchronization. Forwarding follows.
Indoor controllers do not face the problems found at open-air sites. This device was made for those sites. Send a signal far enough outdoors and it fades. Standard indoor hardware cannot handle that in a reliable way. Trenching cable across an asphalt lot costs a lot and disturbs the site too. Clustering over LoRa, ZigBee, or Sub-1GHz radio takes away that dependency. Signal processing also runs locally inside the device. Environmental noise is filtered there before data leaves the edge.
The combined effect is a stable backbone for real-time guidance displays and zoned counting across municipal and commercial outdoor parking areas.
Key Features of the ZOJE-K03N
The ZOJE-K03N is designed around field performance in demanding outdoor conditions.
- Cross-device compatibility: links both central and wired controllers within the same network
- Instant status sync: uploads parking occupancy data to the centralized controller in real time
- Zone data collection: every space status inside a set area gets picked up, and it all comes together in one spot
- Wireless deployment: you do not need complex wiring. Install goes faster that way, and the labor bill drops
- Stable RF signal: anti-interference tech is built in, so your data stays clean and steady
- Store-and-forward logic: data is kept on the device if the network drops. Once the link is back, it is sent to the server without delay
- Surge protection: lightning hits are a normal risk in outdoor setups. TVS diodes on the communication ports protect the device against that damage
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ZOJE-K03N |
| Dimensions | 254×145×85mm |
| Communication Mode | Route 2 CAN |
| Communication Distance | ≤1000m |
| Net Weight | 4.2KG |
| Working Power | AC 110~240V |

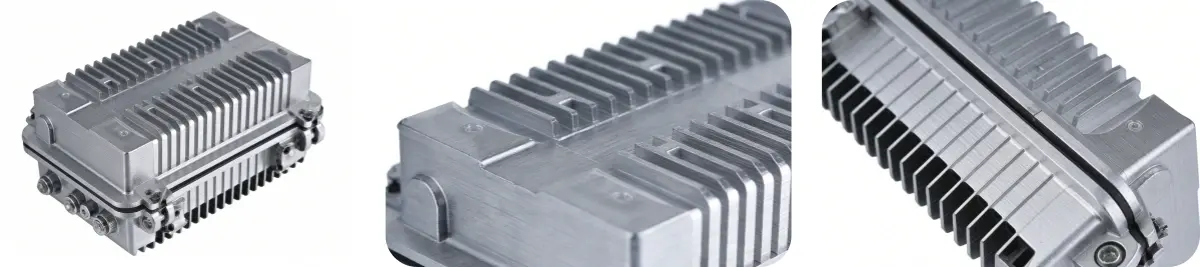

| Housing Material | Die cast aluminum box |
| Protection Level | IP66 |
| Power Consumption | ≤2W |
| Node Capacity | 25 |
| Operating Temperature | -40℃~+85℃ |
| Relative Humidity | ≤90%RH (No condensation) |
Application Scenarios
Municipal On-Street Parking (Smart City)
The node controller sits on the street light poles. From there it collects data from in-ground geomagnetic sensors placed across several city blocks. A wireless mesh handles the link. Occupancy data then feeds city-wide guidance apps and LED signage. Drivers can see where the open spaces are. No more circling the block.
Large-Scale Airport and Logistics Open-Air Lots
Zonal guidance in airport economy lots and freight distribution centers runs on this controller. Detection points feed it the data, either ultrasonic or video, and the Zone Guidance Screens are driven right there on site. Rain and fog change nothing. The enclosure carries an IP66/IP67 rating, so work keeps moving.
Scenic Areas and Event Venue Parking
Laying cable across grass or gravel often does not make sense. A solar-compatible DC input is built into the Outdoor Parking Guidance Node Controller, so you can place it where no grid power exists. Wireless sensors connect through the device to a cloud management platform. Peak seasons and large events get better traffic flow coordination because of that.

Quality Control Standards for Outdoor Parking Guidance Node Controller
Every ZOJE-K03N unit goes through structured testing before leaving the facility:
- Environmental stress screening: thermal cycling from -40°C to +85°C and salt spray exposure (per ASTM B117 methodology) to verify corrosion resistance on both PCB and enclosure
- Ingress protection verification: each unit is put through IP67 water immersion testing. Seals must hold when rain falls hard or someone uses a pressure washer on it
- EMC testing: here the unit gets measured against the EN 55032/55035 criteria. Interference from vehicle ignitions is put to the test, and so are high-voltage lines running close by
- Data integrity load testing: in this test, sensor occupancy changes are simulated at 100%. We check for packet loss, and it stays under 0.1%. Latency in the same run stays below 200ms
ISO 9001:2015 is the backbone of quality management at ZOJE.

OEM, ODM, and Customization Options
Project needs can shape both hardware and software changes at ZOJE. Full customization is on the table. Say a rollout calls for its own communication protocol, enclosure size, power setup, or branding. The engineering team can then work with you one on one.
Standard products ship in 5 to 7 days. For custom builds, figure 10 to 15 days. The exact timeline depends on what you order. Sea freight works, and so does air freight. DDU and DDP terms are both on offer. Either way, the shipment fits how you import.
Got a customization request? Send your project specs for the Outdoor Parking Guidance Node Controller to info@zoje-tech.com.
Frequently Asked Questions
Q: How many sensors can one node controller handle?
A: The number of sensors you can hook up depends on how often you poll. On standard models that is 32 to 64. Move to RS485 bus topologies that carry high bandwidth and the count climbs to as many as 96 nodes.
Q: What happens to the data if the network connection drops?
A: Data goes onto non-volatile memory. That means an SD card or Flash chip. It sits there for 7 to 30 days. When the network comes back, sending picks up again on its own from the breakpoint.
Q: Can lightning strikes damage This product?
A: Communication ports on this unit come with TVS diode surge protection. When the node goes up on a pole, add external lightning arrestors too. That gives you an extra layer of safety.
Q: Can I hook it up to parking software from another vendor?
A: Yes. Open protocols are supported by the controller, MQTT and Modbus TCP among them, plus RESTful APIs. That lets it connect to third-party Parking Management Systems or Smart City dashboards. No proprietary middleware is needed.
Q: In remote areas with no grid access, how does the device get power?
A: AC 85–264V or DC 12/24V input both work with the unit. For remote deployments where infrastructure is limited, PoE and solar-compatible DC inputs are offered.
Q: What certifications and standards apply to this product?
A: ISO 9001:2015 is the framework ZOJE works under. For the ZOJE-K03N, EMC evaluation (EN 55032/55035) is carried out. Environmental testing and ingress protection testing also form part of the normal quality procedures.
Contact Us
Email your project requirements to info@zoje-tech.com. You will then get a recommendation for the right Outdoor Parking Guidance Node Controller configuration.
