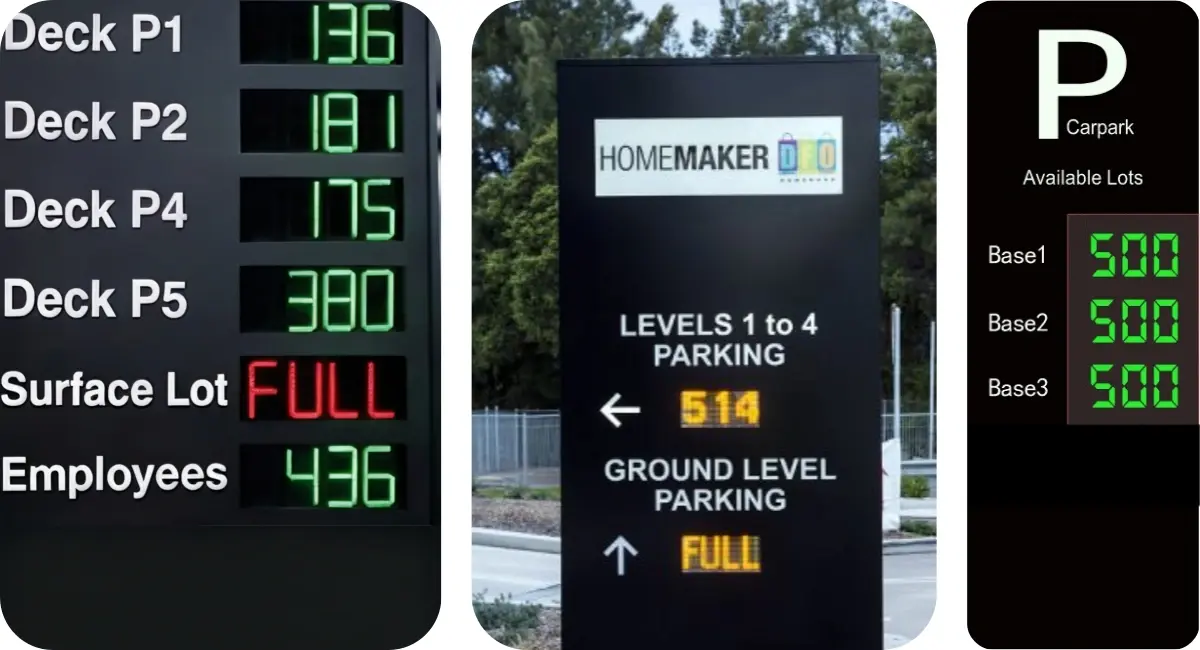

Outdoor Large Parking Guidance Display Screen

Outdoor Large Parking Guidance Display Screen

1.Model:ZOJE-VA3N (Single layer)
2.Entrance screen. Guides drivers entering parking lot
3.24h real-time empty space reminder
4.Clear visibility under strong outdoor light
5.Modular design, easy assembly
6.Real-time data sync. Links system to update vacancy status instantly
7.Adapts to outdoor temperature changes
8.24/7 tech support and service
  • Face to Face Discussion
  • Quality Assurance
  • 24/7 Customer Service

Product Introduction

Outdoor Large Parking Guidance Display Screen – ZOJE-VA3N Single-Layer Entrance Solution

Vacancy numbers have to flow through parking sites day and night. The Outdoor Large Parking Guidance Display Screen ZOJE-VA3N handles that task, and it is one way to go. A single layer is what this entrance display runs on. Hong Kong ZOJE Intelligent Technology Co., Ltd. is the builder. The firm has been in business since 2012. ISO 9001:2015 certification is on its record, and several technical patents are too. Light output goes past 5,500 nits. Between -40 °C and +75 °C the unit keeps running. IP65 ingress protection comes with the build. Each module can be swapped on its own. The whole unit never has to go offline.

What Is This Product?

The variable message sign (VMS) family includes this product. Industrial work is what it was designed for, and its light output is high. Intelligent Transportation Systems (ITS) jobs suit it, and so do smart parking setups. Within a zoned parking architecture, the screen acts as the final output node. Ultrasonic or video sensors send in live data. Clear visual cues come out of that data. Drivers on the way in read those cues.

Three challenges keep coming up at modern parking facilities. To solve them, this type of display often goes in:

  • Entrance congestion: Cars keep circling the block. Why? No data tells those drivers where the free spaces sit. Queues build up at the entry points as a result. Hand them live availability info and a route can be picked before the car even gets to the lot.
  • Sunlight legibility: Direct sun makes plain LCD panels tough to read. LED tech puts out a lot of brightness, so the screen still reads fine outdoors in full sun. Heavy rain does not cause trouble either.
  • Uneven zone utilization: Dynamic guidance sends drivers toward the sections that still have space. Occupancy across a large facility ends up more balanced that way.

Key Features of the ZOJE-VA3N

The ZOJE-VA3N is configured for entrance-point deployment, where display response time and visibility directly affect traffic flow.

24-Hour Real-Time Vacancy Display

Your parking management system (PMS) links up with the screen. Empty space counts then show up there all the time. Sensor data drives those updates. Nobody has to type anything in.

Visibility in Strong Outdoor Light

Brightness reaches beyond 5,500 nits. Built-in light sensors take care of 256 levels of automatic adjustment. Above each pixel row there are high-contrast louvers. They block sunlight at the physical level. At its best the contrast ratio comes to 4,000:1.

Modular Maintenance Design

Each module can be swapped by itself, either from the rear or the front. A unit that fails comes out while the rest of the screen stays on. Downtime for maintenance falls because of that.

Wide Operating Temperature Range

Rated range starts at -40 °C and goes up to +75 °C. Such extremes show up in different regions and across the seasons. This span handles them.

Multi-Protocol Data Connectivity

The display supports Outdoor Large Parking Guidance Display Screen via TCP/IP (Ethernet). RS485 is also on board. Modbus works too. So do wireless LoRa and 4G/5G. You can still connect it to the PMS kit you already run.

Technical Specifications

Parameter Details
Model ZOJE-VA3N (Single layer)
Display bits 3/4
Illuminant Red/green highlighted LED
Communication mode RS485≤300M / TCP/IP≤100M
Power source AC220V±10%
Power dissipation ≤15W(single layer)
Dimension 8001602200mm
Class of protection IP65
Appearance material Cold steel paint + tempered glass panel

Quality Control Process

Before any ZOJE-VA3N unit ships, it goes through inspection at several stages.

72-Hour Aging Test (Burn-in): Every screen is left running at full white balance for 72 hours without a break. That way, early LED failures get caught. A power supply that drifts instead of holding steady also turns up.

IP65 High-Pressure Spray Test: Water jets hit the unit from more than one angle. After that, there is one thing to check. Can the gaskets and sealants keep moisture away from the internal PCBs?

High-Low Temperature Cycling: Inside an environmental chamber, a unit swings from -40 °C up to +80 °C and then back down again. What does that tell us? How the housing, the mask and the potting compound behave as they expand and contract.

Vibration Testing: This test follows IEC 60068-2-6. It copies the shaking a sign gets on the road, and then again once it is mounted at the roadside. In this check we look at solder joints and cabling.

Optical Consistency Check: Each module gets measured. Brightness has to stay inside 5% deviation. Go past that limit, and patches show up on the finished display where people can see them.

certification

Application Scenarios for Outdoor Large Parking Guidance Display Screen

Airports and Transport Hubs

Some sites have several terminals, and the screens there have to keep running as weather and wind change. Drivers can see which spaces are free. Each zone also gets direction signs.

Retail Complexes and Commercial Districts

At peak times, queues form at the entrances. You can let the ZOJE-VA3N route vehicles to free zones by itself. Main entrances then get some relief.

Municipal Roadside Guidance

Link the system to city traffic management and big entrance screens can show parking availability on arterial roads. City-wide parking guidance then works as one coordinated network.

application

Customization and Supply Options

ZOJE offers custom hardware and software. Parking system integrators can ask for it. Property developers can ask too. Municipal infrastructure contractors are also covered. OEM and ODM cooperation is open.

The display can show arrows that point the way. Zone labels are not required. Two languages fit on screen too, and so do emergency override messages. Cloud software handles all of this from a distance. Admins push messages in real time once an emergency hits. On the Outdoor Large Parking Guidance Display Screen, those messages might read "DO NOT ENTER" or carry evacuation instructions.

Standard products go out in 5–7 business days. Custom setups are usually ready in 10–15 business days. Sea or air freight is possible. The terms are DDU or DDP, depending on the destination.

Outdoor Large Parking Guidance Display Screen

FAQ

Q: How can the display hook up to a Parking Management System that is already in place?

A: One option on the screen is TCP/IP (Ethernet). RS485 and Modbus work as well. SDK and API docs come from ZOJE. After that, your integration team can send live data and commands directly to the display controller.

Q: If the sign runs outdoors all the time, how long will it last?

A: Each LED carries a 100,000 hour rating. Put another way, that is around 11 years. While the sign is on, the heat load eases for two reasons. Brightness steps down by itself at night. The power supplies are high-efficiency units as well (PFC >0.95).

Q: If an emergency hits, can a person somewhere else change what the display shows?

A: Yes. A control card sits inside the unit. Cloud management software links to that card. Admins use the connection to override the parking data. Emergency messages or evacuation instructions appear on the screen right away.

Q: What keeps the display easy to read when sunlight hits it directly?

A: The brightness does not drop off. Bright DIP or SMD LEDs are what the ZOJE-VA3N uses. It puts out more than 5,500 nits. A high-contrast louver sits above every pixel row, and direct sunlight gets blocked by that louver. Non-reflective masks take care of the rest. The contrast ratio comes to 4,000:1.

Q: What kind of upkeep does an outdoor parking display need day to day?

A: There's not much to do. Check the waterproof seals once a year. Clean the front surface now and then. That is usually enough. You can swap single modules or power supplies without shutting the whole screen down.

Q: Will this display hold up near the coast or on very damp sites?

A: The cabinet material passes a Salt Spray Test that runs more than 72 hours. Thinking of putting it near the coast, or somewhere damp? Tell the ZOJE team what conditions your site has. They will confirm the right configuration for you.
