Indoor Parking Guidance Display Screen
2.High-brightness LED screen.Clear indoor visibility
3.Central controller data sync.Real-time empty space update
4.Zone-specific guidance.Accurate regional direction
5.Boosts space utilization.Max parking lot efficiency
6.Reduces parking time.Enhances driver experience
7.Stable wireless transmission.No wiring trouble
8.24/7 tech support and service
- Face to Face Discussion
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Indoor Parking Guidance Display Screen for Smart Parking Systems
Indoor Parking Guidance Display Screen (Model: ZOJE-31-1/2/3) comes from Hong Kong ZOJE Intelligent Technology Co., Ltd. This is a high-brightness LED display built for real-time parking management inside garages. Free space counts refresh through a link to a Central Control Unit (CCU), and latency stays under 200ms. Arrows on the screen point drivers toward each zone. Wired and wireless transmission both work, and the unit runs non-stop on either one. An IP54-rated enclosure and power draw below 30W let it hold up over years of use in enclosed parking structures.
What Is This Product?

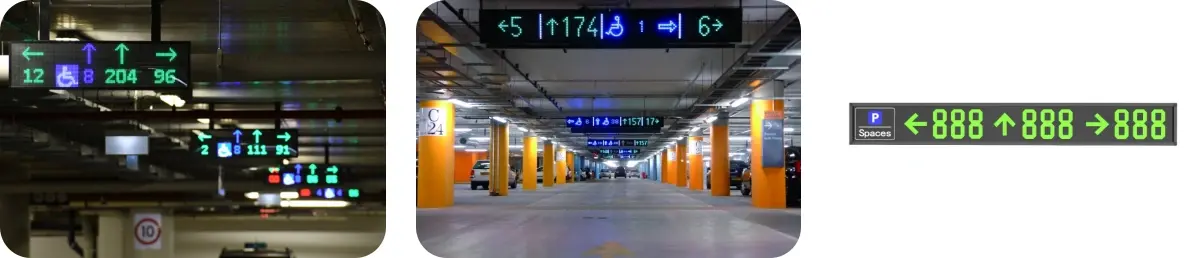

This product is a dynamic LED unit. Crews mount it at decision points inside a parking structure: aisle intersections, ramp entries, and lift lobbies. A static sign cannot do this job. Live data feeds in from ultrasonic sensors. Video detectors and magnetic loops work too. Drivers then see the exact number of open spaces in each direction: Left, Right, or Straight.
Drivers lose time hunting for a space. Cutting that time down is the main job of the screen. Pointing vehicles to open zones in real time also spreads traffic more evenly across levels or sections that get less use.
Key Features
High-Brightness LED Display
SMD LED modules make up the screen. For indoor use, brightness is calibrated between 800 and 1,500 nits. Mixed artificial light is no problem. That output stays easy to read. It does not cause glare for drivers coming in from outside. The horizontal viewing angle is over 120°. Several approach lanes can see the display.
Real-Time Data Sync via Central Controller
Every space count update is pushed from the Central Control Unit (CCU) to the screen with a latency under 200ms. Zone-specific guidance — for example, "Zone A: 5 Spots" or "Zone B: Full" — updates without noticeable delay between a sensor trigger and the screen output.
Stable Wired and Wireless Transmission
RS485 (daisy-chain topology) is one choice. Another option is TCP/IP (Ethernet star topology). Wi-Fi is supported too. Existing structures can be fitted without extensive new cabling. Per-floor daisy-chaining suits RS485. TCP/IP allows remote firmware updates, and fault isolation gets faster.
IP54-Rated Industrial Housing
The enclosure is mild steel or aluminum. It has an electrostatic powder coating. IP54 protection keeps the internal PCB safe from brake dust. It also blocks exhaust soot. Brake dust is conductive. Both are steady long-term failure risks in enclosed garages.
Technical Specifications
| Specification | Details |
|---|---|
| Model Options | ZOJE-31-1 (One-way) / ZOJE-31-2 (Two-way) / ZOJE-31-3 (Three-way) |
| Dimensions | One-way: 650×183×56mm / Two-way: 1030×183×56mm / Three-way: 1410×183×56mm |
| Display Technology | High-brightness LED with dual-color (Red/Green) indication |
| Operating Voltage | AC 110-240V (Universal compatibility) |
| Temperature Range | -30℃ to +70℃ (Extreme environment ready) |
| Humidity Range | 30%-90% relative humidity |
| Materials | Aluminum profile frame with plexiglass panel |
| Power Consumption | ≤20W (One-way configuration) |
| Communication | RS485 (up to 300m) / TCP/IP (up to 100m) |
| Protection Rating | Dustproof and moisture-resistant design |

Application Scenarios
Super-Regional Shopping Malls
Picture a retail basement with several zones and a lot of spaces. At each intersection, the Indoor Parking Guidance Display Screen acts as a decision point. Drivers see live availability for every level. During peak hours, the screen can also send traffic to areas that are less full.
Airports and Transit Hubs
Airport parking structures operate continuously and require high display reliability. These deployments typically use tri-color displays — Green, Red, and Amber — to differentiate standard, reserved, disabled, or EV-charging zones. The screens can integrate with variable message sign (VMS) logic to show alphanumeric data such as "Level 3 Full" or "Valet Only."
Corporate Office Towers and CBD Buildings
In commercial buildings using License Plate Recognition (LPR) systems, the Indoor Parking Guidance Display Screen can connect to LPR cameras. When a registered vehicle is detected, the screen can display the plate number alongside a directional arrow to its reserved bay — applicable for tenant or VIP bay management.

About ZOJE for Indoor Parking Guidance Display Screen

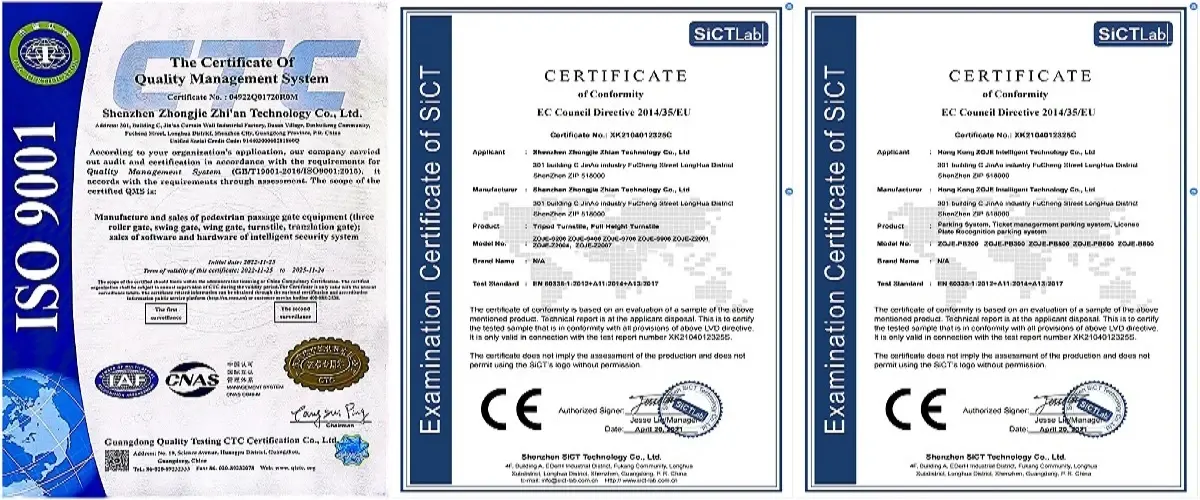

ZOJE Intelligent Technology Co., Ltd. has designed and manufactured smart parking hardware since 2012. products are built to ISO 9001:2015 standards, and the company holds engineering and design patents in parking system technology.
Standard products ship within 5–7 business days. Customized configurations are ready within 10–15 business days. Shipping is available by sea or air freight under DDU or DDP terms. Every unit comes with a 2-year warranty.
Frequently Asked Questions
Q: What happens to the display if the network server goes down?
A: There is an offline keep-alive mode on the screen. Should the link to the controller drop for a set time, the screen shows a neutral default message (like "---") or goes dark. Drivers then never act on a space count that is out of date.
Q: What is the maximum visibility distance for these screens?
A: This product with 5-inch characters is legible from approximately 20–30 meters. Larger 8-inch directional displays are visible at 50 meters or more.
Q: Can the screen show EV charging or disabled parking symbols?
A: Yes. The dot-matrix or full-color LED matrix supports customizable bitmaps. The screen can switch between a numeric space count and specific icons — such as a wheelchair symbol or a battery icon — based on logic configured in the parking management software.
Q: How is the screen protected against dust and garage grime?
A: The IP54-rated enclosure keeps brake dust and exhaust soot away from the internal PCB. Brake dust is conductive, and long exposure in closed garages brings a short-circuit risk.
Q: For a multi-level installation, which cable topology do you recommend?
A: For most multi-level garages, a hybrid setup is practical: RS485 daisy-chain per floor for cost efficiency, and TCP/IP star topology for central management. TCP/IP also supports remote firmware updates and easier troubleshooting of individual screen nodes.
Q: Does ZOJE support customized display content or software integration?
A: Yes. ZOJE offers customization for hardware and software. That covers OEM and ODM services. You can pick display formats. Color schemes are adjustable too. LPR system integration is available. So is VMS-compatible software logic. All of it depends on the project requirements.
Contact Us
For technical specifications, pricing, or a customized Indoor Parking Guidance Display Screen solution, Contact Us at info@zoje-tech.com. We respond to all project inquiries promptly.
