Video Parking Guidance Central Controller

Video Parking Guidance Central Controller

1.Model:ZOJE-IPC01
2.Unified network integration.Full parking device linkage
3.Detector data analysis.Real-time guidance screen sync
4.Reverse car-finding support.Query terminal enablement
5.Full-system data summary.Clear parking status overview
6.Simplified architecture.Reduced deployment difficulty
7.Multi-terminal compatible.Diverse scenario adaptation
8.24/7 tech support and service
  • Face to Face Discussion
  • Quality Assurance
  • 24/7 Customer Service

Product Introduction

Video Parking Guidance Central Controller – Intelligent Parking Management Solution for Large-Scale Facilities

Front-end video detectors reach your central parking management server through the Video Parking Guidance Central Controller ZOJE-IPC01, and edge computing does the linking. Hong Kong ZOJE Intelligent Technology Co., Ltd. makes this unit. ISO 9001:2015 certification has been in place at the company since 2012. Unified network integration is standard. Every parking device gets linked up. Screens stay in sync, live. One controller covers 32 to 120 video detectors. Running range is -20°C to +70°C, with an MTBF rating of 50,000 hours or more.

What Is This Product?

This product sits between the cameras at the front end and your central server. High-bandwidth image data is handled right there on the spot. At that same point, License Plate Recognition (LPR/ANPR) verification runs a second time. Zonal guidance screen logic gets managed at the edge too. Your central server ends up with far less processing work to do.

This distributed setup solves a real problem in busy parking facilities. Sometimes the central server goes into maintenance. Other times it simply loses its connection. The controller keeps running in Offline Mode when that happens. Space availability signs stay current, and data is logged locally. Normal operation picks up again once the connection is restored.

By handling guidance logic at the edge, the controller reduces the round-trip delay between detector events and LED screen updates — a relevant factor in high-traffic commercial and transit parking environments.

Key Features of the ZOJE-IPC01

  • Unified Network Integration: All parking devices talk through one shared architecture. Setup gets easier. So does day to day management of the system.
  • Real-Time Guidance Screen Sync: Detector readings get processed right there, then go straight out to the LED guidance screens. There is no server round-trip in the way.
  • Reverse Car-Finding Support: This controller can also drive query terminals. At a kiosk or on a mobile interface, drivers look up where their car is parked.
  • Full-System Data Summary: Every zone, every floor, and every entry point shows its parking status in one place.
  • Multi-Terminal Compatibility: Many kinds of facilities can run it. You'll find it in shopping malls, and airports and hospitals use it too.
  • Embedded Linux OS: An embedded Linux OS runs the system. That setup holds up well and is built to keep working 24/7.
  • Local Storage Backup: When the network goes down, SSD and SD card buffering keeps transaction logs and images safe. Once the link is back, data syncs.

Technical Specifications

Parameter Specification
Model ZOJE-IPC01
System Linux System
Body Size 428×250×44.5mm
Working Temperature -30℃ ~ +70℃
Installation Method Rack Type
Operating Voltage AC220V±10%
Appearance Material Galvanized Steel Sheet
Net Weight 3KG
Humidity Range 10%~90% (no condensation)
Power Source 250W Power

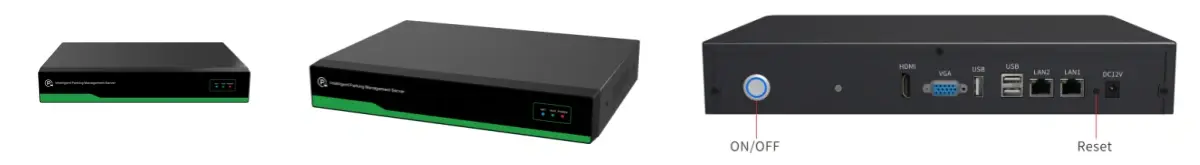

Video Parking Guidance Central Controlle

Application Scenarios

Complex B2B sites are where the ZOJE-IPC01 fits best. In those places, how vehicles move around has a direct effect on the work done each day.

Large Shopping Malls

Certain malls hold a very large number of parking spaces. Data from multiple cameras is pulled in by the controller there. That data then refreshes outdoor totems and the screens at indoor junctions. Routing across floors runs on that same Video Parking Guidance Central Controller unit. Free spaces are easier for drivers to find, and the worst-hour jams loosen up.

International Airports

Airports need LPR that runs fast. They also need to track where vehicles are at all times, and they need alerts handled. The controller hooks into security subsystems. It also works with VIP zone restrictions and data from the reservation system.

Hospitals and Medical Centers

A medical campus cannot afford downtime. Guidance that fails in such a place is close to unacceptable. Patient zones, staff zones, and emergency vehicle zones are told apart by the controller. Even with the central billing server down, emergency traffic is still routed the right way.

Quality and Reliability of the Video Parking Guidance Central Controller

Before it ships, every ZOJE-IPC01 unit goes through production QC:

  • Burn-In Testing runs the unit at full load while the temperature stays high. Weak components fail early, and this step catches them.
  • Network Throughput Stress Testing shows how the screen keeps up when many occupancy changes land at the same time.
  • Surge and ESD Protection Checks get done on the RS-485 and Ethernet ports. Cabling in semi-outdoor areas carries risk. These checks lower the chance of lightning and static damage.
  • Power Redundancy Testing for dual power input failover where supported by the model.

ZOJE carries out these steps in its normal production process. They line up with its ISO 9001:2015 quality management certification.

certification

OEM/ODM and Customization

Hardware and software can both be customized by ZOJE. That work starts with what a given project needs. Branded enclosures are one option. Another is custom software integration, done through an open API or an HTTP SDK. Large facilities can also ask for deployment architectures built around their site. Customers deal with the engineering team directly. This covers the specification stage and the deployment stage alike.

Standard units ship within 5–7 business days. Customized configurations for the Video Parking Guidance Central Controller have a lead time of 10–15 business days. Both sea and air freight are available, with DDU and DDP trade terms supported.

Frequently Asked Questions

Q: What happens if the central server goes offline? Does the controller keep working?

A: Yes. The ZOJE-IPC01 stores the parking lot topology and operating logic locally. It continues updating guidance screens and collecting data independently until the server connection is restored.

Q: What is the maximum number of video detectors one controller can handle?

A: One unit supports 32 to 120 video detectors. Which model you choose sets that exact count. For larger sites, several controllers can be chained together. A single distributed network then covers the entire complex.

Q: Does it support third-party "Find My Car" kiosks?

A: Yes. The controller provides an open API or HTTP SDK, enabling license plate data and parking coordinates to be pushed to third-party management software for reverse car-finding applications.

Q: What do I need to install it?

A: The unit fits a 1U rack or a wall mount. You will need a ventilated weak-current cabinet and UPS power protection. Grounding matters too. It reduces interference from high-voltage gear nearby.

Q: What warranty does ZOJE provide?

A: All units come with a 2-year warranty. The ZOJE technical team provides installation guidance. That same team also stays on for maintenance support.
