AB-Type Glass Full-Height Turnstile for Access Control
1. Tempered glass features, safety,sleek modern look
2. 0.5s fast passage, no queuing
3. One-person access only , auto-locks after entry
4. Timeout alarm function for illegal full opening of double doors.
5.Anti-climb , anti-tailgating
6.Works with all access controllers (RFID, push button, biometrics, etc.)
7. Support OEM,ODM customization.Solutions available for your project
8. After-Sales: 2-year warranty, 24/7 support, 30min remote help, lifelong maintenance
- Face to Face Discussion
- Quality Assurance
- 24/7 Customer Service
Product Introduction

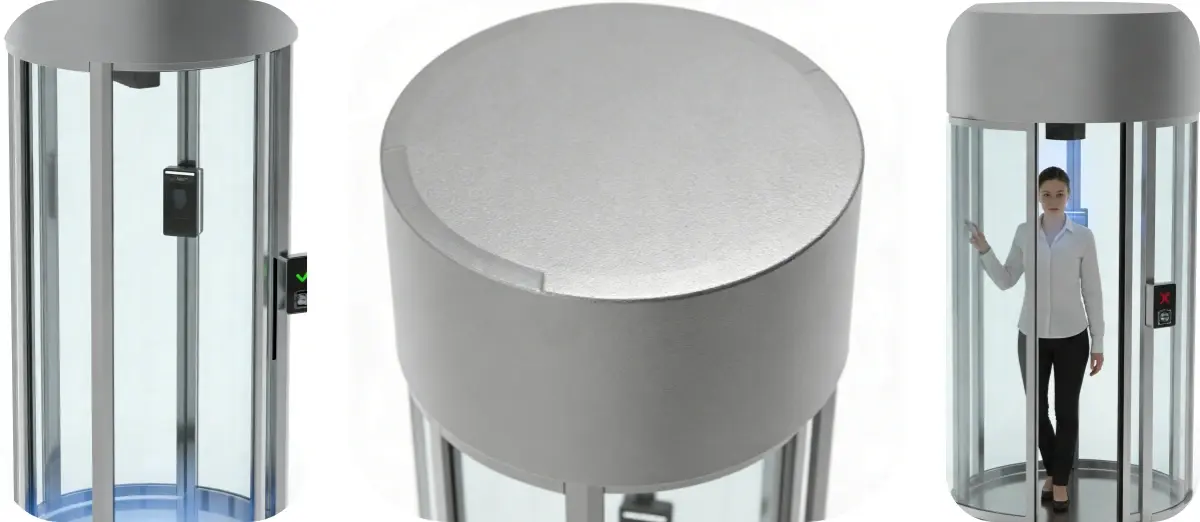

AB-Type Glass Full-Height Turnstile for Access Control — Airlock Security Meets Modern Architecture
The AB-Type Glass Full-Height Turnstile for Access Control works on a two-door interlock. Door B will not release until Door A is shut and locked all the way. That leaves one person alone in a floor-to-ceiling tempered glass cabin during the credential check. AISI 304/316 stainless steel makes up the frame. The glass is laminated safety glass. One pass takes 0.5 seconds. IR sensors check that only one person is inside. Anti-tailgating cover comes from those same sensors. If a door is held open without clearance, a timeout alarm sounds. RFID, biometrics, push buttons, and third-party access controllers all work as inputs. OEM/ODM customization is offered.
Why the AB-Type Design Outperforms Standard Turnstiles
Two bypass routes stay open with waist-height optical turnstiles. One is crawling underneath. The other is vaulting over the barrier. The AB-type glass design shuts both of them. Each user stands inside a sealed, floor-to-ceiling compartment until verification finishes.
Interlocking logic lets the cabin hold one person at a time. No software rule that someone can override is doing this work. The door sequence itself enforces it as a physical limit. Such a difference counts in places where one unauthorized entry carries serious operational or security consequences.
Key Features
Tempered Laminated Glass Construction
Laminated safety glass goes into every glass wing. Thickness starts at 10 mm, and the panels meet EN12600 impact requirements. Say a panel does break: the interlayer keeps every fragment in place. The barrier holds. Loose shards cannot hurt anyone.
0.5-Second Passage Speed
Each authorized user passes through in approximately 0.5 seconds. The interlock logic limits throughput to 6–8 persons per minute — a direct consequence of requiring full verification before the exit door opens.
Single-Person Detection
A dense IR sensor matrix, with optional weight sensing or Time-of-Flight (ToF) cameras, monitors occupancy inside the cabin. The system cannot cycle the second door until the cabin reads as clear of the previous occupant.
Anti-Tailgating and Anti-Climb Design
Full-height glass coverage removes the overhead bypass route. The enclosed cabin prevents a second person from following through behind a verified user. Crowding detection triggers a system lockdown and alarm.
Timeout Alarm for Unauthorized Door Hold
Force either door open, or hold it past the allowed dwell window, and the system raises an automatic timeout alarm. High-risk access zones are where this matters most. Door-hold events there have to be logged and answered in real time.
Drive System
High-precision servo motors or brushless DC drive units with planetary gears handle the rotational torque of the glass wings. MCBF is rated at 5–10 million cycles, supporting high-traffic environments over extended service life.
Universal Access AB-Type Glass Full-Height Turnstile for Access Control Controller Compatibility
RFID cards are one option. Fingerprint readers work too, and face recognition is supported as well. Iris scanners connect, and so do push buttons. Through standard I/O integration, any third-party access control system can join in.
Fail-Safe Fire Alarm Mode
A fire alarm signal comes in, and the brakes release by themselves. Nothing blocks the glass wings as they open. An evacuation path is now clear.
Technical Specifications
| Parameter | Specification |
|---|---|
| Turnstile Type | AB glass full height turnstile |
| Dimension (L×W×H) | 1060×1060×2360mm / Customized |
| Material | Stainless Steel 304 & Tempered glass / SS316 & Bulletproof glass |
| Channel Width | 620mm / Customized |
| Drive Type | 2 Door interlock & Brushless motor |
| Direction | Single / Bidirectional |
| Power Supply | AC110-230V, 50/60Hz |
| Operation Voltage | DC24V, 3A |
| Unlock Time | 0.2S |
| Function | Fail safe |
| Working Environment | Indoor |
| Working Temperature | -70°C to 15°C |
| Relative Humidity | Less than 95%, No Condensation |
| Input Interface | Dry contact/Relay Signal |
| Communication Interface | RS485 / TCP/IP |
| LED Indicator | Yes |
| Emergency | Unlock Automatic |
| Access Control | Compatible with any access control system |
AB-Type Glass Full-Height Turnstile for Access Control in Typical Installation Environments
Data Centers and Server Rooms
A turnstile works as a physical access layer. Staff who are verified get into server areas. Nobody else does. Waist-height barriers still leave bypass routes open. People crawl under them, or they vault over. Full-height glass closes those routes off.
Executive Floors and the Corporate Headquarters
Look at it and the glass build sits well next to glass facades. Open lobbies suit it too, and so do modern interior finishes. Solid-panel alternatives carry a visual weight. This approach avoids that.
Pharma R&D and Controlled Environments
Think of AB interlock logic as an airlock sequence. Door A shuts first. Door B then opens. The result is less air moving between public corridors and controlled spaces. Facilities doing sensitive research and production get help with contamination management requirements.

Quality Control Process
Before shipping, every unit goes through a check in a fixed order.
Anti-Pinch Safety Testing: Standard test bodies confirm the glass wings stop or reverse immediately on contact. The safety standards that apply are followed here.
Interlock Logic Verification: The full entry sequence is stress-tested (Entry → Lock → Verify → Exit). What we want to confirm: both doors never open at once during normal operation. We check trapped-person recovery on power failure as well.
Glass Stress Analysis: Our team checks the clamping mechanisms to make sure the pressure stays even. Polished edges get inspected as well. So does lamination adhesion. Both steps lower the chance of spontaneous breakage.
Motor Fatigue Testing: Each unit of the AB-Type Glass Full-Height Turnstile for Access Control runs nonstop under load for 24–48 hours. Gearbox overheating and belt slippage are what this test looks for. Before shipment, this check is done.

Customization and Delivery
ZOJE supports full OEM and ODM customization — hardware dimensions, software integration, branding, and access control compatibility can all be adjusted to project requirements.
Standard products ship within 5–7 days. Customized configurations are ready in 10–15 days. Both sea freight and air freight are available under DDU or DDP terms.

Frequently Asked Questions
Q: How does the turnstile react once a fire alarm goes off?
A: The unit goes into Fail-Safe mode the moment a fire alarm signal arrives. Brakes release. Glass wings swing open by themselves, and pushing them by hand works just as well. One way or the other, people get a clear way out straight away.
Q: What is the throughput capacity?
A: The single-person interlock design produces a throughput of 6–8 persons per minute. This rate is a direct result of verifying each individual before the exit door opens — not a performance limitation.
Q: Can it integrate with biometric systems?
A: Yes. The user stands still for a moment inside the closed glass cabin. That gives a controlled space for face recognition, iris scanning, or fingerprint checks.
Q: How well does the glass hold up against impact and forced entry?
A: Kicks and blunt hits do not easily damage the laminated build. Should the panel break, the interlayer keeps the fragments where they are. The barrier stays up and the shards stay contained.
Q: What if someone gets trapped inside when the power fails?
A: Trapped-person recovery logic is verified during pre-shipment testing. In standard configurations, a power failure triggers fail-safe mode, allowing the doors to be pushed open manually from inside.
