Unattended Full-Height Turnstile for Secure Sites
1. Unattended operation, no staff needed
2. 0.5s fast passage, no queuing
3. One-person access only , auto-locks after entry
4. Single/dual channel / customized
5. Anti-climb , anti-tailgating
6. Works with all access controllers (RFID, push button, biometrics, etc.)
7. Support OEM,ODM customization.Solutions available for your project
8. After-Sales: 2-year warranty, 24/7 support, 30min remote help, lifelong maintenance
- Face to Face Discussion
- Quality Assurance
- 24/7 Customer Service
Product Introduction

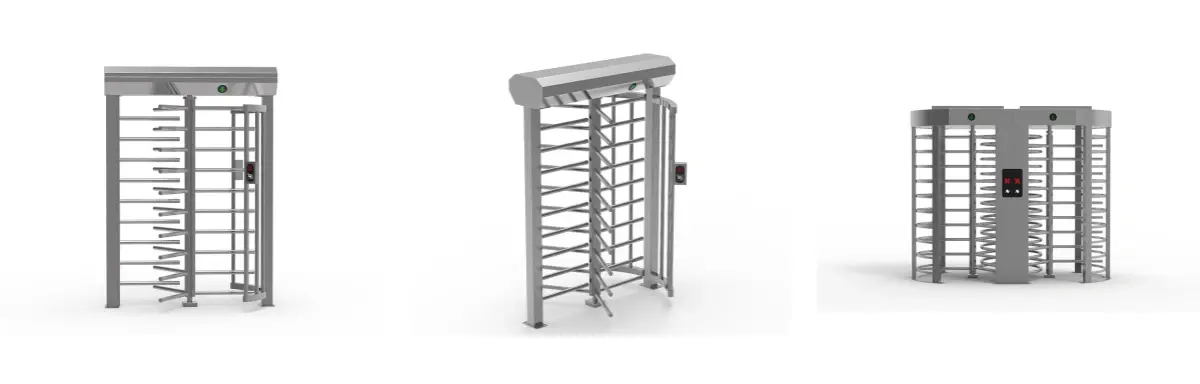

Unattended Full-Height Turnstile for Secure Sites — Autonomous Perimeter Access Control for High-Risk Zones
Not every site keeps a guard on duty. Where nobody is posted, the hardware itself has to decide who gets in. Floor-to-ceiling access control comes from the Unattended Full-Height Turnstile for Secure Sites, and it runs with no staff at all. One authorized person passes every 0.5 seconds. At the end of each rotation the lock closes by itself. Tailgating gets shut out that way. Single-channel or dual-channel setup both work. RFID readers plug straight in. Biometric devices do too. Push-button controllers connect as well, through standard Wiegand, RS485, and dry-contact relay interfaces.
How a Full-Height Rotor Differs from a Waist-High Barrier
A rule only holds up when people actually follow it. Waist-high barriers lean on exactly that. The full-height rotor blocks the way from the floor to the ceiling instead. Stepping over it is not possible. Sneaking a second person in right behind is not possible either.
Three or four interlocking arms make up the rotor. No crawl space is left in the 4-arm (90-degree) setup, so it fits the tightest perimeters. Passage gets faster and more comfortable with the 3-arm (120-degree) setup. Entry still stays at one person per cycle, though. Once rotation passes 60 degrees, the mechanism locks itself. A half-finished entry gets stopped that way. So does a deliberate block.
Key Features
- Unattended operation: no on-site staff required
- 0.5-second passage speed: sustained throughput during peak periods
- One-person-per-cycle enforcement: mechanical anti-tailgating at every rotation
- Anti-climb design: rotor arms span full height from floor to ceiling
- Single and dual-channel options: or custom multi-channel configurations
- Universal controller compatibility: Wiegand, RS485, dry-contact relay
- Outdoor biometric reader support: mountable on weather-protected external brackets
- OEM and ODM customization: hardware configuration and software integration both supported
Technical Specifications
| Parameter | Specification |
|---|---|
| Turnstile Type | 120 degrees full height turnstile |
| Dimensions (L×W×H) | 1500×1240×2250mm / Customized |
| Material | 304/316 Stainless Steel |
| Channel Width | 600mm / Customized |
| Drive Type | Semi-Automatic (Solenoid) / Automatic (Motor) |
| Direction | Single / Bidirectional |
| Power Supply | AC110-230V, 50/60Hz |
| Operation Voltage | DC24V, 3A |
| Unlock Time | 0.2 seconds |
| Safety Function | Fail Safe |
| Environment | Indoor & Outdoor |
| Working Temperature | -70°C to 75°C |
| Relative Humidity | <95%, No Condensation |
| Pass Speed | 35 persons/minute |
| Input Interface | Dry Contact/Relay Signal |
| Communication | RS485 / TCP/IP |
| LED Indicator | Yes |
| Emergency Function | Automatic Unlock |
| Access Control | Compatible with all systems |
Built for Harsh, Unmanned Environments
The unit runs from −30°C to +70°C. Internal thermostats and built-in heaters make that possible. Sealed electronics help too. Dust and moisture stay clear of the parts inside, because the enclosure carries an IP65/IP67 rating at perimeter sites.
Bearings that lubricate themselves cut down on scheduled service visits. The rotation comes from a drive mechanism with hydraulic damping. It turns smoothly. On its own, it re-centers. Mechanical wear stays low, and the chance of a user getting trapped during operation drops.
Chassis come in two steel grades. AISI 304 suits standard sites. For marine and chemical-exposure locations, go with AISI 316. Powder coating thickness and passivation quality also get checked by staff during production quality control.

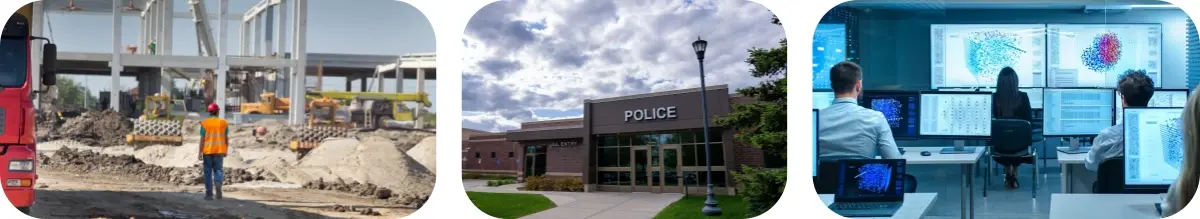

Deployment Contexts
Power Plants and Unattended Full-Height Turnstile for Secure Sites Water Treatment Facilities
Some fence lines sit far out on the perimeter. Nobody guards them on a permanent basis. Sites like these do better with multi-factor credential checks: a biometric read plus a card. Credential sharing between shifts is a real risk, and Anti-Passback logic in the system blocks it.
Data Centers and Colocation Facilities
Installed at service entrances and loading dock perimeters, the unit can integrate with man-trap logic — holding egress until a secondary credential scan is completed.
Construction and Mining Sites
Heavy traffic at shift change is no problem for the system. Time-and-attendance data can go straight out to payroll integrations. No manager has to be on site for that to happen.
Quality Control of Unattended Full-Height Turnstile for Secure Sites
Each unit gets a structural rigidity check. Rotor arms must take 600N+ of impact force and not deform. MCBF certification shows the drivetrain can handle millions of rotations before the scheduled maintenance intervals.
Force limiter calibration is verified to confirm the turnstile does not apply harmful pressure if rotation is obstructed mid-cycle. Fail-Safe function is validated to confirm free egress during power interruption, in line with standard life safety egress requirements.
Corrosion resistance is checked before shipment. Powder coating thickness gets measured, and passivation checks run on the stainless steel.
Customization and Lead Times
ZOJE supports OEM and ODM cooperation for this product line. Hardware configurations — rotor arm count, channel width, mounting frames — and software integrations — access controller protocols, attendance data output — can be adjusted for the Unattended Full-Height Turnstile for Secure Sites to match your project requirements.
- Standard products: 5–7 days lead time
- Customized products: 10–15 days lead time
- Shipping: sea freight or air freight
- Trade terms: DDU and DDP available


FAQ
Q: What happens during a power outage?
A: The default setup uses Fail-Safe mode. In that mode the solenoid lets go and people can walk out without obstruction, so evacuation stays safe. If you need tighter security, there is a Fail-Secure option. It comes with battery backup and a manual key override.
Q: Can a user become trapped mid-rotation?
A: The hydraulic damper or motorized drive advances the rotor to the locked position once the user passes 60 degrees. An anti-fallback mechanism prevents the rotor from reversing during partial passage.
Q: Does it support outdoor facial recognition systems?
A: Wiegand and RS485 interfaces support biometric readers mounted in weather-protected housings on the unit's external brackets, which are designed for outdoor unmanned deployment.
Q: How does a single-channel unit differ from a dual-channel unit?
A: Two rotors sit in one interlocked frame on a dual-channel unit. That doubles throughput. One central power supply and one structural footprint serve both rotors.
Q: How often does an unattended unit need preventative maintenance?
A: Do preventative maintenance every quarter. Check the return spring tension. Lubricate the main bearing, then verify the solenoid voltage.
Q: Does ZOJE support OEM projects?
A: Yes. Both hardware and software customization are supported. Lead times and technical support scope are confirmed at the project inquiry stage.
Contact Us
Have a project requiring an unattended full-height turnstile? Email us at info@zoje-tech.com: our team for the Unattended Full-Height Turnstile for Secure Sites will follow up promptly.
