Robust ANPR camera for outdoor parking applications
2.Recognition rate:99%
3.Recognition Regions:Around world
4.Support offline use:Front-end recognition, unaffected by network delay/offline. Support offline billing
5.Support hardware/software customized,support various types of secondary development
6.Support outdoor use
7.24/7 service
8.Support OEM and ODM
- Face to Face Discussion
- Quality Assurance
- 24/7 Customer Service
Product Introduction

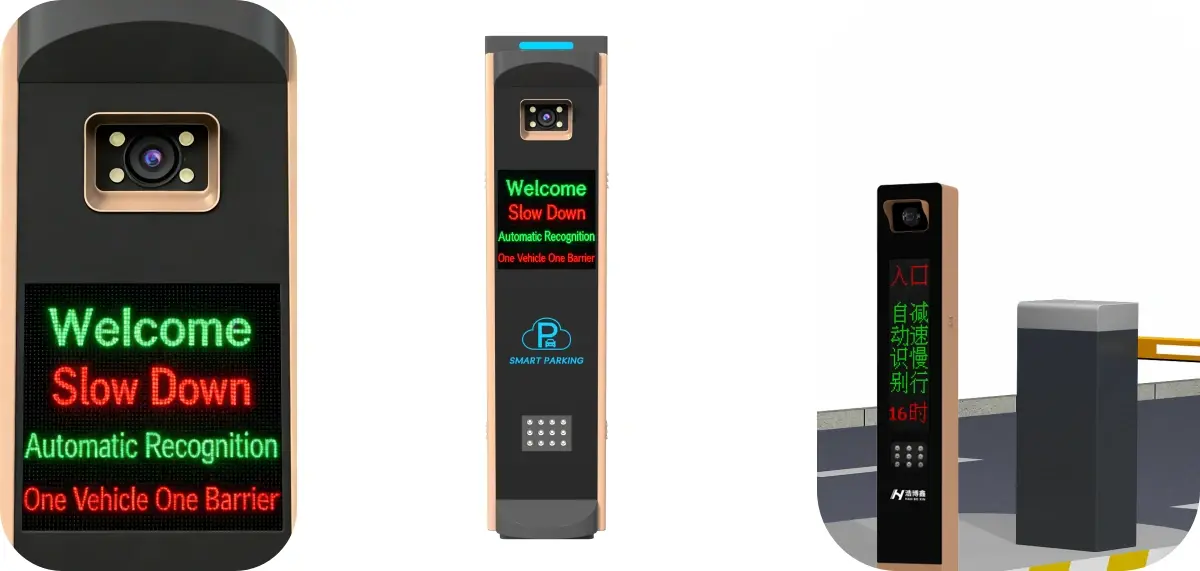

ZOJE-LPR216 — Robust ANPR Camera for Outdoor Parking Applications
Parking operators and system integrators need a camera, a Robust ANPR camera for outdoor parking applications, that reads plates well in bad weather. Rain should not stop it. Neither should glare or dust. Sub-zero temperatures should not stop it either. A unit that only works in a controlled lab is not enough. The ZOJE-LPR216 is an ANPR camera for outdoor parking applications developed by Hong Kong ZOJE Intelligent Technology Co., Ltd., an ISO 9001:2015 certified manufacturer. On-device edge AI gives it a 99% license plate recognition rate. Hardware customization is available. OEM and ODM setups are also supported for project-specific deployments.
How the LPR216 Differs from Standard IP Cameras
Standard surveillance cameras capture images for human review. The LPR216 is built for a different task: it must capture a sharp plate image, fire synchronized infrared illumination, and complete OCR recognition — all within 200 milliseconds, before the vehicle reaches the barrier gate.
To do this reliably outdoors, three hardware components work together in a single housing:
- A Global Shutter CMOS sensor stops motion blur on vehicles moving at 0–60 km/h.
- 850nm synchronized stroboscopic IR illumination bounces off retro-reflective plates in any light.
- A Neural Processing Unit (NPU) sits inside the unit. It handles OCR on the device. No network link is needed for that.
Plates get read right at the edge. So the camera keeps processing them and still controls the barrier gates. That holds true even if the upstream network goes down.
Built for Outdoor Conditions
Cameras in outdoor parking sites take a beating. Physical impact is one problem. So are temperature extremes, moisture, salt air, and electromagnetic interference from barrier gate motors and RFID readers close by. The LPR216 housing deals with each of these:
Enclosure protection: Die-cast aluminum makes up the housing. It holds an IP67 ingress rating (fully dust-tight, and it survives water immersion) plus an IK10 rating for impact resistance.
Temperature range: The camera runs from -40°C to +70°C. Built-in heaters and fans hold that range steady in harsh climates.
Corrosion and stress testing: Every unit goes through Salt Spray Testing under ISO 9227, and Thermal Cycling from -40°C to +75°C. For vibration and shock, the reference is EN 50155. That matters when a pole-mounted install takes wind load or heavy truck traffic.
Electromagnetic compatibility: This camera holds FCC and CE certification. Its IR LEDs and processor will not disturb access control hardware sitting nearby.
Core Technical Specifications
| Component | Specification | Details |
|---|---|---|
| LED Display | Dimensions | 256mm × 256mm |
| Type | P4 LED, dual-color (red/green) | |
| Display Format | Four-line horizontal, QR code support | |
| Resolution | 64×32 dot matrix | |
| Camera System | Image Output | 5MP JPEG |
| Minimum Illumination | 0.01 Lux | |
| Focal Length | 6mm fixed | |
| Storage | Micro SD up to 32GB | |
| Dynamic Range | ≥100dB | |
| Controller | Voice Function | Multi-language announcements |
| Display Support | Various LED modules | |
| General Specs | Protection Rating | IP42 |
| Operating Temperature | -10℃ to 60℃ | |
| Humidity Range | 5% to 85% | |
| Power Consumption | 100W MAX | |
| Dimensions | 336×180×1580mm | |
| Weight | 16kg |
Handling Real-World Recognition Challenges
Vehicle headlights at night: Fast-shutter exposure profiling, using a Robust ANPR camera for outdoor parking applications, keeps headlight glare out of the picture. Light from the 850nm IR strobe bounces off the plate surface and comes back as a sharp black-and-white image of the characters. How bright the headlights are, or which way they point, changes nothing.
Dirty or partially obscured plates: A Convolutional Neural Network (CNN) runs inside the embedded recognition engine. It rebuilds characters from the shapes it can still see, plus probability patterns. Mud, sun fade, or a plate that is partly covered still gets read. Older pixel-matching OCR systems miss those plates at rates this method leaves far behind.
Network outages: Whitelists sit on the device itself. The edge makes the access call. Every event gets written to an SD card. Once the link is back, those records sync to the server. Access keeps working. No transaction records go missing.

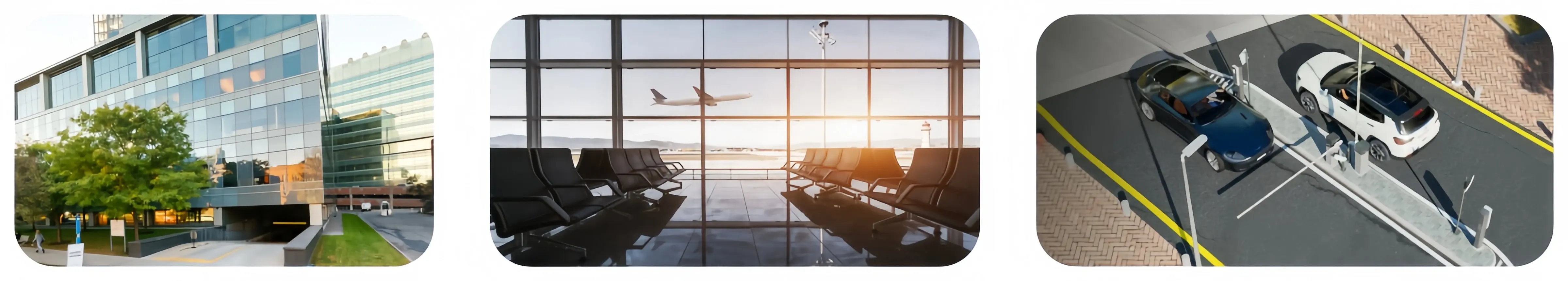

Deployment Scenarios
Ticketless commercial parking: shopping malls and airports: Cars enter and leave all day long. Lanes sit in full sun, rain, and stop-and-go traffic. The LPR216 sends plate reads straight to digital payment systems. Revenue stays intact in every weather condition.
Logistics parks and industrial distribution centers: Poles or gantries hold the camera. It reads non-standard plates. Trailer ID numbers are no problem. So are vertical stacks of characters that heavy goods vehicles often carry. The housing is IK10 rated. EN 50155 vibration testing backs that up. Sites with constant heavy truck movement and exhaust particulates fit this setup.
Residential gated communities: The camera works around the clock in complete darkness. Plates get read with invisible 850nm light, so residents never see a white flash. Hookup to cloud visitor management platforms happens through MQTT or HTTPS push.
Can't find your site type above? Get in touch. We will go over your lane setup and integration needs and tell you if the LPR216 fits.

Robust ANPR camera for outdoor parking applications with Quality Control Before Shipment
Every unit completes a multi-stage validation process before leaving the factory:
- Optical Accuracy Benchmarking against plate variation datasets — verifying FAR below 0.1% and recognition rate above 99%
- Thermal Cycling from -40°C to +75°C and Salt Spray Testing per ISO 9227
- Vibration and Shock Testing per EN 50155
- EMC Testing for FCC and CE compliance
- Housing Seal Verification using vacuum or pressure decay leakage testing

Customization and OEM/ODM
Project requirements can drive hardware and software customization on the LPR216. That covers adjusted integration protocols, recognition modules built for a specific region, and custom branding. Before production starts, ZOJE's engineering team sits down with system integrators and parking operators to agree on the scope.
Standard configurations ship within 5–7 business days. Customized configurations for the Robust ANPR camera for outdoor parking applications are typically ready in 10–15 business days. Shipments are available via sea or air freight under DDU or DDP terms.

Frequently Asked Questions
Q: How does the camera handle high-beam headlights at night?
A: Headlight glare loses most of its punch when exposure profiling runs on a fast shutter. The 850nm IR strobe fires together with that shutter. Light bounces back off the retro-reflective surface of the plate, so the characters stay sharp. It holds up no matter how bright the headlights get.
Q: To control the barrier gate, does the camera need a network connection?
A: No. Whitelists live on the device itself. Access decisions get handled locally. Should the network drop out, the camera keeps running. Events are written to an SD card and uploaded later.
Q: Can it still read plates that are dirty or covered in mud?
A: The CNN-based recognition engine reconstructs character shapes from partial information, allowing it to handle dirty, faded, or partially obscured plates at success rates beyond older OCR approaches.
Q: What vehicle speeds does it support?
A: The LPR216 is rated for 0–60 km/h, covering slow barrier entry lanes through to free-flow parking scenarios.
Q: How does it integrate with existing parking or billing software?
A: RESTful and JSON are part of the open APIs it supports. ONVIF and Wiegand protocols are supported too. Third-party parking management software can connect through them. ERP systems and access control platforms can connect as well. No proprietary dependency is required.
Q: Does it work in coastal areas or places with high humidity?
A: Yes. This housing passes Salt Spray Testing to ISO 9227. It also holds an IP67 rating. So coastal sites, damp places, and dusty spots are all fine for it.
Contact Us
To request specifications, discuss a project, or ask about OEM configurations, including the Robust ANPR camera for outdoor parking applications, email us at info@zoje-tech.com.
