Offline LPR Parking System

Offline LPR Parking System

1.Recognition type:Front-end
2.Recognition rate:99%
3.Recognition Regions:Around world
4.Support offline use:Front-end recognition, unaffected by network delay/offline
5.Support hardware/software customized,support various types of secondary development
6.Model:ZOJE-LPR210
7.Free SDK; support multiple linking solutions such as the dynamic link library (DLL) and com components,support a variety of development languages like C, C++, C#, VB, Delphi, Java, etc.
8.Support OEM and ODM
  • Face to Face Discussion
  • Quality Assurance
  • 24/7 Customer Service

Product Introduction

Offline LPR Parking System – Edge-Computing Vehicle Access Control for Network-Free Operation

The ZOJE-LPR210 Offline LPR Parking System is a front-end vehicle access control solution developed by Hong Kong ZOJE Intelligent Technology Co., Ltd., founded in 2012 and based in Shenzhen, China. Built on edge-computing architecture, it processes license plate data directly on the camera hardware — no cloud server required. The system stores whitelists, blacklists, and enforcement rules in local embedded memory, keeping barrier operation running even during internet outages.

What Is This Product?

This product controls who gets in and out of a site. All License Plate Recognition (LPR/ANPR) processing runs on hardware sitting right there on the premises. Nothing depends on a live cloud connection.

All access rules are stored within embedded memory on the device itself. This approach directly addresses several operational problems that parking and access control operators commonly encounter:

  • Gate failure caused by network instability or server timeouts
  • Unplanned downtime during internet outages
  • Data privacy exposure from cloud transmission
  • Ongoing subscription costs for cloud-based processing services

The ZOJE-LPR210 handles recognition at the edge, so network conditions have no effect on gate response or system availability.

Key Technical Specifications

Component Specifications
LED Display 256mm×256mm LEDP4, Red/Green dual-color, QR code support
Display Resolution 64×32 dot matrix per module
Camera Output 5MP JPEG images
Minimum Illumination 0.01 Lux
Focal Length 6mm fixed aperture
Storage Support Micro SD (TF) card up to 32GB
Dynamic Range ≥100dB
Voice Function Multi-language announcements
Protection Rating IP42 dustproof and waterproof
Operating Temperature -10℃ to 60℃
Operating Humidity 5% to 85%
Power Consumption 100W MAX
Dimensions 336mm×180mm×1400mm (W×D×H)
Weight Approximately 16kg
Recognition Rate 99%+ accuracy
Recognition Speed <150ms per plate

Core Features and Technical Advantages

A Deep Neural Network OCR engine sits inside the ZOJE-LPR210, and it runs on a low-power embedded processor. Every plate gets read at the camera itself. Latency from plate to trigger stays under 150ms, and no remote server is involved.

Hard lighting is where the WDR imaging sensor earns its keep. Direct headlights, dim scenes, both get handled. IR or White Light LED illuminators come built in, and they switch between day and night on their own. So the system still captures a usable plate image at 0 Lux.

Training the neural network per region lets the system read plates with more than one line. Vanity plates are covered too. It also handles the color schemes each country uses. Plate reading works at angles up to 60 degrees. In entry lanes, the system handles vehicle speeds up to 40 km/h.

Wiegand 26/34/66 output ports let the camera act as a virtual card reader. That helps when you integrate it with existing infrastructure. Plate numbers get converted and sent to your access control panel. It works the same way an RFID reader does.

The free SDK works with C and C++. C#, VB, Delphi, and Java are supported as well. Other languages are covered too. DLL and COM component linking are available for secondary development.

Application Scenarios

application

Underground Residential Parking

Cell and Wi-Fi signals drop out in deep basements. Down there, cloud-based systems often hit server timeout delays at the gate. The Offline LPR Parking System does all the recognition on the spot. Residents get in and out without waiting, and the network can be down or up.

Remote Industrial, Mining, and Logistics Sites

Sites far from cities often have no stable network. Truck logging and security gate control still run here. It works standalone or over a local LAN, and nothing outside the site is needed.

High-Security Government and Restricted Facilities

Facilities with strict data handling requirements need vehicle movement records to remain on-premises. All plate data is processed and stored locally on the device, with no external transmission.

Quality Control for Offline LPR Parking System

Before any ZOJE-LPR210 unit ships, it passes a multi-stage inspection.

Environmental Chamber Testing: We put the hardware through the whole operating range, from -35°C to +70°C. That way we can check the processor stays stable when heat or cold puts it under stress.

IP and IK Ingress Testing: Enclosures get checked against dust and high-pressure water jets. Physical impact resistance is verified too. The standards used are IP65/IP66 and IK08/IK10.

OCR Algorithm Stress Testing: Mud-splattered plates go into the test set. So do plates seen at angles of up to 60 degrees. Vehicles moving at up to 40 km/h are included as well, and the recognition engine has to handle all of it.

Storage Durability Testing: Local flash storage gets checked for long-term read and write durability. The test includes many repeated whitelist database updates.

certification

Customization, OEM, and ODM

ZOJE can customize hardware and software to fit your project needs. That covers changes to the enclosure and firmware. We also provide fully branded products through OEM or ODM arrangements.

Standard products usually go out in 5–7 days. For customized products, delivery normally takes 10–15 days. You can ship by sea freight or air freight. DDU and DDP trade terms are available.

Got a project with specific requirements? Reach out and we can talk through the options.

After-Sales Support and Warranty

Every unit comes with a 2-year warranty. You also get 24/7 global technical support. Installation guidance is available from ZOJE for the Offline LPR Parking System, along with pre-sales consultation and ongoing maintenance services.

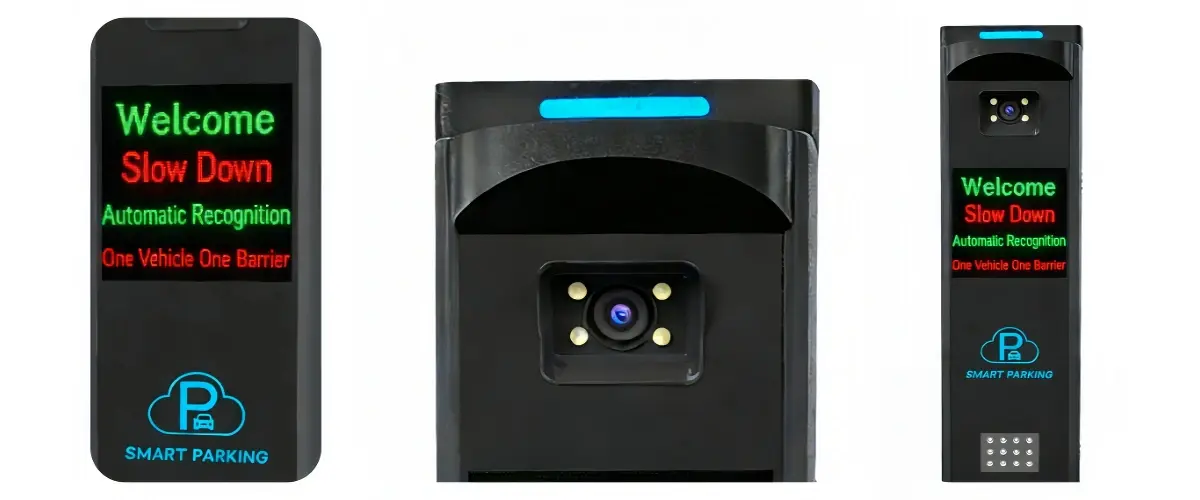

Offline LPR Parking Sysyem

FAQ

Q: What is the way to manage the whitelist when there is no internet access?

A: Two ways work here. You can run it over a local LAN link using a web browser interface. Or you can export and import vehicle lists by plugging a USB cable straight into the camera or the controller. Either route lets you update authorized vehicles in batches. No internet connection needed.

Q: Does the system work at night without external lighting?

A: Yes. Built-in high-power IR or White Light LED illuminators do the work, and automatic day/night switching filters help them. Together they let the system grab plate images at 0 Lux.

Q: What happens once the local log storage fills up?

A: Logs are handled on a First-In, First-Out (FIFO) basis. When the transaction log hits its limit, the oldest entries get overwritten without any action from you. Whitelist vehicle records sit in separate storage. Gate operation keeps running the whole time.

Q: Can it integrate with an existing RFID card access system?

A: Yes. Plate numbers are converted first, then sent out through the Wiegand output ports. They arrive at the access control panel you already own. On the panel side it behaves like a standard RFID card reader.

Q: What happens with complex license plates, or plates that run over several lines?

A: Neural networks inside the system are trained per region. At setup, someone enters the country and region settings. Multi-line plates get read correctly, and so do vanity plates and plates printed in other color schemes.

Q: Can this hardware take rough outdoor conditions?

A: Yes. It runs at temperatures from -35°C to +70°C. Ingress protection sits at IP65/IP66, and the impact rating is IK08/IK10. Rain, dust, and heavy traffic outdoors are all fine.

Contact Us

For specifications, pricing, or customization inquiries about the ZOJE-LPR210 for the Offline LPR Parking System, contact our team at info@zoje-tech.com. We typically respond within one business day.
