All-in-One LPR Machine
2.Recognition rate:99%
3.Model:ZOJE-LPR201
4.Support offline use:Front-end recognition, unaffected by network delay/offline
5.Support hardware/software customized,support various types of secondary development
6.Support outdoor use
7.24/7 service
8.Support OEM and ODM
- Face to Face Discussion
- Quality Assurance
- 24/7 Customer Service
Product Introduction

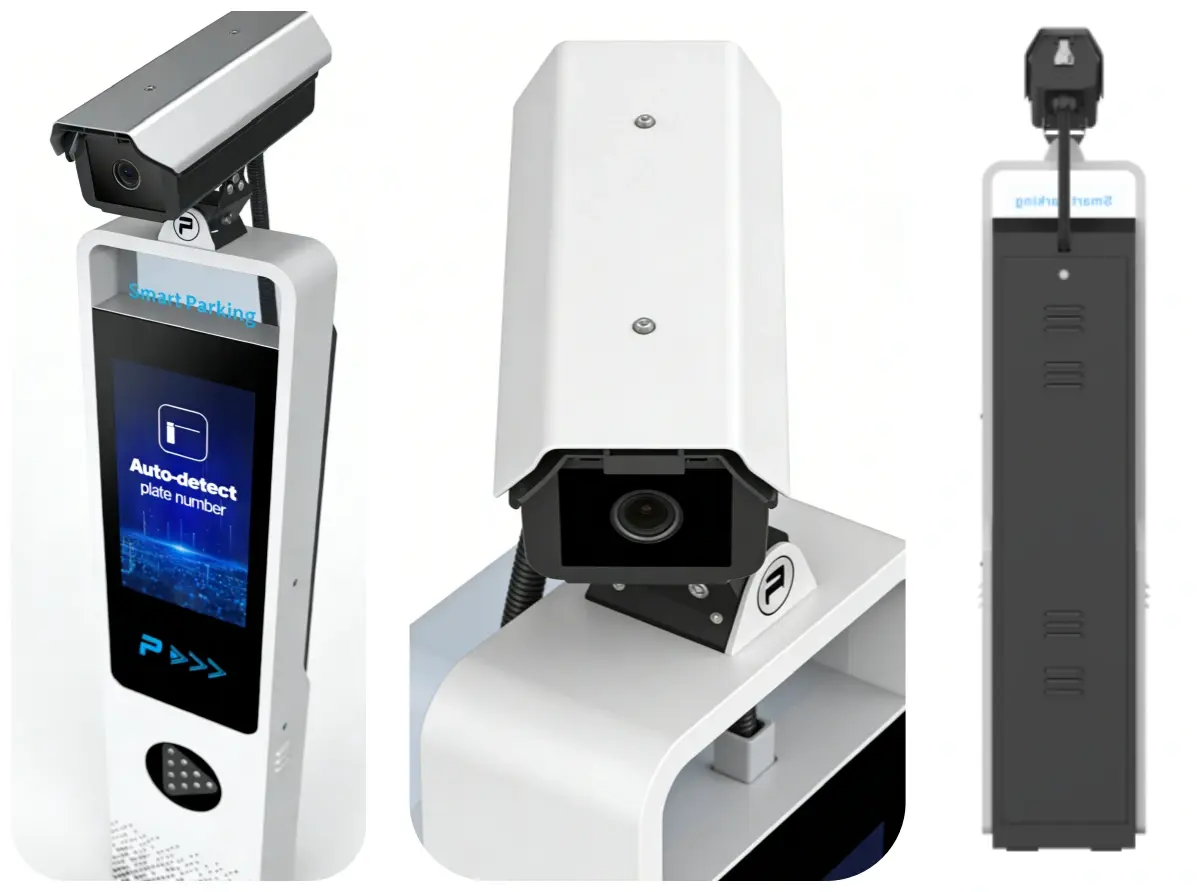

All-in-One LPR Machine for Smart Parking & Traffic Management
The ZOJE-LPR201 is an industrial-grade edge-computing device made for vehicle access control and traffic management. Distributed LPR systems usually need an outside PC server and a network link that never drops. This one does not. The All-in-One LPR Machine packs an HD camera, an optical lens, a smart fill light, and a high-performance embedded processor into one IP66/IP67 housing. Images are captured right on the box. Plate reading runs there too, and so does data output. Setup gets simpler that way. A network outage is also less likely to bring the whole system down.
How This Device Differs from Traditional LPR Systems
Most LPR setups today still lean on an outside PC server. They need a fair amount of cabling as well, plus a cloud link that stays up. Lose the network and recognition stops. Nothing gets written to the access log either.
With the ZOJE-LPR201, all the processing sits at the edge. Pictures are taken inside the unit. OCR runs there too, and the data leaves from the same box. No server is needed at all. A local whitelist of 10,000+ plates lives on the device, so it keeps working through a network outage. Access logs stay on the unit as well. They sync back up once the link returns.
Fewer hardware parts sit on-site with this setup. Upkeep gets easier. It also takes away the reliance on a remote server, which could otherwise fail and take everything down.
Key Features
Front-End Edge Recognition
All recognition processing runs on the embedded processor inside the device. There is no reliance on a remote server or cloud platform for plate identification.
99% Recognition Rate
The embedded deep learning neural network is designed to handle dirty, angled, reflective, and damaged plates across varied lighting conditions. The stated recognition rate is based on internal algorithm validation covering 10,000+ sample images.
Wide Dynamic Range and Night Vision
WDR sensors rated above 120 dB help cut the glare. So do Headlight Suppression (HLC) algorithms. Strong headlights cause overexposure, and both work against it. When light drops, built-in IR or white light illuminators adjust their intensity on their own.
Offline Operating Mode
The device continues to process plates and control barrier gates when the server or network is unavailable. A local whitelist and access log are stored on the device and uploaded automatically once the connection is restored.
Rich I/O Interfaces
TCP/IP, RS485, Wiegand 26/34 and relay outputs are all supported. Relay outputs let you drive a barrier gate directly. The same interfaces connect to third-party parking or traffic management software.
Weatherproof All-in-One LPR Machine Construction
The housing carries an IP66/IP67 rating. Voltage input is wide, running from 12V to 24V DC. Surge protection comes from a TVS rated at 6000V. It also works between −30°C and +70°C. All of this lets the unit go outdoors in tough conditions.
Product Specifications
| Parameter | Specification |
|---|---|
| Operating Voltage | AC110-240V±10% |
| Operating Temperature | -20℃ to +60℃ |
| Relative Humidity | ≤95% without condensation |
| Rated Power | ≤60W |
| Communication Method | TCP/IP, RS485 |
| Display Type | 18.5-inch outdoor high-brightness LCD |
| Screen Resolution | 1366*768 |
| Protection Class | IP64 |
| Material | High-strength carbon steel |
| Dimensions | 1400333200mm (HWD) |
Application Scenarios
Smart Parking: Commercial and Residential
Plates get read on the way in and on the way out. The device then opens the barrier gate. Timestamped data goes to the parking management system, which uses it to work out the fee. When the network drops, offline mode keeps access working. That counts in residential sites, where the gate has to open reliably at any hour.
Logistics and Weighbridge Systems
Dust and vibration are normal at mining sites and industrial parks. So is constant truck traffic. In those places the ZOJE-LPR201 links up with weighing software, and weight records get matched to plate data. Each transaction then carries a link between the vehicle and its load that can be checked.
Highway Tolling and Traffic Monitoring
Vehicles moving faster than 120 km/h still get their plates read. Fast shutter speeds and strong stroboscopic light let the All-in-One LPR Machine do it. The output carries the plate number. It also carries the image and the timestamp. From there the data can go straight into toll collection or enforcement platforms over HTTP push or MQTT.

Quality Control for Your All-in-One LPR Machine
Every ZOJE-LPR201 unit goes through structured testing before shipment.
- IP Sealing: Each unit is tested to IP66/IP67. Where the site is coastal or the air stays damp, at least 48 hours of salt spray testing is added.
- Burn-In Testing: Every unit goes through a 24-hour aging cycle at high temperature. This checks that the embedded processor and the LED drivers shed heat the same way under constant load. No drift, no surprises.
- Algorithm Validation: We test recognition accuracy on an internal image set of 10,000+ samples. Plates in that set are dirty, bent, or shot at an angle.
- Electrical Safety: TVS 6000V simulates ESD and lightning surges. It shows whether the motherboard holds up when the unit is mounted outdoors.
- Vibration Testing: Lenses get shaken on purpose. The sequence copies the kind of shaking that heavy traffic causes. After that, the team checks whether the focus still holds.

Customization and OEM/ODM
ZOJE builds hardware and software to fit what a project needs. EU plates need one kind of OCR firmware. North American and Southeast Asian formats need another, and region-specific versions are available for all of them. Housing can be configured to order. Help with software integration is part of the service too.
OEM and ODM services are both offered. Standard products leave the factory in 5–7 days. Customized orders usually take 10–15 days. Freight can go by sea or by air. DDU and DDP trade terms are available.
Got specific project parameters? Send them over to the team. They will review them directly.
| Parameter | Specification |
|---|---|
| CPU | Dual-core 900MHz + CNN acceleration (0.5Tops) |
| Image Sensor | 1/2.8" starlight-level CMOS |
| Max Resolution | 1920×1080 |
| Lowest Illumination | 0.01Lux (Color) |
| Data Output | H265/H264/MJPEG |
| Lens Configuration | Standard 6mm prime lens |
| Recognition Rate | ≥99% |
| Network Interface | 10/100Mbps adaptive RJ45 |
| Storage | TF card slot (up to 512G) |
| Parameter | Specification |
|---|---|
| LED Count | 9 pieces |
| Maximum Power | 10W |
| Control Method | Intelligent light sensitivity |
| Illumination Distance | >50LUX at 5 meters |
| Angle Adjustment | Supported |
Frequently Asked Questions
Q: If the server goes down, can the device still run fully offline?
A: Yes. A local whitelist of 10,000+ plates sits on This product, and access logs are kept on the device too. Once connectivity comes back, the data uploads on its own.
Q: How does the device deal with high-beam headlights, or with total darkness?
A: WDR sensors are rated above 120 dB. HLC algorithms cut overexposure caused by strong headlights. Built-in IR or white light illuminators adjust intensity by themselves. Ambient light levels guide that change.
Q: Which regions can the OCR algorithm read?
A: Firmware is configured to the target market at the point of order — EU, North America, or Southeast Asia — to handle region-specific plate fonts, colors, and multi-line formats.
Q: What is the recognition distance and processing speed?
A: Standard parking configurations cover 3–10 meters. High-end ITS configurations reach up to 25 meters. Processing time from image capture to data output is under 100 milliseconds.
Q: Can this device work with software from other vendors?
A: Yes, it can. HTTP push and MQTT are both supported, and there is a full SDK for Windows and Linux. What comes out of it is the plate number, the captured image, and a timestamp. You get that data as JSON or XML.
Q: Is customization available?
A: Custom work is possible on both the hardware and the software side. OEM and ODM services are offered too. Send the team your project specs and they will go through the options with you.
Contact Us
Got a project in mind, or a technical question? Send a note to info@zoje-tech.com. Tell us what your All-in-One LPR Machine project needs. That way you get an answer faster.
