Parking automatic Payment Station Integrated with LPR System

Parking automatic Payment Station Integrated with LPR System

1.Model:ZOJE-LPR101
2.Recognition rate:99%
3.Recognition Regions:Around world
4.Support offline use:Front-end recognition, unaffected by network delay/offline. Support offline billing
5.Support hardware/software customized,support various types of secondary development
6.Support outdoor use
7.24/7 service
8.Support OEM and ODM
  • Face to Face Discussion
  • Quality Assurance
  • 24/7 Customer Service

Product Introduction

Parking Automatic Payment Station Integrated with LPR System — Ticketless Revenue Control for Unattended Parking

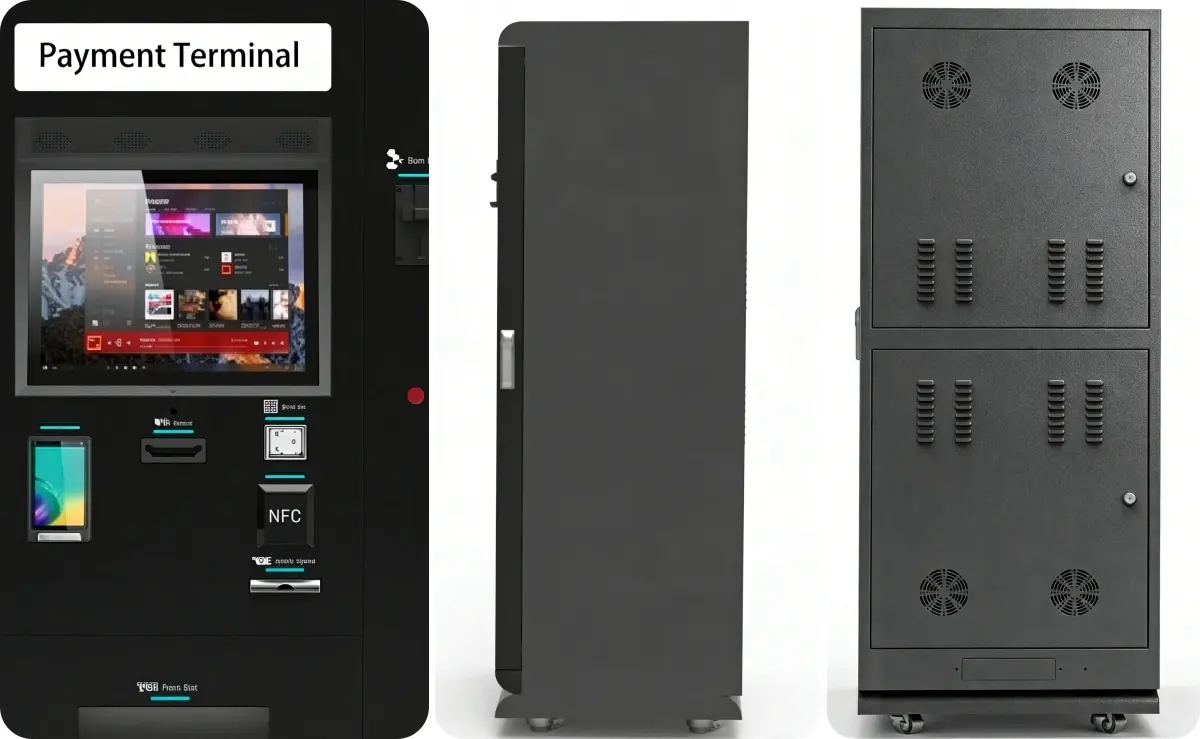

The Parking automatic payment station Integrated with LPR System (Model: ZOJE-LPR101) is a self-service kiosk made for 24/7 unattended use at parking sites around the world. Hong Kong ZOJE Intelligent Technology Co., Ltd. developed it. The unit pairs optical license plate recognition with a modular payment terminal. Cash, EMV cards, and NFC wallets are all handled inside one enclosure. Offline billing runs through front-end recognition, so network interruptions do not bring it down.

What Is This Product?

A parking payment station integrated with LPR technology is an industrial kiosk housing an Industrial PC (IPC). It communicates via TCP/IP or RS485 with entry and exit LPR cameras and a central parking management server.

Unlike card or token systems, this solution uses OCR algorithms to identify vehicles upon entry. Each vehicle receives a virtual ticket linked to its license plate — no physical ticket is issued.

This removes four recurring friction points in parking operations:

  • Throughput delays: Drivers do not stop to grab a ticket anymore. Entry lane lines clear faster
  • Revenue leakage: Each fee is tied to the plate. That removes ticket swapping and lost-ticket fraud
  • Staffing costs: Fewer attended toll booths are required for routine transactions
  • Consumable waste: Thermal paper tickets and plastic cards are no longer needed

Key Technical Specifications

Category Parameter Specification
Basic Parameters Operating Voltage AC110-240V±10%
  Operating Temperature -20℃ to +60℃
  Relative Humidity ≤95% without condensation
  Rated Power ≤60W
  Communication Method TCP/IP, RS485
  Display Type P4 Red-Above-Green LED Module
  Protection Class IP64
  Material High-strength carbon steel
  Dimensions 360×150×1490mm
Camera Parameters CPU Dual-core 900MHz + CNN acceleration
  Image Sensor 1/2.8" starlight-level CMOS
  Max Resolution 1920×1080
  Lowest Illumination 0.01Lux (Color)
  Recognition Rate ≥99% comprehensive rate
  Network Interface 10/100Mbps adaptive RJ45
  Storage TF card slot (max 512G)
Fill Light Parameters LED Count 10 pieces
  Maximum Power 10W
  Control Type Intelligent light sensitivity
  Illumination Distance >50LUX at 5 meters

Hardware Architecture and Core Features

The ZOJE-LPR101 is built around an industrial-grade IPC platform. The high-brightness touchscreen maintains readability in direct sunlight — a practical requirement for outdoor kiosks in open parking areas.

The LPR module uses deep learning neural networks paired with 2MP–5MP optical sensors. The system is designed to handle challenging capture conditions including acute approach angles, rain, headlight glare, and soiled plates, while maintaining recognition rates at or above 99%.

The payment hardware comes in modules. One unit takes bill validators, coin recyclers, EMV card readers, and NFC mobile wallets. Card data goes through P2PE encryption. PCI-DSS rules are met as well. Cardholder data is never kept on the machine in plain text.

Built-in heaters and fans handle the thermal side. They keep the unit running steady from -30°C to +70°C. A powder-coated steel housing fights off corrosion. Rough handling in busy public places is no problem for it either.

Application Scenarios

Commercial Malls and Parking automatic Payment Station Integrated with LPR System Retail Complexes

Heavy short-term traffic gets handled by the system, and entry through LPR runs free-flow. Plenty of drivers do not remember the whole plate number. A fuzzy-match search covers that case. It shows entry photos with timestamps so the driver can confirm the match. Shoppers get fee discounts as well. They scan their receipts at the kiosk and the discount is applied for them.

Airports and Transportation Hubs

Pricing tiers for short-term zones and long-term zones are set up in the software. Access control and vehicle screening depend on links to security whitelists and blacklists. Continuous outdoor use in busy, high-footfall locations is what the IP65-rated enclosure is built for.

Residential and Mixed-Use Developments

Barrier lift lets monthly permit holders drive through without stopping. Visitors on a short stay pay at the station. Tenants can issue guest passes in advance, and the kiosk redeems them. Residential and commercial usage inside one facility are tracked in separate accounting streams.

application

Quality Assurance for Parking automatic Payment Station Integrated with LPR System

Every ZOJE-LPR101 unit goes through a defined test sequence before shipment:

  • Thermal cycling: Units go through testing from -35°C to +75°C. Humidity reaches up to 95% non-condensing.
  • Mechanical endurance: Validation confirms MCBF > 100,000 cycles for bill acceptors and coin dispensers.
  • LPR field accuracy: Recognition is verified in rain and glare. Sharp angles are tested too. Latency is confirmed below 200ms.
  • Electrical safety: We check leakage current and grounding resistance. Compliance with CE, FCC and ISO 9001:2015 standards gets verified too
  • Ingress protection: Hose-down tests show the seals hold up. Cable glands, door gaskets and locks all get checked

ZOJE carries ISO 9001:2015 certification. The company also holds several registered patents for its technical and design work.

Customization and OEM/ODM

Hardware and software can both be customized by ZOJE to match what a site actually needs. Parking operators, system integrators, and distributors often want branded or purpose-built setups. For them, OEM and ODM cooperation is available.

APIs sit at the core of the software. That makes it easier to connect with cloud parking platforms, mobile pre-payment apps, and property management systems.

Standard units leave the Parking automatic Payment Station Integrated with LPR System factory in 5–7 days. Customized projects usually take 10–15 days. Freight can go by sea or by air. DDU and DDP trade terms are both supported.

Parking automatic Payment Station Integrated with LPR System

Frequently Asked Questions

Q: A plate is too blurry to read. How does the station handle payment then?

A: Drivers can type the characters they think they saw. Fuzzy search does the rest. Matching vehicles come back with entry photos and timestamps. Someone confirms the right car by hand. After that, payment goes through as usual.

Q: A network outage hits. What happens to the transaction data?

A: In offline mode, transaction records get stored on a local SSD inside the IPC. Cached data then syncs with the central server by itself once the connection comes back.

Q: What maintenance interval does the cash-handling module follow?

A: Self-diagnostic sensors send administrators an alert when cash bins hit about 80% capacity. The same alert fires when sensor heads are due for cleaning. At high-traffic sites, preventive maintenance usually runs bi-weekly or monthly.

Q: Can the station work with third-party pre-payment apps?

A: Yes. The API-centric architecture lets This product talk to cloud backends and mobile pre-payment platforms. Say a driver has already paid through an app. At exit the plate gets read, and the barrier opens without any stop.

Q: What customization options are available for different regions?

A: Regional license plate formats? ZOJE handles those. So do local payment methods, multilingual display settings, and enclosure branding. Send the team your project specs and you can talk scope and timeline.
