Vertical Tripod Turnstile for Secure Access Control
2. Support OEM,ODM customization
3. Pass Speed: 35 persons/Minute
4. Cost-effective solution, ideal for projects with limited budgets.
5. Compact design, saving significant installation space in restricted areas.
6. Flexible and easy to install or remove.
7. It supports the integration of various access control modules.
8. Warranty: 2 years
- Face to Face Discussion
- Quality Assurance
- 24/7 Customer Service
Product Introduction

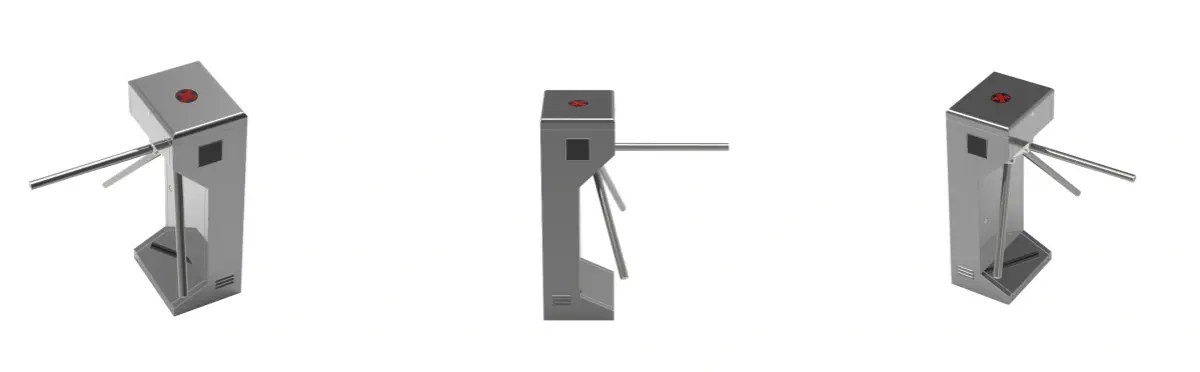

Vertical Tripod Turnstile for Secure Access Control — ZOJE-S206 Series
The Vertical tripod turnstile for Secure Access Control (Model: ZOJE-S206), developed by Hong Kong ZOJE Intelligent Technology Co., Ltd., is a compact electro-mechanical pedestrian barrier designed for medium-security facilities. Built on a rotating three-arm hub mounted in a vertical stainless steel cabinet, it enforces physical single-file passage at a rated throughput of 35 persons per minute. With a Mean Cycles Between Failure (MCBF) exceeding 5 million operations and an IP54–IP65 protection rating, the ZOJE-S206 delivers consistent perimeter control across a range of deployment environments. OEM and ODM customization is supported.
Key Features
Mechanical reliability is one half of the ZOJE-S206 story. The other half is flexibility. It works with a wide range of systems.
Mechanical tailgating prevention: the hub turns on three arms. That physical action lets one person through at a time. Nobody follows behind. A second user needs their own credential scan before the arms move again.
Compact vertical cabinet: the cabinet stands tall and narrow. Narrow entrances often have no room for full-height barriers. This unit drops into that space. The install footprint shrinks. Access control does not get weaker.
Low power draw: the unit runs on under 60W. Energy costs stay predictable over the long run, even where it is in use all day.
The cabinet is made of SUS304 or SUS316 stainless steel. Wall thickness runs from 1.5mm to 2.0mm, so it resists corrosion indoors and in sheltered outdoor spots. Arm rotation stays steady under constant heavy traffic thanks to a solenoid lock paired with hydraulic shock absorbers.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ZOJE-S206 |
| Dimensions (L×W×H) | 420×330×1000mm (Customizable) |
| Material | 304/316 Stainless Steel |
| Channel Width | ≤500mm (Customizable) |
| Drive Type | Semi-Automatic/Automatic Motor Options |
| Direction | Single/Bidirectional |
| Power Supply | AC110-230V, 50/60Hz |
| Operation Voltage | DC24V, 3A |
| Unlock Time | 0.2 Seconds |
| Working Environment | Indoor & Outdoor |
| Temperature Range | -70℃ to +15℃ |
| Passing Speed | 35 persons/minute |
| Communication | RS485/TCP/IP |
| Emergency Feature | Automatic Arm Drop |
| Access Control Integration | Universal Compatibility |
| Humidity Tolerance | <95% (No Condensation) |
| Input Interface | Dry Contact/Relay Signal |
| LED Indicator | Yes |
| Warranty | 2 Years |

Access Control Compatibility
The ZOJE-S206 main control board includes Dry Contact (Relay) inputs, Wiegand 26/34 interfaces, and RS485/RS232 ports, providing compatibility with a broad range of credential readers:
- RFID card readers
- Fingerprint scanners
- Facial recognition terminals
- Barcode and QR code scanners
- Ticketing validation systems
This interface coverage allows the ZOJE-S206 to connect to existing access control infrastructure in most standard deployments without requiring hardware replacement.

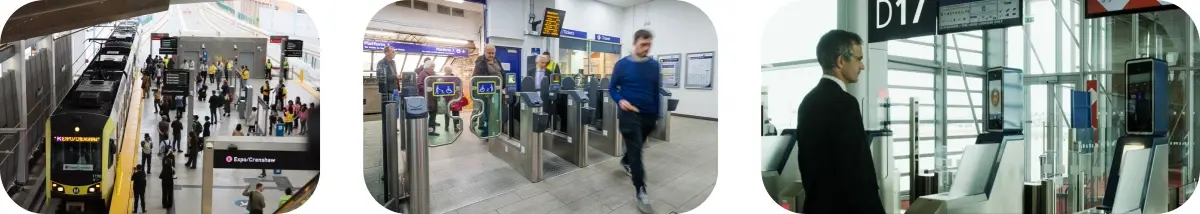

Typical Application Environments
Industrial Manufacturing Plants
Dust and vibration are common on a production floor. The stainless steel cabinet and sealed mechanism of the Vertical Tripod Turnstile for Secure Access Control cope with both. ESD (Electrostatic Discharge) testers can be hooked up to the control interface, so a worker's grounding gets checked before they enter a sensitive area. Time-and-attendance and shift management data can travel through that same control system.
Public Transportation Hubs
The ZOJE-S206 is rated at 35 people per minute. At that pace, passenger flow stays steady in subway stations and bus terminals. Fare validation also runs through the integrated ticketing systems.
Gyms, Leisure Centers, and Corporate Offices
Membership or credential checks can run unmanned on this turnstile. Anyone not authorized gets blocked at the gate. Pass-back fraud is stopped as well. That holds true for sites running QR code or facial recognition systems.
Quality Control Process for Vertical Tripod Turnstile for Secure Access Control
Before anything leaves the factory, every unit is checked through a set QC process.
Life Cycle Fatigue Test: the mechanism undergoes continuous rotation testing to confirm that the solenoid and tension springs meet the stated MCBF specification under representative workloads.
Salt Spray Test (ASTM B117): we put the stainless steel chassis through 48–96 hours of testing. This checks how well the housing material resists corrosion.
Static Load Testing: the arms get loaded with more than 80kg of force. That confirms the structure holds up under physical stress.
Safety and Panic Testing: power loss or a fire alarm signal makes the drop-arm fire in less than 1 second. Tests confirm it. People can get out without touching anything by hand.
Hong Kong ZOJE Intelligent Technology Co., Ltd. runs its quality management under ISO 9001:2015.

Customization and Delivery
OEM and ODM cooperation is available from ZOJE. Cabinet color can be changed. So can branded panels and modified arm setups. Software integration can be adjusted too. Project requirements go straight to the engineering team, who work on them directly.
- Standard products ship within 5–7 business days
- Customized orders ship within 10–15 business days
- You can ship by sea or by air, and we handle it under DDU or DDP terms
Every unit comes with a 2-year product warranty. Our technical team can talk you through the purchase before you buy and give guidance on installation.
Request a Quote
Got a Vertical Tripod Turnstile for Secure Access Control coming up in a project? Send the ZOJE team your site requirements, how many people you expect to pass through each day, and the credential technology you prefer. We will put a proposal together for your deployment conditions.
FAQ
Q: What happens with the ZOJE-S206 in a fire safety emergency?
A: An emergency drop-arm module comes with the unit. Power fails, or a fire alarm signal arrives, and the horizontal arm drops on its own in under 1 second. Staff do not have to step in. The evacuation lane stays clear.
Q: Is outdoor installation possible for the ZOJE-S206?
A: An IP65 rating means the unit can be used outdoors. Sites in cold or humid climates can order internal heater and thermostat modules. These cut the risk of condensation and of the mechanism freezing.
Q: Which access control devices can it work with?
A: On the control board you get Dry Contact (Relay), Wiegand 26/34, RS485, and RS232 interfaces. RFID systems are covered. So are fingerprint, facial recognition, and barcode scanner setups.
Q: How does the turnstile deter tailgating?
A: One person goes through at a time, and the three arms make that physical. Every arm turn needs its own credential signal. So a second person cannot just walk in behind someone. If your site needs tighter security, it is worth looking at full-height turnstile options.
Q: What maintenance does a high-traffic installation require?
A: When a unit runs more than 5,000 cycles a day, service it every quarter. Grease the hydraulic damper. Check the solenoid limit settings. Look over the arm fixtures too. That keeps operation reliable and in line with the stated MCBF.
Q: Can ZOJE handle OEM and ODM projects?
A: Hardware customization is available. Software customization can be done too. OEM and ODM services are offered as well. Customized orders take 10–15 business days.
