ANPR system for Commercial Parking

ANPR system for Commercial Parking

1.Model:ZOJE-LPR216
2.Recognition rate:99%
3.Recognition Regions:Around world
4.Support offline use:Front-end recognition, unaffected by network delay/offline. Support offline billing
5.Support hardware/software customized,support various types of secondary development
6.Support outdoor use
7.24/7 service
8.Support OEM and ODM
  • Face to Face Discussion
  • Quality Assurance
  • 24/7 Customer Service

Product Introduction

ANPR System for Commercial Parking — High-Accuracy LPR Solution for Business Facilities

The ANPR system for Commercial Parking runs on high-definition cameras and Optical Character Recognition (OCR). It handles vehicle access and collects revenue for commercial sites without manual steps. With front-end edge computing, the ZOJE-LPR216 reaches a recognition rate of ≥99%. OCR work happens on the camera, not on a remote server. Billing can still run offline, and whitelist access keeps working when the network goes down. Airports, shopping malls, business parks, and other busy sites can use it in daily operation.

How a Commercial-Grade LPR Camera Differs from a Basic Entry Reader

Standard entry readers verify a card or transponder tag. The ZOJE-LPR216 uses the vehicle's license plate as a virtual credential — no physical ticket is issued, and no staffed booth is required for routine entry and exit.

This approach targets three problems that keep coming back in commercial parking operations. Revenue is lost when tickets go missing or get manipulated. Ticket dispensers at entry points slow traffic down and create lane congestion. Manual payment handling also leads to billing errors.

Core Technical Specifications

Component Specifications
LED Display 256mm × 256mm, P4 dual-color, 64×32 dot matrix, QR code display capable
Camera Resolution 5MP JPEG output
Minimum Illumination 0.01 Lux for night operation
Focal Length 6mm fixed aperture
Storage SD 2.0 Micro SD card support up to 32GB
Wide Dynamic Range ≥100dB for all lighting conditions
Voice Function Multi-language announcements and greetings
Protection Rating IP42 dustproof and waterproof
Operating Temperature -10℃ to 60℃
Operating Humidity 5% to 85%
Power Consumption 100W maximum
Device Dimensions 336mm × 180mm × 1580mm
Weight Approximately 16kg

Key Product Features

Edge Computing at the Front End Makes Offline Running Reliable

All OCR work happens on the camera itself, not on a remote server. Plate reading and barrier control keep running when the network drops. A log of each transaction stays saved on the local device. The moment the connection is back, those logs sync on their own. No revenue data is lost that way.

≥99% Read Accuracy, Whatever the Lighting

Fast-moving vehicles stay sharp with the Global Shutter sensor. No motion blur gets into the frame. Reads hold up in total darkness too, thanks to the 850nm infrared illuminator. Heavy rain does not throw it off. Neither does snow. Glare from direct sun is handled as well. At entry points, strong backlight is dealt with by Wide Dynamic Range (WDR) imaging.

Deep Learning Plate Algorithm

Plates that are dirty, damaged, or not standard still get read. A Deep Learning algorithm does the work. It works out the characters from plate syntax and from font patterns used in each country. If the confidence score comes back low, the entry gets flagged for remote manual review. Or the driver is asked to use a backup method, such as a QR code or a payment card.

Worldwide Plate Format Support

License plate formats from regions all over the world are recognized by the ZOJE-LPR216. That makes it a fit for international airports and mixed-use developments, and for projects deployed across several countries.

Hardware Built for Outdoor Commercial Lots

The IP66-rated enclosure resists water ingress and fine dust. The IK10 rating provides resistance to physical impact. The unit passes Salt Spray testing per ISO 9227 for corrosion resistance and has been tested through thermal cycling from -30°C to +65°C.

Where This System Is Used

Shopping Malls and Large Retail Centers

The ANPR system for Commercial Parking supports ticketless operation for high customer volumes and integrates with loyalty or validation programs — for example, applying automatic free-parking credits based on qualifying purchases. It also detects looping behavior where the same plate circulates to avoid payment.

Corporate Business Parks

The system enforces permit and whitelist rules for employee vehicle fleets. Recognized plates trigger automatic barrier lift during peak entry periods without requiring driver interaction. Visitor zones can be separated through real-time zoning rules configured in the management software.

Airports and Transport Hubs

The system works out tiered pricing for short-stay and long-stay zones on its own. Entry and exit timestamps feed that calculation. Tailgating gets picked up as well, which cuts down on fee evasion. Pre-booking checks run through license plate matching. For security, plates can also be checked against watchlists the operator sets up.

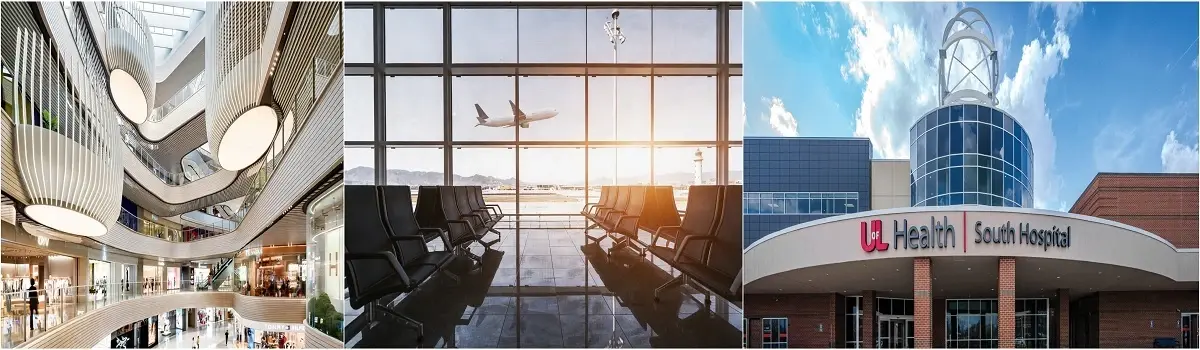

application

Quality Control Standards for an ANPR system for Commercial Parking

Every ZOJE-LPR216 unit goes through structured acceptance testing before shipment.

Even in tough conditions, recognition accuracy tests above 99%. That covers night operation, rain, snow, and direct glare. Barrier signal latency gets checked too. Testing confirms it stays under 1.5 seconds. Thanks to that, lanes keep moving during peak periods.

Hardware goes through thermal cycling across the whole -30°C to +65°C operating range. It also passes ISO 9227 Salt Spray testing for corrosion resistance. Acceptance checks cover one more item. That is store-and-forward, meaning transaction data is buffered locally and uploaded once connectivity comes back.

Customization and OEM/ODM Options

ZOJE can customize both the hardware and the software of the ANPR system for Commercial Parking. The management UI can be built to your own design. APIs your site already runs can be hooked up. Enclosures can carry your brand. Barrier logic can also be changed so it works with the facility management platform you use today.

OEM and ODM cooperation is open to resellers, system integrators, and operators. It fits anyone who needs a private-label product or a build made for one project. Electronic design sits with the engineering team, and so does mechanical design.

Standard product lead time is 5–7 business days. Customized orders typically ship within 10–15 business days. Sea and air freight are both available, with DDU and DDP trade terms supported.

If you have a specific integration requirement or a site configuration to discuss, contact the team directly before placing an order.

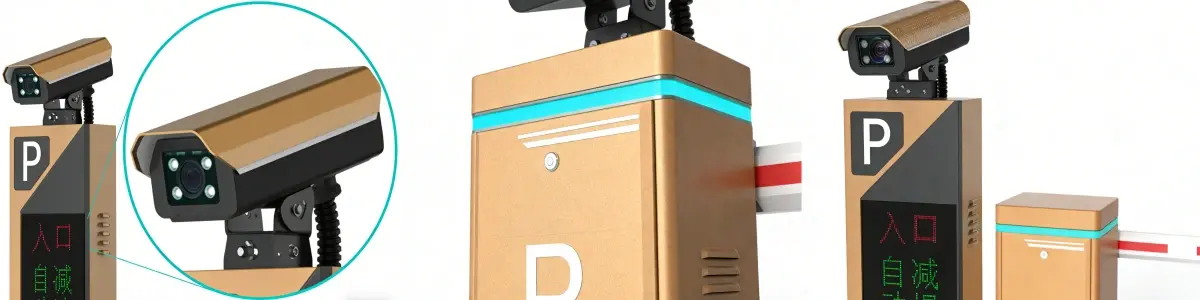

ANPR system for Commercial Parking

FAQ

Q: What happens when a plate is dirty, damaged, or custom?

A: Characters get read by the Deep Learning algorithm. It works from plate syntax and the font patterns used in each region. A confidence score below the threshold changes the outcome. The entry is then flagged for manual review. Or the driver gets a prompt to use a QR code or a payment card instead.

Q: Can data privacy settings be configured in the system?

A: Plate number hashing is built in. So are configurable data retention periods and encrypted transmission. Whether those settings meet the rules where you operate depends on your jurisdiction and on how the unit is set up. Get your legal or compliance team to review it for a binding answer.

Q: Can it work with the barriers and payment machines we already have?

A: Standard dry contact I/O relays are used here. RESTful API and Wiegand output are supported too. Thanks to that, the unit can hook up to a wide range of barrier controllers and PARCS platforms. Ask about compatibility with third-party gear during the technical consultation phase so it gets confirmed.

Q: What happens during a power or network failure?

A: When the network drops, cameras that do edge computing keep running the local whitelists, so subscribers still get in. Images and transaction data sit in a local buffer. Sync happens on its own once the connection comes back.

Q: Does the system support car park counting and space guidance?

A: Entry and exit event data can go into facility management software. That gives you real-time occupancy counts. Those counts can then drive signage and zone guidance systems. What the integration looks like depends on the management platform you use.

Q: What customization options are available?

A: You can customize both hardware and software. That covers API integration, UI branding, enclosure design, and barrier logic adjustments. System integrators and resellers can use our OEM and ODM services. Send us your project brief and we will talk through feasibility.

Contact Us

Send your inquiry about our ANPR system for Commercial Parking to info@zoje-tech.com and our team will respond with a solution tailored to your site.
