Industial ANPR Parking system for High Traffic Sites

Industial ANPR Parking system for High Traffic Sites

1.Recognition type:Front-end
2.Recognition rate:99%
3.Model:ZOJE-LPR201
4.Support offline use:Front-end recognition, unaffected by network delay/offline
5.Support hardware/software customized,support various types of secondary development
6.Support outdoor use
7.24/7 service
8.Support OEM and ODM
  • Face to Face Discussion
  • Quality Assurance
  • 24/7 Customer Service

Product Introduction

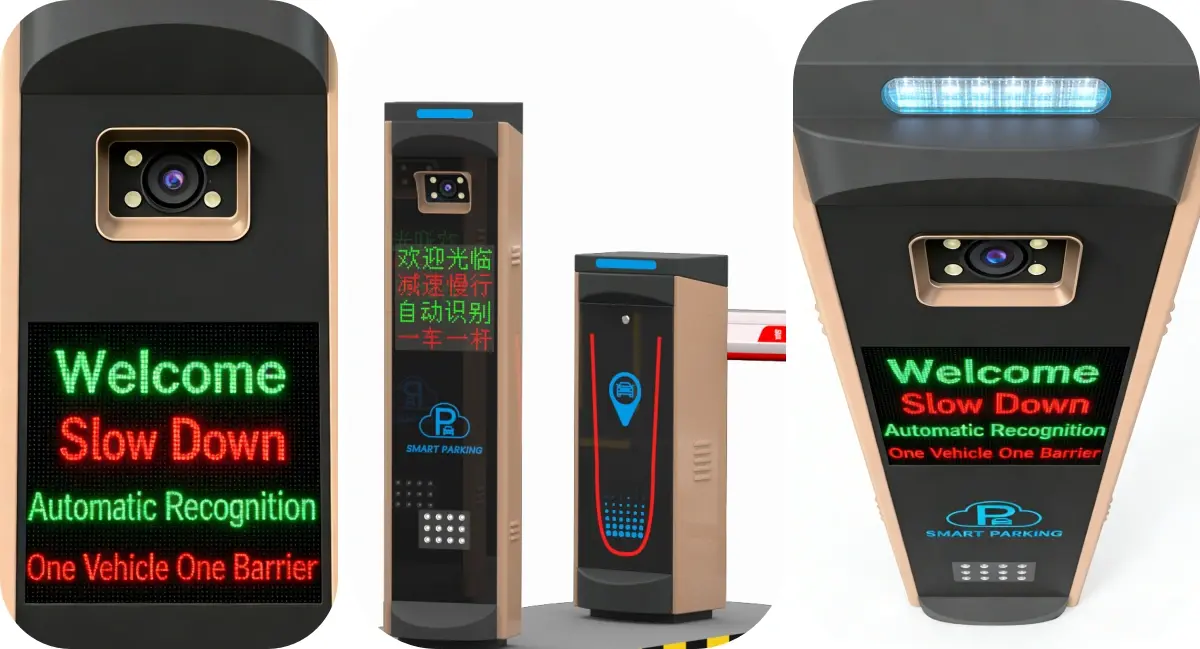

Industial ANPR Parking system for High Traffic Sites — ZOJE-LPR201

The ZOJE-LPR201 comes from Hong Kong ZOJE Intelligent Technology Co., Ltd. That company designs it and makes it. This model is an Industrial ANPR Parking System for High Traffic Sites. Logistics hubs put it to work. So do manufacturing campuses and transport terminals. Vehicles there arrive all day long. Processing happens on front-end edge AI. Plate recognition reaches ≥99% accuracy. Latency stays under 200ms per vehicle. No network nearby? The system keeps working. It runs fully offline. Integrators and project owners can request hardware and software customization. OEM and ODM cooperation for Industial ANPR Parking system for High Traffic Sites is open too.

What Is an Industrial ANPR Parking System for High Traffic Sites?

Think of an Industrial ANPR Parking System for High Traffic Sites as tough gear for reading vehicles. It is built to push a lot of traffic through hard working conditions. For the core recognition tasks, no central server connection is needed at all.

Parking at homes and standard commercial sites works in a different way. The optical character recognition (OCR) algorithms run directly on the embedded edge-computing hardware of the ZOJE-LPR201. Accuracy stays above 99%. Network conditions do not change that. Processing speed does not drag it down. Neither does lighting.

How does that play out on site? Large manufacturing plants use it to clear bottlenecks at shift changes. In logistics hubs, it handles entry and exit logs for heavy goods vehicles (HGVs) by itself. Access control is enforced as well. Traffic keeps moving. Hook it up to weighbridges, Warehouse Management Systems (WMS), or security barriers. You then get a perimeter control layer that runs itself. It leaves an audit trail too. Busy sites are where it fits best.

Key Technical Properties and Hardware Specifications

The IP67 rating keeps dust and water out. Mechanical impact is covered by the IK10 rating. With both in place, the ZOJE-LPR201 suits outdoor industrial sites where the unit sits out in the open.

The camera runs from -40°C to +70°C, so cold storage yards and high-heat production facilities are covered. So are outdoor logistics parks in all sorts of climates. A Global Shutter sensor (4MP+) removes motion blur, which keeps fast-moving vehicles sharp. Fog and rain get handled by high-power strobe infrared (IR) illuminators. The same goes for low-light and zero-light conditions, so the unit keeps working reliably.

Embedded Edge AI does the video processing right on the device. Recognition latency stays under 200ms per vehicle. No cloud or server round-trip is involved, so nothing has to wait. Video coding follows ISO/IEC 14496-10. Signal integrity also holds up next to heavy industrial machinery, because the system meets EMC regulations.

Product Specifications

Parameter Specification
Operating Voltage AC110-240V±10%
Operating Temperature -20℃ to +60℃
Relative Humidity ≤95% without condensation
Rated Power ≤60W
Communication TCP/IP, RS485
Display Type 18.5-inch outdoor LCD
Screen Resolution 1366×768
Protection Class IP64
Material High-strength carbon steel
Dimensions 1400×333×200mm

Application Scenarios

Logistics and Distribution Centers

Trucks and HGVs come and go all day. The system follows that flow without slowing down. Tractor plates are read. Trailer plates are read too. Next it queries the dock-booking or WMS software using the Industial ANPR Parking system for High Traffic Sites and routes each vehicle the correct way. Manual coordination at the entry points drops as a result.

Large-Scale Manufacturing Campuses

Shift changes bring a heavy surge of traffic. Employee vehicles need one set of access rights. Contractor vans and delivery trucks need theirs too. The ZOJE-LPR201 gives each vehicle class its own privileges and gate triggers. Queues that spill onto nearby roads are less likely as a result.

Airports and Transport Terminals

Taxis and buses work in dirty air and rough, shaky conditions. Plates get read by the system at taxi holding pools and short-stay parking zones. Billing logic runs on its own. Event logs come with it, and those logs help operators spot tailgating or ticket irregularities.

application

Quality Control for Industial ANPR Parking system for High Traffic Sites

Every unit goes through IEC 60068 environmental testing. That covers vibration, shock, and salt mist corrosion exposure, and it shows how well the unit holds up in the field. Dirty plates get tested too. So do non-standard ones and reflective ones, including the mud-covered HGV plates you see on industrial sites. The target is a capture rate above 99% and character recognition accuracy above 98%.

Load testing shows the software holds up. Testers push 1,000+ database and API transactions per hour and keep that load running. Data handling that meets GDPR rules is available too. Automated plate masking is one option, and it hides non-target vehicles passing through the checkpoint.

certification

Customization and OEM/ODM Support

ZOJE can customize both hardware and software for a specific project. Which parts usually get integrated? Existing WMS platforms, proprietary access control systems, and custom enclosure setups come up most often. OEM or ODM cooperation is also open to system integrators and regional distributors.

Standard units go out in 5–7 business days. For customized configurations, expect 10–15 business days as a rule. Sea freight and air freight are both offered. Trade terms of DDU and DDP are available too, so different import requirements can be handled.

After-Sales Service and Warranty

Every ZOJE-LPR201 ships with a 2-year warranty. Questions about installation or maintenance later on? Technical support handles those as well. Email your project details for Industial ANPR Parking system for High Traffic Sites to our support team at info@zoje-tech.com and we will help.

Parameter Specification
CPU Dual-core 900MHz + CNN acceleration
Image Sensor 1/2.8" starlight CMOS
Max Resolution 1920×1080
Lowest Illumination 0.01Lux (Color)
Recognition Rate ≥99% comprehensive accuracy
Network Interface 10/100Mbps RJ45
IO Channels 2 output, 4 input
Storage TF card up to 512G
Lens Standard 6mm prime lens
Parameter Specification
LED Count 9 pieces
Maximum Power 10W
Control Type Intelligent light sensitivity
Effective Distance 5 meters (50LUX minimum)
Angle Adjustment Fully supported

FAQ

Q: On industrial sites, plates often turn up muddy or beaten up. How does the system cope with that?

A: Deep-learning models sit inside the embedded OCR engine, and those models were trained on plates in bad shape. When a plate is caked in dirt or throws back glare, multi-exposure HDR processing boosts the contrast. Read rates go up as a result.

Q: What about two-way traffic sharing one lane? Can the system handle it?

A: Yes. Each car gets handled for the right action only, entry or exit. That comes from dual-loop detection or video analytics reading the direction. At single-lane checkpoints this stops duplicate records and wrong ones.

Q: At a busy site, what happens when the network drops?

A: A local whitelist database keeps the barriers running. Store-and-Forward offline buffering does that job. When the link comes back, the transaction logs travel up to the central server by themselves.

Q: Can it work with weighbridges to create weight records automatically?

A: Yes. The system ties a recognized plate ID to the matching weight data string. One shared record comes out of that. Nobody has to key in data by hand at the weighbridge station.

Q: How fast can one vehicle clear the checkpoint?

A: Vehicle speeds of up to 80 km/h (50 mph) are within the camera's rating. Free-flow lanes at that speed still come out clear. You won't see motion blur in the shots.

Q: Is OEM and ODM cooperation available?

A: Yes. ZOJE provides full OEM and ODM services covering both hardware and software. Custom projects typically complete within 10–15 business days, with DDU and DDP shipping options available.
