Speed lane Turnstile for Access Management

Speed lane Turnstile for Access Management

1. Model Type: ZOJE-B202
2. Support OEM,ODM customization
3. Pass Speed: 35persons/Minute
4. Suitable for luxury, premium entrance environments.
5. Stylish cabinet with black tempered-glass top (optional stainless-steel top available).
6. Integrates seamlessly with CCTV, access control, and building management systems.
7. Waterproof rating of IP67 for enhanced durability.
8. Warranty: 2 years
  • Face to Face Discussion
  • Quality Assurance
  • 24/7 Customer Service

Product Introduction

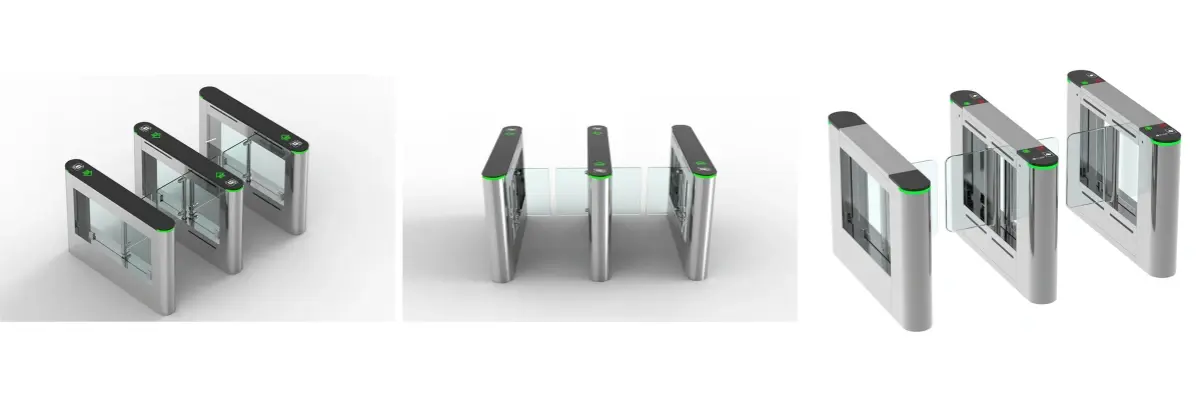

Speed Lane Turnstile for Access Management — ZOJE-B202 Series

Match the performance to the setting first when you pick a speed lane turnstile for access management. The ZOJE-B202 comes from Hong Kong ZOJE Intelligent Technology Co., Ltd. That firm was founded in 2012 and is ISO 9001:2015 certified. Entrances and lobbies that want tight security plus a clean look are what this model handles. Pass speed is verified at 35 persons per minute. IP67 waterproofing and a black tempered-glass cabinet top are both standard. For project-specific needs, OEM and ODM customization stays open.

What Is a Speed Lane Turnstile?

Picture a physical barrier that controls how people walk through a building. A speed lane turnstile handles that job with optical sensor arrays and motorized glass wings. tripod turnstiles work in a different way. With this one the lobby stays open and clear, yet each passage still calls for a valid credential.

The same three problems keep coming up in access management. Here is how it deals with them:

  • Tailgating and piggybacking: Infrared beam arrays catch anyone without clearance who trails an authorized user through the gate. An alarm then sounds, or the barrier stays shut.
  • Passage efficiency: At peak arrival times, lines form fast. The unit takes RFID, biometrics, and QR code authorization. Those queues keep moving because of it.
  • Architectural compatibility: The unit takes up little space, and the finish is configurable. SUS304/316 stainless steel with glass or other top panels are among the choices. That makes it easy to fit into modern interior schemes.

Key Features of the ZOJE-B202

Premium cabinet design: A black tempered-glass top is standard. Need a different finish for your project? A stainless-steel top can be supplied.

IP67 waterproof rating: Dry indoor areas are not the only place it fits. Covered outdoor entrances work. So do semi-open lobbies and rooms with high humidity.

System integration: RS485 or TCP/IP connects it to CCTV. It also links to access control platforms. Building management systems (BMS) are supported. Elevator destination dispatch systems (DDS) work with it too. Lobby-to-floor traffic can then run as one flow.

Fail-safe emergency mode: Power cuts and fire alarms both trigger it. The glass barriers slide back or open by themselves. Nothing blocks the way out. This matches the standard fire safety rules.

OEM and ODM support: You can set the hardware finish and the barrier color. Lane width is configurable too, and so is the communication protocol. All of it can be matched to the project specs.

Technical Specifications

Parameter Specification
Model ZOJE-B202
Dimensions (L×W×H) 1400×200×1000mm
Material 304/316 Stainless Steel
Channel Width 600mm/900mm/Customized
Door Material Acrylic/Tempered Glass
Drive Type Brush Motor/Brushless/Servo Motor
Unlock Time 0.2S
Direction Single/Bidirectional
Power Supply AC110-230V, 50/60Hz
Operation Voltage DC24V, 3A
Functions Fail Safe, Anti-Clamping
Working Environment Indoor & Outdoor
Working Temperature -70℃ to +15℃
Relative Humidity <95%, No Condensation
Pass Speed 35 Persons/Minute
Input Interface Dry Contact/Relay Signal
Communication RS485/TCP-IP
LED Indicator Yes
Emergency Open Automatic
Waterproof Rating IP67
Access Control Integration Compatible with All Systems
Warranty 2 Years

¹ MCBF (Mean Cycles Between Failures) is the expected number of open/close cycles, Speed lane Turnstile for Access Management, worked out statistically, before a mechanical failure happens. The higher the figure, the more reliable the unit is over the long run.

Where It Is Used

Class A corporate headquarters: Morning rush hours bring heavy traffic to the lobby level, and the ZOJE-B202 handles it well. Pair it with elevator DDS and employee flow spreads across floors. No long lines form at the barrier.

Data centers and server farms: Anti-passback enforcement counts most in these places. Multi-factor authentication does too. Equipment transport carts pass through wider lanes. At the reader mount points you can add biometric readers, for example facial recognition or palm vein scanners.

Government and public institutions: ADA-compliant setups work well at these sites. Each one gets a dedicated wide lane (900 mm or wider) for wheelchair access. Link that lane to visitor management software (VMS). Entry and exit timestamps are then logged for audits.

application

Quality Control Standards for Speed lane Turnstile for Access Management

Check the QC numbers below during Factory Acceptance Testing (FAT). Do this before you accept a speed lane turnstile:

  • Tailgating detection accuracy: Check that the false rejection rate (FRR) stays under 0.1%. The false acceptance rate (FAR) has to land below 0.01%.
  • Motor fatigue and thermal testing: Put every unit through 24 hours of nonstop open/close cycles. The motor cannot overheat. Calibration must hold steady.
  • Impact force calibration: Closing force on obstacle contact must stay under 60 N. EN and UL safety standards require this.
  • Static load testing: The cabinet housing has to take side forces of 100 kg or more. This keeps it fixed and straight when a crowd pushes on it.

Several patents for technical and design work sit with ZOJE. ISO 9001:2015 quality management standards also guide how the company works.

certification

Customization and Lead Time

Hardware and software can both be customized on the ZOJE-B202. Standard units ship in 5–7 business days. Count on 10–15 business days for a customized build in most cases. Sea freight is one way to go. Air freight works too. DDU and DDP trade terms are both on offer, so pick whichever one suits your shipping needs.

After a product datasheet, or need to talk through Speed lane Turnstile for Access Management and a lane configuration? Send the team an email at info@zoje-tech.com.

Speed lane Turnstile for Access Management

Frequently Asked Questions

Q: If the power cuts out, what happens to the turnstile?

A: Fire safety rules call for fail-safe mode, and that is how the ZOJE-B202 works. A fire alarm sounds, or the power drops. The glass barriers then swing open or pull back by themselves. Nothing blocks the way, so people can get out.

Q: At peak times, how many people can get through one lane in an hour?

A: One lane of the ZOJE-B202 moves 35 persons per minute under standard conditions. Actual figures do differ. Credential read time is one factor. Lane width matters too, and so do hold events triggered by anti-tailgate detection. Most big sites run a few lanes side by side.

Q: What kind of upkeep do the glass barriers need?

A: Clean them on a regular schedule. Check the motor torque every six months, that is the usual routine. Glass wings are modular, so a single one can be swapped out and the motor drive unit stays in place.

Q: Does it work with biometric devices from other vendors?

A: Yes. The ZOJE-B202 ships with dry contact inputs already inside. RS485/TCP/IP ports are on board too. So HID readers, biometric scanners, and QR code modules from other vendors can all be connected to it.

Q: Two people tailgating versus one person with luggage, how does the system tell them apart?

A: Dense IR sensor matrices read the movement vector and the spatial spread of whatever passes through the lane. So a person pulling a suitcase counts as one authorized passage, not two separate bodies. The exact sensor setup and how the algorithm behaves vary by model variant.

Q: Does the ZOJE-B202 come with OEM customization options?

A: Yes. ZOJE handles OEM and ODM work. That covers hardware finish and software integration. Lane configuration is part of it too. Send your project requirements to the team and they will review the configuration.

Contact Us

For project requirements, specification requests, or pricing questions about Speed lane Turnstile for Access Management, email info@zoje-tech.com. The ZOJE team typically responds within one business day.
