Anti-collsion arm Security Boom Barrier
1.The running speed can be adjusted from 1.5s to 6s
2.Aluminum boom, steel housing , stable at -35℃~80℃, tough & durable!
3.Open the barrier gate by motor wheel when power off ,automatically reset after power on
4.Curved crank arm three- link movement structure, the operation is stable
5.Well-integrated with car parking system equipment,with wire control(must be switch signal)
6.Triple anti-crushing + tamper alarm – keeps vehicles/equipment safe.
7.LPR/ETC/Bluetooth – cloud-connected, unattended operation easy.
8. 2-year warranty, 24/7 online support, 30min remote assistance, lifelong maintenance.
- Face to Face Discussion
- Quality Assurance
- 24/7 Customer Service
Product Introduction

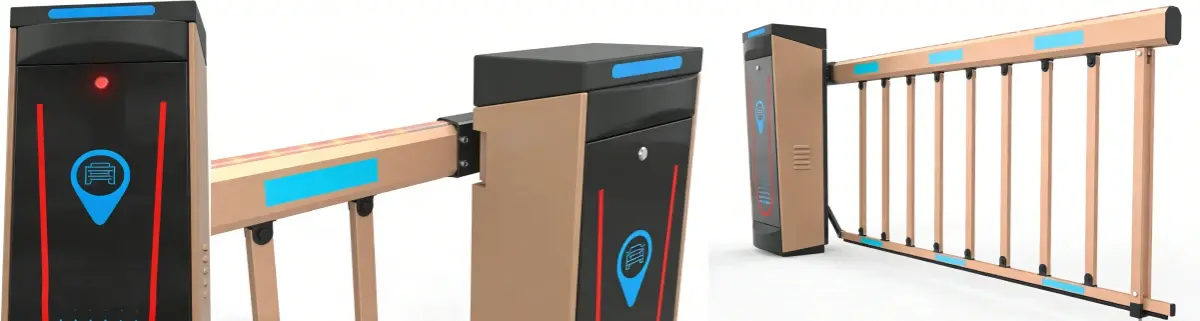

Anti-collsion arm Security Boom Barrier — Swing-Out Protection for High-Traffic Access Control
The Anti-Collision Arm Security boom barrier from ZOJE Intelligent Technology is built around a mechanical swing-out mechanism that allows the boom to disengage 90 degrees horizontally on vehicle impact, protecting the motor and gearbox from structural damage. The boom is extruded from Aluminum Alloy 6063-T5, the housing is steel, and the DC Brushless Servo Motor of Anti-collsion arm Security Boom Barrier supports variable open/close speeds from 1.5 to 6 seconds. Operating temperature range is -35°C to 80°C, making it suitable for commercial parking, industrial parks, and highway toll lanes.
What Is an Anti-Collision Arm Security Boom Barrier?
A conventional rigid barrier transfers the full force of a vehicle impact directly to the gearbox and main shaft. This Anti-Collision Arm Security Boom Barrier uses a swing-out boom holder — a mechanical release point — to absorb that energy instead.
When a vehicle contacts the arm, the boom disengages and rotates 90 degrees horizontally. The internal drive unit stays undamaged. In most installations, a security guard can push the arm back into the holder clip by hand, without tools, and resume normal operation within minutes.
This mechanism also reduces the risk of vehicle bodywork damage during low-speed incidental contact, which matters in high-frequency access environments like commercial parking lots and logistics gates.
Key Features and Technical Properties
Swing-Out Mechanism
The swing-out holder is engineered to resist wind loads up to Grade 6 without disengaging. It releases under a lateral shear force exceeding 30 kg, protecting the motor shaft before mechanical damage occurs.
Boom Arm Construction
The arm is built from Aluminum Alloy 6063-T5. Inside it sits a reinforcing rib. That rib keeps the metal stiff without adding much weight. Padding runs along the bottom edge and it is soft. Low-speed contact loses some of its energy there.
Drive Unit and Speed Control
Speed on the DC Brushless Servo Motor is adjustable, from 1.5 to 6 seconds per cycle. A current-sensing circuit keeps an eye out for unexpected resistance. Auto-reverse kicks in as soon as that resistance shows up. So the passive swing-out mechanism gets an active layer of protection to work with.
Power-Off Safety
When power is cut, the barrier can be opened manually using the motor release wheel. Once power is restored, the barrier automatically returns to its normal operating position.
Integration Options
This barrier supports connection with LPR cameras, ETC systems, Bluetooth devices, Anti-collsion arm Security Boom Barrier, vehicle loop detectors, and radar sensors. Cloud connectivity is available for unmanned facility operation.
Product Specifications
| Parameter | Specification |
|---|---|
| Standard Model | ZOJE-PB300 |
| Cabinet Material | Cold Rolled Steel |
| Working Temperature | -30°C to +70°C |
| Open/Close Speed | 1.5-6 Seconds (Adjustable) |
| Rated Power | 200W |
| Driving Method | DC Brushless Motor |
| Rated Voltage | DC24V |
| Remote Control Distance | ≤100m (Open Area) |
| Max Boom Length | Up to 6m (Optional) |
| Power Supply | AC110-220V, 50/60Hz |
| Protection Grade | IP54 |
| LED Indicator | Yes |
| Bi-direction Main Shaft | LEFT or RIGHT |
Where This Barrier Is Used
Unmanned Commercial Parking Lots
Busy commercial buildings see low-speed accidental contact all the time. Say a distracted driver bumps into the arm. The swing-out mechanism soaks up the impact, and the lane stays open. No on-site maintenance call is needed.
Logistics and Industrial Parks
Loading gates see a lot of large vehicles. Those vehicles can put unexpected sideways force on a barrier arm. The Anti-Collision Arm Security Boom Barrier takes that force at the holder. It does not pass it on to the housing foundation. Over time, that means lower structural repair costs.
Highway Toll and ETC Lanes
Toll lanes and ETC lanes carry a higher risk of accidental contact, since vehicle speeds vary so much. The arm is light and padded, and it comes off cleanly when hit. That lowers the risk of debris. Lanes also stay open, with no long downtime.

Quality Control Standards for Anti-collsion arm Security Boom Barrier
Four areas matter when you evaluate a boom barrier with a swing-out mechanism:
- Break-Away Force Calibration: We check the holder tension against wind and gravity in normal conditions. It must release before stress on the motor shaft goes past its design limit.
- MCBF Testing: The motor and spring balance mechanism carries a rating of more than 3 million cycles.
- Impact Simulation: In a controlled collision test, the arm comes off cleanly. The holder bracket keeps its shape, and the gear reducer is not damaged.
- Salt Spray Testing (ISO 9227): Confirms the hinge and holder components resist corrosion in outdoor environments over time.

Customization and Delivery
OEM and ODM services are both available from ZOJE. Arm length, housing color, software integration, and communication protocols are among the options you can customize.
Orders for standard products go out in 5–7 business days. Customized orders usually take 10–15 business days to get ready. You can ship Anti-collsion arm Security Boom Barrier by sea or by air. DDU and DDP trade terms are offered.

Frequently Asked Questions
Q: How do I reset the arm after a vehicle collision?
A: The arm swings out 90 degrees on impact. A security guard pushes it back until it clips into the holder. No tools are required under normal conditions.
Q: Will strong winds trigger the swing-out mechanism accidentally?
A: Unintended release can happen when the holder tension is not set right for local wind conditions. Wind drag can be cut with perforated boom arms, which are an option. Setting the tension is part of installation.
Q: Does the barrier reverse automatically before hitting a vehicle?
A: The swing-out arm is a passive mechanical safety feature. Active protection is provided by the motor's current-detection circuit and by connected sensors such as vehicle loop detectors or radar.
Q: Can an anti-collision arm be retrofitted to an existing barrier?
A: This depends on the output shaft diameter and holder compatibility of the existing unit. Contact ZOJE with your current barrier model details for a compatibility assessment.
Q: How long does the swing-out mechanism last?
A: The friction clips or magnetic holder components are designed for regular operational use. Lubrication and tension checks every six months help maintain consistent release performance.
Q: What quality standards does ZOJE follow?
A: ZOJE works under ISO 9001:2015 quality management. The company also holds several technical and design patents. To check environmental durability, products go through salt spray testing per ISO 9227.
