UHF RFID Tag Reader for Parking Management System
2. Up to 20m long-distance reading.
3. Compatible with all major tag protocols.
4. SDK/API provided for easy integration.
5. Software-adjustable RF power output.
6. FHSS technology for stable anti-collision.
7. Built-in pre-heating for cold regions.
8. Warranty: 2 years
- Face to Face Discussion
- Quality Assurance
- 24/7 Customer Service
Product Introduction

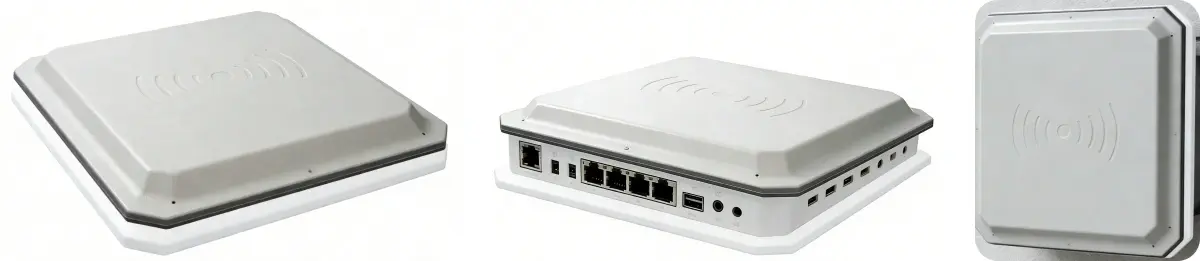

UHF RFID Tag Reader for Parking Management System – Long-Range Vehicle Access Solution for High-Traffic Facilities
The UHF RFID Tag Reader for Parking Management System ZOJE-6890H is a long-range vehicle ID device. Tough access control sites are what it was built for. Inside the 860–960 MHz UHF band it runs on ISO 18000-6C (EPC Class 1 Gen 2) protocols. Reading distance goes up to 20 meters. NFC or low-frequency readers reach nothing close to that. RF power adjusts through software. FHSS anti-collision technology comes built in. A pre-heating module handles cold regions. Integrators and facility operators hit real deployment problems every day, and the ZOJE-6890H answers them.
What Is This Product?
A UHF RFID parking reader is a special kind of interrogator. It picks out vehicles from far away. Drivers never need to stop, roll down a window, or tap a card.
Tags on a windshield or a license plate get read through ISO 18000-6C (EPC Class 1 Gen 2) protocols. Distance usually runs from 6 to 20 meters. Hands-free vehicle access becomes possible. Weather does not stop it. Rain, fog, or dirt can throw off optical license plate recognition (LPR), yet the tag still reads fine.
Look at it from the operations side. Entry jams at peak hours are what this technology goes after. It also needs less hardware upkeep than systems where people swipe a physical card. The access logs it produces hold up in an audit, because each entry carries its own distinct Tag ID (TID) signature.
Key Features of the ZOJE-6890H
Field deployment came first in the design of the ZOJE-6890H. Every feature on it answers one specific operational problem.
Up to 20-Meter Reading Range
A circular polarization antenna is built in, rated at 8–12 dBi gain. Tag reads stay steady no matter what angle a vehicle comes in at, or how the tag itself is sitting. That counts for a lot in wide lanes and express-entry setups, where alignment is something nobody can control.
Software-Adjustable RF Power Output
RF output (up to 30 dBm) is configurable through software with no hardware changes required. This allows fine-tuning of the read zone to reduce cross-lane interference in multi-lane installations.
FHSS Anti-Collision Technology
In dense environments, signals can collide. Frequency Hopping Spread Spectrum (FHSS) stops that from happening. Reads stay accurate too, even when several lanes run at the same time close together.
Built-In Pre-Heating Module
Cold climates are hard on equipment. The built-in pre-heating function solves that. After power-on, the device reaches its operational temperature and reads reliably, even at temperatures as low as -20°C.
Universal Protocol Support
Compatible with EPC Gen 2 and ISO 18000-6C protocols, the ZOJE-6890H works with existing UHF tag inventory without requiring tag replacement.
SDK and API UHF RFID Tag Reader for Parking Management System Provided
Full SDK and API documentation is included, supporting custom software integration for development teams connecting to existing parking management platforms.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ZOJE-6890H |
| Frequency | 902-928 MHz |
| Reading Range | Up to 20m maximum distance |
| Communication Rate | Up to 57,600bps |
| Power Supply | +12V DC |
| Power Consumption | Average <5W |
| Dimensions | 320 × 320 × 60mm |
| Weight | 2.6kg |
| Operating Temperature | -25℃ to +60℃ |
| Warranty | 2 years |
Application Scenarios of the UHF RFID Tag Reader for Parking Management System
High-Throughput Residential Gated Communities
In communities with hundreds of daily vehicle movements, residents enter without stopping. The system can be configured with anti-passback logic to prevent one tag from being used to admit multiple vehicles — a common security gap in residential parking.
Commercial Logistics and Fleet Management Depots
At higher RF power settings, the reader handles heavy trucks reliably despite significant metallic interference. Beyond gate control, it logs departure and arrival timestamps automatically, supporting fleet analytics and loading dock management.
VIP Corporate and Government Parking Zones
The reader can operate in ground loop trigger mode, activating only when a vehicle is physically present. This prevents stray reads from passing traffic while maintaining a strict audit trail of vehicle access.

Quality Control Standards
ZOJE applies structured quality testing to every ZOJE-6890H unit before shipment.
- ERP Stability Test: RF power output is verified to remain within ±1 dBm over extended operation, preventing reading range degradation over time.
- Environmental Stress Screening (ESS): Every unit goes through thermal cycling from -20°C to +70°C. That mirrors seasonal extremes. It also validates cold-start performance.
- Multi-Tag Anti-Collision Testing: We test RSSI threshold filtering to make sure the reader tells tags apart correctly. This holds true when several vehicles are on the road or one is tailgating another.
- Salt Spray and Waterproof Testing: Salt spray tests run alongside the usual IP rating checks. Units going to coastal areas, or to regions where road salt is used, get this extra protection.
Every product we make follows the ISO 9001:2015 quality management standard.

Integration and Customization
Old and new parking systems both work with the ZOJE-6890H.
Existing access controllers will accept the Wiegand 26/34/98-bit output. Serial-based systems run over RS232/RS485. For networked smart parking setups, use a UHF RFID Tag Reader for Parking Management System with TCP/IP (PoE).
You get SDK and API docs for building your own software integration. OEM and ODM services are available from ZOJE as well. Hardware and software can be changed to match what a given project needs. Standard products ship in 5–7 days. Custom configurations usually go out within 10–15 days.

Frequently Asked Questions
Q: How does This product handle vehicles with metallic or athermal windshields?
A: RF signals cannot get through a metallic film. Choosing the right tag matters more here than swapping out the reader. For the cars affected, go with Anti-Metal Headlight Tags or License Plate Tags. On top of that, the RF power setting can be adjusted so the read aims at the spots on the windshield where the signal still gets through.
Q: Can readers be installed on both entry and exit lanes without cross-reading?
A: Yes. FHSS cuts down signal collision between lanes that sit next to each other. The mounting angle plays a part too: tilt the reader 45–60 degrees downward. After that, set the RSSI threshold in the software. Weaker signals from nearby lanes then get ignored.
Q: Does rain or snow reduce reading range?
A: Water soaks up part of the UHF signal at 860–960 MHz. Range can drop by 10–20% when rain is heavy. Set the install point 2–3 meters inside the maximum theoretical range. That way it keeps working reliably in wet weather.
Q: Is the system compatible with existing Wiegand access controllers?
A: Yes. Standard Wiegand 26-bit or 34-bit data comes out of the ZOJE-6890H. Your old controller may need a certain card format. If so, check that the firmware handles the data conversion you need before you deploy.
Q: The reader beeps but the gate doesn't open — what should I check?
A: A beep confirms a successful RF read. The issue is at the authorization layer. The tag ID may not be registered in the backend system, may have expired, or the Wiegand cable run may exceed 100 meters, causing signal degradation. Check the software database and cable length first.
Q: Why is this reader a good fit for sites in cold climates?
A: A pre-heating module comes built in. Once you power the unit on, that module brings it up to working temperature. Freezing conditions do not stop it. ESS testing checks how it performs from -20°C to +70°C. Cold weather operation stays reliable, and the test results back that up.
