Bridge-Style Tripod Turnstile for Premium Facilities
2. Support OEM,ODM customization.
3. Pass Speed: 35 persons/Minute
4. Suitable for areas with medium security requirements.
5. Suitable for both indoor and outdoor use, and able to withstand harsh environments.
6. High level of anti-tailgating
7. Can be customized according to specific site conditions and limitations.
8. Warranty: 2 years
- Face to Face Discussion
- Quality Assurance
- 24/7 Customer Service
Product Introduction

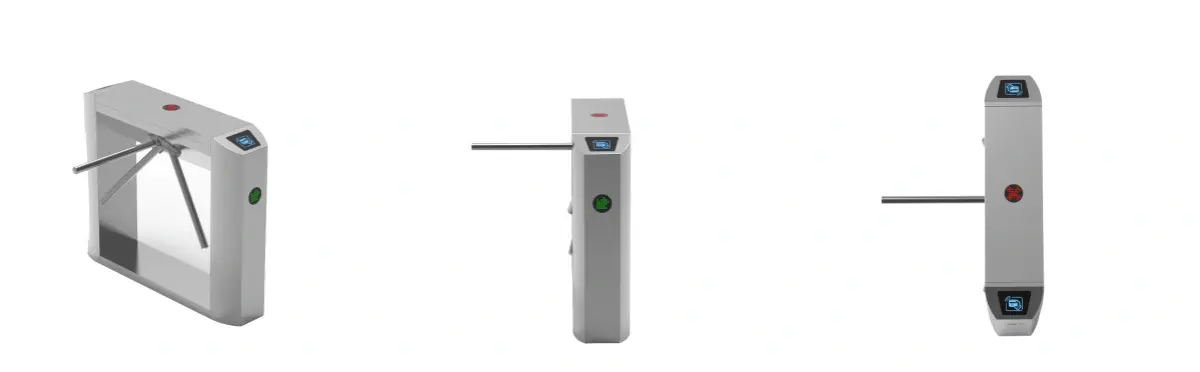

Bridge-Style Tripod Turnstile for Premium Facilities — ZOJE-S406
Day after day access control is what certain spaces demand. Take lobbies and clubs. Secured buildings count too. A turnstile of the usual compact kind often falls short there. Filling that gap is the job the Bridge-Style tripod turnstile for Premium Facilities, model ZOJE-S406, was given. Longer than most, its stainless steel chassis runs from 1200mm to 1400mm. 35 persons per minute is the pass speed. IP54 to IP65 covers the IP rating. ISO 9001:2015 certification comes with the unit, and a 2-year warranty does as well. OEM and ODM configurations can be ordered.
Why the Bridge Format Works Differently
Most tripod turnstiles come in a compact, upright housing. The bridge format goes another way. Floor area covered is greater, since the rectangular chassis is longer and sits lower. What shifts as a result is how the unit works inside a space.
All internal wiring runs inside the extended housing. That keeps the installation surface clean, with no visible conduit or cable management. A continuous physical barrier along the floor comes from the low-profile chassis as well. On taller, narrower models a gap lets people try to crawl under. This design shrinks that gap.
The top of the ZOJE-S406 is flat and wide. There is enough room to mount facial recognition terminals right on the unit. QR scanners fit there too, and so do palm vein readers. No separate pedestal is needed. External brackets next to the lane can go as well.
Key Features and Technical Properties
Material and Build
For the chassis, buyers pick AISI SUS304 or SUS316 stainless steel. Wall thickness falls between 1.5mm and 2.0mm. Hairline and satin are the two finishes on offer. Fingerprints are less visible on both of them. Surface corrosion under normal operating conditions is also resisted.
Drive Mechanism
The rotating arm gets its push from a heavy-duty solenoid. Another way to go is a brushless DC motor. Hydraulic shock absorbers keep arm movement under 50dB when the unit is running. Why does that number matter? In spaces where ambient noise counts, it counts a lot.
Durability
The mechanism is rated for a Mean Cycles Between Failure (MCBF) of over 5 million operations.
Emergency Drop Function
The automatic drop-arm function activates within 200ms of a power interruption or fire alarm signal, creating an unobstructed exit lane. Every unit is tested for this function before shipment.
Anti-Tailgating
The physical tripod arm combined with the extended chassis of the Bridge-Style Tripod Turnstile for Premium Facilities is designed so that two people cannot pass on a single authorization event.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | ZOJE-S406 |
| Dimensions (L×W×H) | 1200×280×1000mm / Customizable |
| Material | 304/316 Stainless Steel |
| Material Thickness | 1.2mm/1.5mm/2.0mm options |
| Channel Width | ≤500mm / Customizable |
| Drive Type | Semi-Automatic (Solenoid) / Automatic (Brush/Brushless/Servo motor) |
| Direction | Single / Bidirectional |
| Power Supply | AC110-230V, 50/60Hz |
| Operation Voltage | DC24V, 3A |
| Working Environment | Indoor & Outdoor |
| Operating Temperature | -70℃ to +15℃ |
| Relative Humidity | <95%, No Condensation |
| Pass Speed | 35 persons/minute |
| Input Interface | Dry Contact/Relay Signal |
| Communication | RS485/TCP/IP |
| LED Indicator | Included |
| Emergency Function | Automatic Arm Drop |
| Access Control Integration | Compatible with all systems |

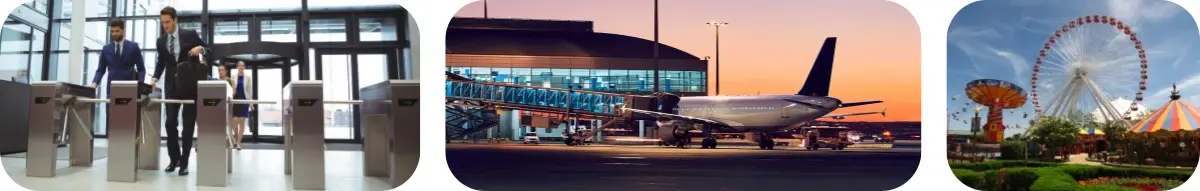

Where Is the ZOJE-S406 Used?
Class-A Corporate Offices and Tech Parks
Main lobby setups link the bridge format to elevator dispatch systems and employee databases. Facial recognition hardware sits on the wide top surface. It stays inside the unit's own profile, so no separate hardware stands are needed in the lane area.
High-End Fitness Centers and Leisure Clubs
Daily traffic keeps the mechanical tripod arm under load. Heavy bags make it worse. Constant use does too. For settings like these, SUS316 steel is what we recommend. Moisture and cleaning chemicals wear the surface down faster on standard finishes. Humidity plays a part as well.
Government Buildings and Data Centers
Multi-factor authentication devices need surface area. The elongated chassis gives them that. Combined card and fingerprint readers are a good fit here. Unmanned transition zones get a deterrent from the barrier itself, no matter how many staff are on hand.

Quality Control Process for Bridge-Style Tripod Turnstile for Premium Facilities
Every ZOJE-S406 unit goes through a structured inspection process before shipment.
Mechanism Fatigue Testing: Each sample unit goes through a continuous aging test of 72 hours, which works out to 1 million cycles. That shows the solenoid coils stay inside their operating temperature range. It also shows the internal springs hold their tension.
Salt Spray Corrosion Test: The stainless steel chassis spends 48 to 96 hours in neutral salt spray (NSS) conditions. That test tells us how the passivation layer holds up.
Dimensional Inspection: Laser-calibrated checks confirm two points. Every welding seam on the chassis is fully polished. The gap between the rotating hub and the chassis also stays under 5mm.
Emergency Function Verification: Every unit is tested individually for the drop-arm function. The arm must collapse within 200ms of a power cut simulation.

Customization and Delivery
Hardware and software can both be customized on the ZOJE-S406. That covers chassis dimensions made to order and cut-outs for third-party readers. The unit can also be integrated with access control platforms you already run.
Standard units ship within 5–7 business days. Customized configurations, including the Bridge-Style Tripod Turnstile for Premium Facilities, are ready in 10–15 business days. Both sea freight and air freight are available, with DDU and DDP trade terms.

FAQ
Q: Can the ZOJE-S406 work with biometric systems from other vendors?
A: Yes. Choose the bridge-style top cover and you get a flat surface for face recognition terminals, palm vein scanners, or QR readers. Factory cut-outs can be made to match the hardware sizes you use.
Q: Which stainless steel should I pick, SUS304 or SUS316?
A: SUS304 handles normal indoor settings well. Coastal sites, pool areas, and places with harsh cleaning call for SUS316. Pitting and surface damage are less of a problem there.
Q: What if someone pushes the arm backward by force?
A: There is an anti-reverse locking block or a slip-clutch in the unit. Force it and the clutch lets go, which protects the internal gears. An alarm output fires at the same time.
Q: How often should the unit be serviced?
A: For most sites, twice a year is enough. Put grease on the rotation shaft. Make sure the solenoid voltage holds steady. Wipe down the optical sensors inside the chassis so they don't trigger by mistake.
Q: Can this turnstile go outdoors?
A: Yes. The ZOJE-S406 carries an IP54 to IP65 ingress protection rating. That makes it a good fit for semi-outdoor sites and exposed installations.
Q: Can I get OEM or ODM customization?
A: Yes, both. We can arrange custom chassis dimensions and surface finishes. Reader cut-outs are possible too, as are software integration options. Get in touch with the team to talk through your project requirements.
