LPR System for Smart City Parking

LPR System for Smart City Parking

1.Model:ZOJE-LPR101
2.Recognition rate:99%
3.Recognition Regions:Around world
4.Support offline use:Front-end recognition, unaffected by network delay/offline. Support offline billing
5.Support hardware/software customized,support various types of secondary development
6.Support outdoor use
7.24/7 service
8.Support OEM and ODM
  • Face to Face Discussion
  • Quality Assurance
  • 24/7 Customer Service

Product Introduction

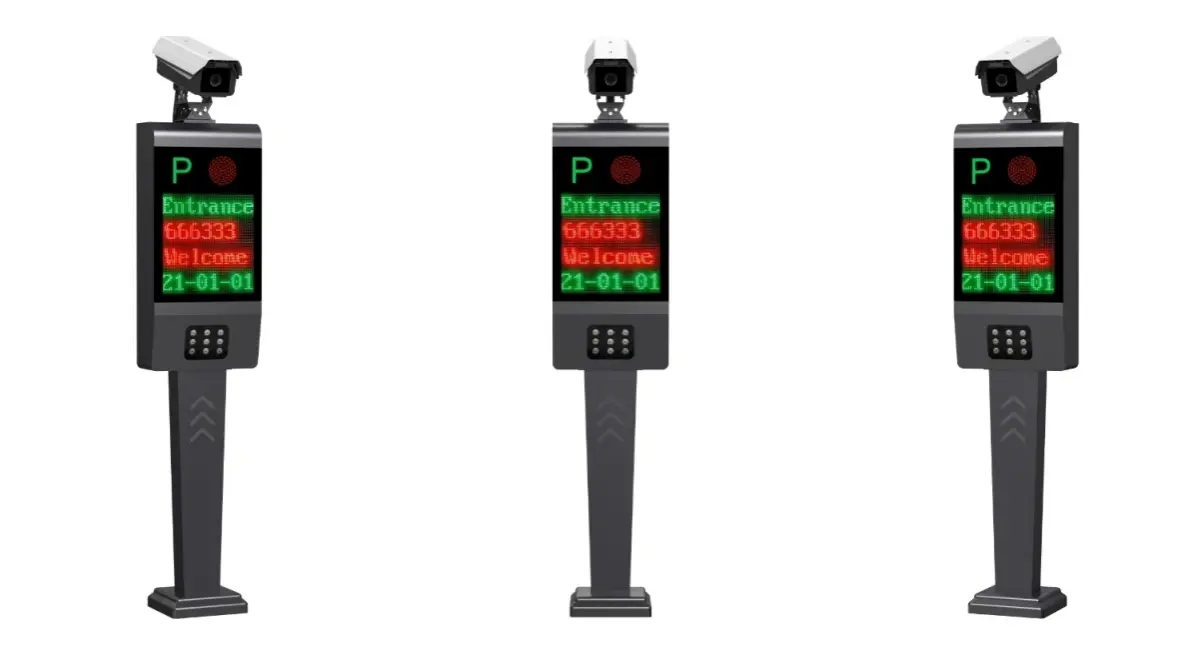

LPR System for Smart City Parking — ZOJE-LPR101 Intelligent Vehicle Recognition Solution

Hong Kong ZOJE Intelligent Technology Co., Ltd. (est. 2012) designs the LPR System for Smart City Parking built around the ZOJE-LPR101, a license plate recognition solution engineered for continuous urban deployment. The system achieves a 99% recognition rate, supports global plate formats, and runs front-end recognition entirely offline — no network dependency required. ISO 9001:2015 certified and backed by multiple technical patents, it supports OEM/ODM customization and full hardware and software secondary development.

What Is This Product?

The optical perception layer of an Intelligent Transportation System (ITS) is what an LPR (License Plate Recognition) system provides. It depends on optical character recognition (OCR) and deep learning algorithms. Plate data is captured, read, and processed automatically, in real time.

Magnetic loop systems and RFID systems both need physical transponders in the vehicle. An LPR approach does not. Parking activity becomes a digital record instead. Four operational problems keep coming up, and this method deals with them:

  • High costs from manual ticketing and barrier maintenance
  • Traffic friction at entry and exit points
  • Money lost when tickets get swapped or sessions go unmonitored
  • Data that sits apart from everything else: today's rollouts hook up by API to Smart City IoT platforms. That gives you dynamic pricing and live analytics.

Key Features of ZOJE-LPR101

Edge AI Recognition at 99% Accuracy

Plate recognition on the ZOJE-LPR101 finishes in under 100 ms, thanks to Edge AI computing. Even in bad weather, the confidence score stays above 99.5%. Heavy rain, fog, and direct sunlight all count as bad weather.

Offline-First Architecture

Data gets processed on the spot by the front-end recognition, so the system runs with no network connection at all. Offline billing works in full. That matters where infrastructure is shaky or where access has to be tightly controlled.

Global Plate Format Support

An onboard neural network reads plate formats from many countries. Damaged plates are fine. So are dirty plates. Custom plates work too. Vehicle color, type, and make are also read. That data supports cross-verification.

Outdoor-Grade Hardware

Water and dust protection meets IP66/IP67. Impact resistance is rated IK10. Outdoors, the unit runs from -40°C to +70°C. That range allows uninterrupted use.

Starlight-Class Optical Sensor

A Global Shutter CMOS sensor has at least 4 MP. Wide Dynamic Range (WDR >120 dB) is on board. The sensor stops motion blur. It also handles high-contrast scenes. Examples include tunnel exits and direct sunlight.

IR Night Vision

Intelligent IR illuminators for an LPR System for Smart City Parking operate at 850 nm — invisible to the human eye — capturing clear monochrome plate images in low-light or total darkness without affecting drivers.

Technical Specifications

Parameter Specification
Operating Voltage AC110-240V±10%
Operating Temperature -20℃ to +60℃
Relative Humidity ≤95% without condensation
Rated Power ≤60W
Communication Method TCP/IP, RS485
Display Type P4 Red-Above-Green LED Module
Enclosure Protection IP64
Material High-strength carbon steel, sheet metal spraying
Dimensions 3601501490mm (HWD, excluding camera)

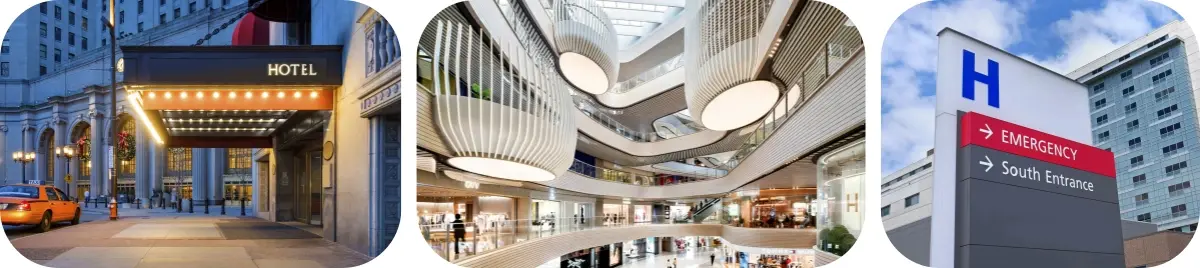

Application Scenarios

application

Barrier-Free Commercial Parking

Shopping malls and mixed-use complexes use the system for ticketless access. A vehicle gets identified when it drives in. Fees are worked out on their own. Payment then comes through a linked digital wallet or a mobile app. No paper ticket, no manual step.

On-Street Curbside Enforcement

The mobile setup goes on municipal patrol vehicles. It reads parked cars while the patrol car moves at up to 80 km/h. Time-limit violations get flagged. So do permit problems and unpaid sessions, and each one goes to enforcement review.

High-Security and Logistics Facilities

Logistics parks and restricted facilities link the system to whitelist and blacklist databases. Fleet access control then runs on its own. Any vehicle that is unauthorized or flagged triggers an alert for security staff in real time.

Quality Control of LPR System for Smart City Parking

Before any ZOJE-LPR101 leaves for shipment, it has to pass a set validation process.

Recognition Accuracy Testing checks that capture rates stay above 99%. This covers daylight, night hours, and bad weather. Results are referenced against ISO/IEC 19794 standards and the local ITS requirements that apply.

Latency Stress Testing records how long it takes from image capture to the barrier lift command. Under sustained load, the ZOJE-LPR101 stays below the industry-standard limit of 200 ms.

Illuminator Life-Cycle Verification shows IR and white-light strobe units get an MTBF of over 50,000 operational hours. That gives steady performance through the life of the product.

Trigger Reliability Testing checks how accurate virtual loop triggers are. It uses physical ground loop benchmarks as the baseline. This way, no vehicle capture event is missed at the barrier entry point.

Customization and OEM/ODM Services

Project requirements vary. ZOJE supports full hardware and software customization, including LPR System for Smart City Parking secondary development integration for specific platforms or communication protocols.

Parking operators can use OEM and ODM cooperation. System integrators and municipal technology vendors can use it too. Standard products ship in 5–7 days. Custom setups take 10–15 days. Sea or air freight is available. DDU and DDP trade terms are both supported.

Feature Specification
CPU Dual-core 900MHz + CNN acceleration (0.5Tops)
Image Sensor 1/2.8" starlight-level CMOS
Max Resolution 1920×1080
Lowest Illumination 0.01Lux (Color)
Standard Lens 6mm prime lens
Recognition Rate ≥99% comprehensive accuracy
Network Interface 10/100Mbps adaptive RJ45
Storage TF card slot (up to 512G)
Component Details
LED Count 10 pieces
Maximum Power 10W
Control Method Intelligent light sensitivity
Illumination Range >50LUX at 5 meters
Angle Adjustment Fully supported

LPR System for Smart City Parking

Frequently Asked Questions

Q: What happens when a license plate is dirty or damaged?

A: Deep convolutional neural network (CNN) processing goes to work on characters that are partly hidden, and the system rebuilds them. Vehicle color and type get checked at the same time. That cross-check confirms the result.

Q: Does ZOJE-LPR101 work with parking access and revenue control systems (PARCS) that are already in place?

A: Yes. RESTful APIs and SDKs let the unit connect to other systems. TCP/IP, Wiegand, and MQTT are supported too. So it runs next to hardware you already have. No full replacement needed.

Q: What distance and angle does the camera need to work?

A: You get the best results at 3–6 meters for barrier installs. For street-level deployment, aim for 15–25 meters. Keep horizontal angle deviation within 30 degrees. That way you avoid perspective distortion.

Q: How is data privacy handled?

A: Data masking is part of the system. So is AES-256 encryption for data at rest and in transit. You also get retention policies you can configure. The design supports compliance with GDPR and CCPA frameworks. Images get purged automatically after a set period.

Q: Does it work in total darkness?

A: Yes. At 850 nm, the built-in IR illuminators give clear monochrome plate images at night. Driver visibility is not affected.

Q: Can this this product handle offline billing?

A: Yes. The front-end unit handles recognition and billing on its own. If the network drops, the system keeps running. That makes it a good fit for remote sites or places with tight security.
