Industrial Grade ANPR Camera

Industrial Grade ANPR Camera

1.Model:ZOJE-LPR215
2.Recognition rate:99%
3.Recognition Regions:Around world
4.Support offline use:Front-end recognition, unaffected by network delay/offline. Support offline billing
5.Support hardware/software customized,support various types of secondary development
6.Support outdoor use
7.24/7 service
8.Support OEM and ODM
  • Face to Face Discussion
  • Quality Assurance
  • 24/7 Customer Service

Product Introduction

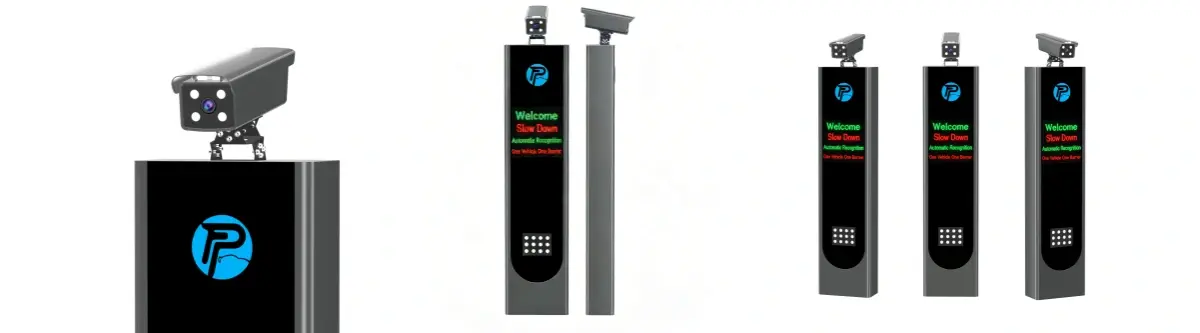

Industrial Grade ANPR Camera for Harsh Environments — ZOJE-LPR215

Some outdoor sites are too rough for standard surveillance gear. That is the job the Industrial Grade ANPR Camera ZOJE-LPR215 was built for. Hong Kong ZOJE Intelligent Technology Co., Ltd. makes it, and this company has worked on parking and access control systems since 2012. Inside sits a global shutter sensor, plus front-end edge OCR. The housing is die-cast aluminum with an IP67/IP68 rating. Offline billing is supported. Running range is -40°C to +70°C. OEM/ODM customization is available as well.

What Is This Product?

Think of This product as a toughened imaging device with optical character recognition (OCR) algorithms built in. Its job is to capture and read vehicle license plates. Harsh environments and fast-moving traffic are what it was made for.

Standard surveillance cameras are a different story. This class of hardware solves a few problems crews meet in the field. Fast vehicles cause motion blur. High-beam glare and low-light conditions bring extreme contrast. Continuous outdoor work also means temperature swings and bad weather. Specs like these sit well beyond what a conventional CCTV camera offers.

Key Technical Features

Every part in the ZOJE-LPR215 was picked with two things in mind. One is how well it reads plates, the other is how long it lasts out in the field.

Global Shutter CMOS Sensor

A global shutter grabs the whole frame at once. Rolling shutter sensors work another way, scanning line by line. That is why moving vehicles come out smeared on them. With this design there is no motion blur at vehicle speeds up to 250 km/h. Highway and toll sites need exactly that.

Front-End Edge OCR Processor

An embedded OCR engine does the plate processing inside the unit. Results go out as text over TCP/IP or Wiegand protocols. No central server sits in the path. Latency tied to the network drops away, and billing can run offline.

Headlight Compensation and Wide Dynamic Range

Bright spots from direct headlight glare get suppressed by Headlight Compensation (HLC). The camera also has a WDR rating above 120 dB and 850 nm infrared illuminators. Plate images stay sharp and high-contrast, even in low light or direct sunlight.

Motorized Vari-Focal Lens

The motorized vari-focal lens comes in typical focal ranges of 5–50 mm or 10–40 mm. You can calibrate the field precisely without moving the camera itself. That helps a lot in multi-lane or wide-angle setups, where a fixed lens cannot cover the capture zone you need.

IP67/IP68, IK10, and Die-Cast Aluminum Housing

Dust and water resistance follow the IP67/IP68 ingress protection standards. For physical impact, the rating is IK10. Heaters and blowers are built in, so the Industrial Grade ANPR Camera unit runs non-stop from -40°C to +70°C. That covers arctic sites as well as hot industrial plants.

Product Specifications

Component Specifications
LED Display 256mm×256mm, P4 dual-color, QR code support
Camera Resolution 5MP JPEG output
Minimum Illumination 0.01 Lux
Focal Length 6mm fixed aperture
Storage Micro SD up to 32GB
Dynamic Range ≥100dB
Voice Function Customizable announcements
Protection Rating IP42
Operating Temperature -10℃ to 60℃
Operating Humidity 5% to 85%
Power Consumption 100W MAX
Dimensions 336mm×180mm×1580mm
Weight 16kg

Application Scenarios

Electronic Toll Collection (ETC) for Highways

On a free-flow toll gantry, cameras have to catch and read plates on vehicles moving at highway speed. Weather and light keep changing. The ZOJE-LPR215 copes with both through a global shutter sensor and an infrared illumination system. Recognition results go to back-end billing platforms over encrypted protocols.

Smart Port and Logistics Management

Salt mist hangs in the air at ports. Heavy particulate dust does too. Trucks pull up with plates that are dirty or physically damaged. The corrosion-resistant housing copes with all of it. The embedded OCR engine plays the same role. Container truck tracking stays reliable, and gates open without an operator.

Access Control at Industrial Parks and Facilities

Mining sites are one place this unit gets used. Manufacturing zones and secured corporate facilities are others. Wiring goes straight from the ZOJE-LPR215 to Wiegand access controllers or IO trigger inputs. Barrier arms then move on their own. Vehicle access logs are kept without anyone writing them down. Any entry that does not match an authorized plate database is flagged.

application

Quality Control Process for Industrial Grade ANPR Camera

Before any ZOJE-LPR215 leaves for shipment, it goes through a fixed check routine.

  • Environmental Stress Screening (ESS): Units spend 72 hours in burn-in tests inside climate chambers. These chambers cycle through extreme temperature ranges, and the run confirms how the unit handles heat and cold.
  • Vibration and Shock Testing: Wind loads and the road vibration of heavy vehicles are both simulated here. The goal is to confirm lens alignment and the integrity of the solder joints.
  • Optical Calibration and OCR Accuracy Test: Checks how sharp the focus lands. IR sync also gets checked while we mimic night hours and heavy glare.
  • Ingress Protection Testing: Units go through a bubble tank and a dust chamber. Both checks show if the IP67/IP68 seal still holds.
  • EMC/EMI Testing: The camera has to keep working as usual with high-voltage factory gear running close by. This test proves it does.

certification

Customization and OEM/ODM Services

Every project brings its own set of demands. The ZOJE-LPR215 can be adapted in both hardware and software to meet them. Lens setups can be adjusted. The camera can be tied into proprietary access control platforms. Firmware can also be written to match regional plate formats.

Distributors and system integrators can work with us for an Industrial Grade ANPR Camera on OEM or ODM terms. Off-the-shelf units usually leave within 5–7 business days. Builds made to order normally take 10–15 business days to get ready. Goods travel by sea or by air, shipped under DDU or DDP terms.

Industrial Grade ANPR Camera

Frequently Asked Questions

Q: What makes This product a better pick than a standard 4K CCTV camera?

A: Standard cameras use rolling shutters. Moving vehicles get distorted as a result. Spectral filtering is missing too, so plate reflection cannot be separated from ambient light interference. This product pairs a global shutter with dedicated IR illumination. HLC is part of the setup too. Plate images stay consistent and readable in conditions where a CCTV camera would fail to capture usable data.

Q: What is the maximum vehicle speed this camera supports?

A: The ZOJE-LPR215 captures at vehicle speeds up to 250 km/h. Its shutter speed is faster than 1/1000 s.

Q: How does the camera deal with high-beam headlights at night?

A: Headlight Compensation (HLC) is used to cut glare from direct headlights. It works together with 850 nm infrared illuminators. These bounce light off retro-reflective plate surfaces, so the image stays high in contrast no matter what the ambient light level is.

Q: Does the camera still work if there is no server connection?

A: Yes. The embedded OCR engine processes all recognition data internally and transmits only the text result. Offline billing is fully supported without any network dependency.

Q: An MTBF of more than 100,000 hours, what does that actually mean in practice?

A: MTBF (Mean Time Between Failures) is a reliability figure that comes up when people check industrial equipment. A rating above 100,000 hours means the camera is built to keep working in tough settings, with minimal unplanned downtime.

Q: Can ZOJE provide OEM and ODM for this product?

A: Yes. Both OEM and ODM cooperation are available. Hardware, firmware, and software can be adapted based on project and regional market requirements.
