ALPR System for Parking Garages

ALPR System for Parking Garages

1.Model:ZOJE-LPR210
2.Recognition type:Front-end
3.Recognition rate:99%
4.Recognition Regions:Around world
5.Support offline use:Front-end recognition, unaffected by network delay/offline
6.Support hardware/software customized,support various types of secondary development
7.Free SDK; support multiple linking solutions such as the dynamic link library (DLL) and com components,support a variety of development languages like C, C++, C#, VB, Delphi, Java, etc.
8.Support OEM and ODM
  • Face to Face Discussion
  • Quality Assurance
  • 24/7 Customer Service

Product Introduction

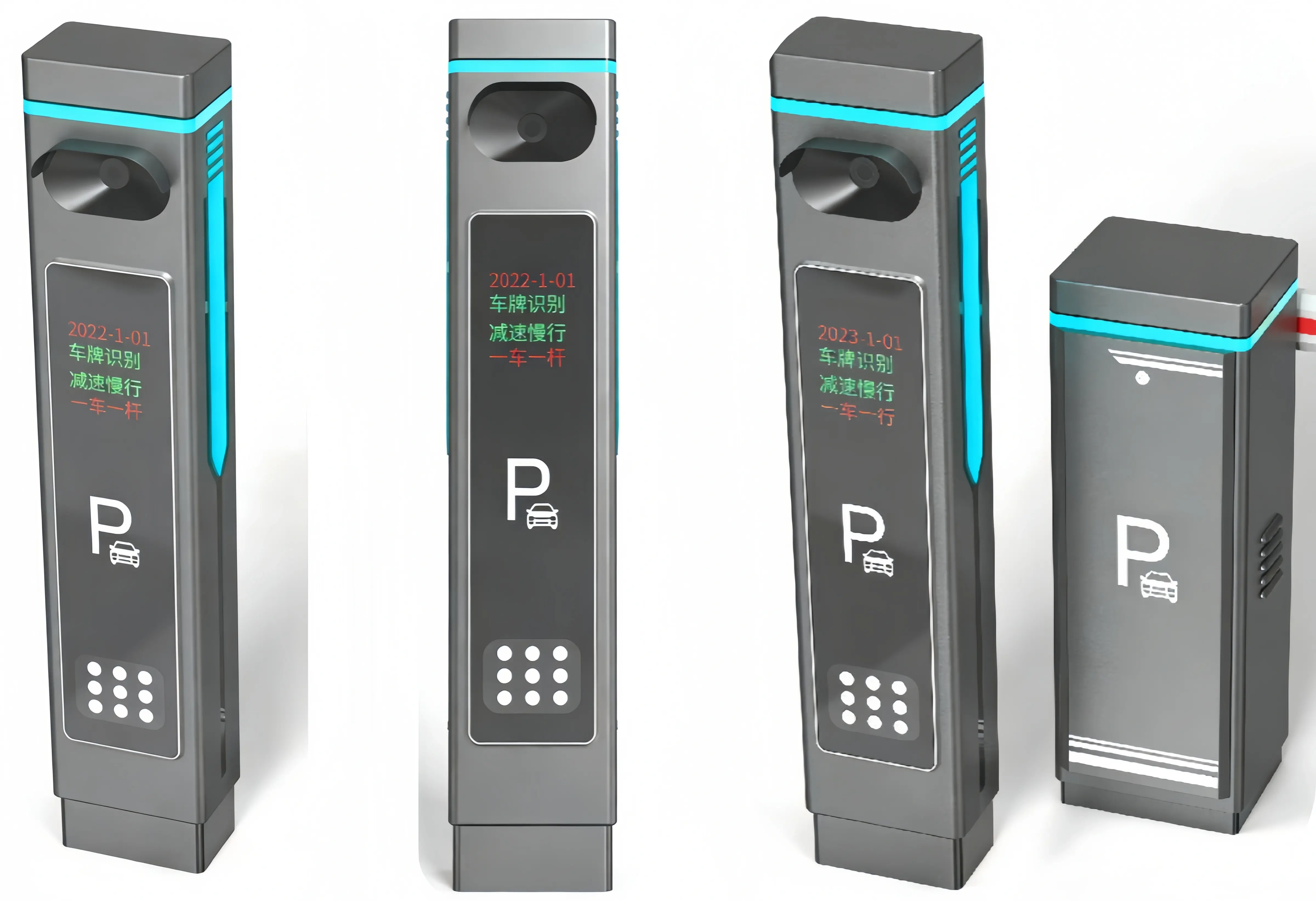

ALPR System for Parking Garages – License Plate Recognition for Modern Parking Facilities

The ZOJE-LPR210 is a front-end ALPR System for Parking Garages built for facilities that need fast, accurate, and network-independent vehicle identification. It processes plate reads directly on the device — without relying on server connectivity — making it suitable for underground garages, multi-story car parks, and high-traffic commercial lots. The system supports OEM and ODM development, hardware and software customization, and includes a free SDK for third-party integration.

Edge-Based Recognition, Not Server-Dependent

Most license plate cameras stream video to a central server for processing. The ZOJE-LPR210 runs all OCR directly on the camera hardware.

This front-end architecture eliminates processing lag caused by network delays or server downtime. The barrier gate responds in under 200ms — including in offline environments such as underground levels with no reliable network signal.

Technical Specifications

Component Specification Details
Model ZOJE-LPR210 Front-end recognition system
Recognition Rate 99% Industry-leading accuracy
Global Compatibility Worldwide Supports international plate formats
Offline Capability Yes Unaffected by network delays
Camera Resolution 5MP JPEG High-definition image capture
Minimum Illumination 0.01 Lux Low-light performance
Focal Length 6mm Fixed aperture design
Storage Support Micro SD (TF) Maximum 32GB capacity
Wide Dynamic Range ≥100dB Superior contrast handling
LED Display 256mm×256mm P4 dual-color, QR code capable
LED Resolution 64×32 dot matrix Clear message display
Voice Function Multi-language Customizable announcements
Protection Rating IP42 Dustproof and waterproof
Operating Temperature -10℃ to 60℃ All-season reliability
Operating Humidity 5% to 85% Moisture resistance
Power Consumption 100W MAX Energy efficient operation
Dimensions 336×180×1400mm Compact footprint design
Weight ≈16kg Lightweight installation

certification

Core Features

Front-End Recognition: No Server Required

OCR processing runs on the camera hardware itself. There is no central server dependency, which reduces infrastructure cost and simplifies system architecture.

99% Recognition Rate with Global Plate Support

The system recognizes plates from countries and regions worldwide. Recognition accuracy remains consistent regardless of whether your facility handles local vehicles or international traffic.

Free SDK and Multi-Language Development Support

The free SDK supports DLL, COM components, and REST API, with development language compatibility including C, C++, C#, VB, Delphi, and Java. This allows your development team to connect the ALPR System for Parking Garages to existing PARCS or payment software without additional licensing costs.

Hardware and Software Customization

Custom hardware configurations, software logic adjustments, and full OEM/ODM development are available to match specific project requirements.

Deployment Scenarios

Commercial Shopping Centers

The system supports ticketless validation workflows — such as time-based grace period logic — based on plate recognition at entry and exit. It handles high-density traffic without processing delays and can connect to app-based payment platforms via REST API or SDK.

Corporate Campuses and Contract Parking

Plates are checked against a configurable whitelist of authorized employees or tenants. The system supports nested zone logic for reserved areas and can trigger automatic rejection when a zone reaches defined capacity.

Airports and Transit Hubs

Entry timestamps are used to calculate long-term or short-term tariffs. The system supports blacklist checks at entry points for security screening purposes.

application

Performance Considerations for ALPR System for Parking Garages

Handling Dirty or Partially Obscured Plates

The system uses IR imaging and fuzzy logic matching to differentiate visually similar characters under real-world capture conditions. For plates that cannot be read, the system stores the no-read image for operator review alongside a manual input fallback.

Angle and Environmental Performance

The system is designed to perform reliably under rain, low-light conditions, and capture angles up to 30–45 degrees.

Tailgating Prevention

ROI settings and fast shutter speeds reduce the risk of misreads caused by closely following vehicles. When combined with a ground loop detector or radar input, the trigger resets after each vehicle — capturing each as a separate event.

Data Synchronization

Timestamp and plate data are synchronized with the barrier open command to prevent transaction mismatches.

Integration and Connectivity

The ZOJE-LPR210 uses standard I/O dry contact and relay outputs, making it compatible with barrier gate hardware from any manufacturer.

Recognition data is pushed in JSON or XML format via REST API or SDK from the ALPR System for Parking Garages to connect with modern parking management systems. TCP/IP and Wiegand connectivity are also supported.

About ZOJE

ZOJE has been designing and manufacturing parking systems since 2012 under ISO 9001:2015 quality management standards. Standard orders ship within 5–7 business days; customized projects are completed within 10–15 days. Shipment is available via sea or air freight under DDU or DDP terms. A 2-year product warranty and 24/7 after-sales technical support are included.

ALPR System for Parking Garages

FAQ

Q: How does the system handle unreadable or dirty plates?

A: The ZOJE-LPR210 uses IR imaging and fuzzy logic matching to process dirty or partially obscured plates. For completely unreadable plates, the system stores the no-read image for operator review while providing a manual input option at the lane.

Q: Can this this product integrate with existing barrier gates and payment software?

A: Yes. The system uses standard dry contact or relay output to trigger barrier gates from any manufacturer. The free SDK and REST API allow plate recognition data in JSON or XML format to be pushed to most modern PARCS or payment platforms.

Q: What is the difference between edge-based and server-based ALPR?

A: Edge-based systems like the ZOJE-LPR210 process OCR directly on the camera — no server is required. This reduces bandwidth use and removes server dependency. Server-based systems stream video to a central PC, which may be more suitable for large multi-lane facilities requiring centralized analytics across many lanes.

Q: How does the system handle tailgating vehicles?

A: The system applies ROI settings and fast shutter speeds. When combined with loop detectors or radar, it resets the trigger after each vehicle passes — preventing the trailing vehicle from being missed or merged with the preceding event.

Q: Does the system support multi-language development for custom integrations?

A: Yes. The free SDK supports C, C++, C#, VB, Delphi, and Java, allowing development teams to build custom integrations with existing access control or parking management software.
