1. Model Type: ZOJE-Y109
2. Support OEM, ODM customization
3. Pass Speed: 35 persons/Minute
4. Equipped with an advanced servo control system and unique motor technology.
5. Provides fast, stable operation with accurate validation.
6. Features waterproof and dustproof design for versatile environments.
7. High-sensitivity optical sensors ensure precise detection.
8. Warranty: 2 years
  • Face to Face Discussion
  • Quality Assurance
  • 24/7 Customer Service

Product Introduction

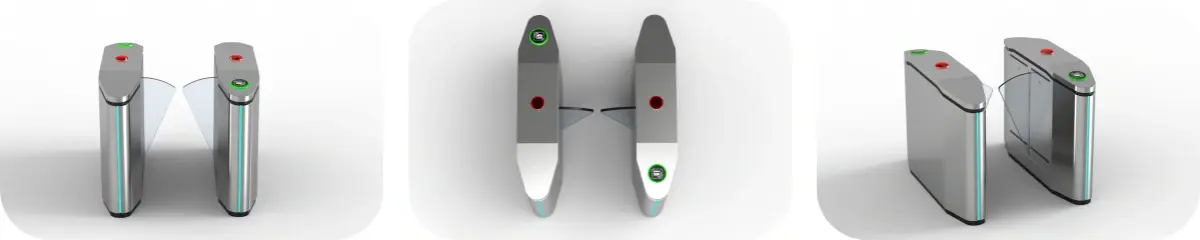

Anti-Collision Flap Barrier Turnstile for Safe Entry – ZOJE-Y109 Series | High-Throughput Access Control Solution

This unit is the ZOJE-Y109, sold as the Anti-Collision Flap Barrier Turnstile for Safe Entry. It is an electromechanical device that controls pedestrian access. Speed matters at these sites. Physical toughness matters too. A servo-driven mechanism lets up to 35 persons per minute through. Running stays stable at that rate, and accurate as well. Wings are built from flexible polymer or soft PU foam. Impact energy gets soaked up by both materials. Force never reaches the internal gears. Users stay protected. So does the unit. The housing is waterproof and dustproof. High-sensitivity optical sensors keep detection sharp. A 2-year warranty comes with every unit. For hard daily use, that makes it a practical pick.

What Makes This Flap Barrier Different from Standard Turnstiles

Hit a rigid turnstile flap with luggage, a delivery cart, or a rushing pedestrian and it can crack or jam. Repairs come next. Gearboxes end up replaced. The lane drops out with no warning. Injury claims are a real risk as well.

A special elastic clutch takes care of this on the ZOJE-Y109. Push past the preset torque threshold of more than 15 Nm and the flap gives way. Other times it disengages instead. Either way, the internal transmission does not break. Take the force away and the clutch resets by itself. No manual recalibration is needed.

This build keeps your entrance in service. Mechanical repair visits drop off.

Key Technical Properties

Drive System: Brushless DC (BLDC) or Servo motors power the unit. Planetary gearboxes work with them. Mean Cycles Between Failure (MCBF) tops 5 to 10 million cycles. It handles heavy daily use.

Anti-Collision Mechanism: When force crosses the torque threshold, a mechanical clutch or an electromagnetic brake releases. It resets by itself once the obstruction clears.

Sensor Array: The IR photodetector arrays are high-density, and each one carries 6–10 pairs. They spot tailgating. Telling a person apart from an object is the other job they handle.

Chassis Material: The frame comes in SUS304 or SUS316 stainless steel, brushed finish, and the thickness is ≥1.5 mm. Salt spray will not eat into it. With that rating, the unit can sit indoors or in semi-outdoor spots.

Safety Behavior: Cut the power, or send a fire alarm signal, and the barrier wings open or pull back by themselves. People on foot can then get out.

Product Specifications

Parameter Specification
Model ZOJE-Y109
Dimensions (L×W×H) 1400×300×1000mm (Customizable)
Material 304/316 Stainless Steel
Channel Width 550/900mm (Customizable)
Door Material Acrylic/Tempered Glass/Red Soft Shell
Drive Type Brush Motor/Brushless/Servo Motor
Unlock Time 0.2 Seconds
Direction Single/Bidirectional
Power Supply AC110-230V, 50/60Hz
Operation Voltage DC24V, 3A
Safety Functions Fail Safe, Anti-Clamping, Anti-Pinch
Working Environment Indoor & Outdoor
Operating Temperature -70℃ to 15℃
Relative Humidity <95% (No Condensation)
Pass Speed 35 Persons/Minute
Input Interface Dry Contact/Relay Signal
Communication RS485/TCP/IP
LED Indicator Yes
Emergency Function Automatic Opening
Waterproof Rating IP67
Access Control Integration Compatible with All Systems
Warranty 2 Years

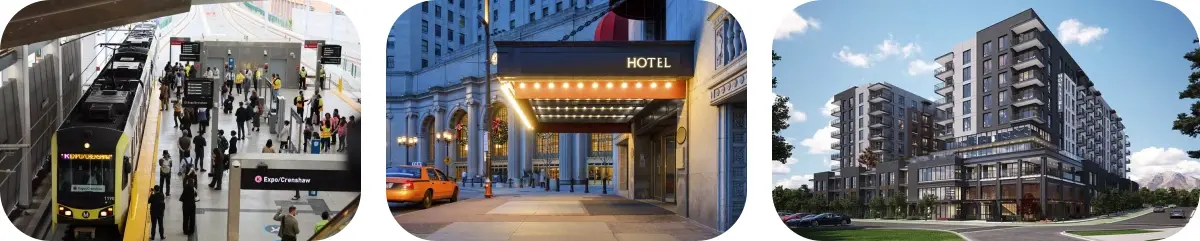

Where This Turnstile Performs Best

Metro and Train Stations: Heavy bags and trolleys come through here all the time. The anti-collision mechanism of the Anti-Collision Flap Barrier Turnstile for Safe Entry shields the motor gears from chance hits. Traffic still moves at 35+ persons per minute. Steady physical contact also causes less wear.

Industrial Parks and Factory Entrances: Tool belts and safety gear show up a lot in these places. Some workers push carts of material. At shift change, movement arrives in bursts. Forceful entry is normal at those times. Conditions like these are what the ZOJE-Y109 handles. No daily maintenance interventions are needed.

Commercial Office Lobbies with Delivery Robot Traffic: At entry points, delivery robots driving themselves can head the wrong way. Flaps that flex absorb the knock. Damage to the robotics gear stays low. Turnstiles take less harm as well, and a busy entrance sees fewer holdups.

application

Quality Control and Testing of Anti-Collision Flap Barrier Turnstile for Safe Entry

Before any ZOJE-Y109 leaves the plant, it is tested. Factory checks come first, shipment second.

Anti-Collision and Auto-Reset Test: This check confirms the clutch lets go at the set torque threshold. It also confirms the flap comes back to the closed position, and does so without calibration drift.

MCBF Aging Test: Each unit runs a continuous burn-in cycle. That cycle proves the motor holds its thermal stability and the gears hold up before dispatch.

Anti-Pinch Logic Verification: The IR sensor array gets tested with objects of different sizes. This confirms a flap will stop or reverse right away once something blocks it.

Ingress Protection Testing: Chassis units for semi-outdoor use go through dust and water jet tests. Those checks verify IP54 and IP65 ratings. The internal logic board stays protected.

Every production stage follows ZOJE's ISO 9001:2015 quality management process.

certification

Customization and Integration

The ZOJE-Y109 can be customized under OEM and ODM terms. Hardware and software are both covered. Soft PU foam is one choice for the barrier wings, and it keeps users safe. Need tighter security? Then acrylic or tempered glass is the other way to go. Cabinet size can change. So can the finish color. Your branding goes on it too, so the unit matches the look of your facility.

Wiegand, RS485, and dry contact relay inputs from the Anti-Collision Flap Barrier Turnstile for Safe Entry all feed into the modular logic controller. Facial recognition systems, RFID readers, ESD testers, and QR code scanners can then connect to it. No extra hardware changes are needed.

Anti-Collision Flap Barrier Turnstile for Safe Entry

FAQ

Q: How does the anti-collision mechanism reset after a forced impact?

A: The servo motor detects positional deviation through its encoder and drives the flap back to the closed position automatically, typically within 2–3 seconds. No manual reset is required.

Q: What barrier wing material should I choose?

A: Sites that put safety first do well with soft PU foam. Impact gets absorbed, so a user is less likely to end up with a bruise. Where security matters more, acrylic or tempered glass is the usual pick. Add a mechanical clutch at the base to go with it.

Q: What happens to the turnstile when the power fails?

A: The flaps pull back into the cabinet when power is cut. That comes from an internal capacitor or a mechanical spring release. The unit switches to Normally Open mode, so there is a clear path out for evacuation.

Q: Can the ZOJE-Y109 work with access systems from other companies?

A: Yes. The logic controller has Wiegand and RS485 interfaces. It also comes with dry contact relay interfaces. Facial recognition terminals can connect to it. RFID readers work too. So do QR code scanners. These devices show up often in access control deployments.

Q: Will ZOJE help with installation and support after the sale?

A: Yes. ZOJE provides installation guidance along with pre-sales and after-sales technical assistance for the ZOJE-Y109.
