Dual-mode geomagnetic parking detector
2. Dual sensing technology,Recognition rate:99%
3. No-excavation setup, super fast deployment
4.3-5 years lifespan, low maintenance cost
5.IP68 waterproof | -30℃~+85℃, harsh environment resistant
6.Real-time data sync | Cloud/local linkage, guidance & payment ready
7.Custom parking solutions.Support hardware/software customized
8.24/7 tech support and service
- Face to Face Discussion
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Dual-mode Geomagnetic Parking Detector ZOJE-TM10S
The Dual-mode Geomagnetic Parking Detector ZOJE-TM10S packs two sensing methods into one surface-mount unit. It pairs Anisotropic Magnetoresistive (AMR) geomagnetic sensing with FMMC microwave radar at 24 GHz or 80 GHz. Verified detection accuracy comes in at ≥99.5%. Occupancy data travels over NB-IoT, LoRaWAN, Sigfox, or Cat-M1. Municipal and commercial B2B deployments are what it was built for. The unit runs from −40 °C to +85 °C. Its housing carries an IP68 rating and holds up under more than 12 tons of static load.
How the Dual-Sensing Technology Works
A magnetic sensor that works on its own is easy to throw off. Underground metro lines disrupt it. High-voltage cables and dense traffic do the same. False positives show up in those places. Billing disputes follow from them. Trust in the wider smart parking platform drops too.
The ZOJE-TM10S addresses this with a two-stage "Wake-up + Verify" process. The AMR geomagnetic module monitors magnetic field disturbances caused by a ferromagnetic vehicle and wakes the system when a change is detected. The FMMC radar module then performs a secondary check — measuring distance and reflection intensity — to confirm the vehicle is directly above the sensor rather than in an adjacent lane.
Should the radar place the object outside the defined vertical cut-off zone, the event counts as "False". No occupied status goes out in that case. Accuracy stays above 99.5% in varied electromagnetic environments, and this sensor fusion approach is the reason why.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ZOJE-TM10S |
| Type | Surface mount |
| Dimensions | Φ175×40mm |
| Battery Capacity | 18,000mAh |
| Battery Life | 3-5 years |
| Net Weight | 645g |
| Operating Temperature | -30℃~+85℃ |
| Operation Voltage | 2.5~3.6V (internal battery) |
| Protection Level | IP68 |
| Average Current | <50uA |
| Shell Material | Black PC+ABS+PA66 |
| Communication Mode | RF470MHz @ 10kbps |
| Communication Distance | ≤100m |
| Detection Accuracy | ≥99% |
| Compression Resistance | 20 tons |
| Humidity Range | ≤90%RH (no condensation) |
| Wireless Upgrade | Supported |
| Mobile APP Debugging | Supported |
Core Product Features
Dual-stage occupancy verification
The AMR and FMMC radar modules work in sequence rather than in parallel. Only events confirmed by both stages are reported as occupied, which keeps false-positive rates low even in sites with active electromagnetic interference nearby.
Industrial-grade housing
The enclosure is epoxy-filled and rated IP68, tested at continuous submersion in 1.5 meters of water for over 72 hours. It also passes hydraulic compression tests at 10–15 tons, covering the pressure range typical of heavy truck axle loads.
Multi-protocol wireless communication
NB-IoT, LoRaWAN, Sigfox, and Cat-M1 are all supported. Occupied and Vacant statuses get reported, and a Heartbeat goes out too. MQTT or HTTPs carries the data to a cloud server. Backend integration is covered by standard API decoding documents.
Surface-mount installation without road closure
Industrial epoxy holds the surface-mount variant to the road. No drilling is needed during installation, and no lane closures either. Cabling is not required. Fitting the flush-mount variant takes a 100 mm coring drill. It sits fully flush with the road surface, so snow-clearing equipment cannot catch on it.
Battery life, with alerts sent before the voltage drops too low
Under normal use, the Li-SOCl₂ battery pack lasts 3–5 years. That figure covers 50+ events per day with a 24-hour heartbeat. If voltage falls under 3.4 V, the device sends a "Low Battery" alert to the connected platform on its own. A replacement can then be booked before service suffers.

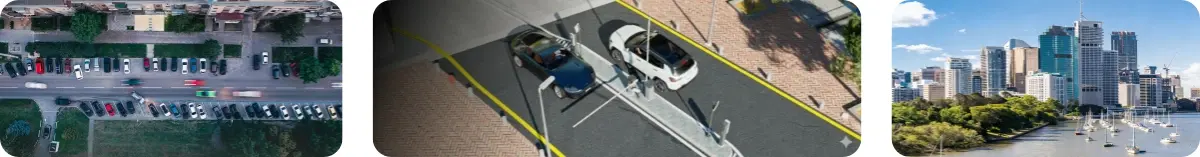

Application Scenarios
Urban on-street parking
City-center sites often sit on top of underground metro lines, and heavy traffic makes the background magnetic noise strong. There, sensor accuracy has a direct effect on billing reliability. Municipal Intelligent Transportation System (ITS) projects need steady occupancy data to work out charges automatically, and the ZOJE-TM10S dual-mode geomagnetic parking detector fits that job.
Outdoor and open-air parking lots
Fog cuts the accuracy of camera-based systems. So do heavy rain and low light. Visual conditions do not hold back the ZOJE-TM10S. Radar and magnetic signals push through ice and non-metallic snow cover well. Once packed snow sits deeper than 30 cm, a sensitivity recalibration may be needed.
EV charging station management
The detector spots a combustion engine vehicle sitting in an EV charging bay. From there it can fire off automated alerts to enforcement staff. Some setups also link it to smart parking lock controllers, which depends on how the platform is configured.
Quality Control Process for Dual-mode geomagnetic parking detector
Each unit goes through the checks below before it ships:
- Accuracy stress test: 1,000+ detection cycles run with SUVs, sedans and trucks. These confirm the fusion algorithm hits the ≥99.5% accuracy target.
- IP68 immersion test: The unit sits underwater at 1.5 meters for 72+ hours. This checks that the epoxy seal holds.
- Static load test: A hydraulic press pushes down with 10–15 tons of pressure. The goal is to confirm the shell neither cracks nor deforms.
- Temperature cycling: The unit goes from −40 °C to +85 °C and back again, fast. This checks battery stability and how the wireless module performs.
- 168-hour aging test: Each unit runs non-stop for 168 hours before it ships. This screens out early electronic failures.

OEM/ODM and Customization
ZOJE can customize hardware and software to fit what a project needs. You can pick specific communication frequency bands. Custom enclosures are also an option. So is integration with parking management platforms that are proprietary.
Standard products with Dual-mode geomagnetic parking detector ship in 5–7 days. Customized versions usually take 10–15 days. Sea or air freight is available under DDU or DDP terms. Every product carries a 2-year warranty, and technical support is there 24/7.

FAQ
Q: What happens when the device picks up interference from parking lanes next to it?
A: Time-of-Flight and reflection intensity are both measured by the FMMC radar module. Say a magnetic disturbance shows up, but the radar puts the object outside the vertical cut-off range. That event is then classed as "False" by the system, and no occupied status gets sent.
Q: Can the sensor keep working under heavy snow?
A: Snow and ice do not block magnetic fields much, and microwave radar goes right through covers that are not metal. Packed snow over 30 cm deep can call for a fresh sensitivity calibration.
Q: What is the battery life, and how do I know when a replacement is due?
A: Batteries usually run about 3–5 years. That figure assumes 50 parking events a day and a heartbeat every 24 hours. Once voltage falls under 3.4 V, the device sends a "Low Battery" alert to the connected platform on its own.
Q: Is road surface drilling required for installation?
A: No drilling is needed on surface-mount versions. Industrial epoxy keeps the unit in place. With flush-mount versions you do need a 100 mm coring drill, yet the unit sits fully flush with the road surface. Any raised obstruction is gone.
Q: In what way does the device link up with parking software that is already running?
A: The data travels to a cloud server over NB-IoT or LoRaWAN, carried by MQTT or HTTPs. Backend teams get standard API decoding documents. With those, they can parse hex payloads themselves.

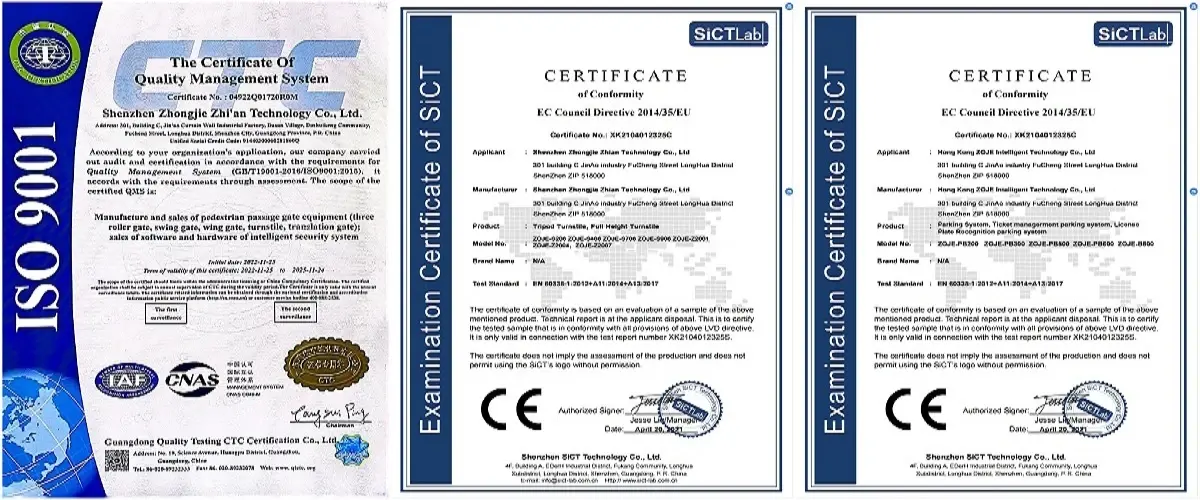

Q: What certifications does the ZOJE-TM10S carry?
A: The device is compliant with CE, FCC, RoHS, and NEMA TS standards, covering the requirements of most international municipal and commercial procurement processes.
Contact Us
For project inquiries, Contact Us at info@zoje-tech.com. We aim to respond to all technical and procurement questions about the Dual-mode geomagnetic parking detector within 24 hours.
