LPR Camera with Open SDK

LPR Camera with Open SDK

1.Recognition type:Front-end
2.Recognition rate:99%
3.Recognition Regions:Around world
4.Support offline use:Front-end recognition, unaffected by network delay/offline
5.Support hardware/software customized,support various types of secondary development
6.Model:ZOJE-LPR210
7.Free SDK; support multiple linking solutions such as the dynamic link library (DLL) and com components,support a variety of development languages like C, C++, C#, VB, Delphi, Java, etc.
8.Support OEM and ODM
  • Face to Face Discussion
  • Quality Assurance
  • 24/7 Customer Service

Product Introduction

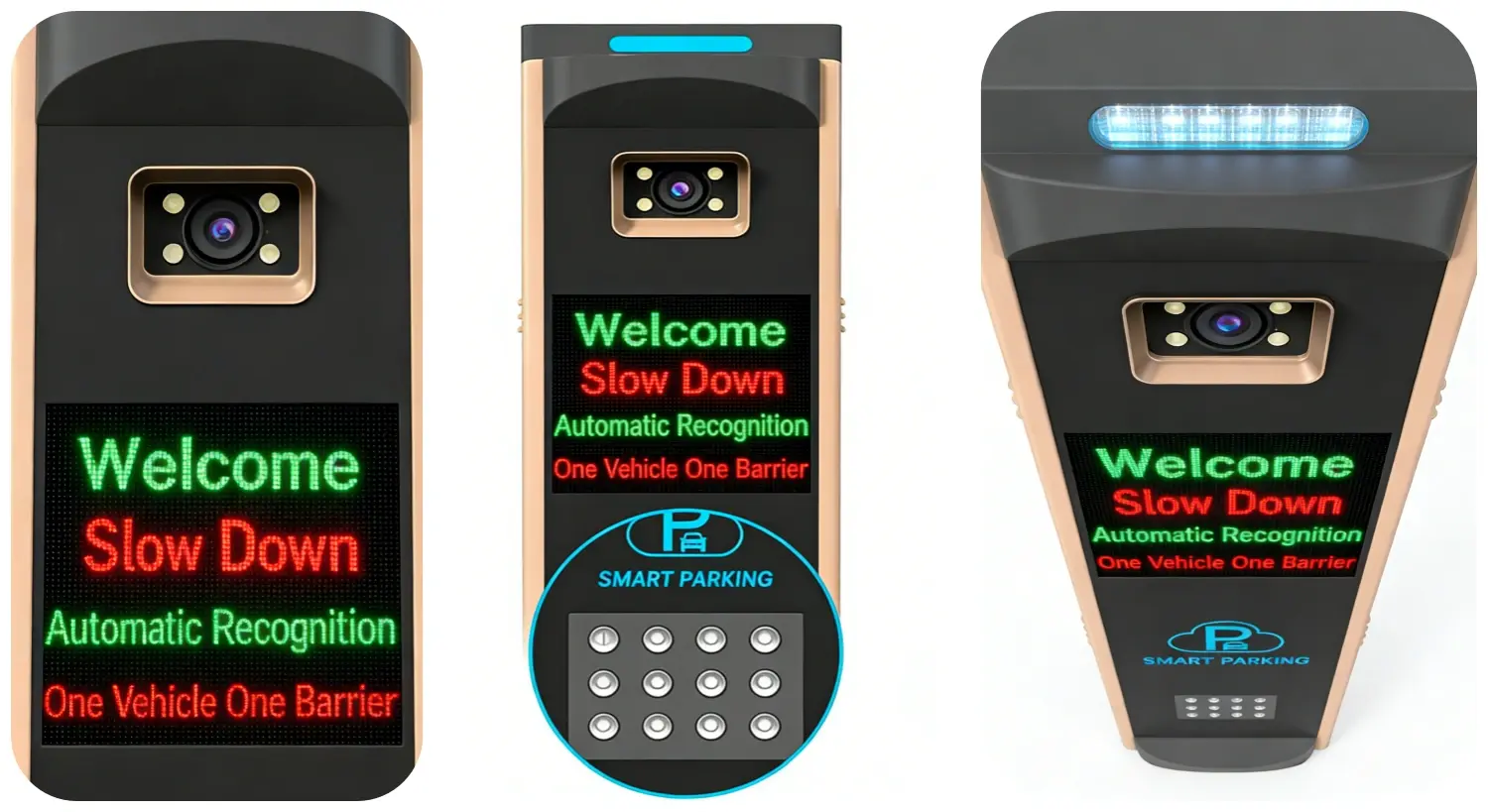

LPR Camera with Open SDK for Smart Parking & Traffic Systems

The ZOJE-LPR210 does OCR right on the camera. Its LPR Camera with Open SDK lets code pull plate recognition data straight from the device. System integrators and parking operators get that access. No vendor platform stands in the way. The free SDK works with C, C++, C#, VB, Delphi, and Java. Structured JSON can travel over MQTT. HTTP/HTTPS and TCP/IP support is built in too. A network outage does not stop the unit. It keeps running fully offline. Commercial parking is one target use. Highway monitoring and logistics sites are others.

What Is This Product?

A standard license plate camera sends video to a remote server. That server handles the processing. This product does not work that way. OCR runs on the camera itself. Structured data comes out of the device. Plate numbers and confidence scores are included. A documented SDK gives developers a way to reach that data.

So your team does not depend on a vendor's software stack. Recognition output can go into your own Parking Management System (PMS). Access control systems can take it too. So can a logistics platform. Your engineers use languages and protocols they already know.

Recognition libraries for several regions come with the ZOJE-LPR210. EU, North America and the Middle East are all covered. That makes the camera usable in deployments across different countries.

Key Technical Features

Front-End Recognition Engine

All OCR work happens on the camera itself. A local whitelist match fires a gate trigger in under 200ms. No server response sits in that decision loop. If the network drops, the system keeps running. Data gets buffered too.

Free Open SDK: Multi-Language Support

You get the SDK at no extra cost. It handles integration with DLL and COM components. C, C++, C#, VB, Delphi, and Java all work with it. Full API documentation is included for each language it supports.

Standard Communication Protocols

Three protocols carry the live data feed: MQTT, HTTP/HTTPS POST, and TCP/IP. Results come back as structured JSON. That payload holds the plate number, a confidence score, the vehicle direction, and a timestamp.

Relay/GPIO Hardware Interface

GPIO outputs are controllable through the SDK, allowing direct barrier gate triggering based on local whitelist logic — no server call required.

Regional OCR Library Selection

Developers can select or update specific OCR regional libraries within the SDK to handle different plate fonts, colors, and syntax standards across supported regions.

Product Specifications

Component Specification Details
LED Display Dimensions 256mm × 256mm
  Type LED P4, red and green dual-color
  Display Format Four-line horizontal display
  Special Features QR code display with adjustable brightness
  Resolution 64×32 dot matrix per module
Camera System Image Output 5MP JPEG
  Light Sensitivity 0.01 Lux minimum illumination
  Lens Fixed aperture, 6mm focal length
  Dynamic Range ≥100dB wide dynamic range
  Storage Micro SD card support up to 32GB
Controller Voice Function Custom voice broadcasting
  Audio Messages "Welcome," "Safe journey," vehicle type announcements
  Display Support Compatible with various LED modules
Environmental Protection Rating IP42 (dust and water resistant)
  Operating Temperature -10℃ to 60℃
  Humidity Range 5% to 85%
  Power Requirements 100W maximum consumption
Physical Dimensions 336mm × 180mm × 1400mm (W×D×H)
  Weight Approximately 16kg
  Model Number ZOJE-LPR210

Quality Control Process

Before any ZOJE-LPR210 unit leaves, it passes a validation process for LPR Camera with Open SDK that follows set steps.

Optical and Environmental Testing

Three checks apply to every unit. Corrosion resistance gets tested with a 24-hour salt spray exposure. Then thermal cycling goes from -40°C to +75°C, which confirms the unit starts in the cold and holds up under heat. Vibration testing copies the conditions a pole-mounted unit meets.

SDK Stability Testing

SDK functions are looped continuously for 72+ hours during a dedicated memory leak test. RAM usage is monitored throughout to confirm stable performance under sustained operation.

Offline Data Recovery Verification

Offline resume gets checked by hand, by technicians. Cut the network in a test run and the camera has to store recognition data the right way in local storage. When the connection comes back, every queued record must go out again through the API.

Accuracy Benchmarking

Recognition accuracy is validated against ISO 12233 resolution charts as part of the optical validation process.

certification

Application Scenarios for LPR Camera with Open SDK

Commercial Parking and Ticketless Management

Plates can be checked against a cloud subscription database by pairing the GPIO outputs with the HTTP API. Gate control logic is fully scriptable through the SDK. Operators write their own entry rules that way, and no third-party software has to be modified.

Highway Monitoring and Intelligent Transportation Systems

In the SDK, the Region of Interest (ROI) setup does the lane-specific filtering. Recognition data, direction info included, can go straight to city or traffic management servers. That push happens in real time.

Weighbridges That Run Themselves, and Logistics

Freight yards and factory floors get dusty. Visibility drops too. In those places the SDK still works. It takes the OCR text and joins it with readings from weight sensors and other hardware. Entry and exit records then get written without anyone typing them in.

application

Customization and Supply Information

ZOJE supports hardware and software customization, including the LPR Camera with Open SDK, based on project requirements. OEM and ODM cooperation is available for both parking systems and access control applications.

Standard products ship within 5–7 days. Customized configurations require 10–15 days. Sea and air freight are available, with DDU and DDP trade terms supported.

Lines that build each product follow ISO 9001:2015 quality management rules. Every unit also leaves with a 2-year warranty.

FAQ

Q: What languages does the Open SDK work with?

A: Libraries are there for C, C++, C#, VB, Delphi, and Java. Web-based integration workflows can also use the RESTful APIs.

Q: What happens to the camera when the network drops mid-transfer?

A: The SDK includes something called Automatic Network Replenishment (ANR). Plate data and images are saved to local storage first. Once the link is back up, the camera sends everything to your server by itself, using HTTP or MQTT.

Q: Can a barrier gate be opened directly from the camera?

A: Yes. The Relay/GPIO interfaces are fully controllable through the SDK. Local whitelist matching enables gate trigger times below 200ms without a server call.

Q: Can the OCR engine be adjusted for use in other countries?

A: Yes. Inside the SDK, developers can pick or swap regional OCR libraries. That lets the engine cope with plate fonts, colors, and syntax rules that differ from market to market.

Q: Does the camera support vehicle attribute recognition?

A: Beyond plain plate reading, advanced setups also handle Make, Model, and Color (MMC). The SDK returns all of that data as structured JSON.

Q: What quality standards does the product meet?

A: Build of the ZOJE-LPR210 follows ISO 9001:2015 quality management standards. Before shipment, each unit goes through IP67 ingress protection testing. Vandal resistance gets checked to IK10, and a 24-hour salt spray corrosion test is run as well.

Contact Us

Got project requirements to talk over, or need a technical datasheet? Email our LPR Camera with Open SDK team at info@zoje-tech.com.
