Industrial ANPR Camera with API Integration
2.Recognition rate:99%
3.Recognition Regions:Around world
4.Support offline use:Front-end recognition, unaffected by network delay/offline. Support offline billing
5.Support hardware/software customized,support various types of secondary development
6.Support outdoor use
7.24/7 service
8.Support OEM and ODM
- Face to Face Discussion
- Quality Assurance
- 24/7 Customer Service
Product Introduction

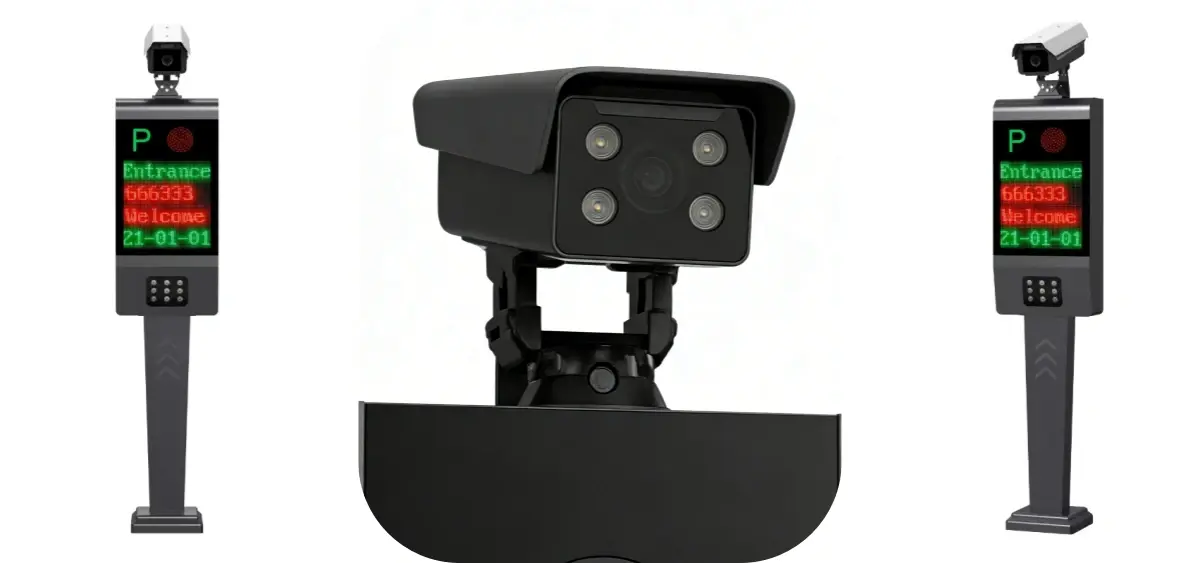

Industrial ANPR Camera with API Integration — Edge AI Recognition System for Harsh Industrial Environments
Ordinary cameras give up on rough sites. The ZOJE-LPR101 Industrial ANPR Camera with API Integration keeps working there. Hong Kong ZOJE Intelligent Technology Co., Ltd. makes it, and that firm has turned out equipment since 2012. Plate reading lands at 99% across the formats used around the world. Recognition runs on the edge, inside the unit itself. Offline running works in full too. Records sit in local storage and push out by themselves the moment the link comes back. Certification: ISO 9001:2015. OEM and ODM customization available.
Why the ZOJE-LPR101 Performs Where Standard LPR Cameras Cannot
Dust, rain, bad light, and shaky networks are routine on industrial sites. Under those conditions most commercial license plate cameras break down fast. The ZOJE-LPR101 was built for exactly that kind of work.
Capturing falls to a Global Shutter CMOS sensor. Fast-moving vehicles come out sharp, with no motion blur. Pulsed IR illuminators run at high intensity. Recognition accuracy holds even in 0 Lux darkness. Dust gets compensated for. Mud too. So does the surface reflection industrial plates often show.
Die-cast aluminum makes up the housing. Over that sits an anti-corrosion powder coating. From -40°C to +70°C, the unit keeps working. Industrial washdowns pose no issue, since IP67 ingress protection is built in. IK10 impact resistance deals with debris and physical knocks.
API Integration: Connecting the Camera to Your Operations
This product is designed to function as an active data node within your facility infrastructure — not just a capture device.
RESTful APIs are supported on the camera. So are HTTP/HTTPS POST, TCP/IP, MQTT, and JSON, plus XML output protocols. Plate data goes straight to your WMS, ERP, or access control server in real time. Confidence scores and the vehicle attributes (color, make, model) travel with it.
Two-way communication works here as well. Commands come in over the API, and the camera then fires its I/O ports to open a barrier or a gate. Older sites are still covered: a Wiegand output interface keeps backward compatibility with legacy gate controllers.
For development teams, webhook support makes integration simpler. RESTful documentation serves the same purpose. Compatible VMS platforms can take the video stream, thanks to ONVIF Profiles S, T, and G compliance.
Offline Operation and Data Continuity
Network reliability varies across industrial sites. The ZOJE-LPR101 addresses this with built-in edge storage — via SD card or internal flash — and a Store and Forward mechanism.
If the network goes down, the camera keeps every capture record on the device itself. The queued data goes out through the API on its own once the link comes back. Offline billing works too. That makes the unit a fit for weighbridge or toll sites in remote spots.
Key Applications
Weighbridge Stations That Work Automatically (Mining and Aggregates)
A truck rolls onto the scale. The camera picks up the plate. That vehicle ID, from an Industrial ANPR Camera with API Integration, goes to your weighing software by way of the API. From there the load weight gets tied to the truck's record. Fewer typos follow. The audit trail stays whole.
Logistics and Distribution Centers
At dock entry points, the camera reads trailer numbers and plate data. Shipment details get confirmed through WMS API integration. Gate control then triggers. The driver can be sent to the right bay. Manual checkpoint checks drop.
Petrochemical and High-Security Access Control
The camera validates tanker trucks against an approved vehicle whitelist, logs entry and exit timestamps for safety audits, and triggers alerts for unauthorized vehicles — all via your facility's access control API.

Product Specifications
| Parameter Category | Specification | Details |
|---|---|---|
| Basic Parameters | ||
| Operating Voltage | AC110-240V±10% | Universal power compatibility |
| Operating Temperature | -20℃ to +60℃ | Extreme weather performance |
| Relative Humidity | ≤95% without condensation | Moisture resistance |
| Rated Power | ≤60W | Energy efficient operation |
| Communication Method | TCP/IP, RS485 | Multiple connectivity options |
| Protection Class | IP64 | Dust and water resistant |
| Dimensions | 360×150×1490mm | Compact industrial design |
| Camera Parameters | ||
| CPU | Dual-core 900MHz + CNN acceleration | Edge AI processing power |
| Image Sensor | 1/2.8" starlight CMOS | Superior low-light performance |
| Max Resolution | 1920×1080 | Full HD clarity |
| Lowest Illumination | 0.01Lux (Color) | Night vision capability |
| Recognition Rate | ≥99% | Industry-leading accuracy |
| Network Interface | 10/100Mbps RJ45 | Standard Ethernet connectivity |
| Storage | TF card up to 512G | Local data backup |
| Fill Light Parameters | ||
| LED Count | 10 pieces | Powerful illumination |
| Maximum Power | 10W | Efficient lighting system |
| Control Method | Intelligent light sensitivity | Automatic brightness adjustment |
| Illumination Distance | 5 meters at >50LUX | Extended coverage range |
Quality Assurance Process for Industrial ANPR Camera with API Integration
Before any ZOJE-LPR101 ships, it goes through a structured quality control check.
OCR Accuracy Validation puts recognition performance to the test at vehicle speeds of up to 200 km/h. How well the system reads plates gets checked too. Lighting for those checks runs from direct sunlight all the way to total darkness with IR on.
Environmental Stress Screening (ESS) runs parts through cycles from -40°C to +70°C. Soak tests are part of this too. They prove heater and blower assemblies keep their calibration when temperatures move.
IP67 and IK10 Physical Testing proves the housing shields optics and PCBs from impact and from industrial washdowns.
API Load Testing sends high-frequency requests to the device. Latency gets watched here, along with memory stability. Heartbeat reliability is checked as well. The unit must keep reporting device health to the central server with no gaps, and this test confirms it does.
EMC/EMI Compliance Testing answers a single question. Will the unit survive the electromagnetic interference that heavy industrial sites produce?

Customization and OEM/ODM Services
A specific project can call for changes to both hardware and software. ZOJE takes care of that work. Mounting setups can be adjusted. Firmware can be built to order. Plate recognition logic can be adapted for local use. Your brand can go on the hardware. OEM and ODM partnerships are also open to system integrators and resellers.
The standard lead time sits at 5–7 days. Custom orders for the Industrial ANPR Camera with API Integration ship in 10–15 days. Freight can move by sea or air under DDU or DDP terms.
Frequently Asked Questions
Q: What happens with This product when the network goes down?
A: Edge storage handles it, through a Store and Forward setup. When a outage hits, capture records get buffered on the device itself. The API then pushes them out on its own as soon as the connection comes back.
Q: Is it possible to run several output protocols on the camera at once?
A: It can. Video goes to a VMS over RTSP/ONVIF. At the same time, plate metadata is pushed to an ERP or access control system through TCP/IP, HTTP POST, or MQTT.
Q: How does it handle dirty plates, or plates that don't reflect much light, which are common on industrial vehicles?
A: Yes. Mud and dust can hide a plate. That stops normal cameras, but not this setup. Short, powerful bursts of IR light do the work, and OCR reads the characters by their shape. Retro-reflection is not needed at all.
Q: How does API integration compare to legacy Wiegand systems?
A: Wiegand gives you a limited set of data. RESTful APIs with Webhook support hand back more of it, and the metadata is richer. So the API route is the flexible one. On the ZOJE-LPR101 you also get a Wiegand output interface, which keeps older gate controllers in play. During an infrastructure switch, both ways can run side by side.
Q: Can the camera run outdoors all the time?
A: Yes. With IP67 weatherproofing, IK10 impact resistance, and an operating range of -40°C to +70°C, the ZOJE-LPR101 is rated for full outdoor and industrial site deployment in varied climates.
Q: What customization options are available for regional plate formats?
A: The camera supports global plate formats by default. For region-specific requirements or non-standard plate types, ZOJE's engineering team can configure localized recognition logic as part of the OEM/ODM customization process.
