OEM LPR Camera Available
2.Recognition type:Front-end
3.Recognition rate:99%
4.Recognition Regions:Around world
5.Support offline use:Front-end recognition, unaffected by network delay/offline
6.Support hardware/software customized,support various types of secondary development
7.Free SDK; support multiple linking solutions such as the dynamic link library (DLL) and com components,support a variety of development languages like C, C++, C#, VB, Delphi, Java, etc.
8.Support OEM and ODM
- Face to Face Discussion
- Quality Assurance
- 24/7 Customer Service
Product Introduction

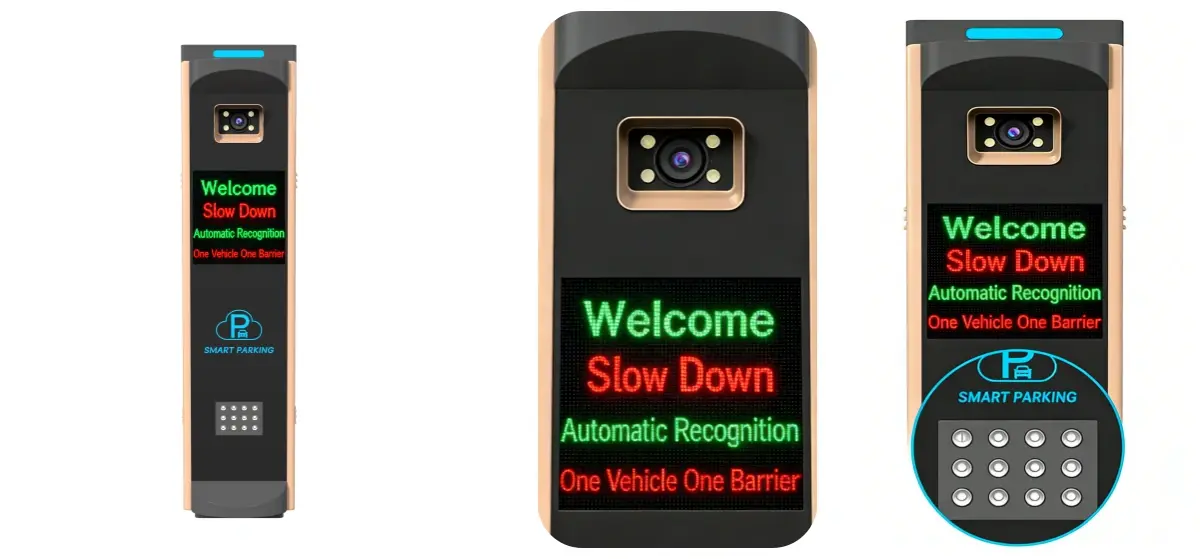

OEM LPR Camera Available – ZOJE-LPR210 License Plate Recognition Camera for Smart Parking and ITS Solutions
The ZOJE-LPR210 is a professional-grade OEM LPR Camera Available. System integrators buy it. Software developers and security brands do too. What they want is plate reading hardware they can trust, minus the work of building it from zero. Front-end AI handles OCR right on the device. Plate data comes back with no server dependency. OEM and ODM customization goes deep. Housing branding is one option. So is the web interface. SDK integration works across several development languages. Production follows ISO 9001:2015 quality standards throughout.
What Makes the ZOJE-LPR210 Different
Standard CCTV cameras optimize for overall scene brightness, which often washes out reflective license plates. The ZOJE-LPR210 uses specialized firmware and algorithms that strictly control shutter speed and gain for plate clarity — including in low-light or high-speed conditions.
The front-end AI engine processes OCR directly on the device, sending only small metadata strings — plate number, confidence score, timestamp — to your server. This reduces bandwidth load and keeps recognition running when network connectivity is interrupted.
Key Technical Specifications
| Component | Specification | Details |
|---|---|---|
| LED Display | Dimensions | 256mm × 256mm |
| Type | P4 LED, Red/Green dual-color | |
| Display Lines | Four horizontal lines | |
| Features | QR code display, adjustable brightness | |
| Camera System | Image Output | 5MP JPEG format |
| Minimum Light | 0.01 Lux operation | |
| Lens | 6mm fixed focal length | |
| Dynamic Range | ≥100dB WDR | |
| Storage | Micro SD up to 32GB | |
| Audio System | Voice Messages | Customizable announcements |
| Languages | Multiple language support | |
| Volume | Adjustable output levels | |
| Physical Specs | Dimensions | 336mm × 180mm × 1400mm |
| Weight | Approximately 16kg | |
| Power | 100W maximum consumption | |
| Temperature | -10℃ to 60℃ operating range | |
| Humidity | 5% to 85% operating range |
Core Product Features
Front-End AI Processing
OCR recognition sits on a dedicated NPU inside the ZOJE-LPR210 itself. Plate data returns with no server delay. Nothing depends on the network either. Parking barriers run it. Gated communities do as well. Same for busy enforcement points, where real-time response is what counts.
Global Shutter and Advanced ISP
Global Shutter sensor technology keeps motion blur down, even above 120 km/h. At night, High Light Compensation (HLC) pulls down the overexposed pixels that headlights create. Plate text stays readable. The built-in 850nm IR illuminators sync with shutter speed. Captures come out clean and monochrome, down to 0 Lux.
Industrial-Grade Housing
The body is die-cast aluminum. It carries an IP67 rating for water and dust, and IK10 for vandal resistance. Working temperatures run from -30°C to +60°C. So the unit can sit outdoors in very different climates.
Application Scenarios
Ticketless OEM LPR Camera Available Smart Parking
Once it reads a plate on the whitelist, the ZOJE-LPR210 lifts barrier arms through a dry contact relay output. Backlight at parking garage entrances causes trouble. So do the tight vehicle angles you get in underground lots. ROI (Region of Interest) optimization deals with both.
Highway Tolling and ITS Enforcement
On gantries over multi-lane roads, the camera picks up vehicles moving at up to 250 km/h. Edge AI reads the plate and works out vehicle color and vehicle type at the same time. Billing workflows then run on their own, with no induction loops in the picture.
Gated Communities and Logistics Sites: Access Control
The camera links to weighbridges and security platforms through an SDK or API. Every entry and exit event gets logged, and the logging never stops. Installations that need steady uptime get a 2-year warranty, plus maintenance support if they want it.

OEM LPR Camera Available and ODM Customization Options
The ZOJE-LPR210 supports full hardware and software customization. Modifiable elements include the web interface, bootup screen, and physical housing logo. The free SDK covers DLL and COM component integration across C, C++, C#, VB, Delphi, and Java.
Standard configurations ship in 5–7 days. Customized OEM or ODM builds are typically ready in 10–15 days. Shipping is available by sea or air freight, with DDU and DDP trade terms supported.

Quality Control Process
Every unit goes through a structured QC process with OEM LPR Camera Available before shipment:
- Recognition rate benchmarking: tested against standardized plate datasets to confirm accuracy thresholds in daytime and nighttime conditions
- 48–72 hour burn-in tests take place in climate chambers. Those chambers cycle between extreme heat and freezing temperatures. The check looks for lens focus drift caused by thermal expansion.
- IP67 rain simulation and vibration testing checks internal ribbon cables and solder joints. Wind load must not break them. Pole vibration from traffic must not either.
- EMI/EMC compliance testing with 4KV+ surge protection for outdoor electrical environments
FAQ
Q: What separates an LPR camera from a standard CCTV bullet camera?
A: LPR cameras run special firmware. That firmware sets shutter speed and gain with one goal in mind: making the plate readable. The result is often a darker picture overall, and only the reflective plate shows up bright. A standard CCTV camera does the opposite. It brightens the whole scene, and that can wipe out the plate detail.
Q: What is the maximum vehicle speed this camera supports?
A: The ZOJE-LPR210 supports capture speeds from 120 km/h in parking or city applications up to 250 km/h in highway enforcement configurations, depending on shutter configuration and sensor type.
Q: Can we apply our own branding to the camera?
A: Yes. The ZOJE-LPR210 supports full branding customization — web interface, bootup screen, and physical logo printing on the housing.
Q: What happens with headlight glare at night?
A: The ISP fights it with HLC (High Light Compensation) plus fast shutter speeds. Blown-out pixels from the headlights get pulled down, and the plate text stays readable.
Q: Where does the recognition take place, on the camera itself or on a server?
A: Recognition runs directly on the camera via a dedicated NPU. Only metadata — plate number, confidence score, and timestamp — is sent to the server, which reduces bandwidth load.
Q: What development languages does the free SDK support?
A: The SDK supports C, C++, C#, VB, Delphi, and Java, with DLL and COM component integration options for secondary development.
Contact Us
To request a sample or discuss a custom OEM LPR Camera Available configuration, Contact Us at info@zoje-tech.com.
