Compliance-ready and Regional ANPR system

Compliance-ready and Regional ANPR system

1.Recognition type:Front-end
2.Recognition rate:99%
3.Recognition Regions:Around world
4.Support offline use:Front-end recognition, unaffected by network delay/offline
5.Support hardware/software customized,support various types of secondary development
6.Support outdoor use
7.24/7 service
8.Support OEM and ODM
  • Face to Face Discussion
  • Quality Assurance
  • 24/7 Customer Service

Product Introduction

Compliance-ready and Regional ANPR System for Smart Parking & Traffic Enforcement | ZOJE Intelligent Technology

A Compliance-ready and Regional ANPR system from ZOJE Intelligent Technology identifies vehicles while staying inside strict legal rules. GDPR is covered. So are CCPA and NDAA. Recognition accuracy sits at 99%+ across plate formats used around the world. Deep learning runs on the device itself, through Edge AI. Arabic script reads without trouble. Chinese characters are fine as well. Stacked plates and US state vanity plates both work. No cloud connection is needed at all. Privacy comes built in from day one: AES-256 encryption, automated data anonymization, and retention policies you can configure.

What Is This Product?

This unit is a specialized Automatic Number Plate Recognition (ANPR) solution. Two things come together in one device: regional OCR accuracy and a compliance architecture. Plenty of standard LPR cameras read plates just fine. Data sovereignty laws are a different story. So is syntax that changes from region to region. This system covers each of those.

Plate recognition happens on the device and takes under 50ms. Network connectivity plays no part in it. Full offline operation works. Cloud latency cannot touch the system, and neither can an outage.

Core Technical Specifications

Hardware Parameters Specifications

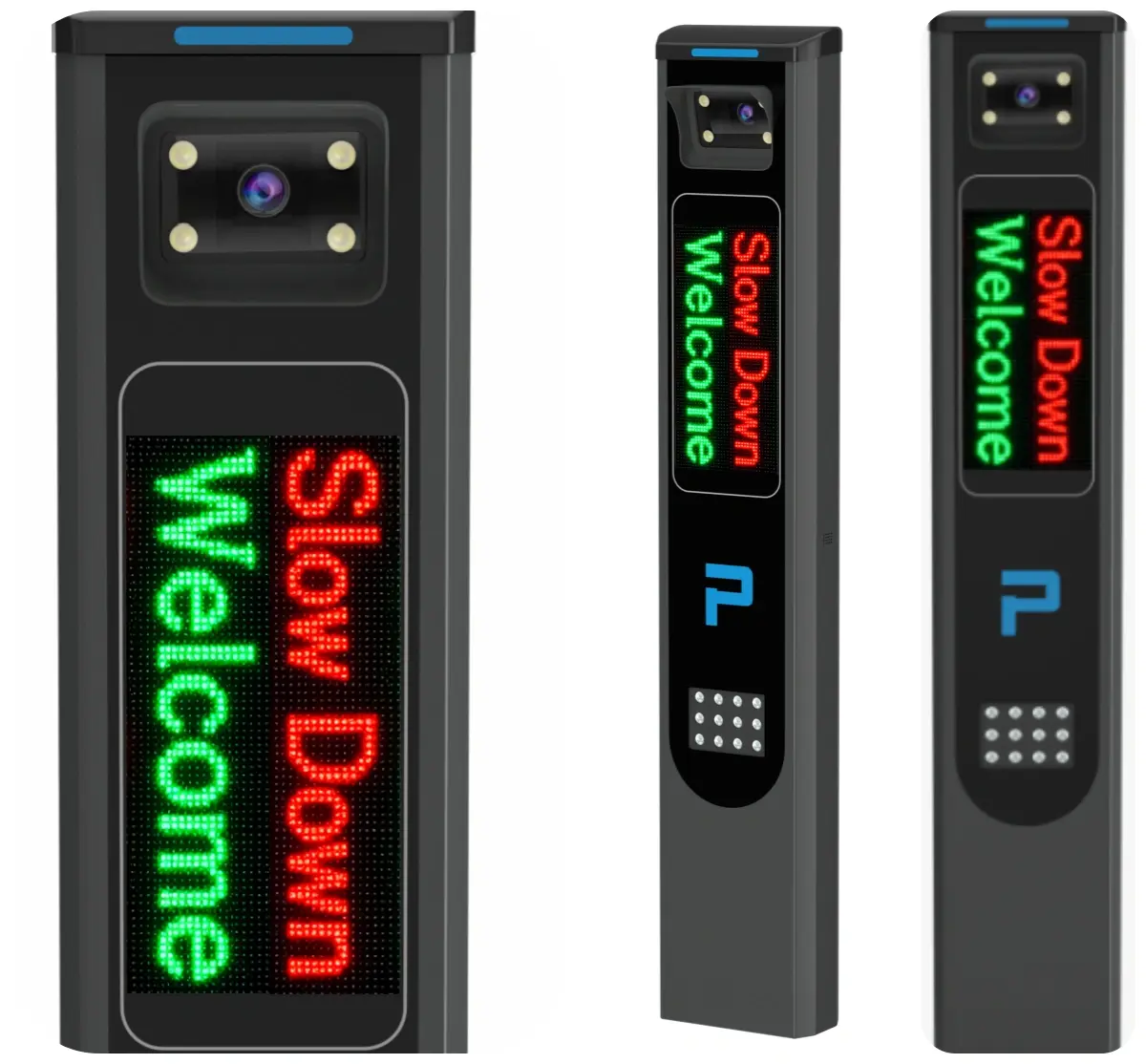

Model ZOJE-LPRC101 HD All-in-one License Plate Recognizer
Processor Hisilicon specialized license plate recognition chip
Sensor Type 1/3" Progressive Scan CMOS
Minimum Illumination 0.01 Lux
Electronic Shutter 1/25 to 1/30,000 seconds
Lens Options 6mm prime lens / 2.8-12mm electric zoom lens
Fill Light 4 high-power LED white lights
Performance Features Capabilities
------------------------- -----------------
Recognition Rate 99% accuracy
Triggering Mode Video triggering, coil trigger
Image Output 1080P, 960P, 720P, D1, CIF
Picture Output 2 mega-pixel JPEG
Ultra-wide Dynamics 120dB
Video Compression H.264 High Profile, Main Profile, Baseline, MJPEG
Electrical & Interface Details
--------------------------- -------------
Network Interface 10/100M adaptive, RJ45 connector
IO Interface 2-route input/2-route output
Audio Interface 1-route input/1-route output
SD Card Support Micro SD up to 32GB
Serial Interface RS485
Power Supply AC110-240V
Power Consumption ≤7.5W
Working Temperature -35℃ to +70℃
Protection Grade IP65
Dimensions 452(L) × 148(W) × 120(H) mm
Weight 2.75kg

Key Features & Technical Advantages

Motion blur is gone, even at vehicle speeds above 250 km/h. That is what Global Shutter CMOS sensors (4MP to 8MP) are for. When light drops or the scene is fully dark, adaptive IR illumination at 850nm or 940nm still captures a clean image. It gives off no visible light pollution.

Recognition results come back in under 50ms from the dedicated NPU. Barriers can trigger on the spot. Alerts go out and entries get logged. No backend delay is involved.

Regional Syntax Flexibility comes from a dynamic OCR engine. It swaps recognition libraries based on GPS location or manual configuration. Fonts from more than one jurisdiction? Covered. Colored backgrounds? Covered too. The same goes for character sets, from EU plates to Middle Eastern Arabic script to East Asian character formats.

Vehicle Attribute Recognition (VAR) does more than read plates. It also picks out a vehicle's make, model, and color. Axle count gives a classification too. That matters for enforcing environmental zones, and for managing commercial vehicles.

Cyber-hardening starts inside the firmware itself. Secure coding rules from IEC 62443 guide how it gets written. Network access control runs on 802.1x, and traffic passes through an HTTPS tunnel. Firmware updates must be signed. Ports that nobody needs, such as Telnet and FTP, leave the factory switched off.

Compliance & Privacy Architecture

Some operators handle data under GDPR, CCPA, or local surveillance laws. For them the system ships with data retention policies you can set. Non-alert records get wiped on their own after a set period. Twenty-four hours, for instance.

Privacy Masking builds a redacted video feed in real time. Faces of people walking past get blurred on their own. Metadata sits in a hashed, anonymized form. Stats can then be pulled without holding on to Personally Identifiable Information (PII).

The setup is built as a Compliance-ready and Regional ANPR system so an audit can be handled without stress. Nobody has to keep managing the data by hand, week after week.

Compliance-ready and Regional ANPR system

Application Scenarios

1. Cross-Border Electronic Tolling (ETC)

Plates from several countries get read in one pass. That works on free-flow highways at EU borders and at US-Canada crossings. Compliance features redact driver faces for you. Cross-border data handling settings stay configurable.

2. Low Emission Zones and City Congestion Charges

The system can cross-reference plates against connected vehicle databases and identify regional markers such as green EV plates for exemption processing. It handles dense urban lighting conditions — including deep shadows, glare, and partial occlusion — and generates structured audit logs suitable for penalty issuance workflows.

3. Access Control for Critical Infrastructure

Airports and other secured sites run this system. It meets NDAA rules and links to physical barriers through encrypted allow-lists and block-lists. Fuzzy logic plate-syntax matching comes built in, and that cuts the risk of spoofing. Entry logs can be set to keep records for as long as a site's security rules require.

application

Quality Control & Inspection Standards for a Compliance-ready and Regional ANPR system

ZOJE's ANPR systems are validated against industry benchmarks before shipment under ISO 9001:2015 quality management standards.

Inspection Item Standard / Requirement
Capture Rate >99% across all regional variations
Recognition Accuracy >98% correct alphanumeric string
False Positive/Negative Rate Strict threshold testing
Environmental Stress Testing IEC 60068 (-40°C to +70°C)
Cybersecurity Penetration Testing SQL injection & authentication testing
Latency Camera-to-backend transmission within milliseconds
Video Coding ISO/IEC 14496-10 compliant
Physical Protection IP67/IK10 verified

certification

OEM, ODM & Customization Options

Integrators and project developers can ask ZOJE to customize the hardware and the software alike. OCR libraries can be built for one specific region. Enclosures can be changed too. A unit can also be connected to a VMS, ERP, or access control platform you already run. Send a request and the team takes care of it.

Open standards do most of the work here: ONVIF (Profile S, T, M), RESTful APIs, Webhooks, and TCP/IP raw data streams. Third-party security platforms can talk to the system because of that. Logistics systems work with it as well. So do Weigh-in-Motion stations.

OTA (Over-The-Air) firmware updates allow new plate format libraries to be deployed remotely — no hardware replacement is required when new regional plate designs are introduced.

Standard units leave the factory in 5–7 business days. A custom build is ready in 10–15 days. Goods can travel by sea or by air, under DDU or DDP terms.

Got a project requirement or need a custom configuration? Contact the team at info@zoje-tech.com first. Do this before you place an inquiry. Ask them to confirm the Compliance-ready and Regional ANPR system OCR coverage for your region and the lead times.

FAQ

Q: In bad weather, how does the system read plates that are dirty or do not reflect light?

A: Low-light sensors do the first part of the work. Deep learning models trained on degraded plate data handle the rest. Instead of relying only on pixel contrast, the neural network reads characters from shape and context. People call this method Restoration OCR. Accuracy holds up when mud or snow covers part of a plate.

Q: Why is this system called "Compliance-ready" for GDPR?

A: Retention policies can be configured in the software. They remove non-alert data on their own once a set period ends (24 hours, for example). Faces get blurred live through Privacy Masking. Metadata is kept anonymized or hashed, so PII is not held longer than operations require.

Q: When a new regional plate format comes out, can the system be updated?

A: Yes. OTA updates allow new OCR libraries to be deployed remotely to edge devices. Recognition models can be updated to cover new plate designs — including special edition and EV format plates — without hardware changes.

Q: Will the system work with the VMS or Weigh-in-Motion platforms we already use?

A: Yes. ONVIF (Profile S, T, M) is supported. RESTful APIs, Webhooks, and TCP/IP data streams are available. Plate strings and metadata go straight into third-party security platforms. Access control systems can take them as well. Logistics ERP solutions can receive them too.

Q: What guards the system against cybersecurity threats?

A: The firmware follows IEC 62443 secure coding standards. The system controls network access with 802.1x. Traffic can pass through HTTPS tunneling. Firmware updates are signed. At factory default, unused ports are off. That includes Telnet and FTP.

Q: Can the system run with no internet connection?

A: Yes. All recognition work happens on the device itself, at the edge. This product runs fully offline. Network delays or outages have no effect on it. It suits remote sites and deployments that need high reliability.

Contact Us

For project inquiries or custom ANPR requirements, reach out to our team about the Compliance-ready and Regional ANPR system at info@zoje-tech.com.
