Entrance Outdoor Parking Guidance Display Screen
2.Entrance screen. Guides drivers entering parking lot
3.24h real-time empty space reminder
4.Clear visibility under strong outdoor light
5.Modular design, easy assembly
6.Real-time data sync. Links system to update vacancy status instantly
7.Adapts to outdoor temperature changes
8.24/7 tech support and service
- Face to Face Discussion
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Entrance Outdoor Parking Guidance Display Screen — ZOJE-VA3N-1
The Entrance Outdoor Parking Guidance Display Screen comes from Hong Kong ZOJE Intelligent Technology Co., Ltd. Model number is ZOJE-VA3N-1. This industrial-grade LED display is made for parking facility entry points. Full sunlight will not wash it out. Brightness is ≥5,500 nits. Numbers stay readable. The chassis uses aluminum alloy. It carries an IP65/IP66 rating. Dust cannot get in. Rain and corrosion stay out too. Vacancy data syncs in real time over TCP/IP and RS485. Modbus is supported. Drivers see accurate space counts when they arrive. CE and RoHS certification is in place. FCC approval comes with it. The unit has a 2-year warranty.

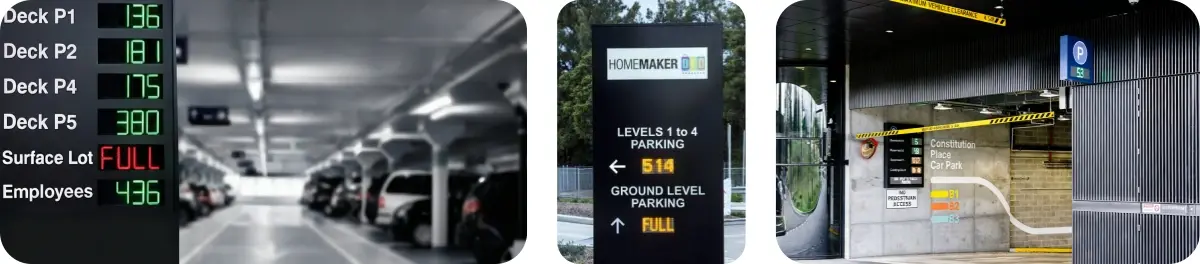

What Is a Parking Guidance Display Screen?
You will see this LED digital signage unit at a parking facility's main vehicle entry point. That spot is what it was built for. Live data comes straight from a parking guidance system (PGS) linked to the screen. This is not static signage.
Space counts for each level are visible before drivers enter. Directional arrows show up too. Zone status and tariff info also appear. Queues get shorter once this data sits at the entry point. Pointless circulation inside the facility drops too. Once the screen is in view, picking a lane or zone before going inside gets easier.
Key Features of the ZOJE-VA3N-1
High-Brightness Outdoor LED Performance
Sun at midday lands right on the screen. Even then, the display stays readable. The reason? Its brightness sits at ≥5,500 nits. After dark, a light sensor built into the unit turns the brightness down. Glare never needs handling by anyone.
Weather-Resistant Enclosure
For the cabinet, makers choose galvanized steel or aluminum alloy. An electrostatic powder coating goes on either one. High-pressure water jets, dust, and salt spray all fall under the IP65/IP66 rating.
Wide Operating Temperature Range
The screen keeps working from -40°C up to +75°C. Condensation poses a real risk. To limit its effects, the PCBs get a conformal coating. That range covers hot climates and cold northern winters.
Modular Design for Easier Servicing
Each cabinet is built in one layer of modules. A technician can swap out a single LED module on its own. The power supply unit comes out the same way. No need to take the whole cabinet apart.
Real-Time Data Synchronization
Vacancy status reaches the display over TCP/IP, RS485, and Modbus. Integration with third-party Parking Management Systems (PMS) is covered too. For that, there is SDK material plus JSON and XML API documentation.
Offline Protection Mode
If the network connection to the parking server is interrupted, the embedded controller displays a default static image on the Entrance Outdoor Parking Guidance Display Screen — such as a P-logo — rather than going blank or showing stale data.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ZOJE-VA3N-1 (Single Layer) |
| Dimensions | 800×160×2200mm |
| Display Capacity | 3 Digits |
| Light Source | Red/Green High-Intensity LED |
| Housing Material | Cold Steel Paint + Tempered Glass |
| Operating Voltage | AC 110-240V |
| Temperature Range | -30°C to +75°C |
| Humidity Rating | ≤90% RH (Non-Condensing) |
| Protection Level | IP65 |
| Power Consumption | ≤15W (Single Layer) |
| Communication | RS485 Protocol |
| Communication Range | ≤300m |
Typical Application Environments
Airports and Transit Hubs
At airports, planes land and take off all day and all night. Drivers near sites like these get pointed to short-term or long-term parking zones by screens mounted there. Dust and water cannot get in. The IP65/IP66 enclosure blocks both. Out in the open, the unit keeps running through long shifts, hour after hour, in busy areas.
Shopping Complexes
Traffic peaks hit, and the screen can route drivers to levels that still have space. Lighter-use underground zones are part of that. On the display, zone labels and status lights show up as high-resolution text and graphics.
CBD Office Towers and Mixed-Use Buildings
LPR (License Plate Recognition) systems are already in use in some city areas. Where that kit is installed, the screen can be set up to show status messages built from plate data. Occupancy states for separate user groups, such as tenants and visitors, can appear on it too.

Quality Control Process for Entrance Outdoor Parking Guidance Display Screen
ZOJE puts every Entrance Outdoor Parking Guidance Display Screen through testing before it ships. The checks below are part of that process:
- IP Waterproofing Test: A high-pressure water jet gets aimed straight at the unit. This confirms the whole cabinet and the PCB assembly both meet IP65/IP66.
- 72-Hour High-Temperature Aging: Screens sit at full white brightness at about 60°C for 72 hours without a break. A weak LED or power supply usually gives itself away here, and that happens before the unit ever leaves the factory.
- Salt Spray Corrosion Test: Saline mist gets sprayed onto the cabinet materials. The test asks one simple thing: does the anti-corrosion coating hold up? Coastal installations depend on that answer.
- Vibration Testing: Wind load and transport conditions get simulated here. The test confirms internal wiring and module connections stay secure.
- Optical Calibration: Chroma meters check brightness and color temperature. Every LED module has to come out uniform.
Customization and Delivery
OEM and ODM services are both available from ZOJE on this product. Buyers can ask for changes to the cabinet dimensions, the pixel pitch, the branding, the software integration, and the language settings on the display.
Orders for standard products usually go out in 5–7 business days. Customized orders normally take 10–15 business days to be ready. You can ship by sea or by air freight. DDU and DDP trade terms are both offered.
ISO 9001:2015 certification is held by ZOJE. The company also holds several technical and design patents. Its engineering team works out of Shenzhen, China.

FAQ
Q: Why does the screen stay visible in direct sunlight?
A: The display runs on high-efficiency LEDs rated at ≥5,500 nits. High-contrast louvers block light that comes in from above. Strong outdoor light does not wash out the contrast.
Q: Which communication protocols can this screen use?
A: Three ways to connect are open to you: TCP/IP (Ethernet), RS485, or Modbus. Each one works. Already running a Parking Management System? We hand over SDK docs and API documentation in JSON and XML so the screen can talk to it.
Q: Does the display hold up when temperatures turn extreme?
A: From -40°C to +75°C, the screen keeps running. Over that whole span, conformal coating on the PCBs helps reduce what condensation does.
Q: In what way do you handle maintenance in the field?
A: You can reach the parts from the front or from the back, thanks to the modular build. One LED module or one power supply unit is all a technician swaps out. The full cabinet stays where it is mounted.
Q: What if the network drops out?
A: Offline mode kicks in through the embedded controller. A static image that was set beforehand then shows on screen. Take a P-logo, for example. The display never goes blank, then. And out-of-date occupancy counts never appear on it either.
Q: Can the ZOJE-VA3N-1 be used at coastal sites, or where humidity is high?
A: An IP65/IP66 rating comes with the housing. Aluminum alloy makes up the body, and it has an electrostatic powder coating. Salt spray corrosion testing has been passed. So at coastal parking facilities, or in humid climates, it is worth considering as an option.
Contact Us
Need a quote? Have a project to talk through? Write to us at info@zoje-tech.com. and the Entrance Outdoor Parking Guidance Display Screen configuration options on offer.
