Outdoor Parking Guidance Zone Controller
2.Links controller, sensors & guidance screens
3.Parking status upload . Syncs data to outdoor central controller
4.Durable for harsh outdoor parking environments
5.Multi-device compatible
6.Wireless deployment.Labor cost saving
7.Stable RF signal .Anti-interference
8.24/7 tech support and service
- Face to Face Discussion
- Quality Assurance
- 24/7 Customer Service
Product Introduction

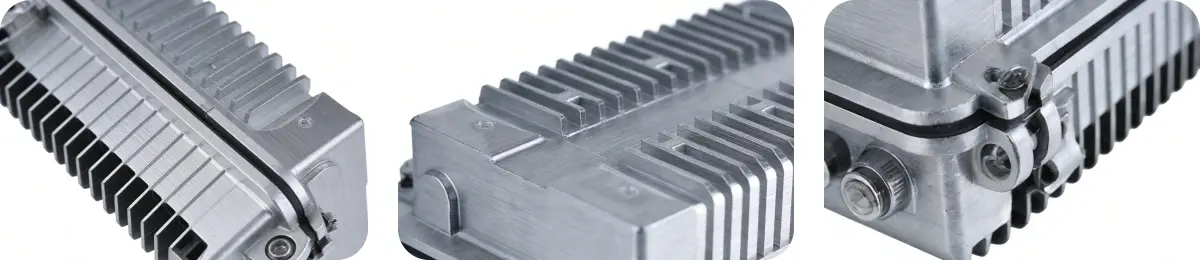

Outdoor Parking Guidance Zone Controller for Harsh Outdoor Environments – ZOJE-K03ZW
Open-air parking areas are what the Outdoor Parking Guidance Zone Controller ZOJE-K03ZW was built for. It is an industrial-grade node that pulls data together. Hong Kong ZOJE Intelligent Technology Co., Ltd. makes it to ISO 9001:2015 standards. Distributed sensors, zone guidance displays, and central management servers all connect through it as one synced system. Deployment can be wireless. A single unit handles 60–120 detection nodes. Working range is -40°C to +85°C. System integrators can request OEM/ODM customization.
How the ZOJE-K03ZW Works
A local edge computing hub. That is the role the ZOJE-K03ZW plays, sitting between your outdoor parking sensors and the central server. Raw sensor data pushed straight over long cable runs runs into signal attenuation and packet loss. So the controller holds the data and processes it on the spot, then passes clean output upstream.
Detectors plug into it. Geomagnetic, ultrasonic, or video pillar units all work. Occupancy counts then sync to the central controller in real time. Counts that show up late on the zone guidance screens are less likely with this setup. Late numbers confuse drivers and jam the entrance.
The built-in ARM Cortex processor does the filtering right on the spot. False positives get thrown out, whether they come from leaves or debris or people walking past. Only after that does any data get forwarded.
Key Features
- Wireless deployment via RF signal technology: reduces cabling across large surface lots
- Anti-interference RF signal made for places where electromagnetic noise runs high
- Multi-protocol connectivity: sensors, zone guidance displays, and central controllers all sit on one network
- Real-time occupancy sync to the outdoor central controller
- Offline Mode: retains the last known configuration and continues updating local zone screens if the central server goes offline, then syncs automatically when the connection is restored
- Wide-voltage DC input (12V/24V) works with solar power, so remote lots can run it
- Lightning surge protection comes from gas discharge tubes (GDT) and transient voltage suppressors (TVS) built into the power and communication ports. The rating is up to 6kV per IEC 61000-4-5
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ZOJE-K03ZW |
| Communication Modes | 1 Route CAN/1 Route RS485/1 Route RF470MHz |
| Communication Distance | CAN≤1000m / RS485≤300m / RF470MHz≤100m |
| Input Power | AC 110-240V |
| Power Consumption | ≤2W |
| Protection Level | IP66 |
| Dimensions | 254×145×85mm |
| Working Temperature | -40℃ to +85℃ |
Typical Deployment Environments
Municipal on-street parking networks mount the ZOJE-K03ZW on street poles to aggregate wireless signals from geomagnetic ground sensors subject to traffic vibration and electromagnetic interference. The controller processes the data before forwarding it to a municipal cloud platform.
Airports and port terminals use it in open long-term parking areas that stretch over several hectares. High-mast video detectors link to it, and it handles occupancy data plus license plate recognition (LPR) output when the weather shifts.
Shopping mall rooftop parking decks are one commercial setting. Here, ambient light sensors from the Outdoor Parking Guidance Zone Controller drive the brightness control on the LED guidance display. Drivers can read the signs in direct sunlight. At the same time, the system draws less power than it needs to.
Quality Control
Before any ZOJE-K03ZW unit ships, it gets tested.
Environmental Stress Screening (ESS): Units run a 72-hour burn-in inside thermal chambers. Heat and freezing cold alternate during the cycle. Weak solder joints show up early this way.
EMC/EMI Compatibility: This controller passes CE/FCC Class B standards. It also meets IEC 61000-4-5 lightning surge immunity requirements, and that holds up to 6kV.
Waterproofing Verification: Testing with a pressurized water jet confirms the IP66/NEMA 4X rating. A 96-hour neutral salt spray exposure test backs it up too.
Data Integrity Load Testing: We stress-test the bus interface by simulating maximum sensor node capacity. That confirms the watchdog timer reset function works. It also shows whether packets get lost under load.
Customization and OEM/ODM for Outdoor Parking Guidance Zone Controller
ZOJE supports hardware and software customization for the ZOJE-K03ZW. Available options include protocol adjustments for third-party sensor integration, custom enclosure branding, and communication module configuration — for example, switching between 4G and LoRa to match site infrastructure.
OEM and ODM cooperation is available for system integrators and parking solution providers building the controller as an Outdoor Parking Guidance Zone Controller into a branded product line. Standard orders ship in 5–7 days; customized orders typically ship within 10–15 days.


FAQ
Q: Can this this product keep working if the central server goes offline?
A: Yes. There is an Offline Mode in the unit. It keeps the last known configuration and goes on updating the local zone guidance screens from live sensor inputs. When the server connection comes back, data syncs on its own.
Q: How far apart can the sensors and the controller be?
A: Wired RS485 connections work in practice over 300–500 meters. With the wireless LoRa versions, 1–5 km is possible when there is a clear line of sight.
Q: What powers the controller in remote lots that have no grid access?
A: Wide-voltage DC input (12V/24V) is what the ZOJE-K03ZW takes, and off-grid solar power systems work with it. Battery draw can be cut during off-peak hours, thanks to low-power sleep modes.
Q: In what way does the controller guard against lightning?
A: Both power and communication ports carry built-in GDT and TVS parts. Surge protection reaches 6kV per IEC 61000-4-5.
Q: Can it work with sensors from other brands?
A: In most cases, yes. Modbus RTU and TCP/IP are supported by the open-architecture design. So sensors from other brands, such as geomagnetic, ultrasonic, or loop detector units, can be integrated. One condition applies: the register maps must be set up correctly.
Q: What testing does the ZOJE-K03ZW go through before shipment?
A: Each unit passes 72-hour ESS burn-in testing, CE/FCC Class B EMC certification, IP66 pressurized water jet testing, 96-hour salt spray testing, and data integrity load testing at full sensor node capacity. ZOJE operates under ISO 9001:2015.
Contact Us
Questions about the ZOJE-K03ZW? Write to info@zoje-tech.com. You can ask for Outdoor Parking Guidance Zone Controller product details there, or talk through what your project needs.
