Tempered Glass Full-Height Turnstile for Premium Security
1. Tempered glass features, safety,sleek modern look
2.0.5s fast passage, no queuing
3. One-person access only , auto-locks after entry
4. Single/dual channel / customized
5. Anti-climb , anti-tailgating
6. Works with all access controllers (RFID, push button, biometrics, etc.)
7. Support OEM,ODM customization.Solutions available for your project
8. After-Sales: 2-year warranty, 24/7 support, 30min remote help, lifelong maintenance
- Face to Face Discussion
- Quality Assurance
- 24/7 Customer Service
Product Introduction

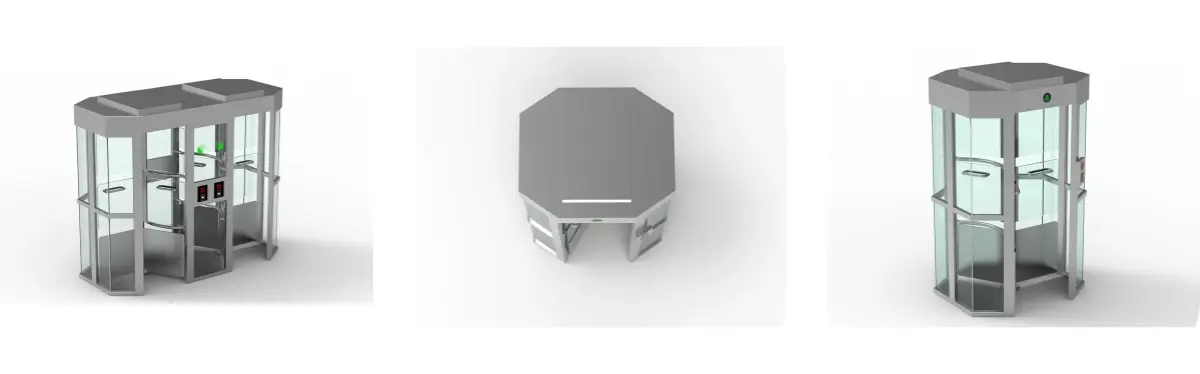

Tempered Glass Full-Height Turnstile for Premium Security — Single-Person Access Control with Architectural Elegance
A tight gate and a good-looking entrance can live in the same spot. That is what this unit was built for. Wings on the Tempered Glass Full-Height Turnstile for Premium Security come in 10–12mm toughened safety glass. They hang on a frame made of AISI 304/316 stainless steel. Floor to ceiling, with no gap at all. One person passes per cycle. A cycle lasts 0.5 seconds. Work out 25–30 persons a minute. Strict single-person access suits lobbies, government buildings, and residential complexes. Looks stay clean too. Old tubular steel turnstiles had an industrial feel. This one carries none of it.
What Makes This Full-Height Glass Turnstile Different?
On an industrial site, plain tubular steel turnstiles do the job. Drop them into a Class-A office lobby, or a high-end residential building, and the fit is wrong. Glass sidewalls and glass wings make the entry read as one space. Daylight still gets through. Nothing blocks your view. The lobby keeps its look.
Up to the ceiling runs the rotor as well. Tailgating has nowhere to happen there. Neither does piggybacking. Someone trying to climb over gets stopped too. Optical lane barriers would let that slide. Every cycle, one person goes through. Nothing here reads as institutional, so a premium building can wear it.
Key Features and Technical Specifications
Core Features at a Glance
- Glass construction: Made from 10–12mm monolithic tempered safety glass, or multilayer laminated glass. Both follow the thermal toughening standards in EN 12150-1
- Chassis material: The body is built from AISI 304 or 316 stainless steel. It comes with either titanium plating or a hairline polish
- Drive system: A brushless DC motor or a servo motor runs the drive. Both are made to tight tolerances, and a planetary gearbox is part of the setup
- Noise level: Under 50dB
- Passage speed: A single cycle runs 0.5 seconds. Expect 25–30 persons per minute
- Anti-tailgating: After one person goes through, the unit locks on its own
- Access control compatibility: RFID, push button, biometrics, facial recognition, fingerprint scanners, elevator destination control
- Interface: RS485/TCP/IP support is included. Standard dry contact relays come with it too
- Safety: Fail-safe mode is how the electromagnetic lock lets go when power drops or a fire alarm goes off. That way people get out freely
- Anti-pinch: Motor stops and reverses upon detecting resistance
- IP rating: IP54 to IP65
- Channel options: You can pick a single channel, a dual channel, or a setup built to your needs
- MCBF: 5–10 million cycles
Product Specifications
| Parameter | Specification |
|---|---|
| Model | ZOJE-Z2005 Tempered Glass Full Height Turnstile |
| Dimensions (L×W×H) | 1200×1300×2230mm / Customized |
| Material | 304/316 Stainless Steel & Tempered Glass |
| Channel Width | 600mm / Customized |
| Drive Type | Brushless Motor / Servo Motor |
| Direction | Single / Bidirectional |
| Power Supply | AC110-230V, 50/60Hz |
| Operation Voltage | DC24V, 3A |
| Unlock Time | 0.2 seconds |
| Pass Speed | 35 people/minute |
| Working Temperature | -15°C to +70°C |
| Relative Humidity | <95%, No Condensation |
| Communication | RS485/TCP/IP |
| Emergency Function | Fail-Safe Auto Unlock |
Where Is This Turnstile Used?
Grade-A Office Towers and Corporate Headquarters
You'll run into this setup most often at the elevator banks of a main lobby. Marble floors and glass facades work well with the clear glass. Anyone without clearance gets stopped by the full-height rotor. Staff pass through quickly. A visitor can't follow them in unless a separate credential cycle is run.
High-Security Government Facilities & Embassies
Public areas are kept apart from restricted ones. Internal checkpoints handle Tempered Glass Full-Height Turnstile for Premium Security and the split. A guard standing there needs a clear view through the barrier. Bodies get stopped by the glass structure. Sight lines stay open.
Luxury Residential Complexes & Private Clubs
Think about the gate out at the perimeter. Or the gym door, or the pool deck. Facial recognition takes a second at any of them. Residents simply walk in. The entry hardware blends with the surroundings too, so it never looks out of place.

Quality and Safety Standards
Each unit goes through four main checks before it leaves the factory.
Glass Impact and Fragmentation Testing follows the EN 12600 pendulum impact standards. Say a glass wing does break under extreme force. Instead of sharp shards, it comes apart in blunt granules. Injury risk drops as a result.
Mechanism Endurance Testing subjects the drive unit to a continuous stress test confirming that the transmission gear, motor, and electromagnetic brakes hold position accuracy over the product's working life. The MCBF target is 5–10 million cycles.
Corrosion Resistance Testing puts stainless steel components through neutral salt spray testing per ASTM B117. Why does that matter? Lobbies get cleaning chemicals and high humidity.
Anti-Pinch and Safety Logic Verification checks every unit with physical obstructions. Once resistance is detected, the motor has to stop and reverse. That is what the test confirms.
Customization and OEM/ODM Options for Tempered Glass Full-Height Turnstile for Premium Security
Hardware and software can both be customized to fit your project. Tell us what you need. Single or dual channel layouts are up to you. Chassis dimensions are too. So are surface finishes and access control integrations.
Distributors and system integrators can work with us through OEM and ODM cooperation. That covers Tempered Glass Full-Height Turnstile for Premium Security and branded units. It also covers configurations we build for one particular project. From specification through to delivery, our engineering team stays with you.

FAQ
Q: Can someone break the glass by kicking it or hitting it?
A: What you get here is toughened safety glass. A treatment process leaves it far stronger than standard annealed glass. If an impact goes beyond the rated threshold, the pane gives way into blunt cubes, not sharp fragments. On laminated versions, the pieces hold to the interlayer even after the glass has broken.
Q: What happens during a power outage or fire alarm?
A: Fail-safe mode is how the system runs. Power drops, or a fire alarm signal comes in, and the electromagnetic lock lets go by itself. You don't need to override it by hand. The glass rotor spins freely, so people get out fast.
Q: Can you install this turnstile outdoors?
A: Yes, if you set it up the right way. An IP65 rating is needed, along with internal heater and thermostat modules. Those keep the mechanism from freezing and stop condensation from building up. Putting a canopy over the unit is a good idea too, since it means fewer water spots on the glass panels.
Q: How does throughput compare to optical lane turnstiles?
A: Figure on 25–30 persons per minute. Raw numbers favor optical lanes, because they can push more people through. Stopping tailgating is a different problem, and physically they can't do it. With the full-height rotor you get more physical security, and wait times still stay short.
Q: Can it work with facial recognition and biometric systems?
A: Yes. Standard dry contact relays are built into the control board, and so are RS485/TCP/IP interfaces. Facial recognition terminals connect through them. So do fingerprint scanners, RFID readers, and elevator destination control systems. No custom wiring is needed.
Q: What warranty does ZOJE provide?
A: Each unit comes with a 2-year warranty. Installation guidance is included too. Behind that sits technical support from ZOJE, which keeps your access system running.
Contact Us
Got a project in mind, Write to us at info@zoje-tech.com. Every message we get is answered regarding Tempered Glass Full-Height Turnstile for Premium Security, and it happens fast.
