High Speed Folding Arm Boom Barrier
1. 1-3s ultra-fast folding, 3-5m foldable arm . 50% space-saving for narrow entrances
2.Lightweight aluminum folding arm (anti-collision) , steel housing . fits low-clearance areas
3.Open the barrier gate by motor wheel when power off ,automatically reset after power on
4.Curved crank arm three- link movement structure, the operation is stable
5.Well-integrated with car parking system equipment,with wire control(must be switch signal)
6.Triple anti-crushing + tamper alarm – keeps vehicles/equipment safe.
7.LPR/ETC/Bluetooth – cloud-connected, unattended operation easy.
8. 2-year warranty, 24/7 online support, 30min remote assistance, lifelong maintenance.
- Face to Face Discussion
- Quality Assurance
- 24/7 Customer Service
Product Introduction

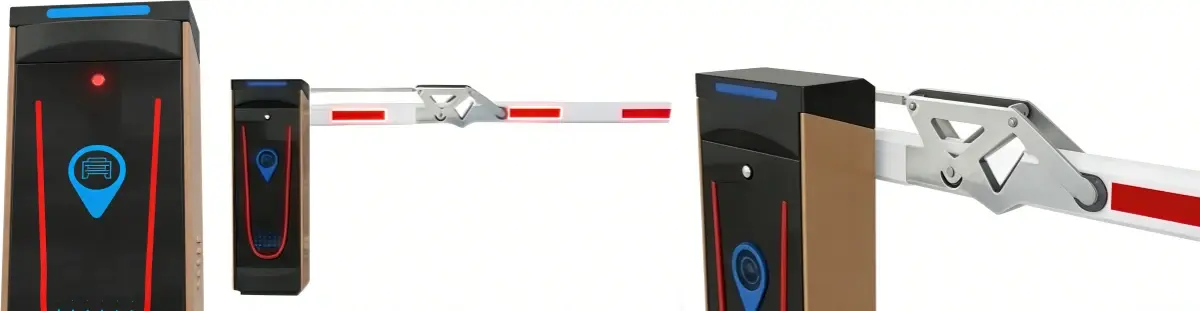

High Speed Folding Arm Boom Barrier for Low-Clearance Entrances
Designed by Hong Kong ZOJE Intelligent Technology Co., Ltd., the High Speed Folding Arm boom barrier addresses a specific challenge that standard straight-arm barriers cannot solve: vehicle access control where ceiling height is restricted. The barrier uses a 3–5 m foldable aluminum arm driven by a 24V DC brushless servo motor, completing each open or close cycle in 1–3 seconds. A curved crank arm three-link movement structure keeps every cycle consistent. The housing is built from 2mm cold-rolled steel with electrostatic powder coating.
What Is This Product?
This product is an electromechanical access control device built for environments with limited vertical clearance. Unlike a standard straight-arm barrier, it uses an articulated dual-section boom that folds at 90° or 180° when raised, allowing the arm to retract within the lane height.
This makes it suitable for locations with ceiling clearances as low as 2.8 meters, where a conventional barrier arm would strike the ceiling on opening. The folding design removes ceiling collision risk, shortens open/close cycle time, and supports the high cycle counts that commercial sites require — all in a single unit.
Key Features
Compact vertical footprint. The arm folds in 1–3 seconds and retracts within the ceiling clearance, occupying significantly less vertical space than a straight arm of equivalent length. This makes it viable for entrances where a conventional barrier cannot operate safely.
Arm and housing construction. The folding arm uses lightweight aluminum, and it comes with anti-collision properties. For the cabinet housing, the build uses 2mm cold-rolled steel with electrostatic powder coating. That finish resists corrosion and UV, so the unit holds up outdoors and underground.
Consistent movement mechanics. A three-link movement structure on a curved crank arm makes the open and close motion smooth. Every cycle repeats the same way. High-tensile linkage rods keep the fold angle in step with the lift, so the arm does not sway from one cycle to the next.
Power-off handling. Lose power and you can still open the barrier by hand with the motor wheel. Once the power comes back, the unit resets itself to the default position. No manual recalibration is needed.
Anti-crushing detection. The system includes three layers of obstacle detection. If resistance exceeds 2.5 kg during the closing cycle, the arm reverses immediately. A tamper alarm provides an additional alert layer.
Integration support. The barrier supports LPR, ETC, Bluetooth, and wire control (switch signal). It connects directly with car parking management systems and is suitable for cloud-connected, unattended operation.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | ZOJE-PB300 Fold Type |
| Cabinet Material | Cold Rolled Steel |
| Working Temperature | -30°C to +70°C |
| Open/Close Speed | 1.5-6 Seconds (Adjustable) |
| Rated Power | 200W |
| Drive System | DC Brushless Motor |
| Protection Grade | IP54 |
| LED Indicator | Yes |
| Bi-direction Main Shaft | Left or Right |
| Maximum Arm Length | 6 meters |
| Optional Materials | 304/316 Stainless Steel |
| Motor Options | Brushless/Servo Motor |
Where It Is Used
Underground commercial parking garages. Mall and office tower garages often have ceilings about 2.8–3.0 meters high. The folding arm of the High Speed Folding Arm Boom Barrier still clears that ceiling. It moves fast enough to keep cars from backing up at busy entry and exit times.
Covered industrial logistics centers. Distribution warehouses sometimes have air ducts overhead. Others have low roof structures. The barrier handles frequent access for trucks and forklifts in both cases. No structural changes to the building are needed.
Residential basements with LPR integration. When paired with License Plate Recognition, the barrier gives registered residents automatic entry. The folding cycle is quick. The arm clears the lane before the next car arrives. That cuts tailgating risk under low overhead fixtures.

High Speed Folding Arm Boom Barrier Quality Control Process
Before any unit leaves the factory, it goes through a structured inspection.
Every barrier runs a 72-hour continuous aging test. The test keeps the gate opening and closing the whole time. This confirms the articulation joints and motor gearbox still hold their performance. No overheating. No mechanical wear.
Balance calibration checks that the counterbalance spring tension matches the weight of the folding arm. QC then confirms the arm holds static at a 45-degree angle when power is cut. That stops gravity-induced drops.
Obstacle detection is tested by simulating contact during the closing cycle. The auto-reverse must trigger before force reaches 2.5 kg. A folding geometry check then confirms the arm folds fully to the designated angle without binding at the elbow joint.

Customization and Delivery
ZOJE offers OEM and ODM work on this product line. Hardware customization falls under it, and so does software. Maybe your project calls for a longer arm, your own branding on the housing, or a tie-in to a system you already run. Give the engineering team your specifications and they can build from them.
- Standard products: Shipped within 5–7 days
- Customized products: 10–15 days lead time
- Shipping options: Sea freight and air freight
- Trade terms: DDU and DDP available
To start a customization request, send your site specifications for a High Speed Folding Arm Boom Barrier — including ceiling height, lane width, and integration requirements — to the contact below.

FAQ
Q: How can I work out the right arm length when the ceiling is low?
A: Start by measuring the lane width and the ceiling height. With This product, the full arm length needs to span the lane. The main arm segment is a separate matter. It has to be shorter than the ceiling height minus the cabinet height. Do the math that way and you get the correct main arm to folding arm ratio for your site.
Q: What happens if the arm is struck by a vehicle?
A: The boom arm is designed as a sacrificial component — it bends or breaks on heavy impact to protect the machine core and minimize damage to the vehicle. The arm can be replaced without disassembling the drive unit.
Q: Will the folding joint function normally in cold climates?
A: Low-temperature grease and sealed bearings are what the folding joint runs on. Cold sites can add an optional heating module inside the cabinet. That keeps the lubricant at the right viscosity and operation steady.
Q: Is the opening speed adjustable?
A: Yes. Speed on the DC brushless motor model is set digitally through the control board. Opening and closing speeds are adjustable on their own. This lets you balance throughput against safety needs.
Q: Is the folding mechanism harder to maintain than a straight arm?
A: It does ask a bit more of you. Every 6 months, check the elbow joint and the linkage rods for tightness, and add lubrication. A folding boom puts more mechanical stress on the joint than a rigid one does. That is why regular checks keep it working for longer.
Q: What system integrations are supported?
A: The barrier supports LPR, ETC, Bluetooth, and wire control (switch signal). It integrates with standard car parking management systems and can operate in cloud-connected, unattended modes.
Contact Us
Send your project details for the High Speed Folding Arm Boom Barrier — site dimensions, ceiling height, and integration needs — to info@zoje-tech.com.
