Automatic Parking Payment terminal with Touch Screen

Automatic Parking Payment terminal with Touch Screen

1.OS: Android 4.0 above
2.Coins receiver and change machine(cycle) : customized
3.Notes receiver and change machine (cycle): customized
4.Receipt printer
5.Payment methods: Cash, QR code, credit card
6.Alarm when has external force open machine
7.CCTV monitoring optional
8.Support OEM and ODM
  • Face to Face Discussion
  • Quality Assurance
  • 24/7 Customer Service

Product Introduction

Automatic Parking Payment terminal with Touch Screen

Payment happens right at the Automatic Parking Payment terminal with Touch Screen. Drivers do it themselves. Hong Kong ZOJE Intelligent Technology Co., Ltd. builds this unit for parking sites as they run today. The software needs Android 4.0 or newer. Cash still works. Notes and coins go in, and change comes back out. Cards and QR codes go through the same touch screen. Inside the housing you will find a thermal receipt printer and an anti-tamper alarm. CCTV monitoring can be added if you need it. ZOJE began in 2012 and holds ISO 9001:2015 certification. Every order includes full OEM/ODM support, plus a 2-year warranty.

What Is This Parking Payment Terminal?

Think of it as a payment station people use on their own. Place it between the entry and the exit. Drivers then settle their fees before they reach the exit gate. No cashier booth with staff is required. Lines at the exit lanes get shorter at peak hours. Cash also stops moving through staff hands where it is collected.

Kiosks that run on buttons work in a different way. Here the interface is Projected Capacitive (PCAP) or Resistive touch. A wet finger still gets a reliable response. So does a hand in a glove. Barcode and QR scanners can be connected to the unit. Bill acceptors hook up too. A coin hopper works as well. A thermal receipt printer is part of the setup. Everything sits inside one enclosure.

Key Features and Technical Highlights

Touch Interface

Sizes start at 10.4 inches and go up to 21.5 inches. Every screen is TFT-LCD with LED backlighting. Brightness sits in the 1,000 to 1,500 nits (cd/m²) range. Full sun does not stop it. The unit keeps running. An air gap normally sits between the glass and the LCD panel. Optical bonding takes that gap out. Moisture cannot build up inside that way. Outdoor contrast improves too.

Payment Methods

Coins and banknotes are both accepted here. So is a credit card, and a scanned QR code works too. As a customized option, change machines for coins and notes can be added. Once payment goes through, the built-in thermal receipt printer hands out the transaction record right away.

Security and Alarm System

Strike the enclosure and the terminal sets off an alarm. An optional CCTV monitoring module gives staff more visibility on site. The card readers are built to EMV and PCI-DSS standards. Nothing gets stored locally on the device. No card data stays there.

Durable Enclosure

The chassis comes in 2.0 mm Cold Rolled Steel or SUS304 Stainless Steel. On top of that, builders apply an outdoor-grade powder coating. Dust and water protection is rated IP65. Vandal resistance is rated IK10, and the unit meets both. Screen glass gets chemical tempering. Hardness sits at Mohs 7 or higher.

Connectivity and Offline Operation

Ethernet and 4G/LTE both work on this terminal. Lose the network and the Automatic Parking Payment terminal with Touch Screen unit drops into Offline Mode. Transaction data then gets cached on a local SSD. Once the link comes back, that data syncs on its own.

Product Specifications

Parameter Specification
Display 17-inch touch screen
Operating System Android 4.0 and above
Coin Handling Customized receiver and change machine
Bill Processing Customized receiver and change machine
Receipt System Built-in thermal printer
Card Reader 13.56MHz IC reader
Scanner Options Barcode or QR code (optional)
Climate Control Four internal fans with temperature control
Interior Lighting LED with auto on/off door sensor
Security External force alarm system
Computing Unit Built-in industrial grade mini PC
Monitoring CCTV surveillance (optional)

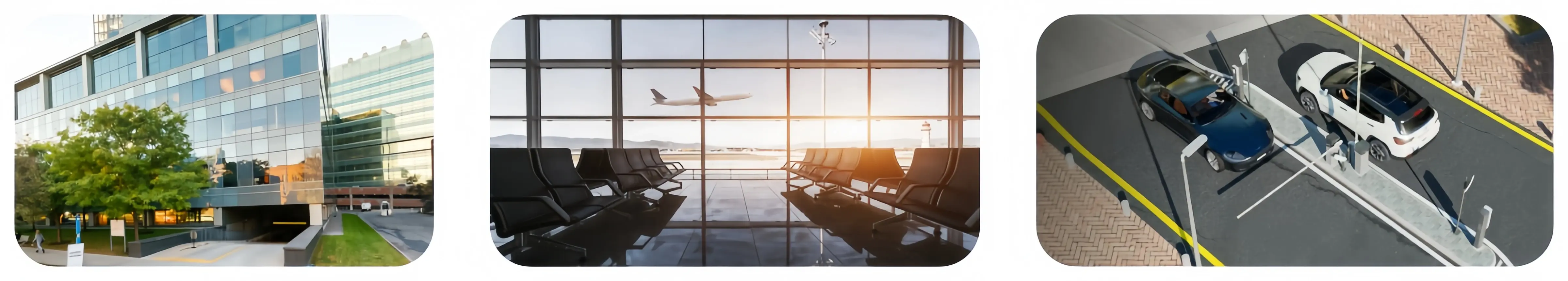

Where This Terminal Is Used

Airports and Transport Hubs

Busy sites need payments to move fast, and in more than one language. Interfaces here come in 5 or more languages. Multi-currency transactions are handled too. That makes the terminal a fit for international passenger volumes at airport parking facilities.

Shopping Malls and Commercial Complexes

Complex tariff rules are no problem once the terminal is configured for them. Merchant validation discounts work. Points can be redeemed by VIP members too. LPR (license plate recognition) integration is available. A QR validation code gets scanned straight on the touch screen. Venues can customize the enclosure to match their branding.

Outdoor Municipal Parking Lots

Rain, snow, and UV radiation are no problem for this unit. Inside, a heater and fan hold the climate steady. From -30°C to +65°C it keeps running without a hitch. Screens get hard to read when outdoor light shifts. Here, an anti-glare treatment on the screen keeps the interface clear.

application

Quality Control Process for Automatic Parking Payment terminal with Touch Screen

Before shipment, every unit goes through a set testing process:

  • IP65 Ingress Testing: Water spray and dust chamber tests verify the seal between the touch screen bezel and the steel housing.
  • Thermal Cycling (ESS): Each full unit goes through a -30°C to +70°C range. The LCD and touch controller are screened this way for early component failures.
  • Touch Durability Testing: The digitizer takes repeated mechanical inputs. That confirms calibration stays stable over extended use.
  • Peripheral Stress Testing: Crumpled paper and damp paper both get fed through the bill validators and the printers. That way the team can see how well a jam clears.
  • IK10 Impact Testing: Hits are applied to the tempered glass panel under IK10 test conditions. Structural integrity is what this test confirms.

certification

Customization and OEM/ODM Services

Hardware and software can both be customized by ZOJE. That covers screen sizes, the color of the enclosure, how the payment modules are set up, and UI layouts carrying your brand. For parking operators, system integrators, and distributors who are building their own product lines, OEM and ODM cooperation is offered.

Orders for standard products leave in 5–7 days. Projects that need customization with Automatic Parking Payment terminal with Touch Screen usually take 10–15 days to finish. You can pick sea or air freight. DDU and DDP terms are both on offer, so the shipping side can be set up the way your logistics team needs it.

Frequently Asked Questions

Q: How well does the touch screen work in direct sunlight?

A: Bright panels sit behind the glass. They are rated at 1,000+ nits. AG and AR coatings get applied on top of them. Contrast outdoors improves thanks to optical bonding. The display stays readable even in strong sun.

Q: What if the network fails?

A: It switches to Offline Mode by itself. Each transaction lands on a local SSD. The moment the link is back, that data syncs to the central server. So nothing is lost while the connection is down.

Q: Can the touch screen be used with gloves or wet hands?

A: The firmware algorithms run on the PCAP touch screen. A water droplet gets told apart from a real touch. That way the screen still answers correctly when someone wears industrial or winter gloves.

Q: How is payment security handled?

A: Encrypted PIN pads (EPP) come built into the terminal. Card readers certified for EMV/PCI-DSS do too. Card data never sits on the device. Each transaction is tokenized, then sent to the payment gateway over an SSL/TLS encrypted connection.

Q: Can the screen survive vandalism?

A: On the Mohs scale, that tempered glass scores 7 or higher. IK10 impact protection is covered as well. So in spots where no one keeps watch, the screen resists scratches and blunt knocks.

Q: Can ZOJE handle OEM branding and custom setups?

A: Yes. ZOJE runs full OEM and ODM work. That covers custom hardware setups, software UI design, and enclosure finishes. Short runs are fine, and so are bigger volumes.

Contact Us

Interested in a quote or a custom configuration? Send your Automatic Parking Payment terminal with Touch Screen enquiry to info@zoje-tech.com and our team will get back to you.
