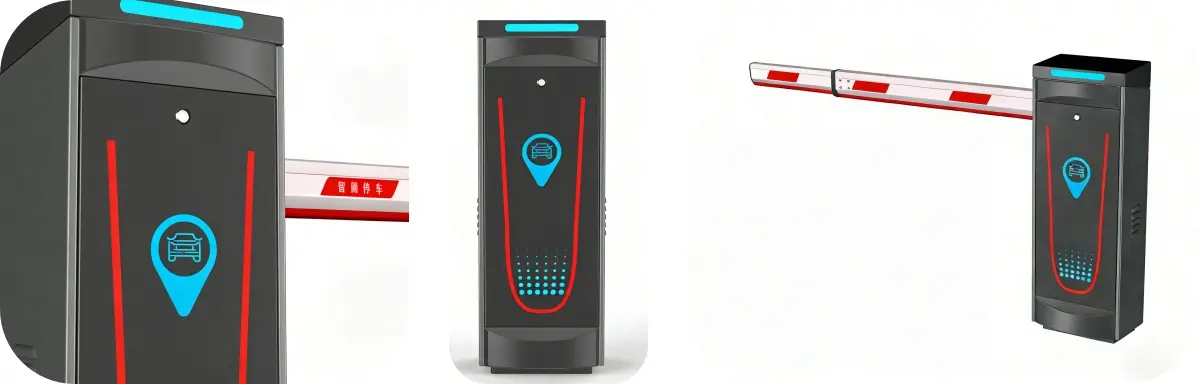

Automatic Rising Straight Arm BoomBarrier
1.The running speed can be adjusted from 1.5s to 6s
2.Aluminum boom , steel housing , stable at -35℃~80℃, tough & durable
3.Open the barrier gate by motor wheel when power off ,automatically reset after power on
4.Curved crank arm three- link movement structure, the operation is stable
5.Well-integrated with car parking system equipment,with wire control(must be switch signal)
6.Triple anti-crushing , tamper alarm . keeps vehicles/equipment safe.
7.LPR/ETC/Bluetooth – cloud-connected, unattended operation easy.
8. 2-year warranty, 24/7 online support, 30min remote assistance, lifelong maintenance.
- Face to Face Discussion
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Automatic Rising Straight Arm BoomBarrier for Vehicle Access Control
Automatic Rising Straight Arm BoomBarrier units come from Hong Kong ZOJE Intelligent Technology Co., Ltd. These are electromechanical systems that control vehicle access. Commercial parking lots and logistics parks use them. Toll plazas and residential complexes do too. ZOJE started in 2012 and works to ISO 9001:2015 standards. More than ten years of engineering experience sits behind every unit. The boom arm covers lane widths of 2 to 6 meters. It runs in temperatures from -35°C to +80°C. Opening speed can be set anywhere between 1.5s and 6s.
What Is a Rising Straight Arm Boom Barrier?
The pole on a rising straight arm boom barrier is a single piece of aluminum alloy. It lifts straight up to control vehicles coming in and going out. Folding and articulated designs work another way. Here the arm covers the whole lane as one rigid beam. That gives it more resistance to wind shear and to lateral force.
Lane widths of 2 to 6 meters fit this design. Opening can be as quick as 1.5 seconds. The unit links up with LPR (License Plate Recognition) and ETC (Electronic Toll Collection). UHF RFID and Bluetooth are supported as well. Operation stays unattended and connected to the cloud.
For busy sites, the straight arm design is the usual pick. It holds up well structurally, and the cycling stays consistent, which is what matters most there.
Key Features & Technical Highlights
Stable mechanical structure
A three-link movement with a curved crank arm keeps each cycle running smooth. Vibration drops, and so does mechanical wear over time. At high-frequency sites, that means longer service life.
Adjustable speed and motor performance
Depending on the lane, opening speed can be set anywhere from 1.5s to 6s. Speed control and anti-crush sensitivity come from a 24V DC brushless (BLDC) motor. Older designs used an AC torque motor setup instead.
Durable materials for outdoor use
The boom uses high-strength aluminum alloy. For the housing, 2mm cold-rolled galvanized steel goes into it, finished with UV-resistant powder coating. It holds an IP54 rating or better. Coastal humidity, industrial dust, and temperatures from -35°C to +80°C are all handled by this setup.
Triple anti-crush safety system
Three layers handle safety logic. Inductive loop detectors sit embedded in the ground. Infrared photocells catch objects without contact. Motor torque rebound picks up a physical obstacle. Should the arm hit resistance, it reverses right away.
Power-off manual override
Lose the power and you can still open the barrier by hand with the motor wheel. After power comes back, the barrier resets on its own. No manual step is needed.
System integration
The barrier, a Automatic Rising Straight Arm BoomBarrier, connects with wire control (switch signal), LPR cameras, ETC lanes, Bluetooth modules, and cloud management platforms. It is suited for unattended parking and toll operations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard Model | ZOJE-PB300 |
| Cabinet Material | Cold Rolled Steel |
| Working Temperature | -30°C to +70°C |
| Open/Close Speed | 1.5-6 Seconds |
| Rated Power | 200W |
| Driving Method | DC Brushless Motor |
| Rated Voltage | DC24V |
| Remote Control Distance | ≤100m (open, sunny weather) |
| Max Boom Length | Single/Bidirectional |
| Power Supply | AC110-220V, 50/60Hz |
| Protection Grade | IP54 |
| LED Indicator | Yes |
| Bi-direction Main Shaft | LEFT or RIGHT |
Application Scenarios
Highway toll plazas
High-speed ETC lanes require barriers that can cycle continuously. Short arm configurations in the 2.5m–3m range work well here — reduced arm mass allows faster, more consistent throughput.
Industrial and logistics parks
Heavy trucks roll through wide-lane sites. There, arms must reach up to 6m. Housings also have to survive dust, grease, and corrosion. A galvanized steel cabinet and a sealed drive unit are built for that kind of abuse.
Commercial parking facilities
Shopping centers want a barrier that talks to LPR cameras. Office buildings want the same, plus parking management software. The I/O control board handles those connections. Signals move with low latency.
Residential complexes
Quiet operation comes from the BLDC motor. Noise at entry points drops as a result. For visual status indication, LED light strips can be fitted to the arm. Residents get a clearer experience at the entry.
Quality Control Standards for Automatic Rising Straight Arm BoomBarrier
Before shipping, each unit is inspected.
Spring balance calibration checks that the counterbalance spring matches the weight of the arm. Let go of the motor by hand and a correctly balanced arm holds steady at 45 degrees. That protects the gearbox from overload.
Motor torque and obstacle rebound testing shows the arm reverses once it hits a test block. The block stands in for a vehicle or a pedestrian in its path.
Salt spray testing is carried out under ISO 9227. In salt fog chambers, the cabinet finish and the arm coating are tested. This shows how well they resist rust outdoors or near the coast.
Thermal overload simulation keeps the unit running for 24 hours without a break. The aim is to confirm the motor stays inside safe temperature limits while it operates.

Customization & OEM/ODM Services
ZOJE offers custom hardware and software for parking and access control projects. Need a certain arm length? Housing colors and control board setups can also be chosen. Integration with proprietary parking management systems can be requested too.
OEM and ODM services are available for distributors and project contractors. Standard products ship in 5–7 days. Customized orders typically require 10–15 days. Shipping is available by sea or air freight, with DDU and DDP trade terms supported.
Why Choose ZOJE?
Since 2012, ZOJE has designed and built access control systems. Every product meets ISO 9001:2015 quality management standards. The engineering team also holds several technical and design patents.
A 2-year warranty covers each Automatic Rising Straight Arm BoomBarrier. Global technical support runs 24/7. Site layout, traffic volume, and integration needs can all be handled through customization on large or complex projects.

FAQ
Q: How does the barrier work during a power outage?
A: When the power goes down, the motor wheel lets you lift the arm by hand. DC models can also take battery backup modules, so the barrier keeps working. Once power comes back, the barrier resets on its own.
Q: Is it possible to cut or adjust the arm to fit a certain lane?
A: Yes. A standard aluminum arm can be cut down to suit the width of your lane. Cutting changes the weight. That is why the counterbalance spring tension has to be re-calibrated afterwards, so it matches the new arm weight.
Q: How do arm length and opening speed relate to each other?
A: Short arms open faster. The supported range is 1.5s–6s, and shorter arms sit at the quick end of it. Long arms need slower speeds. That keeps inertia in check and puts less stress on the drive system. You can set the speed anywhere inside the supported range.
Q: In what way does the barrier stop itself from closing on a vehicle?
A: Three systems share the job. Inductive loop detectors sit in the ground. Infrared photocells run across the lane. Motor torque rebound detection is the third. Should any of them spot an obstruction, the arm stops at once or reverses.
Q: How do you maintain a site that sees heavy traffic?
A: A site that runs more than 1,000 cycles a day should be checked every quarter. The visit covers spring tension and the grease on the internal linkage rod. It also includes tightening the chassis anchor bolts and cleaning the optical sensors.
Q: Which systems can the barrier connect to?
A: LPR camera systems connect to it. ETC lanes are also on the list. Bluetooth access works too. UHF RFID readers are supported. Wire control uses a switch signal input. Cloud-connected configurations work, and unattended operation is possible.
