High Accuracy LPR Parking System
2.Recognition rate:99%
3.Recognition Regions:Around world
4.Support offline use:Front-end recognition, unaffected by network delay/offline. Support offline billing
5.Support hardware/software customized,support various types of secondary development
6.Support outdoor use
7.24/7 service
8.Support OEM and ODM
9.Model:ZOJE-LPR101
- Face to Face Discussion
- Quality Assurance
- 24/7 Customer Service
Product Introduction
High Accuracy LPR Parking System — Front-End Recognition Solution
High Accuracy LPR Parking System The ZOJE-LPR101 is built by Hong Kong ZOJE Intelligent Technology Co., Ltd. That firm started out in 2012. It holds ISO 9001:2015. Who buys it? Sites that want vehicle access with no tickets, and need it to work every single time. Plates from around the world get read at ≥99%. Each vehicle clears in under 150ms, handled right at the camera edge. Cut the network and the unit still runs on its own. Commercial lots are a fit. So are airports and residential complexes.
How an LPR Parking System Works
In an LPR parking system, high-definition cameras handle the plate reading. Optical Character Recognition (OCR) sits behind them. It works together with Deep Learning Convolutional Neural Networks (CNN).
A vehicle rolls up and the camera grabs the plate image in under 150ms. An open command then goes out to the barrier. No ticket comes into it. RFID cards are not needed either. Nobody has to type anything.
With the ZOJE-LPR101, recognition runs right on the camera hardware. Nothing is shipped off to a remote server. That edge-computing setup removes network latency. Dropped connections do not stop it either.
Key Features
Front-End Edge Processing
Recognition runs locally on the device. Results are returned in under 150ms without depending on server availability.
Offline Mode with Onboard Storage
If the network drops, cars on the whitelist can still get through. Each transaction gets written to the SD card or flash memory on board. Once the link returns, syncing takes care of itself.
Global Plate Format Support
The recognition engine handles multi-region formats simultaneously, including EU, GCC, and custom formats for diplomatic or military vehicles.
Multi-Attribute Detection
The system does more than read plates. It also records the vehicle's color. Brand and type get captured too, for security and audits.
Outdoor-Rated Enclosure
The housing carries IP66 and IP67 ratings. Operation continues from -40°C to +75°C. Humidity can go as high as 95% RH.
Smart Lighting with High Accuracy LPR Parking System WDR
IR and White Light LED strobes come built in. Wide Dynamic Range (WDR) processing is there too. Put the two together and plate images stay clear, whether the sun is beating down or the scene is pitch black.
Anti-Tailgating Detection
Video analytics work together with loop detector logic. That combo spots a second vehicle following closely, and no new entry event fires. Security gets a separate image to review.
Technical Specifications
| Parameter Category | Specification | Details |
|---|---|---|
| Basic System | ||
| Operating Voltage | AC110-240V±10% | Wide voltage range compatibility |
| Operating Temperature | -20℃ to +60℃ | Extreme weather resistance |
| Relative Humidity | ≤95% without condensation | Moisture protection |
| Rated Power | ≤60W | Energy-efficient operation |
| Communication | TCP/IP, RS485 | Multiple connectivity options |
| Protection Class | IP64 | Dust and water resistant |
| Camera Technology | ||
| CPU | Dual-core 900MHz + CNN acceleration | 0.5Tops processing power |
| Image Sensor | 1/2.8" starlight CMOS | Superior low-light performance |
| Max Resolution | 1920×1080 | Crystal clear image capture |
| Minimum Illumination | 0.01Lux (Color) | Excellent night vision |
| Recognition Rate | ≥99% comprehensive accuracy | Industry-leading precision |
| Performance Features | ||
| Vehicle Speed Range | 0-40km/h | No stopping required |
| Recognition Angle | 70-degree wide angle | Flexible installation options |
| Storage Support | 512G maximum TF card | Extensive local storage |
| Network Interface | 10/100Mbps RJ45 | Reliable connectivity |
| Fill Light System | ||
| LED Count | 10 pieces | Optimal illumination |
| Maximum Power | 10W | Efficient lighting |
| Control Method | Intelligent light sensitivity | Automatic brightness adjustment |

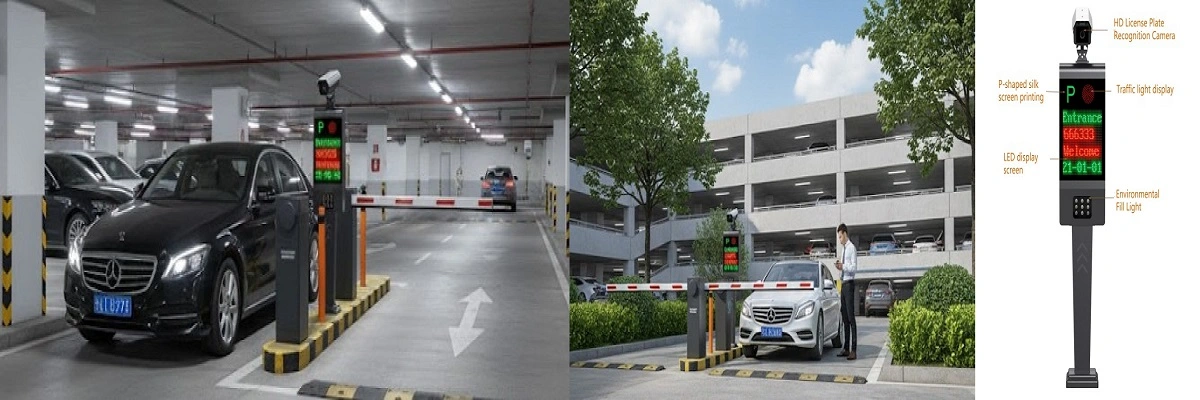

Application Scenarios for High Accuracy LPR Parking System
Airports and High-Traffic Facilities
Heavy traffic flows through the ZOJE-LPR101 with no one at the controls. Shiny surfaces and cars that pull up at different speeds get corrected by the geometric algorithms.
Shopping Malls and Mixed-Use Complexes
Entry without a ticket is supported, and billing can run on how long a car stays. Take the ticket dispensers out, and you spend less on hardware. Cars also move faster at peak times.
Housing Estates and Basement Parking
Keeps a whitelist of residents and handles visitor access. It works where light is poor or the entry angle is steep. In those spots, plates are usually harder to read.

Quality Verification
Before any ZOJE-LPR101 leaves the factory, it goes through a set testing process.
- Thermal Cycling: The hardware runs from -40°C up to +75°C. This checks that the lens stays in focus and the seals hold.
- OCR Algorithm Testing: We put it up against over 50,000 plate images. A few of them were dirty. Mud, damage, and shadow covered others. Even then, the False Negative Rate never went above 0.1%.
- IP Rating Verification: We ran water spray and dust chamber tests the IEC 60529 way to confirm the unit meets IP66/IP67.
- MTBF Verification: The IR illuminators and shutter mechanisms are rated to run nonstop for more than 50,000 hours.
Customization and OEM/ODM
Both hardware and software can be customized at ZOJE, so a build can be matched to the project at hand. Custom enclosure designs for a High Accuracy LPR Parking System are one option. Another is plate recognition models made for a specific region. Software API integration sits on the list as well, and so does OEM/ODM branding. Electronic and mechanical design both fall to the engineering team. That team also holds multiple technical and design patents.
Standard products leave the factory in 5–7 days. Allow 10–15 days for customized configurations. Goods can travel by sea or by air, under DDU or DDP trade terms.
Frequently Asked Questions
Q: What if the plate gets dirty or is damaged in part?
A: Deep learning reconstruction powers the ZOJE-LPR101, and it was trained on partial plate datasets. Partial character matches get cross-referenced against the database. That is how it handles plates that are badly blocked or covered in dirt.
Q: Does the system still work in complete darkness, or when strong sunlight causes glare?
A: Yes. In daytime, WDR processing lowers backlight. When it is dark, IR illuminators make plate images with strong contrast. Headlights won't cause trouble.
Q: What occurs if the network goes down?
A: Offline Mode kicks in on its own. Vehicles on the whitelist are still handled on the spot. Transaction logs sit on the unit until the connection comes back.
Q: Does the system support foreign or non-standard license plates?
A: Yes. The recognition engine can handle several region formats at once. EU and GCC plates are both supported. Admins can create their own formats too, for diplomatic or military vehicles.
Q: What stops a car from tailgating behind another?
A: Entry events are watched by loop detector logic and video analytics. A second vehicle may be detected before the inductive loop resets. When that happens, a tailgating alarm goes off. A separate image is captured for review.
Q: What sort of warranty do I get, and what kind of support is included?
A: Each ZOJE-LPR101 unit comes with a 2-year warranty. ZOJE technical teams are on hand 24/7, all over the world. Remote setup guidance is part of the deal too. So is long-term maintenance cover.
Contact Us
Have questions about deploying a High Accuracy LPR Parking System? Reach our team at info@zoje-tech.com.
