Indoor Parking Guidance Direction Display Screen
2.High-brightness LED screen
3.Central controller data sync
4.Digital & arrow display . Guides fast
5.Boosts space utilization
6.Stable wireless data transmission
7.Easy indoor installation
8.24/7 tech support
- Face to Face Discussion
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Indoor Parking Guidance Direction Display Screen – ZOJE-31-1 Directional LED Unit
The Indoor Parking Guidance Direction Display Screen (ZOJE-31-1) comes from Hong Kong ZOJE Intelligent Technology Co., Ltd. It is an SMD LED unit with high brightness. That unit was made to guide drivers to open slots in real time inside covered parking areas. A number for the free space count and an arrow for direction both appear on the screen. It syncs with a central controller, and RS485 is one way to make that link. TCP/IP is another way. Wireless LoRa also works. When occupancy changes, the display updates in under one second. Use it at aisle junctions and ramp entrances in commercial sites with several zones.
What Is This Display and How Does It Work?
The ZOJE-31-1 is one hardware part of a larger parking guidance system (PGS). Live occupancy data reaches it from ultrasonic sensors. Video detectors can send that data too. Magnetic loops work too. A Central Control Unit (CCU) passes it along. A Zone Control Unit (ZCU) can route it.
A driver reaches a decision point. The screen then shows how many spaces remain for each way: Left, Right, or Straight. Static signs cannot do this. LED content changes in under one second when any space status changes.
Drivers no longer get sent down aisles that are already full. That near-instant response is what makes it work. It fixes one of the usual headaches in older parking facilities.
Key Features
High-Brightness SMD LED Panel
The screen runs SMD LEDs in three colors. Green means the space is free. Red means it is taken. Amber is used for specific alerts. Pixel pitch goes from P4 to P10. That covers viewing distances of 20 m to 100 m, depending on how the facility is laid out.
Live Data Sync with Central Controller
Every unit gets its data straight from the central controller, in real time. That means all the displays, floor by floor, show one and the same occupancy state. You will not get mixed messages between zones or floors.
Combined Digital Count and Arrow
Each screen shows how many spaces are free. An arrow beside that number points the way. Seconds are all a driver needs to read it. Nothing makes them stop. No confusing sign has to be worked out either.
Multi-Protocol Communication
RS485, TCP/IP (Ethernet) and wireless LoRa all work on this unit. Whichever one you use, the update lands in under a second. Integrators just pick the link that fits the infrastructure they already have.
Auto-Dimming and Anti-Glare Design
Light is handled by built-in photosensors. The brightness rises or falls to suit the surroundings. A mask against glare covers the LED face. It keeps reflected interference low. Down in a garage, where light levels are poor, that matters most.
Practical Indoor Housing
You can order the enclosure in cold-rolled steel. Extruded aluminum is the other option. Ratings span IP40 to IP54. With daily use in a garage, brake dust and exhaust residue stay off the parts inside.
Low Power Draw
Each unit for the Indoor Parking Guidance Direction Display Screen draws under 50 W. Input voltage covers AC 110–240 V and DC 12/24 V to accommodate different electrical setups across markets.
Technical Specifications
| Feature | Specification |
|---|---|
| LED Type | LED beads |
| Light Source | Red and green LED light beads |
| Communication Mode | RS485, Bluetooth |
| Communication Distance | RS485≤300m, Bluetooth≤8M |
| Service Voltage | AC110~240V |
| Maximum Power | ≤20W (one-way) |
| Dimension (one-way) | 65018356mm |
| Dimension (two-way) | 103018356mm |
| Dimension (three-way) | 141018356mm |
| Material | Black aluminum frame |
Quality Control Process
ZOJE-31-1 units go through a structured multi-stage verification process before shipment.
Optical Performance Testing
Spectroradiometers measure luminance uniformity and viewing angles. To confirm legibility from oblique approach angles, the 120° horizontal viewing angle gets checked. No color shift should show up.
72-Hour Burn-In Test
Before a unit leaves the factory, it runs at full brightness for 72 continuous hours. Early-failure LED chips turn up at this stage. Power supply stability under sustained load gets confirmed too.
Communication Latency Verification
We test the update time from sensor to screen. It has to stay under one second, and it does. That matches what real-time guidance requires.
Vibration and Drop Testing
Units are evaluated against structural vibrations typical of steel-frame parking garages to verify connector integrity and solder joint durability under operating conditions.
EMC/EMI Compliance Testing
Every screen gets tested. The electromagnetic emissions must stay inside the limits that CE and FCC standards set. Passing means the units will not disturb vehicle key fobs or the radio systems in a facility.

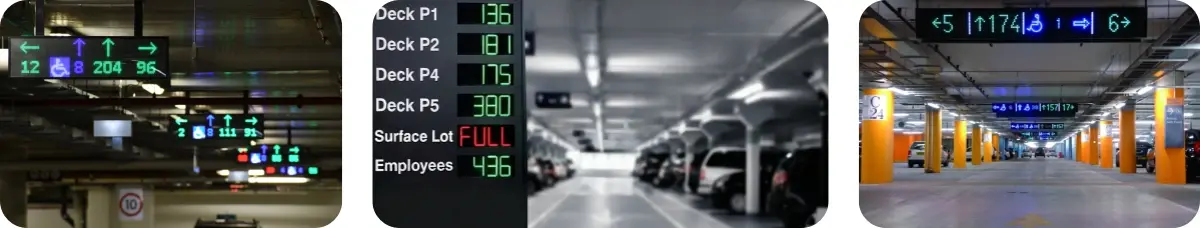

Application Scenarios for Indoor Parking Guidance Direction Display Screen
Commercial Shopping Malls
Some facilities have several zones, and occupancy shifts from floor to floor. In those buildings the display can back zonal routing. Traffic gets sent away from packed entry-level floors and toward levels that still have spaces free. Peak hours spread the load better that way, and drivers circle around less inside the structure.
Airports and Transit Hubs
Uptime must stay steady at a busy site. Clear messages matter too. The ZOJE-31-1 can handle changing content: zone labels, access-type indicators, letters and numbers. It is made to run nonstop.
Corporate and Mixed-Use Buildings
With controlled access, the display can direct people by their permission level. Open areas meant for general use can also show on it. Reserved aisles stay open only to authorized users. Cameras for License Plate Recognition (LPR) can link through Modbus or a custom API.

Customization and OEM/ODM Cooperation
ZOJE can customize the hardware and software of the Indoor Parking Guidance Direction Display Screen to meet a specific project's needs. Housing dimensions can be adjusted. Display content layout and communication protocol setup can be adjusted too. Software integration can run through Modbus or a custom API.
OEM and ODM cooperation is open to parking system integrators, property developers, and turnkey solution providers. Standard product lead time is 5–7 business days. Customized orders typically ship within 10–15 business days.
Shipment is available by sea or air freight, with DDU and DDP trade terms.

Frequently Asked Questions
Q: What happens on the display when the server or the network connection drops out?
A: Safe Mode logic ships inside the ZOJE-31-1. The unit either keeps the last data it confirmed as valid, or the display drops to a neutral state. Either way, an outage never sends drivers down an aisle that is already full.
Q: Can arrow directions be changed through software, or are they fixed at the hardware level?
A: The dot-matrix screen means software decides which way each arrow points. Route changes take effect on the fly. Nobody has to touch the hardware on-site.
Q: What keeps the screen readable in a garage full of dust?
A: Polycarbonate covers keep the screen safe. Dust will not stick to that material. No static builds up on it either. Even after the usual layer of dust settles, the high-brightness LEDs stay easy to read. Wipe it down once a quarter and it keeps working the same way.
Q: How is a Zonal Display different from a Wayfinding Display?
A: A Zonal Display shows the total count of open spots for a whole floor or section. Wayfinding works another way. Inside the facility, at decision points, it shows people which way they can go. The ZOJE-31-1 is a wayfinding display.
Q: Will the screen work with parking management software made by another vendor?
A: Yes. Modbus is supported, and so is custom API integration. That lets the display work as a slave device inside third-party central management platforms.
Q: What warranty does ZOJE provide?
A: Every ZOJE-31-1 unit comes with a 2-year product warranty. Need help with installation, or after-sales support? Send a message to the team at info@zoje-tech.com.
