Indoor Parking Guidance Zone Controller
2.Links controller, sensors & guidance screens
3.Parking status upload . Syncs data to outdoor central controller
4.Adapts to damp indoor garage environments
5.Multi-device compatible
6.Wireless deployment. No complex wiring, labor cost saving
7.Stable RF signal .Anti-interference
8.24/7 tech support and service
- Face to Face Discussion
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Indoor Parking Guidance Zone Controller for Smart Parking Systems – Stable, Wireless & Multi-Device Compatible
The ZOJE-02Z is an Indoor Parking Guidance Zone Controller. It works at the edge, close to the cars. One unit links ultrasonic sensors and LED guidance screens to the central parking management server, and keeps all of them in sync. Each unit runs 32 to 128 sensor nodes over RS485 communication. Occupancy data goes upstream in real time through TCP/IP. Indoor garages are damp places, and this unit was built for them. Wireless deployment works too, since the RF signal stays stable and anti-interference protection is built in.
What Is This Product?
A zone controller sits between the field devices and the central management server. On one side you have the ultrasonic sensors and the LED indicator lights. Guidance signs are there too. Occupancy data gets polled from clusters of sensors. The controller processes that data on the spot, and only then sends it upstream.
Local processing like this solves three problems that come up again and again in large parking facilities: network latency, cabling complexity, and single points of failure. Say the server connection drops. Even then, the controller keeps updating the local wayfinding screens on its own. Drivers keep moving the right way, with no interruption.
Key Features of the ZOJE-02Z
Wireless Deployment
Wireless sensor connections come standard on the ZOJE-02Z. On big multi-floor projects, that means less fixed cabling to pull. Installation also gets easier in facilities where running conduit is a problem.
Stable RF Signal with Anti-Interference
A parking garage is an electrically noisy place. You have HVAC systems, cars moving around, and high-current lighting. To keep sensor data transmission accurate in those conditions, the ZOJE-02Z uses RF communication with built-in anti-interference protection.
Real-Time Data Sync to Central Controller
Parking status goes up as it changes. Each update syncs to the upstream central controller. Screens across every floor and zone stay correct, and nobody has to touch a thing.
Multi-Device Compatibility
One ZOJE-02Z talks to sensors, LED guidance screens, and upstream controllers at the same time. It slots into wider smart parking setups. You do not need proprietary hardware all over the site.
Damp Environment Resilience
The controller is rated for the humidity and temperature conditions typical of enclosed underground and indoor garages, including the operating range of -20°C to +70°C.
Offline Indoor Parking Guidance Zone Controller Mode
When the upstream server connection is temporarily unavailable, the controller switches to local mode automatically and continues updating connected guidance screens based on last known occupancy data.
Technical Specifications
| Specification | Details |
|---|---|
| Model | ZOJE-02Z |
| Node Capacity | 62 (including detector and guidance screens) |
| Communication Routes | Route 1: CAN, Route 2: RS485 |
| Communication Distance | CAN: ≤1000m, RS485: ≤300m |
| Operation Voltage | AC 110~240V |
| Power Consumption | ≤2W (excluding detector consumption) |
| Dimensions | 320×260×90mm |
| Material | Galvanized steel plate with spray coating |
Application Scenarios

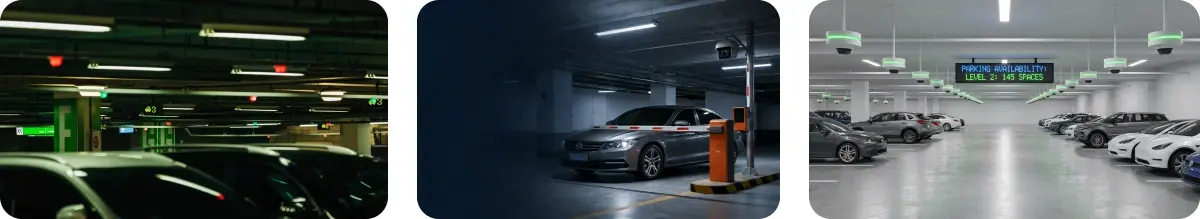

Multi-Level Commercial Shopping Complexes
Big facilities with lots of bays get zone controllers, one per floor or per aisle. These units gather occupancy data and run the local crossing-guidance screens in real time. Drivers get steered away from full zones, so congestion inside the facility drops.
Airports and Transport Hubs
Nodes in a high-availability setup have to stay stable. Long cable runs should be no problem for them. When sensor data goes bad, the node has to isolate it and keep the rest of the system running. Local logic processing does that job. So does the offline fallback function built into the zone controller architecture.
Mixed-Use Office and Residential Towers
Reserved bays and subscriber access can be split into zones electronically by facility managers. Barrier gates and cameras connect to the controller. That way access rules are enforced right at the hardware level.
Quality Control for Indoor Parking Guidance Zone Controller
Before any ZOJE-02Z unit ships, it passes a fixed QC process.
Communication Stability Testing: For 72 hours, every device runs with all sensors at full load. On RS485 buses, transmission errors must stay under 0.1%.
EMC/EMI Testing: Controllers pass Class B industrial electromagnetic compatibility tests. That shows they keep working reliably in parking areas with heavy electrical noise.
Offline Logic Verification: During testing, the upstream TCP/IP connection is cut to confirm the controller switches to local mode. Guidance screens keep updating without server input.
Voltage Stress Testing: Every unit goes through ±20% voltage swings and simulated surges. The aim is to confirm the power supply holds up and that memory keeps its data.

Customization and OEM/ODM Services
ZOJE builds custom hardware and software around what each project needs. Need the protocol changed for BMS integration? The engineering team handles that. They also take care of custom Indoor Parking Guidance Zone Controller enclosures and firmware changes.
Parking system integrators and distributors are welcome to work with us on OEM and ODM terms. Standard products usually ship 5–7 business days after we confirm the order. Custom configurations usually take 10–15 business days.
Frequently Asked Questions
Q: What occurs when the zone controller can't reach the central server?
A: Offline stand-alone mode comes built into the ZOJE-02Z. Polling of connected sensors keeps running. Local LED guidance screens keep updating from the last configuration they received. Drivers therefore still get correct guidance while the network is down.
Q: What is the top number of sensors this product can handle?
A: Each ZOJE-02Z unit handles 32 to 128 sensor nodes. What you actually get depends on the bus setup picked at install time.
Q: Can a third-party Building Management System (BMS) be hooked up to the zone controller?
A: Open protocols come with enterprise-level setups. Modbus TCP, MQTT, and RESTful APIs are all supported. Occupancy data can then flow into smart building platforms, which helps facility teams run the wider site.
Q: How far can RS485 reach at most?
A: Run shielded twisted-pair RS485 cable and the signal still works up to 1,200 meters in standard conditions. Heavy electrical noise can damage signal quality. On longer runs, add repeaters to keep it clean.
Q: What supplies power to This product?
A: Centralized power supplies can feed the ZOJE-02Z at DC 12V or 24V. PoE is supported too. One cable then handles power and data. Installation gets simpler.
Q: What quality standards does the ZOJE-02Z follow?
A: The ZOJE-02Z is built under ISO 9001:2015 quality management standards. Before shipment, it must pass tests for communication stability, EMC/EMI, offline logic, and voltage stress.
