Parking Guidance led Display Screen
2.Entrance screen. Guides drivers entering parking lot
3.24h real-time empty space reminder
4.Clear visibility under strong outdoor light
5.Modular design, easy assembly
6.Real-time data sync. Links system to update vacancy status instantly
7.Adapts to outdoor temperature changes
8.24/7 tech support and service
- Face to Face Discussion
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Parking Guidance LED Display Screen for Smart Parking Lots
The Parking Guidance LED Display Screen ZOJE-3N-1 is a one-way entrance unit built to show real-time vacancy counts to drivers as they approach a parking facility. Designed and manufactured by Hong Kong ZOJE Intelligent Technology Co., Ltd. — founded in 2012 and ISO 9001:2015 certified — the display connects directly to a parking management server, updates space counts without noticeable delay, and maintains legibility in direct outdoor sunlight through automatic brightness control.
What Is This Product?
Drivers spot This product before anything else in an intelligent parking guidance system (PGS). It hooks up to a central parking management server or data concentrator. Ultrasonic, geomagnetic, or video-based detectors feed sensor data in. From that data the screen builds simple visuals anyone can read at a glance: arrows, digit counts, and directional symbols, all in real time.
Static signs cannot do this job. Space availability changes, and these screens respond to it. In multi-deck or high-turnover facilities, that shortens the hunt for an open space. Internal traffic also stops backing up near the entrance.
Key Features of the ZOJE-3N-1 Entrance Display
24/7 Real-Time Space Updates
Vacancy numbers never go stale. Every time a space status changes, the screen syncs with the parking management system. So the information a driver gets is accurate from the moment they enter the facility.
Strong Outdoor Visibility
Outdoor entrance displays require high brightness to remain legible in direct sunlight. The ZOJE-3N-1 exceeds 5,500 nits and uses built-in ambient light sensors to adjust output automatically via PWM (Pulse Width Modulation) control — brighter during peak daylight, reduced at night to limit unnecessary glare and extend LED service life.
Modular and Serviceable Design
Individual parts sit within reach at the front. Power supply units and display modules are among them. You don't have to take the whole housing apart. A swap takes minutes. Downtime falls either way, on a planned service visit or an unexpected repair.
Wide Operating Temperature Range
The unit runs from -20°C to +65°C. Outdoor sites in most climates fit inside that range. Thermal cycling tests put housing materials and solder joints through their paces. They show the structure holds up across that span.
Flexible Communication Options
The display comes with RS485 (up to 1,200 meters). It also handles TCP/IP. LoRa and Wi-Fi are both on board. Each option connects to the PGS infrastructure you already run. If the network drops, the screen switches to a default message. Someone sets that message ahead of time. Drivers never see error codes.
Technical Specifications
| Specification | Details |
|---|---|
| Model | ZOJE-3N-1 (one-way) |
| Display Bits | 4 |
| Light Source | Red/Green highlighted LED |
| Communication | RS485/TCP/IP |
| Communication Distance | RS485≤300m, TCP/IP≤100m |
| Power Supply | AC110~240V |
| Maximum Power | ≤30W (one-way) |
| Dimensions | 750×140×2000mm |
| Humidity Rating | ≤90%RH (no condensation) |
| Material | Cold steel paint + tempered glass panel |
| Installation Location | Parking lot entrance/exit |
Quality Control Process
Every unit goes through a multi-stage Parking Guidance led Display Screen inspection before shipping.

Optoelectronic Consistency Check
Red diodes are verified within the 620–625 nm wavelength range and green within 520–525 nm, with a deviation of no more than ±2.5 nm. Viewing angles — typically 120°/120° horizontal/vertical — are tested to confirm readability from the oblique approach angles common at parking entrances.
72-Hour Burn-In Test
Each screen runs at full white/full load for 72 consecutive hours to identify early component failures — including power supplies and driver ICs — before the unit ships.
Environmental Stress Screening
Every unit runs through hot and cold cycling over the full -20°C to +65°C working range. Water spray tests follow the IP65 standard. Coastal sites and high-humidity sites get something extra: extended salt spray testing. Those runs confirm the unit holds up against corrosion.
Vibration Simulation
Inside each unit, locking mechanisms hold the connectors and cabling in place. Transport vibration tests and structural vibration tests both back that up. The locks stay tight through shipping. They stay tight through long-term installation too.

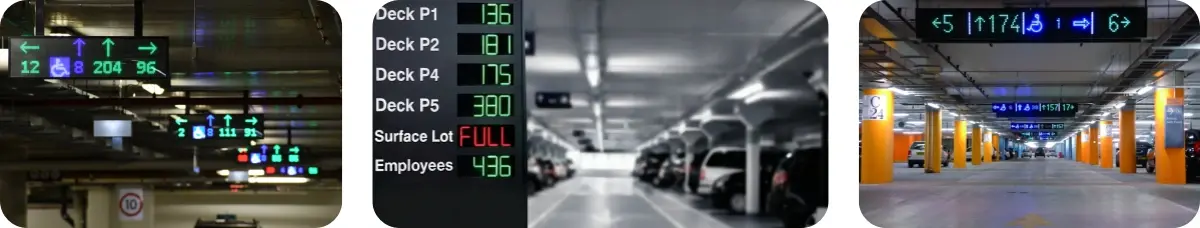

Common Installation Environments for Parking Guidance led Display Screen
Shopping Malls and Mixed-Use Complexes
Entrance screens sit at the main access points. There, free space appears as a running total, split up by floor. Connect them to a license plate recognition (LPR) system and you get more options. Chosen zones can then be assigned to reserved members or to certain vehicle types.
Airports and Transit Hubs
Vehicles come and go fast in these places. That calls for quick refresh rates and uptime that never drops. Displays put in here are picked for how well they hold up. Exhaust exposure and structural vibration are part of the conditions they face.
Outdoor Municipal and On-Street Guidance
An IP65 rating is built into these outdoor units. Roadside poles work as a mounting spot, and so do gantries. Drivers are then pointed to off-street parking facilities by high-contrast louvers. Managing traffic flow across a city gets easier as a result.
Customization and OEM/ODM Options
Hardware and software both get adjusted by ZOJE, including a Parking Guidance led Display Screen, to fit what a project needs. Fonts are one example. Dynamic arrows that point a direction are another. So is scrolling text for emergency alerts or operational messages. With full RGB display capability, a brand can also use its own colour scheme.
OEM and ODM cooperation is open to parking operators, system integrators, and distributors who need a white-label product. Need the display fitted to a certain facility layout or software platform? Our engineering team can adapt the configuration. Tell us your project specs, then we will go through the setup that works for your installation.

FAQ
Q: What does the screen do when the network goes down?
A: The screen operates with offline-mode firmware. When the TCP/IP or RS485 connection is lost, it automatically switches to a pre-defined default message — such as a static welcome prompt — or holds the last known value. This prevents error codes from being displayed to drivers.
Q: Does the screen dim and brighten on its own as day turns to night?
A: It does. Ambient light gets measured by light sensors. The controller then matches it by setting the PWM duty cycle. Output rises during the day, which keeps contrast steady. Come nightfall it falls back to reduce glare. The same setup also helps the LEDs last longer.
Q: How far can the display communicate?
A: In a daisy chain, RS485 can go as far as 1,200 meters. Each TCP/IP segment covers 100 meters. Fiber optics can extend that range. LoRa handles wireless deployments and reaches several kilometers when the line of sight is clear.
Q: Can color mismatches occur when replacing a module?
A: LED binning variation can cause a new module to appear slightly different from aged ones in the same display. Point-by-Point Correction allows calibration data to be uploaded to the receiving card to compensate for this during maintenance replacement.
Q: Which takes priority: the central software or a local override?
A: The Central Management Software (CMS) manages system-wide logic. Controllers also support a Force Mode for emergency overrides — for example, during fire alarm integration — which takes immediate precedence over standard sensor-based calculations.
Q: Can the display handle coastal environments?
A: Units rated IP65 go through salt spray testing. That testing checks how well the anti-corrosion coating holds up. So these units fit coastal sites or places with high humidity. Tell us about coastal needs when you order, and we will apply the right specification.
Contact Us
For project inquiries or product specifications, Contact Us regarding the Parking Guidance led Display Screen at info@zoje-tech.com. We will respond within one business day.
