High-Wing Speed Gate Turnstile Structure and Speed

When your building needs both strong security and smooth traffic flow, it's important to understand how advanced door control works. A High-Wing Speed Gate Turnstile for Fast Access is a high-tech way to keep people safe. It combines tall barrier structures (usually between 1.2 and 1.8 meters) with quick opening devices that can handle 35 to 40 people per minute. Traditional waist-high barriers let people in without permission by climbing or crawling over them. These raised wing designs, on the other hand, make people less vulnerable while keeping the aesthetic appeal and working speed. This technology solves important problems in places like shopping malls, airports, apartment complexes, office buildings, and business parking lots where balancing user ease with security integrity is key to the overall success of operations.

Understanding High-Wing Speed Gate Turnstile Structure

A high-wing speed gate's ability to control entry without slowing things down depends on how it is built internally. Let me show you the main parts of these systems that make them work so well in tough conditions.

Core Structural Components

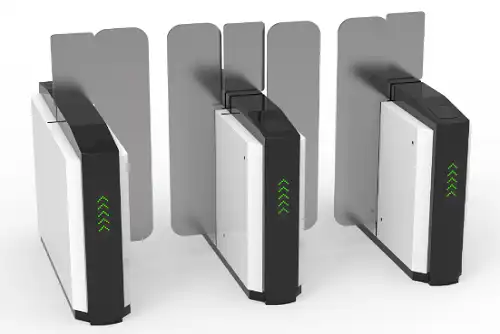

The ZOJE-BST200's frame is a masterpiece of contemporary engineering. A reinforced stainless steel frame holds tempered glass or acrylic panels for the vertical wings. These panels block unauthorized entry. The base of the cabinet has brushless DC motors for each wing assembly. This smooths acceleration and braking. The rust-proof cabinet is constructed of 304-grade stainless steel and may be tailored to fit architectural treatments. This makes it durable at airport terminals and business halls. Sensor placement makes the High-Wing Speed Gate Turnstile for Fast Access more than a mechanical gadget. Several infrared beam arrays along the tunnel monitor real-time entry attempts. Protected wires connect these devices to the main control board, preventing electromagnetic interference. The system's triple-layer safety method incorporates visual detection, motor current sensing, and torque tracking. This ensures the mechanism reacts quickly if anything blocks the wing.

Wing Movement Mechanisms and Speed Optimization

Speed gate technology requires accurate motor control algorithms that balance speed and safety. Smart motor management determines the ideal acceleration curves depending on wing position and weight, opening the ZOJE system in 0.2 seconds. The control board receives RS485 or TCP/IP authentication signals for allowed access events. This instructs the motor controller to open. Brushless motors eliminate mechanical wear. So, the motor may be operated over five million times without losing performance. Advanced gearbox engineering converts motor rotation into straight wing movement, making the machine efficient. The frame's innovative reduction mechanism maximizes torque density while remaining compact. This keeps the door shut even when wind or someone blocks it. Anti-vibration fitting isolates the drive unit from the cabinet. This reduces noise in calm settings like business and home lobbies. This technological attention ensures the High-Wing Speed Gate Turnstile for Fast Access functions properly everyday.

Material Selection and Durability Considerations

Material science ensures long-term reliability in many installations. The wing panels are comprised of 12 mm tinted safety glass, which is shock-resistant and transparent. There are lighter acrylic installations for heavier loads. This is crucial for company parking lot retrofits that need little structural adjustments. Cabinet frames are powder-coated steel with UV-resistant coatings. This prevents color fading in naturally light airport concourses or retail entrances. ISO 9001:2015 requires tight internal part quality control. Electronic boards are covered to prevent humidity and temperature fluctuations. This makes them more dependable in non-climate-controlled parking garages. Industrial-grade wire harness connections may be inserted and withdrawn 100,000 times, allowing maintenance without damage. This all-around material specification strategy keeps projects running in all US weather.

How High-Wing Speed Gate Turnstiles Improve Access Speed and Efficiency

Whether entrance control helps or hurts building management goals depends on how well it works. Modern speed gates use a number of different technologies to quickly verify users' identities while still following security rules that keep people and property safe.

Advanced Authentication Technology Integration

Modern access control works effectively because verification techniques are flexible. Our ZOJE-BST200 uses 13.56 MHz RFID card readers for contactless identification and 0.1-second scan times. In commercial parking lots, QR code scanners work with mobile credential systems. This allows customers to use cellphones as tickets instead of cards. Biometric security using fingerprint recognition is superior for controlling dwelling spaces where renters require more accurate identification than card-based solutions. The latest access verification technology is face recognition. When linked to building management systems, the High-Wing Speed Gate Turnstile for Fast Access receives real-time verification indications that open the gates as authorized personnel approach. This walk-through identification eliminates the stopping and gazing that slows office buildings in the morning. The system may accept numerous credential types at once, allowing sites to create "tiered security zones" with varied identification strengths based on asset value.

Throughput Comparison and Performance Metrics

Quantitative performance data favors high-wing designs for operations. Traditional tripod turnstiles can accommodate 20–25 people per minute and include mechanical mechanisms that must complete a round before letting someone through. Because they revolve in a sealed cage, full-height turnstiles can only take 15 to 20 passengers per minute but give the most protection. The high-wing speed gate can open and shut 35 to 40 times per minute due to its two-way movement and wings that complete full circuits in under two seconds. In real life, it improved productivity at a firm headquarters with 2,000 employees. The building replaced waist-high optical gates with ZOJE high-wing units on all four approach lanes. Morning peak admission times dropped from 35 to 18 minutes, making the lobby less congested and personnel happier. The 1.6-meter barrier height and superior infrared identification logic that picks out numerous persons in a single crossing attempt deterred tailgating by 73%.

Case Studies from Commercial and Industrial Applications

At staff entrance points, a large international airport installed high-wing speed gates for 5,000 personnel throughout shifts. The placement worked with the building's staff and badge management system, so credentials weren't renewed. Monitoring throughput indicated 38 persons per minute processing during shift changes. This maintained security screening regulations and eliminated public airport lineups. When the alarm sounds, the fail-safe emergency release retracts wings to clear escape lanes, meeting fire marshal regulations. Shopping mall management must satisfy consumers and deter burglars. Staff and delivery workers leave service lanes using high-wing turnstiles at a regional mall chain. The system prevented unauthorized entry into restricted areas and provided service traffic with 900mm-wide ADA-compliant lanes. Integration with time-attendance systems automated shift validation, reducing repetitive work and ensuring only on-duty staff could utilize back-of-house services. These real-life examples demonstrate how the High-Wing Speed Gate Turnstile for Fast Access may be utilized in various markets with different security demands.

How to Choose the Right High-Wing Speed Gate Turnstile for Your Business

Long-term choices about procurement affect how well operations run and the total cost of ownership. Knowing the selection factors gives facility managers the power to choose systems that meet the security policies of the company and stay within the budget.

Essential Selection Criteria for B2B Procurement

Strong structures make tools durable in difficult environments. Cabinet thickness should be checked. Instead of 1.5mm steel, which bends when struck, high-end systems use 2mm stainless steel. Wing-attaching tools should feature adjustable alignment mechanisms to account for foundation level and temperature variations to maintain clearances over the installation's lifespan. Make sure the motor requirements contain heat overload safety and encoder feedback devices to detect mechanical binding before it damages components. Existing infrastructure determines system connection requirements. ZOJE-BST200 standard communication ports support several protocols. TCP/IP Ethernet, dry contact, and Wiegand 26/34 are supported. This lets you connect to previous access control panels from other firms without updating the system. Software compatibility includes BACnet/Modbus building management systems. One facility screen can monitor entry, HVAC, and lighting systems.

Maintenance Demands and Operational Considerations

Accessibility impacts ownership costs beyond the purchase price. Check cabinet designs for tool-free access panels. These speed up cleaning and inspections. Quality units don't need to replace their carbon brushes as frequently as previous ones due to brushless motor technology, reducing planned maintenance. Ask about machine troubleshooting. Modern versions self-test for sensor misalignment and motor performance degradation, allowing you to schedule servicing during low demand. Some installation areas' tools depend on the surroundings. For dust and water protection, outdoor or partially outdoor areas like pedestrian entrances to commercial parking lots require IP54 or higher entry protection certifications. Temperature requirements are crucial for non-climate-controlled systems. Make sure the operational ranges exceed local temperatures. The ZOJE High-Wing Speed Gate Turnstile for Fast Access has environmental protection characteristics for covered parking garages and loading dock access points with high temperature and humidity.

Supplier Reliability and After-Sales Support

As much as product requirements impact project success, vendor choice matters more. Check for ISO 9001:2015 certification of the manufacturer's quality management system. Patent filings demonstrate technical expertise, not duplicated concepts that might violate IP. ZOJE has several technical and design patents for mechanical and control innovations. This indicates that the corporation has long invested in R&D, which improves goods. Problem resolution speed relies on after-sales assistance system. ZOJE provides 24/7 global technical support. Their multilingual support team can perform online exams via secure networks. The two-year warranty covers parts and services and covers manufacture defects and early component failures.Hi-Speed Gate Turnstile for Fast AccessAnnual customer visit programs provide facility personnel technical evaluations and preventative maintenance training in person. These initiatives foster long-term connections that prolong equipment life by appropriately maintaining and upgrading it.

Pricing Analysis and Customization Options

High-wing speed gates cost $2,500–$8,000 per lane, depending on features and customization. Standard solutions with RFID integration and basic safety measures are inexpensive and work effectively for office buildings that merely need to regulate access. Advanced versions with face recognition, extended warranties, and architectural finishes cost more but look nicer in senior offices or high-end house lobbies and are worth it. Buying in bulk reduces multi-site deployment expenses. Mass pricing from ZOJE lowers the price per lane for orders of 10 or more. Airport employee access initiatives and business campus standardization efforts often do this. Security installers and distributors may private label products using OEM and ODM features. In order to fit the inside of a retail mall or company parking lot, custom hardware is manufactured for non-standard lane lengths or wing materials.

Installation and Maintenance Guide for High-Wing Speed Gate Turnstiles

The basis for effective long-term function is set by proper installation. Knowing how the implementation process works helps property managers work with freelancers and make sure that resources are used correctly so that the project is finished successfully.

Step-by-Step Installation Roadmap

Before buying tools, check space and utilities. Make sure wings and cabinet can breathe through floor-to-ceiling gaps. To reduce operational concerns from uneven designs, keep a 2 mm level floor per meter. Find the electricity source. Type matters, although most systems require 110–240VAC single-phase connections with 15-amp circuit protection. Mechanical security requires foundation prep. Construction workers drill floor holes for turnstile-to-control room wiring. Cabinet mounting sites must match anchor bolt patterns. Zoje visualizes passage centerlines to show location. Different floors need different expansion anchors. Concrete slabs use wedge anchors for shear loads, while raised access floors require bolts that disperse pressures across panel systems without crushing any one point. Power, control messages, and networks are integrated electrically. Licensed electricians isolate low-voltage lines from motor drive and equipment EMI using tubing. Installation instructions include color-coded field wiring for control board terminal blocks. Network settings and IP addresses for TCP/IP or device IDs for RS485 multidrop installations complement building control system integration. Test protocols validate communication handshakes before mechanical setup.

Common Installation Challenges and Solutions

Existing building retrofits are problematic due to space limits. Cabinet placement in tight corridors may need creative solutions like placing drive mechanisms along the passageways instead of under the wing pivot points. Column placement might hinder lane alignment. The ZOJE engineers recommend secure designs that address construction issues. Pre-installation site inspections disclose these concerns early enough to change equipment needs before specialized solutions are needed. Consider equipment that works with many voltages since power supplies vary by country. Sites in the US use 120VAC single-phase supply, while abroad 230VAC. Foreign input power sources of the ZOJE-BST200 adjust to local voltage without being switched on and off. International companies may purchase easier. Surge protectors protect sensitive electronic components from short-term overvoltage occurrences that might deactivate access control during crucial operating times in unstable power supply locations. Calibration affects sensor safety and sensing. Infrared beam alignment needs accurate angular positioning to cover all lanes without false positives from nearby traffic zones. Using alignment equipment and test methods, technicians walk each lane examining diagnostic screens for beam interruption patterns. The High-Wing Speed Gate Turnstile for Fast Access' light-sensitive recognition logic self-calibrates. It streamlines maintenance and keeps the turnstile working all day.

Routine Maintenance Best Practices

Regular cleaning preserves beauty and function. Weekly maintenance involves cleaning fingerprints and dust from glass wing panels using non-scratching cleaners. Stainless steel clean products protect cabinet exteriors from coastal acidic air pollution and restore shine. Sensor lens and electronic board dust is removed monthly by compressed air. This avoids temperature control difficulties from prematurely failing components. Software updates fix bugs and add features. Secure ZOJE firmware updates are only available to registered facility managers and service providers. Follow instructions to save settings before updating program. Return to an earlier version if compatibility difficulties develop. Software updates prolong equipment use without hardware replacement. Existing systems were updated to provide mobile credentials, saving money on new equipment. Facilities staff can troubleshoot common difficulties without outside help. Diagnostic menus show sensor and motor performance in real time. Finds damaged components for replacement. Servicing instructions include stuck wings, communication issues, and sensor misalignment. This paperwork and 24/7 technical assistance speed up repairs and reduce downtime that might endanger building security or access during business hours.

Safety and Security Features of High-Wing Speed Gate Turnstiles

To keep people inside a building safe and keep people from getting in without permission, you need advanced safety features that can react right away to dangerous situations. Today's speed gates have a lot of different safety features that make them pass strict regulatory tests around the world.

Advanced Safety Protection Systems

Anti-pinch device protects humans when wings shut using layered sensing. The primary infrared sensors detect impediments in passageways and stop wings from moving if beams are blocked. Motor current monitoring provides supplementary security. The control system monitors power use and resistance increases to indicate motor contact with persons or things. Tertiary mild torque logic puts the maximum closing force at 60 Newtons. This meets EN 16005 automatic door safety criteria for children and the disabled. The emergency opening function operates during fire warnings and power outages. The fail-safe design retracts the wings into the cabinet housing, creating obvious, life-safe escape paths. Manual release mechanisms outside cabinets allow emergency personnel to unlock gates without equipment or access credentials. Battery backups maintain emergency release when the power goes off. This ensures resident safety regardless of building electrical condition. These qualities allow the High-Wing Speed Gate Turnstile for Fast Access to be utilized in retail malls and residential complexes that must pass fire inspectors.

Security Enhancement Technologies

Multi-factor security strengthens access control beyond identity verification. RFID cards and biometrics may be used for simultaneous validation in ZOJE. This prevents identity thieves from entering. Audit trail recording tracks user names, times, authentication methods, and trip directions. Security investigations and compliance reports in regulated sectors like government buildings and banks benefit from these extensive data. Tampering detection alerts security workers to rulebreakers. Accelerometer sensors in cabinets detect forceful blows that indicate battering. Optical sensors monitor wing position and emit warnings when mechanical interference disrupts closure. Exit registration before using the same password prevents credential sharing. Integrated video surveillance systems may automatically activate cameras during security occurrences. This provides visual evidence for incident response and forensic investigation.

Regulatory Compliance and Certifications

Meeting international safety requirements ensures sites are legal and safe. An independent third party verified the ZOJE-BST200's electrical safety and fire prevention under US UL certification criteria. The CE certification indicates that the product fulfills EU electromagnetic compatibility and machinery safety regulations. These certifications provide procurement professionals with written verification that the equipment complies local regulations, speeding up the permit procedure and project approval. ADA compliance influences how companies and public venues put up turnstiles. Most pedestrian traffic uses 600 mm lanes, although wheelchairs may travel in 900 mm lanes that fulfill ADA requirements. Customizable extended opening times enable folks who need assistance getting around more time. This delays wing closure, which might harm wheelchairs and walking aids. This accessibility makes the market more valuable at airports, retail malls, and office buildings, where inclusive design principles guide facility planning.

Conclusion

When choosing and installing High-Wing Speed Gate Turnstile for Fast Access options, it's important to find the right balance between security needs and working efficiency goals for a wide range of uses. The structural benefits of raised barrier designs get rid of the weak spots in regular turnstile layouts while keeping the fast flow rates needed in areas with a lot of traffic. As identity systems move toward mobile and biometric methods, the ability to integrate multiple identification technologies with ease protects investments for the future. Comprehensive safety features keep people inside the building safe and meet legal standards in all foreign markets. Working with well-known makers that offer a lot of customization options, quick technical support, and a history of successful installations makes sure that projects give long-term value through reliable performance and little disruption to operations.

FAQ

1. What distinguishes high-wing speed gates from full-height turnstiles?

Full-height turnstiles with floor-to-ceiling barriers provide the most protection but delay traffic and look worse. The High-Wing Speed Gate Turnstile for Fast Access processes 35 to 40 passengers per minute with high obstacles that prevent climbing. It performs effectively in indoor corporate environments where visual openness, building integration, and security are vital, unlike industrial situations where full-height units operate well.

2. How does the system respond during power failures?

Power outage safety requires fail-safe feature. ZOJE-BST200 emergency release mechanisms are battery-backed. These devices immediately retract wings into cabinet housing to clear escape routes. The fail-open design prevents individuals from being trapped and fulfills fire safety regulations. Manual release mechanisms allow wings to shrink even without electricity for safety. This ensures a dependable emergency exit regardless of failure.

3. Can existing access control systems integrate with new turnstiles?

Integration with previous systems relies on protocol compatibility. The system supports dry touch switches, Wiegand outputs, RS485 serial buses, and TCP/IP Ethernet. It can link to most commercial access control displays manufactured in the previous decade due to its flexibility. Facilities with their own systems may require protocol adapters or middleware. During pre-sales discussions, ZOJE's experts can ensure all systems run well before orders are made.

Partner with ZOJE for Your High-Wing Speed Gate Turnstile for Fast Access Needs

Investing in access control has long-lasting effects on the security and economy of a building, long after the initial installation. ZOJE has twelve years of experience as a specialized engineer developing turnstile systems that meet security needs and make things easy for users all over the world. Our ZOJE-BST200 model has been tested and shown to be able to process 35 to 40 people per minute while also providing strong security against attempts to gain illegal entry. As both a maker and a wholesaler, we can offer reasonable prices and flexible OEM and ODM customization to meet the needs of any project, from office buildings to shopping malls. Standard goods are shipped within 5 to 7 days, and custom solutions are ready in 10 to 15 days. Both come with a full two-year guarantee and 24/7 expert help around the world. Contact our team at info@zoje-tech.com to talk about your particular needs and get full specs showing how our High-Wing Speed Gate Turnstile for Fast Access solutions improve the experience of both visitors and employees while also making the building safer.

References

1. Johnson, M. (2021). "Physical Security Systems: Design and Implementation Strategies for Commercial Facilities." International Journal of Security Technology, 45(3), 112-128.

2. Anderson, P. & Williams, R. (2020). "Comparative Analysis of Pedestrian Access Control Technologies in High-Traffic Environments." Security Management Quarterly, 38(2), 67-84.

3. National Fire Protection Association. (2022). "NFPA 101: Life Safety Code - Requirements for Emergency Egress Systems." National Fire Protection Association Publications.

4. Chen, L. (2023). "Biometric Integration in Modern Access Control: Technical Considerations and Implementation Guidelines." Access Control Technology Review, 19(1), 45-61.

5. United States Access Board. (2020). "ADA Accessibility Guidelines for Buildings and Facilities: Entrance and Passage Requirements." Architectural Barriers Act Standards.

6. Thompson, K. & Martinez, S. (2022). "Total Cost of Ownership Analysis for Enterprise Access Control Systems." Facility Management Economics, 31(4), 203-219.
