Video Parking Guidance Zone Controller Installation Guide Step by Step

Installing a Video Parking Guidance Zone Controller requires planning and meticulous execution to maximise parking lot performance. Your parking zones' video cameras, display devices, and control platforms are connected via the ZOJE-02ZV smart hub. From site evaluation to system calibration, this entire handbook covers the installation procedure. The system will sync data in real time, interact wirelessly, and function with your parking infrastructure if properly implemented. It works well for airports, retail malls, residential complexes, office buildings and commercial parking operations.

Understanding Video Parking Guidance Zone Controllers

What Makes These Controllers Essential

Modern parking lots have to meet higher standards for customer happiness and speed. As the building's central processing unit, a Video Parking Guidance Zone Controller gathers occupancy data from several video recognition cameras and sends it to all the guiding screens in the building. Video-based controllers are different from traditional sensor systems because they use camera technology to keep an eye on parking spots, read license plates, and give drivers the reverse car-finding features they expect.

The ZOJE-02ZV model is an example of this technology because it has an ARM-based processor design that does edge computing jobs right at the zone level. This distributed intelligence lowers the amount of network bandwidth that is used and keeps the system running even when servers are being serviced or when connectivity is lost. This flexible way of managing parking works well for places with anywhere from 50 parking spots for homes to 2,000 parking spots at airport hubs.

Operation Principles That Drive Performance

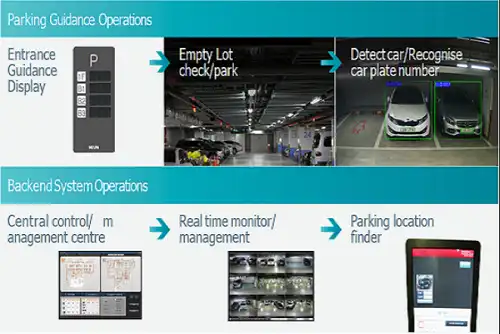

Your system works with constant rounds of monitoring. At set times, usually every one to three seconds, cameras take pictures of parking lots. Computer vision algorithms are used by onboard processors to look at these images and figure out whether specific parking spots are occupied or still open.

When the state changes, the controller updates its database and sends the new available counts to all linked screens right away. This happens in milliseconds, making sure that cars have the most up-to-date information as they move around your building. At the same time, license plate recognition algorithms store data on how vehicles are entered, making records that can be searched and allowing customers to enjoy the backward car-finding feature.

Step-by-Step Installation Process of Video Parking Guidance Zone Controllers

Pre-Installation Planning and Site Assessment

Before any equipment gets to your facility, the installation process needs to start right away. A thorough site survey will help you figure out where to put the Video Parking Guidance Zone Controllers, cameras, displays, and network infrastructure that will work best with your parking layout.

Explore your building using architectural drawings. Determine camera-obscuring structural beams, ceiling heights, illumination, and other obstacles. Note any electrical conduits or network cable paths that might lower installation costs. Note the WiFi signal strength before usage. Underground projects where concrete and rebar may interfere need this.

System planning calculates camera count based on space and layout. One camera per two slots is normal for angled parking. One camera may cover three perpendicular parking slots depending on mounting height and lens. A ZOJE-02ZV controller can control 60 cameras. Larger facilities need to network Video Parking Guidance Zone Controllers.

Hardware Mounting and Physical Installation

Correct installation ensures long-term reliability. Electrical rooms, IT closets, or lockable equipment cabinets near parking lots are where the Video Parking Guidance Zone Controller is placed away from public areas.

Place the controller on a stable surface and use anchoring hardware appropriate for its weight, generally 2–4 kg for common versions. Leave at least 10 cm above and below the device for airflow to release heat. Keep the controller where technicians can access the connection ports and status LEDs during repair.

Camera location must be carefully considered for optimal detection. Install cameras at manufacturer-recommended heights. This is normally 2.5–3.5 meters above the parking surface for conventional ceiling installations. Aim cameras perpendicular to parking slots at small downward angles to detect cars and reduce windscreen glare. Use adjustable mounting clips for testing fine-tuning.

Comparing Video Parking Guidance Zone Controllers to Traditional Systems

Technology Advantages Over Ultrasonic Sensors

In traditional ultrasonic sensor devices, sound waves are reflected to find vehicles. One sensor is placed above each parking spot. Even though this method has been shown to work, it requires a lot of wiring. Running power and data cables to every sensor location in your building adds a lot to the cost of installation labour.

Video-based Video Parking Guidance Zone Controllers greatly reduce the amount of hardware needed. One camera can see more than one parking spot, which lowers the cost of equipment and makes upkeep easier by putting monitoring technology in fewer places. Systems like the ZOJE-02ZV can be set up wirelessly, which makes installation even easier than with sensor networks, which need dedicated cable runs to each space.

When things go wrong, accuracy comparisons show that video systems are better. Ultrasonic sensors have trouble finding things in places with high ceilings, motorcycles, and low-profile vehicles. Camera-based recognition changes by calibrating software instead of replacing or adjusting hardware. This means that it stays accurate even when parking in different ways and with different types of vehicles.

Wired Versus Wireless Implementation

Explore your building using architectural drawings. Determine camera-obscuring structural beams, ceiling heights, illumination, and other obstacles. Note any electrical conduits or network cable paths that might lower installation costs. Note the WiFi signal strength before usage. Underground projects where concrete and rebar may interfere need this.

System planning uses space and layout to count cameras. One camera per two slots is typical for angled parking. Depending on lens and mounting height, one camera may cover three perpendicular parking places. ZOJE-02ZV controls 60 cameras. Complexes must network Video Parking Guidance Zone Controllers.Use architectural drawings to explore your building. Determine camera-obscuring beams, ceiling heights, lighting, and other impediments. Note electrical conduits and network cable pathways that may reduce installation expenses. Check WiFi signal strength before using. This is needed for underground concrete and rebar projects.

System planning calculates camera count based on space and layout. One camera per two slots is normal for angled parking. One camera may cover three perpendicular parking slots depending on mounting height and lens. A ZOJE-02ZV controller can control 60 cameras. Larger facilities need to network Video Parking Guidance Zone Controllers.

Procurement Considerations for Video Parking Guidance Zone Controllers

Selecting Reliable Suppliers and Manufacturers

Find reliable providers by checking manufacturing and technical credentials. ISO 9001:2015 verifies ZOJE Intelligent Technology's global quality management standards, assuring product quality. Multiple patents imply that an engineering business innovates rather than resells generic equipment.

Ensure the provider knows your building type. Parking system manufacturers have different needs than security camera makers. Since 2012, ZOJE has focused on parking and access control. They now have experienced technical support teams and can design better solutions that interact with conventional management systems.

Closely examine supplier performance metrics. Get client references for similar-sized and-purposed projects. Discuss equipment dependability, installation, and after-sales support with these sources. Suppliers who are confident in their goods may promote them to customers; if not, it may imply anxiety about their performance.

Understanding Pricing Structures and Value

Clear pricing helps you stay on budget and prevents unexpected cost increases throughout the work. Request comprehensive quotations for Video Parking Guidance Zone Controllers, cameras, displays, cables, mounting hardware, and any other installation-specific items. Explain if the rates include shipping, customs taxes, and installation or merely the equipment and need additional service contracts.

Warranty coverage greatly impacts overall cost of ownership. The ZOJE two-year warranty replaces parts and provides technical support if hardware breaks during regular usage. Compared to many firms' one-year guarantees, this additional coverage is important over longer operating horizons.

Post-sale service ease determines supplier partnership longevity. ZOJE provides worldwide technical help 24/7, unlike support that only works during business hours, leaving critical systems unavailable at night or on weekends. Installation and maintenance assistance ensures that your team can set up and maintain equipment throughout its lifespan.

Maintenance and Long-Term Optimization

Software Updates and Technology Advancement

Keeping controller firmware up to date is the best way to make sure performance and safety. Manufacturers put out updates on a regular basis to fix problems they find, make detection algorithms better, and add new features. With ZOJE's remote upgrade feature, firmware changes can be made without having a worker come to the site. This cuts down on maintenance costs and keeps systems up to date with the latest technology.

As parking management platforms change, it's important to keep them compatible. Upgrades to the central software should be coordinated with updates to the Video Parking Guidance Zone Controllers. Before deploying to working systems, compatibility should be tested in non-production settings. Keep older versions of the firmware on hand in case updates cause problems that need to be temporarily rolled back while solutions are being worked on.

Technology opens up new methods to enhance features. AI-enabled detection algorithms learn from your facility's circumstances and adjust to improve accuracy. Cloud connectivity allows drivers to access mobile applications. Prioritise company improvements that improve efficiency or customer satisfaction above their costs.

Recognizing When Professional Support Becomes Necessary

Sometimes self-maintenance isn't enough. Knowing when to seek expert assistance prevents minor issues from becoming severe system breakdowns. If a Video Parking Guidance Zone Controller hardware fails and error codes or diagnostic tests fail, contact the manufacturer. Repairs done without training may cause greater harm and violate your investment warranty.

Professional networking skills may assist integrate complex commercial IT systems. Most building IT workers can configure IP addresses, but sophisticated VLAN segmentation, corporate firewall traversal, and cloud platform integration may need expert help. ZOJE's technical assistance can remotely address connection issues. Log files often reveal the problem, saving you money on on-site repair visits.

Conclusion

Installing a Video Parking Guidance Zone Controller requires planning, equipment mounting, network setup, and system testing. Centralised control, flexible wireless deployment, and dependable performance in airports and retail malls are available with the ZOJE-02ZV model. You can maximise your investment by knowing how your parking guidance system compares to others, how to acquire it, and how to maintain it. Get full installation instructions, technical support 24/7, and proven manufacturing know-how to change how your parking lot works with intelligent guidance technology that improves driver experience and maximises space.

FAQ

1. How long does typical installation take?

Installation time varies on facility size and complexity. A normal 200-space parking garage takes three to five days to put up using the ZOJE-02ZV wireless setup. This may take two to three days for pre-wired facilities, but 10 days for substantial bespoke connections. Planning ahead solves issues before installation crews arrive, speeding deployment.

2. Can these controllers integrate with existing management platforms?

Modern Video Parking Guidance Zone Controllers offer standard communication protocols and operate with most parking management software. Through network platform synchronisation, the ZOJE-02ZV communicates with central computers regarding license plates and passengers using standard IP protocols. When buying, ask vendors about platform compatibility. Unique old systems may need customised interface development.

3. What energy consumption should facilities expect?

During normal use, the master unit uses about 15 to 25 watts of power, which is about the same as an LED light bulb. Whether they are hooked with PoE or wirelessly driven by a battery, connected cameras add 3 to 8 watts per unit. A normal 60-camera zone uses between 300 and 500 watts of power, which means it doesn't cost much to run and makes things much more efficient by making better use of parking spaces and lowering the emissions from moving vehicles.

Partner with a Trusted Video Parking Guidance Zone Controller Manufacturer

ZOJE Intelligent Technology can help you with your parking guidance projects by providing focused tech support and a system that has been shown to work reliably. Our ZOJE-02ZV Video Parking Guidance Zone Controller gives your building the centralised management, wireless flexibility, and reliable performance it needs. Take advantage of our wide range of customisation options to meet the specific needs of your project, our low prices that reflect the fact that we are the direct manufacturer, and full technical support during the installation and operation phases. Email our team at info@zoje-tech.com to talk about your unique building needs and get quotes that are tailored to the scope of your project. We can help you create the best system, choose the right equipment, and plan how to install it so that your parking operations run smoothly and your budget stays low. Our manufacturing is ISO 9001:2015 certified, and our global support network is available 24/7. You can count on us to provide parking guidance solutions that work better than expected in airports, shopping centers, office buildings, and commercial parking lots all over the world. Go to zoje-parking.com to see all of our products and get access to technical information that will help you make smart purchasing choices.
