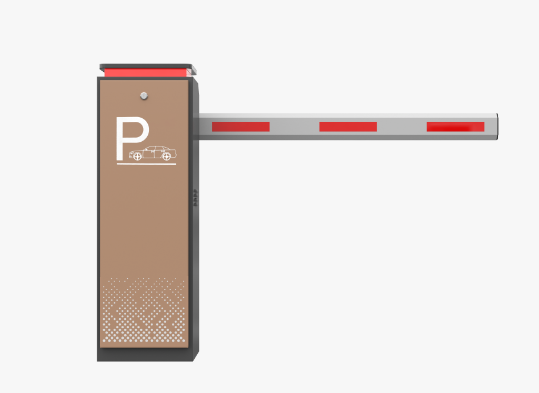

High Speed Parking Barrier

High Speed Parking Barrier

1.Type: Boom Barriers Gate
2.Cabinet material: Cold rolled stee
3.Working Temperature: -30°C~+70°C,
4.Open/close Speed:1.5s-8s
5.Rated Power:200W
6.Driving Method:DC 24V,Brushless Motor
7.Remote Control Distance:≤100m(open,sunny weather)
8.Max
9.Boom Length:Single / bidirectional
10.Power Supply: AC110-230V,50/60Hz
11.LED indicator: Yes
12.Bi-direction main shaft:LEFT or RIGHT
13.Optional:
1)Cabinet Material: 316/304 stainless steel
2)Motro: Brushless motor / Servo motor
3)Arm length: Max 8m
14.Protection Grade: Auto open
15.Water Proof: IP 54
16.Access control: Can be integrated with any kind of access control
17.MTBF: 10million
  • Face to Face Discussion
  • Quality Assurance
  • 24/7 Customer Service

Product Introduction

High Speed Parking Barrier for Parking Lots — Fast, Reliable, and Built for High-Traffic Sites

Vehicle access control at parking entrances and exits is what the High Speed Parking Barrier handles. Hong Kong ZOJE Intelligent Technology Co., Ltd. makes this automated boom gate. A DC 24V brushless motor rated at 200W drives it. Open and close speed runs from 1.5s to 8s, arm lengths reach 8m, and the unit is rated for up to 10 million cycles (MTBF). The cabinet is cold-rolled steel and carries an IP54 rating. It works from -30°C to +70°C. LPR cameras, RFID readers, and ticket dispensers all connect to it.

What Makes This Barrier Gate Different

Slow gates, mechanical failures, and manual checks at parking entry points create real delays — especially during peak hours when queues form quickly.

Those pressures get a direct answer here. The motor is brushless DC and the speed settings are adjustable, so the arm can open in as little as 1.5 seconds. Queues of vehicles shrink, and safety does not suffer. Closing speed is set separately. A slower close cycle lowers the risk of tailgating, and throughput stays high.

Commercial and industrial sites run around the clock, and the 10-million-cycle MTBF rating shows the durability that kind of duty calls for. Conventional gates use an AC motor. This brushless design gives off less heat and wears less over long service periods.

Key Features

Adjustable Speed for Any Site

The control board lets you set the opening speed and the closing speed on their own. Any value from 1.5s to 8s will work. Let the gate open quickly, then have it close more slowly. That lowers the risk of tailgating. Lane throughput does not change.

Wide Temperature Range

The cabinet is rated IP54. Rain will not get in, and dust will not either. Direct sunlight is fine too. Working range runs from -30°C to +70°C. Car parks in cold climates and hot outdoor lots both fall inside it.

Flexible Motor Options

Most commercial applications do well with a brushless motor. Some sites need tighter torque precision and smoother movement cycles. For those, a servo motor option is available.

Long Arm Capability

Arm lengths go up to 8m. That length covers High Speed Parking Barrier for wide-lane entrances at logistics facilities. Commercial car parks and gated communities work as well. No extra infrastructure is required.

Access Control Ready

The gate connects to license plate recognition (LPR) systems. RFID long-range readers and ticket dispensers work with it too. Third-party access control platforms hook in through standard interfaces.

Where This Barrier Gate Is Used

  • Commercial parking lots: automated entry and exit control paired with payment or ticketing systems
  • Residential communities: restrict unauthorized vehicle access via RFID or LPR integration
  • Corporate and office campuses: manage employee and visitor vehicle flow
  • Logistics and warehouse facilities: accommodate wide vehicle lanes with arms up to 8m
  • Hotels and shopping malls: high-throughput entry points where consistent gate speed reduces queue buildup

Quality Control and Durability

Before any unit ships, it goes through a quality control process with several stages. Nonstop open/close aging cycles put the motor and the gearbox to the test. That check shows there is no overheating or mechanical degradation when the load never lets up.

The spring balance gets checked during calibration. With power cut, the arm should stay put at a 45-degree angle. That way gravity cannot pull it down onto vehicles passing underneath.

Testers also check the auto-reverse safety feature. Push the boom against something and it must swing back once the resistance stays under a set impact threshold. Should an obstruction appear out of nowhere, this lowers the chance of harm to cars or people on foot.

Customization and OEM/ODM Options for High Speed Parking Barrier

Hardware and software can both be customized by ZOJE to suit the needs of a given project. The options on offer are:

  • Cabinet material: 304 or 316 stainless steel. Both grades hold up well at coastal sites, and anywhere else rust is a worry
  • Motor type: a servo motor when the job calls for more precision
  • Arm configuration: Single or bidirectional, up to 8m
  • Software integration: Custom access control logic and third-party system compatibility

Distributors and system integrators can work with us on OEM and ODM terms. Standard products ship in 5–7 days. Customized orders take 10–15 days.

Warranty and Logistics

Every unit comes with a 2-year warranty. Setup help is given remotely as well, so commissioning is easier to get through.

You can ship by sea or by air. DDU (Delivered Duty Unpaid) and DDP (Delivered Duty Paid) terms both work, so pick whichever one matches your High Speed Parking Barrier import rules.

FAQ

Q: Can I adjust the opening and closing speed separately?

A: Yes. Speed settings for opening and closing are configured independently via the control board. A common configuration is a fast open cycle of 1.5s to minimize vehicle queuing and a slower close cycle of 3s or more for added safety.

Q: What access control systems does this barrier integrate with?

A: LPR cameras hook up to the gate. So do RFID long-range readers, ticket dispensers, and intercom systems. All of it runs over standard interfaces. That covers plain entry control as well as setups where parking is managed in several layers.

Q: A vehicle hits the boom arm. What then?

A: You can swap the boom arm out. It is built to take the hit first, before any force reaches the motor or the gearbox. On a heavy impact, a swing-out holder lets go. That keeps damage inside the unit down and shrinks the repair job.

Q: Can the unit still work once the weather turns very cold?

A: Yes. Running range is -30°C to +70°C. The joints come with sealed bearings and low-temperature grease, which keeps performance steady in the cold. Need extra protection? You can add a cabinet heating module as an option.

Q: How long does delivery take?

A: Standard products ship in 5–7 days. Customized configurations — such as stainless steel cabinets or servo motor upgrades — require 10–15 days.

Q: What routine maintenance does the barrier gate require?

A: Check the elbow joint and linkage rod every six months for tightness and lubrication. The brushless motor and 10-million-cycle MTBF rating of this this product mean maintenance intervals are longer than those of conventional AC-motor gates.
