What Is Glass Full-Height Turnstile? Structure & Uses

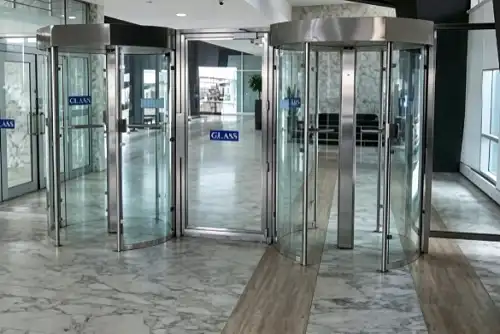

You probably notice an AB-Type Glass Full-Height Turnstile for Access Control when you enter a secure facility and observe a sleek, transparent barrier that regulates entry precisely. This sophisticated access control system employs toughened glass panels and robust stainless steel frames to keep unauthorized individuals out while looking attractive. These glass barriers use "AB-door" logic, thus Door A must close completely before Door B opens, unlike metal turnstiles. This secure vestibule isolates users while credentials are verified, eliminating tailgating dangers in high-security environments.

Understanding Glass Full-Height Turnstiles

What Defines a Full-Height Glass Turnstile

Full-height glass gates demonstrate how physical security equipment has evolved. Clear toughened or laminated safety glass screens fill the vertical space from floor to ceiling in these systems. This prevents climbing and crawling. Security experts call the AB-style safe space a "mantrap" or "airlock" since only one person may enter at a time. This concept solves crucial security flaws in waist-high optical turnstiles and tripod barriers.

Core Structural Components

These turnstiles need several designed pieces to remain stable. Heavy-gauge AISI 304 stainless steel housing is the basis. Upgrade to 316-grade stainless steel for coastal or corrosive situations. Tempered safety glass that satisfies EN12600 impact protection criteria is 10–12 mm thick. The rotating mechanism uses high-precision brushless DC servo motors and planetary gears to rotate the glass wing smoothly. Time-of-Flight cameras and infrared beam arrays on advanced sensor grids can detect unauthorized entry attempts.

The control box's powerful PCB processors handle several modes. These systems' security mode is "Normally Closed". "Free Passage" is limited during peak hours, while "AB Interlock" is the toughest option for high-security places. RS485 and TCP/IP connectivity allow easy integration with building control systems and centralized security platforms.

How the AB-Type Interlocking Mechanism Works

The AB-Type Glass Full-Height Turnstile for Access Control is clever because of consecutive door logic. A qualified user displays their ID at the door, and the system verifies for authorization before lowering the first barrier. When someone enters the safe vestibule, Door A locks and closes instantly. A second check ensures that there is only one person in the area. Before opening Door B, weight sensors or volumetric recognition verify that the compartment is empty. This step normally takes 0.5 seconds, ensuring security without severe delays.

In an emergency, the fail-safe mechanism takes control. In response to a fire warning signal or emergency evacuation order, both security checkpoint barriers slide back or open simultaneously, clearing the escape path. Building managers must consider how to balance security and life safety code requirements with this functionality.

Benefits and Applications of AB-Type Glass Full-Height Turnstiles

Superior Security Features That Matter

Glass full-height turnstiles provide security beyond physical constraints. Due to the difficulty of simultaneous entry in a narrow doorway, anti-tailgating accuracy is nearly flawless. Infrared sensor grids provide invisible detection zones. These zones detect oddities like crawling beneath, jumping over, or pushing two persons through the passage at once. After infractions, the system locks down and alerts security professionals via built-in alarms.

Security is enhanced by the stop alarm. If doors stay open longer than 5–10 seconds, the system suspects a break-in. Unauthorised people can't "doorpropping" entrance controls by jamming systems. The feature prevents them. Anti-climb floor-to-ceiling covering eliminates weak places in shorter walls where criminals may climb over.

Ideal Application Environments

These advanced entrance control systems are employed in places where security breaches might be disastrous:

• Shopping Malls and Retail Centers: Glass turnstiles limit access to premium sections, VIP lounges, and closed back-of-house areas. The translucent design maintains retail spaces open and pleasant while preventing unauthorized access to cash handling and inventory storage locations. The sleek appearance is what customers expect from a luxury brand without fortress-like barriers that can deter shoppers.
• Airport Terminals and Transit Hubs: Aviation facilities must be assessed for particular security needs before entering secure zones beyond TSA gates. Only employees may access the runway, luggage handling systems, and some operations areas through glass full-height turnstiles. The short 0.5-second passing time supports high personnel flow during shift changes without compromising security. Integrating biometric records with airport identification systems restricts access to critical places.
• Residential Complexes and Gated Communities: These systems regulate access to buildings, facilities, and parking lots in luxury residential projects. Residents prefer the clean design, which boosts property value, while management loves tracking visits and entry data. The solutions function well with resident smartphone keys, temporary visitor credentials, and delivery personnel access.
• Office Buildings and Corporate Campuses: The AB-Type Glass Full-Height Turnstile for Access Control protects higher floors, R&D facilities, and data center boundaries in office buildings and corporate campuses. The straightforward design maintains a Class-A office's professionalism while providing government-level protection. Connecting personnel credential, visitor control, and emergency evacuation systems creates a security ecosystem.
• Commercial Parking Facilities: These turnstiles manage access from parking levels to building lobbys in multi-level garages. The floor-to-ceiling architecture prevents "piggybacking," when illicit vehicles follow authorized automobiles and enter buildings through walkways. People enter the building after parking permits are checked. This additional security protects autos and building residents.

Sustainability and Energy Efficiency

Energy-efficient parts reduce running expenses in modern glass turnstiles. Brushless DC motors regulate force more efficiently than AC motors while requiring less electricity. LED status signals have replaced incandescent lights, and smart standby modes save electricity when not in use. Its durability reduces material loss by requiring fewer replacements. Since transparent glass screens let in the most natural light, entrance vestibules need less artificial lighting. These characteristics meet LEED certification standards and business green commitments, making them enticing to environmentally conscious firms.

Installation and Maintenance Guidelines

Site Preparation and Installation Requirements

A thorough site inspection precedes a successful installation. The gate (300–500 kg) and individuals using it must be supported by the floor. This is commonly done using 200-mm-thick reinforced concrete. Electrical infrastructure requires dedicated 220V AC circuits with correct grounding, however certain kinds may function with 110V systems used in North American structures. Managers can remotely operate PCs and link to central security systems via CAT6 Ethernet cable.

Most installations require 2200mm of ceiling space, 1200mm to 1500mm width, and 1500mm depth. Place items carefully near other construction parts. Allowing appropriate space between walls, columns, and perpendicular passages improves traffic flow and satisfies accessibility code requirements. Because even a slight misalignment might cause the base unit to perform less smoothly or wear out parts quicker, professionals level it to specific standards.

Routine Maintenance Protocols

Systematic repairs are essential for optimal performance. Regularly cleaning glass screens with non-abrasive solutions maintains their clarity and appearance. To prevent corrosion and keep stainless steel frames shiny, use specific cleaners regularly. Mechanical items such motor brushes, drive belts, and shaft oil should be examined every three months. Sensor systems must be calibrated to maintain their detection accuracy.

Software maintenance includes security fixes and feature additions. Monthly system checks should detect issues before they become active. Daily access log analysis might reveal security vulnerabilities or operational improvements. Battery backup systems should be evaluated annually to ensure they perform during power outages and maintain security.

Manufacturers recommend professional service calls every six months as part of a maintenance plan. During these rigorous checkups, worn parts are replaced, electrical safety is evaluated, and system settings are adjusted to meet evolving security demands. Preventive maintenance extends equipment life and reduces costly emergency repairs.

Comparing AB-Type Glass Full-Height Turnstiles with Other Solutions

Glass Versus Stainless Steel Full-Height Turnstiles

Material choice affects appearance and safety. Traditional stainless steel cage turnstiles are durable in severe environments. Vandalism doesn't affect them, and they just require oiling sometimes. However, its industrial style might clash with current architectural design ideals, creating fortress-like looks that aren't welcome in top building halls.

Clear glass turnstiles let security personnel see. Their design is contemporary and trendy. Clear walls reduce psychological resistance to metal cages. Properly constructed glass systems provide the same anti-tailgating effectiveness while blending in. For budget-conscious tasks, stainless steel is superior. Glass systems boost brand image and property value, justifying higher charges.

Full-Height Versus Half-Height Turnstiles

Height setup is a basic protection trade-off. Half-height or waist-level optical turnstiles are cheaper, smaller, and process 30–40 persons per minute, compared to 6–8 for full-height devices. They perform successfully in settings with lax security and a focus on intimidation rather than avoidance. However, determined assailants can jump, crawl, or shove through these devices.

Full-height shields cover the wall from top to bottom, eliminating these vulnerabilities. Instead of frightening people away, the AB-Type Glass Full-Height Turnstile for Access Control makes it literally impossible to pass. This is crucial for high-security sites where breaking in is risky. The slower throughput must balance security and comfort based on the building's risk profile and traffic patterns.

Integration Capabilities Across Systems

Modern entrance control systems must operate seamlessly. Glass full-height turnstiles accept proximity RFID cards, mobile smartphone credentials, biometric fingerprint readers, facial recognition systems, and iris scanners. The controlled entrance setting is ideal for biometric verification since users don't move during the brief period needed for accurate reading, unlike walk-through circumstances where motion affects accuracy.

Access regulations might be complicated with building control systems. Time-based constraints govern work and off-hours access. Integration with visitor management systems creates temporary credentials that expire after the appointment. Emergency integration swiftly lifts barriers regardless of access control state when an emergency alert sounds. It satisfies life safety criteria.

Procurement Guide for AB-Type Glass Full-Height Turnstiles

Evaluating Manufacturer Credentials

Finding a reliable turnstile supplier requires much study. ISO 9001:2015 accreditation indicates quality control systems have been in place for a time and ensure manufacturing requirements are fulfilled. Patent filings demonstrate original concepts, not replicated designs that might violate IP. Client testimonials and example projects demonstrate a provider's real-world performance and reliability. Companies with extensive technical teams may customize conventional items for each region.

Making anything determines its quality and consistency. In-house suppliers have higher quality control than outsourced suppliers. Modern CNC machining centers, precision glass cutting tools, and automated assembly lines indicate quality. Testing facilities against worldwide standards for impact resistance, motor endurance, and sensor accuracy ensure that product specs match reality.

Understanding Lead Times and Logistics

Global buying times vary by product customization. Standard configurations with popular finishes ship in 5–7 business days for urgent requirements. Custom glass sizes, coatings, and branding require 10–15 days lead time. Phased delivery schedules that match building milestones enable big deployments with multiple units avoid tool failure and boost installation crew productivity.

A transportation professional must handle international shipments. Sea freight is cheaper for large purchases, but delivery might take six weeks depending on the port. Air freight is faster (5–10 days) but more costly. DDU conditions require purchasers to clear customs, thus they must know import restrictions. DDP agreements simplify buying because sellers handle tariffs and customs. However, this convenience costs more.

After-Sales Support and Warranty Considerations

Premium vendors provide comprehensive after-sales support, unlike commodity dealers. Two-year warranties for manufacturing and component failures provide minimal security. Buyers should distinguish between ordinary wear and warranty-covered breakdowns. Technical support is accessible 24/7 via many techniques to resolve issues swiftly. Remote diagnostics lets experts fix systems online in 30 minutes without visiting the location.

Lifelong maintenance agreements guarantee parts availability for the product's lifespan. It prevents places from dealing with outmoded equipment issues. Suppliers who provide OEM and ODM modification can adapt their products to new demands. Project-specific solutions that address design constraints or security demands distinguish capable partners from inflexible product marketers.

Conclusion

AB-Type Glass Full-Height Turnstile for Access Control solutions represent one of the most effective building access control systems available today. Glass full-height turnstiles are the greatest building access control nowadays. Their clever AB-type connection mechanisms make them secure and stylish. These high-tech technologies eliminate camping flaws while retaining modern facility charm. Their 0.5-second passing speed balances security and efficiency, making them handy at corporate offices and transportation hubs. Installation and upkeep according to the manufacturer's instructions will provide decades of use. Choose vendors with established technical capabilities, a robust support system, and product modifications for the greatest long-term security investment when selecting an AB-Type Glass Full-Height Turnstile for Access Control.

FAQ

1. How does the turnstile respond during fire emergencies?

Safety is the first priority when building an entrance control system. An integrated fire alarm system triggers the AB-Type Glass Full-Height Turnstile for Access Control to fail-safe. Electronic locks quickly unlock, and glass wings either shrink completely or may be pushed, creating clear escape routes. Thanks to battery backups, this emergency bypass functions even without electricity. This allows people to leave safely if the electricity goes out. The strategy fulfills international life safety criteria by prioritizing safety above security in emergencies.

What throughput speed can facilities expect?

Because to the AB-type interlocking design's conscious single-person verification procedure, regular working circumstances enable 6–8 persons per minute flow. This pace is slower than optical speed gates, which can accommodate 30–40 people per minute, but security weighs against simplicity. The 0.5-second passing time per person reduces waits, however during rush hour, facilities may need more than one lane. This makes these systems better for limited access points than busy public entrances.

Can the system integrate with existing biometric access control?

These turnstiles are in a shielded doorway, making biometric integration easy. Users remain in the restricted area during credential checks. This allows accurate fingerprint, face, and iris recognition. It supports all major biometric techniques and has standard interfaces for easy access control database integration. The short separation interval allows high-accuracy biometric matching before the exit barrier is lowered. This makes verification more dependable than walk-throughs, where motion can reduce scanner accuracy.

Secure Your Facility with ZOJE's Premium Glass Turnstile Solutions

Choosing the best glass full-height gate maker affects building safety and efficiency. Shenzhen-based ZOJE Intelligent Technology was formed in 2012. It has over 10 years of expertise developing and installing pedestrian entrance systems. Our AB glass full-height turnstiles are secure and elegant thanks to premium tempered safety glass and precision-engineered stainless steel 304 frames. The innovative interlocking mechanism eliminates wait times and prevents tailgating by allowing one person to pass in 0.5 seconds.

Our professional engineers provide complete customisation as an ISO 9001:2015-approved vendor. If you require unique glass sizes for building integration, brand-matching finishes, or security sensor installations, our OEM and ODM services can help. Our industry-leading 2-year guarantee covers every machine, and we offer experienced assistance worldwide 24 hours a day, 7 days a week, with 30-minute remote response times. Our flexible operations accommodate DDU and DDP terms, making it simpler for US retail malls, airports, apartment complexes, office buildings, and commercial parking lots to acquire foreign goods.

ZOJE offers goods and long-term success. We meet with customers once a year to discuss their evolving requirements and offer advise. We provide lifelong maintenance to ensure your tools' parts remain available. Our technical team can provide a customized quotation by emailing info@zoje-tech.com. Discover why site managers worldwide chose ZOJE as their leading seller of high-security AB-Type Glass Full-Height Turnstile for Access Control.

References

1. Smith, J. & Anderson, K. (2021). Modern Physical Security Systems: Design and Implementation. Security Press International.

2. International Organization for Standardization. (2020). Building Construction: Safety Glass Specifications for Access Control Applications. ISO Technical Report 15836.

3. Thompson, R. (2022). "Comparative Analysis of Full-Height Turnstile Technologies in High-Security Environments." Journal of Security Engineering, 18(3), 245-267.

4. National Fire Protection Association. (2019). Life Safety Code: Emergency Egress Requirements for Access Control Barriers. NFPA Publication 101.

5. Chen, L., Martinez, P., & Williams, D. (2023). "Energy Efficiency in Modern Access Control: Brushless Motor Applications." Building Systems Technology Review, 41(2), 112-128.

6. Association of Physical Security Professionals. (2022). Best Practices for Turnstile Selection and Deployment in Commercial Facilities. APSP Guidelines Document 2022-07.
