LED parking guidance screen: the future of intelligent parking

These days, parking needs smarter solutions that make things easier for drivers and make the building work better. The core of smart parking systems is a Parking Guidance led Display Screen, which provides real-time information about open spots at key decision points throughout parking lots. These high-tech display systems work perfectly with sensor networks and management platforms. They change how drivers find open parking spots and help facility managers make more money in places like airports, shopping malls, office buildings, and city parking lots.

Understanding LED Parking Guidance Screens

What Defines Modern Parking Display Technology

Drivers and smart parking systems may communicate visually via Parking Guidance led Display Screens. Unlike static signs, these networked electronic devices communicate directly with data concentrators and central administration servers. The technique converts complex ultrasonic, geomagnetic, and video sensor data into real-time visual information using high-intensity LED grid panels.

The design has interwoven pieces that operate together. Sensors monitor each parking place for occupancy. Communication modules use RS485 or TCP/IP to send this data to processing units that calculate real-time availability. Then, the monitor displays display this data using simple visuals like directed arrows, numerical vacancy counts, and colour-coded condition indicators that drivers can comprehend from various distances and approach angles.

Indoor Versus Outdoor Display Variants

Most of the time, indoor guidance screens work in controlled settings with average lighting. With SMD LED technology and pixel pitches between P2.5 and P6, these units need to be bright enough to read 800 to 1,500 nits. The enclosures keep out dust while focusing on being light enough for installations in suspended ceilings, unlike the Parking Guidance led Display Screen, which requires higher brightness and robust weatherproofing.

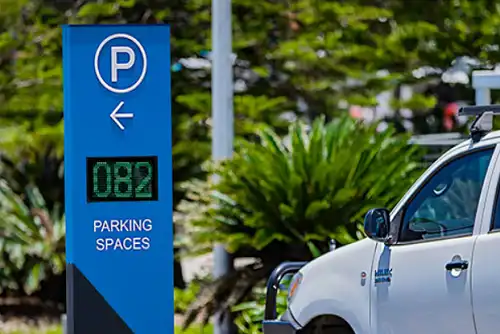

Outdoor entry screens face harsher weather. These robust devices require brightness exceeding 5,500 nits to be seen in broad sunshine. Weather protection is improved using DIP LED technology with 10–16 pixel size. The ZOJE-3N-1 entry screen model illustrates this. The galvanised steel housing features an anti-UV coating, is waterproof up to IP65, and contains adaptive brightness sensors that adjust intensity dependent on ambient light. This eliminates nighttime glare and makes the screen easier to view throughout the day.

Core Technology Components

Modern Parking Guidance led Display Screens have industrial-grade connectivity that works with a number of different protocol standards. Through daisy-chain configurations, RS485 communication makes it possible to send data reliably up to 1,200 meters, which makes it perfect for large parking garages. TCP/IP connectivity gives facilities that already have Ethernet infrastructure more network options, and new LoRa wireless options let distributed parking networks communicate over several kilometres.

Technicians can replace individual LED modules, power supply units, or driving circuits without taking apart whole displays thanks to the modular design philosophy. This method cuts down on repair breaks and long-term costs by a large amount. Over-voltage, over-load, and short-circuit safety systems are put into more advanced units to keep them safe from electrical problems.

Key Benefits and Features of LED Parking Guidance Screens

Operational Efficiency Gains

In parking garages with more than one level, installing intelligent display systems cuts the time it takes to find a car by 35 to 50 percent. This huge gain comes from getting rid of "cruising," which is when cars circle through parking lots without looking. When drivers get accurate information about availability at entrance points and key decision intersections, they go straight to open areas instead of making traffic jams in areas that are already full.

Optimising traffic flow is more than just making things easier for drivers. Facility managers can now actively manage the inventory of available space, sending vehicles to areas that aren't being used and hiding empty spaces in areas that aren't as obvious. During peak hours, when traffic is strategically distributed to keep service levels acceptable throughout the building, this dynamic route feature is especially useful.

Enhanced Visibility Under All Conditions

The high-contrast red and green LED signals on a Parking Guidance led Display Screen are visible in many lighting conditions. Wide horizontal viewing angles, generally 120 to 140 degrees, allow for many viewing angles. Laser-cut designs and adjusted word sizes make the display viewable from afar, allowing drivers time to comprehend information and safely manoeuvre.

Weather resistance is crucial for outdoor use. Temperature adaptation devices address thermal expansion in various climates by working consistently from -20°C to +65°C. Photosensitive sensors control brightness to maximise visibility and maximise LED life by reducing power usage when light is scarce. These qualities maintain performance in hot summers, freezing winters, and salty coastal areas.

Integration With Smart Parking Platforms

Guidance displays are now nodes in parking management systems. Screens and key software platforms that collect data from various sensor networks are synchronised in real time. This link allows sophisticated features like predictive analytics that estimate hotel occupancy, dynamic pricing adjustments depending on demand, and mobile app booking before you arrive.

The ZOJE Parking Guidance led Display Screen enables customised language displays for international airport visitors and city residents. Programmable interfaces provide custom typefaces, moving text for emergency notifications, and off-peak advertising. Guide displays become communication tools that do more than assist users find their way.

Comparing Parking Guidance LED Displays: Making Informed Choices

LED Versus LCD Technology

When used in parking lots, Parking Guidance led Display Screens are clearly better than LCD alternatives. That being said, the biggest difference is the brightness, with LED technology being five to ten times brighter than similar LCD panels. This benefit is very useful when working outside or in places with a lot of natural light, where LCD screens become almost impossible to read.

LED options are also better because they last longer. The solid-state design can handle vibrations, changes in temperature, and environmental contaminants that hurt LCD performance. LED screens keep their colour accuracy and brightness over working lifespans of more than 100,000 hours, while LCD panels usually need to be replaced after 30,000 to 50,000 hours because the backlight breaks down and the panel gets old.

Modern Parking Guidance led Display Screens with PWM (Pulse Width Modulation) driving technology use 30% less power than similar LCD installations, according to comparisons of energy efficiency. This decrease directly leads to lower operational costs and less damage to the environment over long-term deployment periods. This makes LED the smartest choice for facilities that care most about total cost of ownership.

Selection Criteria for Procurement Professionals

How you choose the resolution and pixel size for a Parking Guidance led Display Screen depends on how far away you want to see the screen. With a P10 to P16 pixel pitch, entrance displays placed 20 to 50 meters away from coming cars work well, matching the cost of production with good clarity. Finer P6 to P8 configurations keep text sharp at closer ranges, which is good for interior directional signs that are seen from 5 to 15 meters away.

Communication system compatibility needs to be carefully thought through when building an infrastructure. For smooth network integration, buildings that already have building management systems may choose TCP/IP connectivity. RS485's long range and ability to work with electromagnetic pollution make it useful for large parking buildings that span long distances. By checking out the capabilities of current equipment before buying new ones, you can avoid expensive upgrades and make sure the system works at its best.

An analysis of energy use should include both the power needed for operations and the cooling needs. High-efficiency LED drivers make less heat, which could mean that you don't need to use active cooling, which makes maintenance more difficult. Asking for specifics on how much power is used at different brightness levels helps make accurate lifecycle cost estimates and meets the requirements for sustainability reporting that are becoming more and more important in commercial real estate development.

Procuring and Implementing LED Parking Guidance Screens

Assessing Project Requirements

Successful implementation begins with a comprehensive site investigation. Traffic pattern studies identify the key entrances, routes, and high-traffic areas. Peak use data displays when capacity is restricted and helps optimise Parking Guidance led Display Screen placement during peak demand.

The parking lot form affects system design. Multi-level buildings require hierarchical display systems with master totems at key entrances displaying floor area counts and subsidiary zone displays at ramp transitions and crossings. Surface lots may be deliberately situated so cars must select between parking lots. This ensures drivers have navigation information as needed.

Environmental studies determine weatherproofing needs. If coastal systems are to withstand corrosion, they must be salt spray-tested. Extreme temperature facilities demand greater operating range standards. Lower IP ratings may be possible in covered parking lots, lowering buying costs while still protecting against dust and wetness.

Supplier Evaluation and Selection

Working with skilled producers guarantees verified technology and dependable support. Established in 2012 and ISO 9001:2015 certified, ZOJE Intelligent Technology Co., Ltd. shows procurement staff what talents to concentrate on. They provide conventional products and project-specific solutions.

Manufacturing adaptability is a judgement criteria. Suppliers who can conduct OEM and ODM can suit proprietary and brand identity demands. ZOJE can be utilised with different parking management platforms and bespoke entry control systems since you can adjust the software and hardware, avoiding the issues of inflexible off-the-shelf products.

Delivery dates effect project planning and cost. Standard items are supplied in 5–7 days, making them ideal for fast-paced projects. Customised solutions take 10–15 days, giving project planners time to prepare complicated initiatives. Flexible shipping terms like DDU and DDP simplify overseas procurement by clarifying cost structures and import levies.

Installation Best Practices

The best viewing views and structural safety for a Parking Guidance led Display Screen are guaranteed by proper mounting. For entrance displays to work, they need foundations that can handle wind loads and vehicle impacts in areas with a lot of traffic. Adjustable mounting clamps allow for final placement changes during commissioning, which takes into account differences found in the site during installation.

Connecting hardware and setting up software are both parts of system integration. To keep the signal strong over long runs, RS485 networks need the right termination resistors and twisted-pair cabling. For TCP/IP connections, specialised VLANs separate parking system information from other network activity. This makes the connection safer and more reliable for communication.

Calibration procedures make sure that sensors and displays are correctly synchronising data. As part of the testing process, different occupancy situations should be simulated to make sure that screens update quickly when areas change from "occupied" to "available" states. Setting the right brightness levels for different lighting conditions makes sure that the screen can be read in all kinds of operational settings that come up throughout the day and throughout the year.

Maintenance and Lifecycle Management

Parking Guidance led Display Screens survive longer with regular maintenance. Monthly visual checks reveal physical degradation, damaged LEDs, and environmental pollutants that obscure visibility. Dust and dirt may be removed every three months using manufacturer-approved procedures without damaging LED surfaces or protective coatings.

Software upgrades provide functionality and solve security gaps in parking management systems. ZOJE offers 24/7 professional support. This reduces driver downtime by fixing operational issues fast. Remote diagnostics allow support professionals to resolve connection and display problems without visiting the site. This reduces response and service expenses.

Flexible design aids part replacement strategies. Maintaining extra LED modules, power supply, and communication cards enables you solve problems in hours rather than days. Reputable manufacturers like ZOJE provide two-year guarantees against early component failures and manufacturing problems. This reduces early operational financial risk for the organization.

Leading Brands and Suppliers of LED Parking Guidance Screens

Manufacturer Capabilities and Differentiation

Global business-to-business clients benefit from working with producers who can show they have a wide range of professional skills and service models that focus on the customer. The engineers at ZOJE have a lot of experience designing electronics and machines, which lets them come up with new ways to solve parking management problems as they arise. The company's commitment to technological progress and product differentiation is shown by the fact that it holds multiple patents.

Customisation is what sets industry stars apart from providers of basic goods. Because ZOJE has worked on foreign projects in a range of regulatory and operational settings, they have improved the ways they change their goods to meet the needs of each client. This adaptability is very helpful when putting displays together with special parking management software or working around the architectural limitations of historic buildings.

The company puts the customer first by doing things like visiting clients in person once a year to prioritise face-to-face communication. These activities give us a chance to learn about how needs are changing, deal with practical issues, and build stronger long-term partnerships that go beyond simple supply relationships.

Quality Assurance and Compliance Standards

Manufacturing quality determines long-term reliability and TCO. ISO 9001:2015 certification indicates that you plan quality management across planning, manufacturing, and delivery. This architecture maintains product quality throughout production runs and offers audit trails to hold individuals responsible for issues.

To provide component-level quality control, red and green LEDs undergo wavelength consistency testing to maintain colour regularity within ±2.5nm limitations. This prevents unpleasant hue discrepancies on Parking Guidance led Display Screen surfaces. Before shipping, 72-hour ageing tests reveal defective items that kill infants. High/low temperature cycling examines solder junctions and housing material resilience throughout operating temperatures.

Environmental stress screening for parking replicates traffic stresses and motions via vibration models. Water spray testing validates IP65/IP66 weatherproof integrity for outside Parking Guidance led Display Screen systems. Salt spray testing offers coastal operations assurance since corrosive conditions accelerate equipment failure in improperly secured equipment.

Evaluating After-Sales Support Infrastructure

Comprehensive technical help infrastructure is what sets great providers apart from average ones. With 24/7 global after-sales support, ZOJE makes sure that customers can get help no matter what time zone they are in or what holiday they are celebrating. This coverage around the clock is very important for airports and other commercial buildings that are open all the time, since broken displays affect a lot of people and cause big problems with operations.

Installation guidance services lower the risk of implementation for clients who don't have the necessary technical know-how. ZOJE offers detailed documentation, remote consultation, and on-site commissioning support to make sure that the system is set up correctly and works at its best from the start. This hands-on method speeds up rollout times and gives clients more confidence in their ability to manage systems after they've been installed.

The terms of the warranty show that the maker trusts the product to work well. Two-year covering shows that you stand behind the quality of the product and protects clients from the costs of failure too soon. Transparent guarantee processes with clear response times and repair procedures reduce the amount of work that needs to be done when claims come in. This helps keep good relationships with clients even when things get tough.

Conclusion

Intelligent parking guidance systems that use cutting-edge LED display technology are changing how parking lots work in airports, shopping malls, office buildings, and city parks. Real-time data synchronisation, weatherproof construction, and easy-to-understand visual communication all work together to cut down on search times, make better use of space, and bring in more money. Strategic procurement that focuses on trusted makers that offer full customisation, reliable quality assurance, and strong after-sales support guarantees successful projects that give long-term value. As cities get more crowded and people need more parking, intelligent Parking Guidance led Display Screens are an important piece of infrastructure for places that want to run smoothly and give users a great experience.

FAQ

1. How complex is the installation process for parking guidance displays?

Installation difficulty varies on building setup and equipment. Installing, wiring, and setting up conventional entry displays with RS485 communication takes one to two days for skilled professionals. Systems linked to parking management platforms may need greater setup time for mapping protocols and data validation. ZOJE's installation instructions and technical help make deployment easy for non-experts.

2. What impact do LED guidance screens have on parking facility profitability?

Several factors increase income. Optimising traffic patterns helps facilities utilise space more effectively, allowing them to handle more cars during peak hours and increase hourly revenue. Automation reduces operational expenses by eliminating the need for traffic controllers. Better user experiences retain consumers and justify higher prices. Installation of intelligent guiding systems generally yields a return on investment (ROI) in 18 to 36 months, depending on use and local market conditions.

3. Are energy-efficient models available for large-scale parking facilities?

Parking Guidance led Display Screens employ energy-efficient technology such PWM drive circuits to consume 30% less power than previous versions. Ambient light sensors automatically lower brightness at night and on overcast days to save electricity. Big buildings with many screens consume less power with these features, which is beneficial for the environment and passes green building certification standards.

Upgrade Your Parking Operations With ZOJE

Adding clever guidance technology to your parking lot will make it more modern and improve both working efficiency and customer happiness. ZOJE Intelligent Technology Co., Ltd. is ready to help you with your project by providing tried-and-true Parking Guidance led Display Screen options that facility managers all over the world trust. No matter if you run a shopping mall, an airport hub, an office complex, or a city parking structure, our engineering team can help you with your unique needs.

ZOJE is a well-known supplier that makes Parking Guidance led Display Screens. They have ISO 9001:2015 certification and a lot of patents. Their goods are reliable and come with two-year warranties and expert help available 24/7 around the world. We can customise things in a number of ways, and our OEM and ODM services can be tailored to the needs of your project. Your implementation schedule will stay on track with standard delivery in 5–7 days and customised solutions in 10–15 days.

Email our team at info@zoje-tech.com to talk about your parking advice needs and get a thorough quote. Check out our full line of products at zoje-parking.com to see why site managers at shopping malls, airports and business buildings trust ZOJE for their smart parking solutions.
